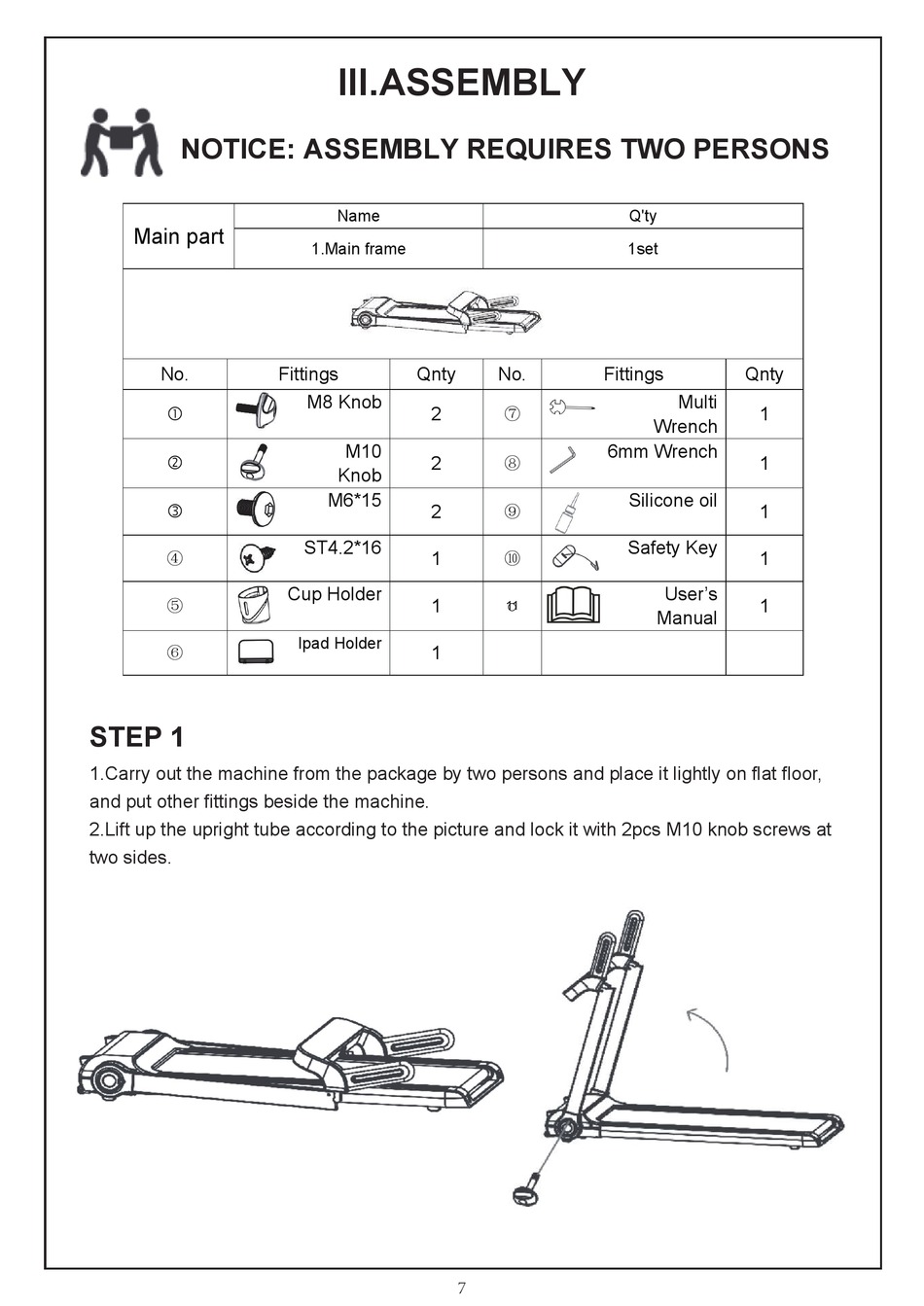

Assembly - HOMCOM A90-282V70 User Manual

NOTICE: ASSEMBLY REQUIRES TWO PERSONS
Main part
No.



④
⑤
⑥
STEP 1
1.Carry out the machine from the package by two persons and place it lightly on flat floor,
and put other fittings beside the machine.
2.Lift up the upright tube according to the picture and lock it with 2pcs M10 knob screws at
two sides.
III.ASSEMBLY
Name
1.Main frame
Fittings Qnty
M8 Knob
2
M10
2
Knob
M6*15
2
ST4.2*16
1
Cup Holder
1
Ipad Holder
1
Q'ty
1set
No. Fittings
⑦
6mm Wrench
⑧
Silicone oil
⑨
Safety Key
⑩
○
1 1
7
Qnty
Multi
1
Wrench
1
1
1
User's
1
Manual
