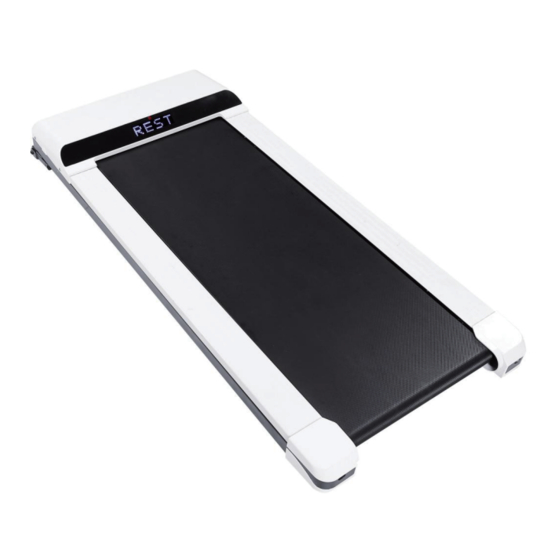

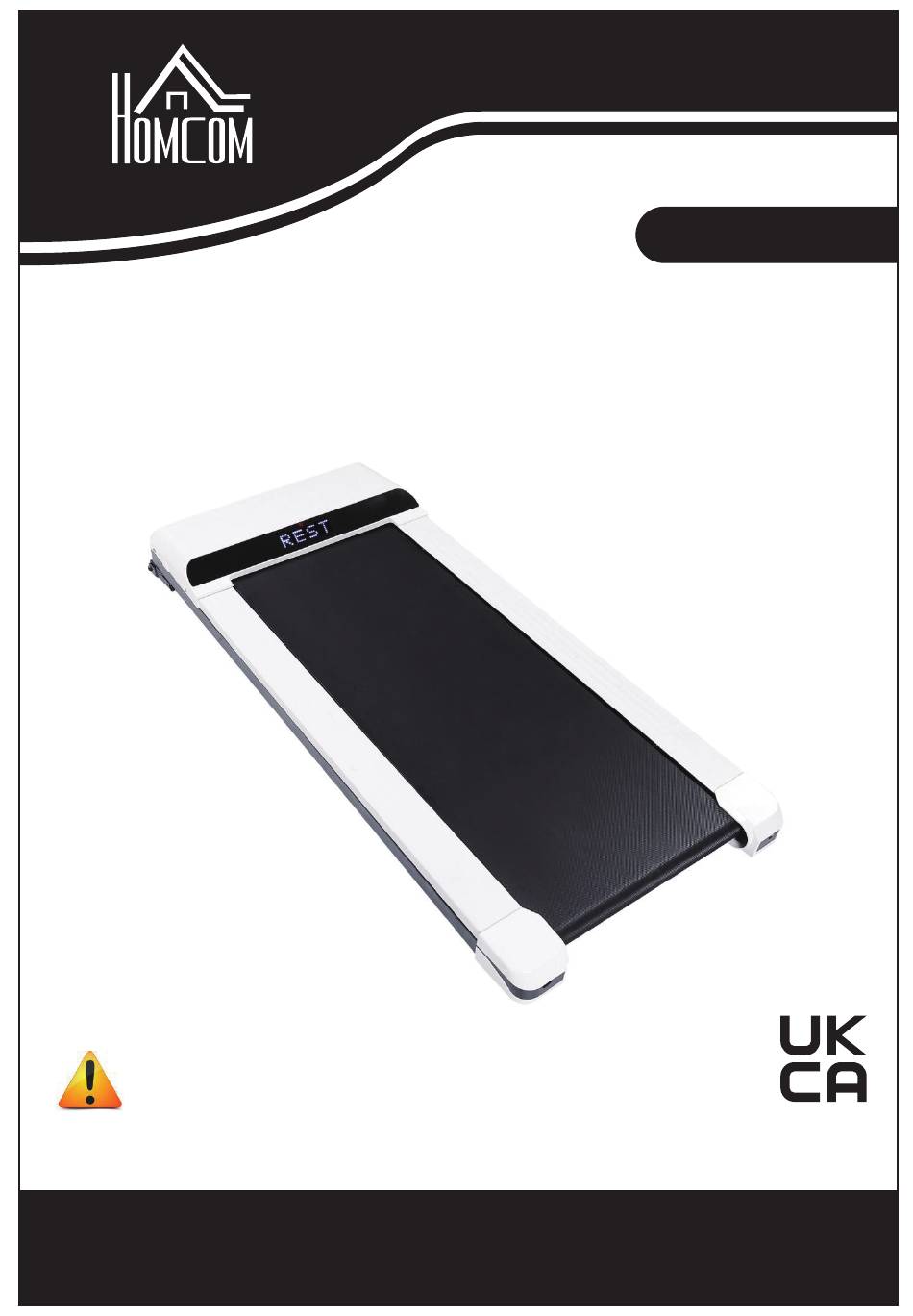

- Page 1 INapb004_UK A90-287V70 TREADMILL USER’S MANUAL * Maximum user weight is 90 kg. CAUTION Read all precautions and instructions in this manual before using this equipment. Keep this manual for future reference. ASSEMBLY & INSTRUCTION MANUAL...
-
Page 2: Table Of Contents
CONTENTS I. IMPORTANT PRECAUTIONS II. MAIN TECHNICAL FEATURES III. ASSEMBLY IV. WORKOUT GUIDELINES V. TREADMILL OPERATION VI. MAINTENANCE VII. RECYCLING INFORM VIIl. COMMON ERRORS... -
Page 3: Important Precautions
In order to decrease the risk of suffering severe injuries, read carefully all the important instructions and warnings regarding the use of a treadmill before using it. Homcom doesn’t take any responsibility for personal injuries or property damages result- ing from the use of this product. - Page 4 5-Place the unit on a flat surface. If the surface is uneven, the proper functioning could be affected. Some models include levellers or levelling threads behind the legs, helping the levelling. Please read the manual to verify if your unit is provided with one of them. 6-The unit must be placed in a ventilated area.
- Page 5 19-A correct lubrication of the treadmill with silicon oil or teflon is REALLY IMPORT- ANT. This lubrication must be performed regularly depending on each person, even before its first use.The lubrication must be carried out this way: disconnect the equipment of the electricity supply (in case you have one), pull up the tapestry from the side with one hand and spread the oil on the board.
-
Page 6: Main Technical Features
II.MAIN TECHNICAL FEATURES MOTOR COVER Foot pad RUNNING BELT Transportation wheel Folding frame END CAP SIDE STRIP Input Voltage 220-240V Frequency 50 HZ Running area 1050X410mm Function remote controller Speed Range 1.0-6.0KM/H Max user weight 90kgs Power 400W... -
Page 7: Assembly
III.ASSEMBLY NOTICE: ASSEMBLY REQUIRES TWO PERSONS Fittings remote controller Silicone oil 5mm wrench 6mm wrench Multi- wrench STEP 1 1.Carry out the machine from the package by two persons and place it lightly on flat floor, and put other fittings beside the machine. Plug in the power and turn on the switch. - Page 8 STEP 2 When not use the treadmill, please fold the machine in direction of arrow A until the trans- portation wheels pop up in direction of arrow B...
-
Page 9: Workout Guidelines
IV.WORKOUT GUIDELINES BEWARE: Before starting to use this or any exercise programs, consult your doctor. This is especially important for people older than 35 years old, or for people with health prob- lems. If your equipment is provided with a pulse sensor, you must keep in mind this isn’t a medi- cal instrument. -
Page 10: Treadmill Operation
V.TREADMILL OPERATION Controller SPEED + SPEED - 1.LED display: Speedy range 1 km - 6 km. MANUAL 2.Press “Speed +” key, speed will go up by 0.5 km. 3.Press “Speed -” key, speed will go down by 0.5 km. -
Page 11: Vi. Maintenance
VI. MAINTENANCE This product must be earthed. If the power cord is damaged, it must be replaced with a manufacturer recommended power cord. DO NOT TANGLE THE POWER CORD REGULAR MAINTENANCE OF THE TREADMILL • STORAGE: Keep your equipment in a enclosed place, away from dust or humidity. Don’t store it neither in a garage or in a indoor backyard, or near the water. - Page 12 Do not lubricate more than what you need to. Remember: regular and reasonable lubrica- tion is to improve the lifespan of your treadmill. Whether it is necessary to lubricate, make sure the machine is switched off and unplug the electricity. Lift the running belt, observe if there are any silicon remaining on the running board which is under therunning belt.
- Page 13 • TIGHTEN THE BELT: (if the belt slips on the treadmill when walk- ing). Start treadmill and increase the speed to 3MPH.Using the 5 mm Wrench, turn both bolts 1/4 clockwise. If the belt is properly tight to walk, you must be able to pull up each side of the belt 5 or 7 cm off the platform.
-
Page 14: Recycling Inform
VII.RECYCLING INFORMATION This electronic product must not be disposed of in municipal waste. To preserve the envi- ronment, this product must be recycled after its useful life as required by law. VIII. COMMON ERRORS: If no display on screen after power on, maybe the pcb connecting line is not well connect- ed or the transformer is broken.
