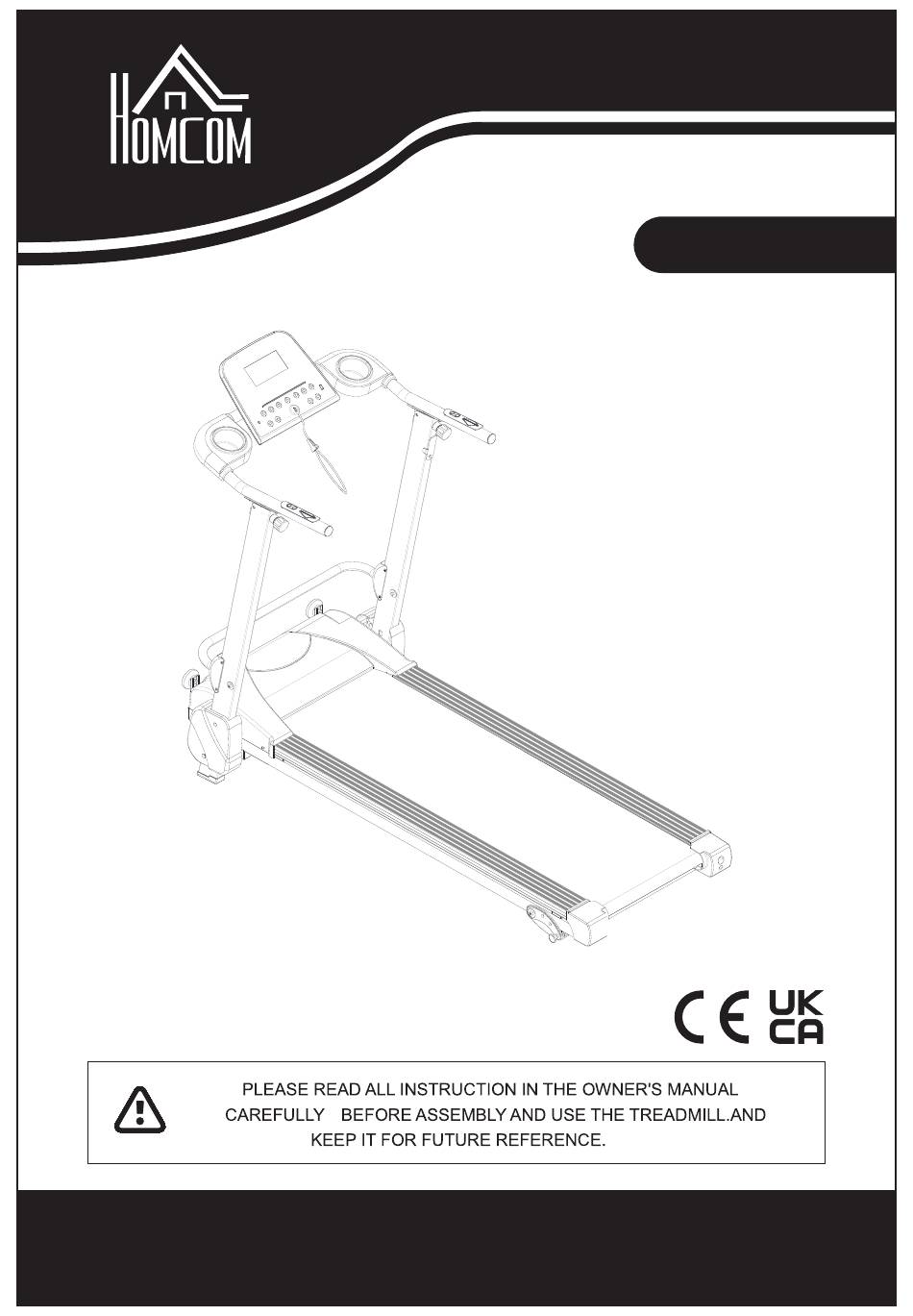

- Page 1 INan002V02_UK A 9 0 - 225 V 7 0 ASSEMBLY INSTRUCTION...
-
Page 2: Table Of Contents
Table of Contents Catalogue -----------------------------------------------------------------------------------------------------------------------------2 Safety Instructions -------------------------------------------------------------------------------------------------------------3 Parts List ------------------------------------------------------------------------------------------------------------------------------4 Assembly Instructions ------------------------------------------------------------------------------------------------------5 Folding Instructions ---------------------------------------------------------------------------------------------------------7 Incline Instruction ---------------------------------------------------------------------------------------------------------------9 Ground Guide ---------------------------------------------------------------------------------------------------------------------9 Function Instruction ---------------------------------------------------------------------------------------------------------10 Getting Started Guide ---------------------------------------------------------------------------------------------------- 16 Safety Exercise Instructions --------------------------------------------------------------------------------------------17 Warm Up Exercise -------------------------------------------------------------------------------------------------------------18 Maintenance Guide ----------------------------------------------------------------------------------------------------------19 Belt Adjustment ------------------------------------------------------------------------------------------------------------------19... -
Page 3: Safety Instructions
Safety Instructions Warning: Consult with your physician or health professional before starting your workout, especially necessary if your age is up to 35 or once had healthy problem. We take no responsible for any troubles or hurts if you don’t following our instructions. Treadmill should be carefully assembled and covered with the motor shield before connected to the power. -
Page 4: Parts List
14、When the equipment is not used, please cut off the power by pulling off the plug. While cutting off the powder, do not pull the power line which may cause broken to the line. Once the power-line is broken, please purchase the power-line from the distributor or contact with our company directly, as the power-line is dedicated to the treadmill. -
Page 5: Assembly Instructions
STEP 1：Rotate the locking plate (06) 90° in arrow direction .(P1) STEP 2：Pull out plastic film from Upright Post Frame(02L/R). (P2). Pull out them STEP 3：Rotate the Upright Post Frame(02R/L) as the direction of the arrow. (P3).Keep holes of Upright Decoration Cover (24L/R ) inline with holes of Upright Post Frame(02L/R) ,then lock Upright Decoration Cover (24L/R ) well by using Screw(60). - Page 6 STEP 4：Adjust the handle bar(03) until holes are aligned，then install quick pull pin(32) and tighten them in arrow direction .(P4) 0 2 R 0 2 L STEP 5：Adjust the computer(13)to the required angle, then install knob(33）and lock it.(P5)
-
Page 7: Folding Instructions
Folding Instructions STEP 1：Turn the knob(33）loose， rotate the computer(13) 135°in arrow direction .(P6) STEP 2：Pull out the pins(32) in the direction of the arrow，at the same time , rotate the handle bar(03) forward in place.(P7) - Page 8 02L/R STEP 3：Pull the adjust bar（67）in place as the direction of the arrow , at the same time rotate the upright post frame(02L/R) in the arrow direction to level the main frame(01)，(P8) then turn back the locking plate (06) in beginning position.(P9) STEP 4：...
-
Page 9: Incline Instruction
Ground Guide This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. -
Page 10: Function Instruction
Function Instruction WINDOW DISPLAY 1.Sketch The function of computer ·MP3 interface playback function ·USB interface playback function ·Hand- pulse function Terminological conventions used in the instructions： Treadmill parameters："SPEED" value. Motion parameter："DIS" value, "TIME" value，"CAL" value，" BEAT" value. Motion mode: manual, mode, program Manual Motion Mode: Motion Mode without Setting Motion Volume. - Page 11 · Heartbeat display 4. Button Function Description ·SPEED QUICK BUTTON（3,5,7,9,12） ·START/STOP ·“PROGRAM” BUTTON “MODE” BUTTON ·“SPEED +/- ”BUTTON 5. Button Function ·START Button: Start Motor Operation Operational Description：1. When the computer is standby, the countdown time of 5 seconds after pressing this button can start the motor.
- Page 12 ·SPEED QUICK Button：Direct Selection of Runtime Speed Values Operational Description： In the running state of the computer, press this button to select the corresponding speed value directly. 6. Motion Mode Description A、Manual Motion Mode Enter the manual mode: After the computer is fully displayed on power, it enters the initial standby state.
- Page 13 Running instructions：Initial speed of 0.8 KM/H, the terms of the calorie counting, counting calories window, window of time and distance are counting from scratch, press “SPEED +/- ” button, the size of the adjustable speed value, can adjust the size of the gradient value operation, when calorie meter to zero, set up electronic watch began to slowly stop running, speed reduction to zero after the return to the initial standby mode automatically.
- Page 14 speed is automatically adjusted to the set value of the section. 7. Functional description of body fat test Enter Body Fat Test Settings ： In the initial standby state or mode setting state, press the "PROGRAM" button to select the body fat test setting (in the P12 automatic program setting state, press the "PROGRAM"...
- Page 15 Note: Hand Pulse heartbeat test data can not be used as medical data only as a reference for exercise because of the way of measurement and the reasons of many influencing factors. 9. Description Of Dormancy Function When the treadmill stops running, if there is no operation for more than 10 minutes, it will enter a dormant state.
-
Page 16: Getting Started Guide
Gettingss Stasrted Guide Warm up stage： If you are over 35 years old, or not very healthy, also it’s your first time exercise, please consult with your doctor or professional person. Before you use the motorized treadmill, please learn how to control the machine, know well how to start, stop, adjust the speed and so on;... -
Page 17: Safety Exercise Instructions
Safety Exercise Instructions Consult with your physician or health professional before starting your workout. The professional people can help you make up the suitable exercise time-chart according to your age and health condition; determine the velocity of movement, the intensity of exercise. Please stop at once, if you feel chest tightness, chest pain, irregular heartbeat, breath difficulty, dizziness or other discomfort during exercise. -
Page 18: Warm Up Exercise
Warm Up Exercise Before exercise, it is better Warm muscles stretch more easily, so the first of 5 ~ 10 minutes to warm up. Then in accordance with the following methods to stop and do stretching exercises - do five times, each leg every time 10 seconds or more time to do it again after the end of the exercise. -
Page 19: Maintenance Guide
Maintenance Guide Warning: ALWAYS UNPLUG THE TREADMILL FROM THE ELECTRICAL OUTLET BEFORE CLEANINGOR SERVICING THE UNIT. Clean: General cleaning or the unit will greatly prolong the treadmill. Keep treadmill clean by dusting regularly. Be sure to clean the exposed part of the deck on either side of the walking belt and also the side rails. -
Page 20: Explosive Diagram
Explosive Diagram If the belt has drifted to the right, unplug the safety lock and power switch, and turn the right adjusting bolt 1/4 turn clockwise, then insert the power switch and safety lock, re-start the treadmill and observe the running belt to see if it deviates. -
Page 21: Parts Catalog Lists
Parts Catalog Lists -21-... - Page 22 Parts Catalog Lists Q’T DESC SPEC DESC SPEC Q’TY Main Frame Adjust bar cover Upright Post Frame Handle Bar Power Wire Clip Handle Bar locking plate Adjust board Φ Φ locking plate Front Roller Φ Φ Rear Roller Φ Φ Φ...
- Page 23 DESC SPEC Q’TY DESC SPEC Q’TY Φ Φ Φ Φ Φ Φ -23-...
-
Page 24: Meanings Of Error Message Codes
Meanings of Error Message Codes Treadmill DC system Error message instructions E01：Indicate abnormal phenomena of computer and electronic control communication E01 Solutions to The communication line of the computer Please reconnect the communication line Common is not well connected, broken and in bad Problems contact. - Page 25 E05：Indicate information hint for down-control overcurrent protection of measuring motor E05 Solutions to The treadmill load exceeds the rated Recommended in the rated operating current Common operating current of the motor range of the motor Problems Problems in the assembly structure of Check whether the treadmill structure is normal treadmill motor...
