Serverboard Details

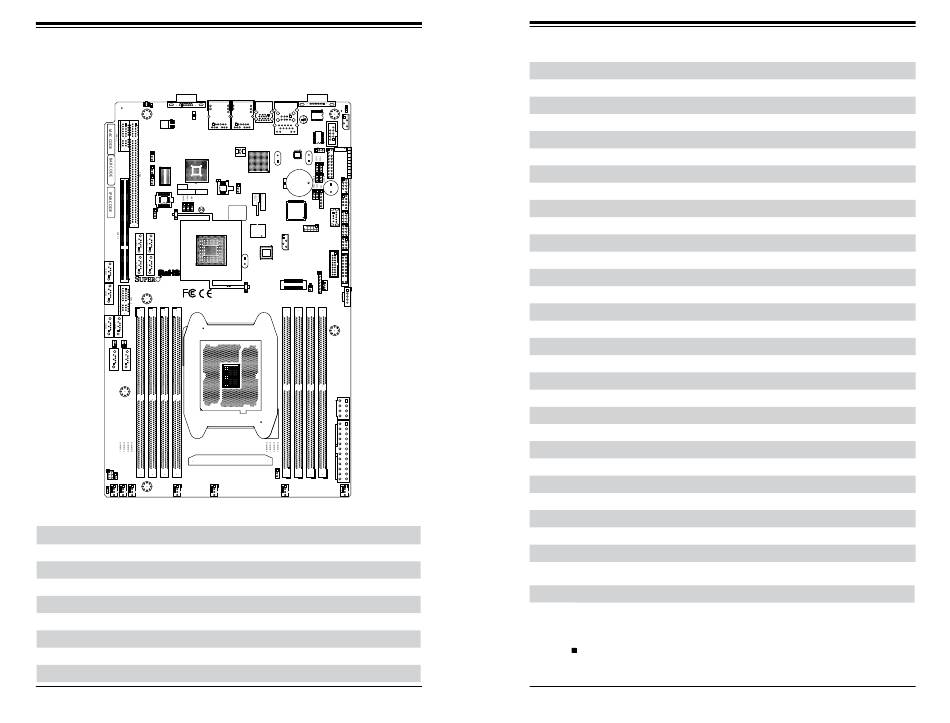

Figure 5-6. X10SRW-F Layout
VGA
UID-SW
LE1
1
JBRSET1
JPL2
JPL2 :LAN1
1-2:ENABLE
2-3:DISABLE
JPL3
JPL3 :LAN2
1-2:ENABLE D
2-3:DISABLE
JWD:Watch Dog
1-2:RST
2-3:NMI
JPME2: JBR1
1-2:NORMAL 1-2:NORMAL
2-3:ME MANUFACTURE MODE 2-3:BIOS RECOVERY
JBT1
CMOS CLEAR
JPB1:BMC
1-2:ENABLE
2-3:DISABLE
JPB1
2
1
X10SRW-F
REV: 1.02B
DESIGNED IN USA
CPU
JSD2 JSD1
I-SATA4 I-SATA5
JP4
JL1
FAN7 FAN6 FAN5 FAN4 FAN3

X10SRW-F Quick Reference

Jumper Description
JBR1 BIOS Recovery
JBRSET1 FIQ Request
JBT1 CMOS Clear
JI C1/JI C2 SMB to PCI-E Slots
2 2
JPB1 BMC Enable/Disable
JPG1 VGA Enable
JPL1 LAN Enable
JWD1 Watch Dog Enable
COM1
USB0/1(3.0)
USB2/3(3.0)
IPMI LAN
JIPMB1
LAN2 LAN1
1
+
2
3
COM2 4
IPMI
JF1
JPL1
JPL1/LAN
Q
1 2 1-2:ENABLE
2-3:DISABLE
JTPM1
1 1
LEDM1
19 20
JPG1
Battery
SP1
1-2:ENABLE
2-3:DISABLE
1 1
26
USB8(3.0)
BIOS LICENSE
USB9/10
T-SGPIO3
(SATA SGPIO2) 1
T-SGPIO2
(SATA SGPIO1)
T-SGPIO1 JNVI2C1
(SATA SGPIO0)
T
USB11/12(3.0)
JD1:
PWR LED-PIN 1-3
SPEAKER-PIN 4-7
JD1
JSTBY1
JOH1 1
19 20
JPI2C1
I
CPU
JVR1
1
JPWR1
FAN2
FAN1
Default
Pins 1-2 (Normal)
Pins 1-2 (Normal)
See Section 5-9
Pins 2-3 (Disabled)
Pins 1-2 (Enabled)
Pins 1-2 (Enabled)
Pins 1-2 (Enabled)
Pins 1-2 (Reset)
5-12
Connector Description
COM1/COM2 COM1 (Port)/COM2 (Header)
FAN1-2, FAN4-7 System/CPU Fan Headers
J24 24-pin Main ATX Power Connector
JD1 Speaker/Buzzer
JF1 Front Panel Control Header
JIPMB1 System Management Bus Header for the IPMI Slot
JL1 Chassis Intrusion Header
JOH1 Overheat LED/Fan Fail
JPI C1 Power SMB (System Management Bus)
2
JPWR1 8-pin CPU Power Connector
JSD1/JSD2 SATA DOM (Device On Module) Power Connector
JSTBY1 Standby Power Header
JTPM1 Trusted Platform Module/Port 80 Connector
JUIDB1 UID (Unit Identification) Button
LAN1/LAN2 Gigabit (RJ45) Ports (LAN1/2)
IPMI_LAN IPMI_Dedicated LAN
I-SATA 0-3, S-SATA 0-3 (Intel PCH) SATA 3.0 Ports 0-3, S-SATA 3.0 Ports 0-3
SATA 4/5 SATA DOM (Disk On Module) Ports 4/5
SP1 Internal Speaker/Buzzer
SXB1A/SXB1B/SXB1C SMC-Proprietary WIO_L (Left) Add-On Card Slots
SXB2 SMC-Proprietary WIO_R (Right) Add-On Card Slot
T-SGPIO 1/2/3 Serial Link General Purpose I/O Headers
UID SW Unit Indentifier Switch
USB 0/1 Backpanel USB 3.0 Ports 0/1
USB 2/3 Backpanel USB 2.0 Ports 2/3
USB 4/5, 6/7, 9/10 Front Panel Accessible USB 2.0 Headers 4/5, 6/7, 9/10
USB 8 USB 3.0 Type A Header
USB 11/12 (3.0) Front Panel Accessible USB 3.0 Ports 11/12
VGA Backpanel VGA Port
LED Description State/Color
LE1 UID LED Blue: On
LEDM1 BMC Heartbeat LED Green: Blinking
Notes
•
" " indicates the location of "Pin 1".
•
Jumpers not indicated are for test purposes only.
5-13
Chapter 5: Advanced Serverboard Setup
Status
Unit Identified
BMC Normal
