UPER ERVER 1018R-WC0R User's Manual
5-5

Installing Memory

Caution! Exercise extreme care when installing or removing DIMM modules to
prevent any possible damage.

Memory Support

The X10SRW-F supports up to 1 TB of ECC 3DS LRDIMM (Load-Reduced DIMMs),
512 GB of ECC LRDIMM or up to 256 GB of ECC RDIMM (Registered DIMM)
DDR4-2400/2133/1600/1333 memory in eight DIMM sockets.

DIMM Installation

Installing Memory Modules
1. Insert the desired number of DIMMs into the memory slots starting with
DIMMA1. See the Memory Installation Tables below.
2. Insert each DIMM module vertically into its slot. Pay attention to the notch
along the bottom of the module to avoid installing incorrectly (see Figure 5-4).
3. Use your thumbs to gently press down on both ends of the DIMM module
until it snaps into place in the slot. Repeat for all modules.
4. Press the release tabs to the locked positions to secure the DIMM module
into the slot.

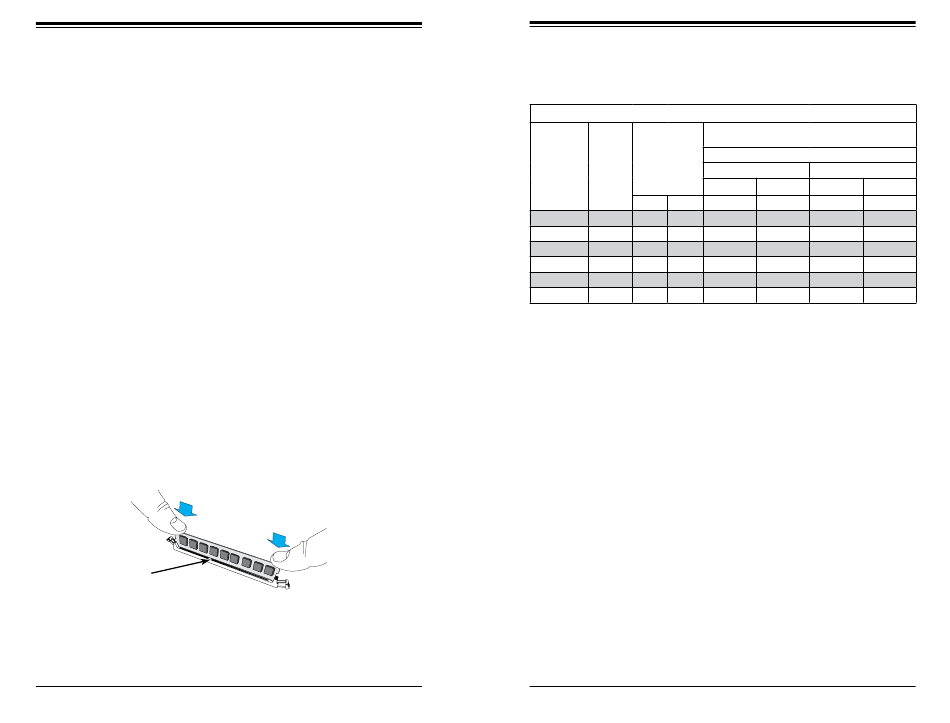

Figure 5-4. DIMM Installation
Socket Key
5-8
DIMM Module Population Table
Follow the table below when installing memory.
Populating RDIMM/LRDIMM DDR4 Memory Modules
Speed (MT/s); Voltage (V); Slots per Channel (SPC) and
Ranks
DIMM Capacity
Per DIMM
(GB)
Type
and Data
Width
E5-2600 V3
4 Gb 8 Gb
RDIMM SRx4 8 GB 16 GB
RDIMM SRx8 4 GB 8 GB
RDIMM DRx8 8 GB 16 GB
RDIMM DRx4 16 GB 32 GB
LRDIMM QRx4 32 GB 64 GB
LRDIMM 3DS 8Rx4 64 GB 128 GB
5-9
Chapter 5: Advanced Serverboard Setup
DIMMs per Channel (DPC)
2 Slots per Channel
1 DPC 2 DPC
E5-2600 V4 E5-2600 V3 E5-2600 V4
1.2 V 1.2 V 1.2 V 1.2 V
2133 2400 1866 2133
2133 2400 1866 2133
2133 2400 1866 2133
2133 2400 1866 2133
2133 2400 2133 2400
2133 2400 2133 2400
