Using DDR4 DIMMs with different operating frequencies is not allowed. Be sure to
use memory modules of the same type, same speed, same frequency on the same
motherboard. All channels in a system will run at the lowest common frequency.
Due to memory allocation to system devices, the amount of memory that remains
available for operational use will be reduced when 4 GB of RAM is used. The re-
duction in memory availability is disproportional. See the following table for details.
Possible System Memory Allocation & Availability
System Device
Firmware Hub flash memory (System BIOS)
Local APIC
Area Reserved for the chipset
I/O APIC (4 Kbytes)
PCI Enumeration Area 1
PCI Express (256 MB)
PCI Enumeration Area 2 (if needed) -Aligned on 256-
MB boundary-
TSEG
Memory available to OS and other applications
Size Physical Memory
Remaining (Available)
(4 GB Total System
Memory)
1 MB 3.99
4 KB 3.99
2 MB 3.99
4 KB 3.99
256 MB 3.76
256 MB 3.51
512 MB 3.01
1 MB 2.84
2.84
5-10
5-6

Adding PCIe Add-On Cards

The 1018R-WC0R can accommodate two full-height, full-length PCIe 3.0 x16 and
one low-profile, half-length PCIe 3.0 x8 add-on (expansion) cards installed to the
riser cards included in the system.
Installing an Add-on Card
1. Begin by removing the shield located by the riser card.
2. Fully seat the card into the riser, pushing down with your thumbs evenly on
both sides of the card.
3. Finish by using a screw to secure the top of the card shield to the chassis.
The PCIe slot shields protect the serverboard and its components from EMI
and aid in proper ventilation, so make sure there is always a shield covering
each unused slot.

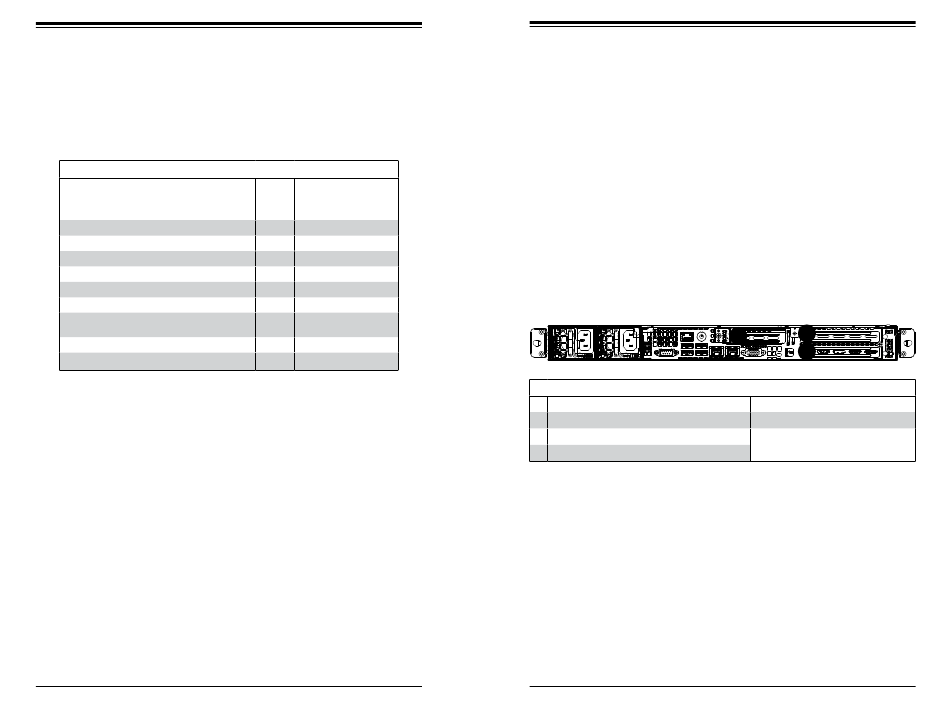

Figure 5-5. PCI Expansion Card Configuration
PCIe Card Locations
# Expansion Card
1 One low-profile, half-length PCIe 3.0 x8 card
2 One full-height, full-length PCIe 3.0 x16 card
3 One full-height, full-length PCIe 3.0 x16 card
Chapter 5: Advanced Serverboard Setup
1
2
1
1
1
3
Riser Card
RSC-R1UW-E8R-O-P
RSC-R1UW-2E16-O-P
5-11
