UPER ERVER 1018R-WC0R User's Manual
Secure to the
Front of the Rack
Attach Outer Rails
together

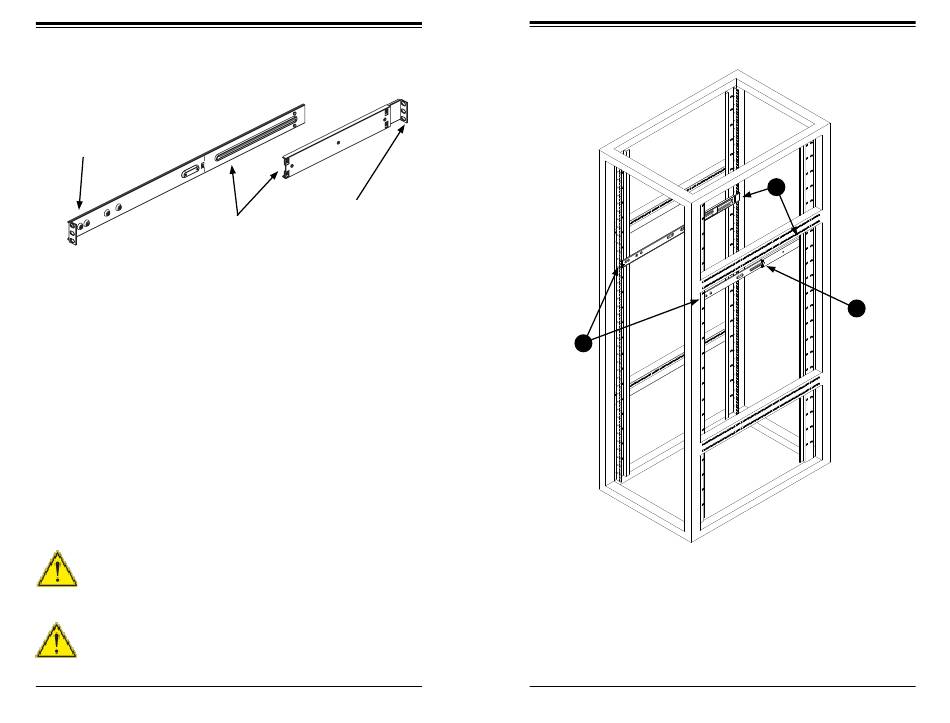

Figure 2-3. Assembling the Outer Rails

Outer Rails

Installing the Outer Rails to the Rack
1. Attach the shorter outer rail to the outside of the longer outer rail. You must
align the pins with the slides. Both bracket ends must face the same direction.
2. Adjust both the shorter and longer rails to the proper distance so that the rail
fits snugly into the rack.
3. Secure the long bracket to the front side of the outer rail with two M5 screws
and the short bracket to the rear side of the outer rail with three M5 screws.
4. Repeat steps 1-4 for the left outer rail.
Stability hazard. The rack stabilizing mechanism must be in place, or the
rack must be bolted to the floor before you slide the unit out for servicing.
Failure to stabilize the rack can cause the rack to tip over.
Slide rail mounted equipment is not to be used as a shelf or a work space.
Secure to the
Rear of the Rack
2-6
1
3
Figure 2-4. Installing the Outer Rails to the Server Rack
Note: figures are for illustrative purposes only. Always install servers to the bottom
of a rack first.
2-7
Chapter 2: Server Installation
