3.3

Extension Connectors

Pin Assignment for Extension Connectors

NuTFT Kit Board is equipped with one SPI flash, one LCD panel with touch function, one five direction
joystick and two push buttons for developing and verifying some special feature. Besides, the pin
arrangement of NuTFT Kit Board is compatible with Arduino UNO.
NC
NC
NC
3.3V
NC
GND
GND
NC
ADC-YU
ADC-XL
ADC-YD
ADC-XR
Button-SW7
Button-SW8

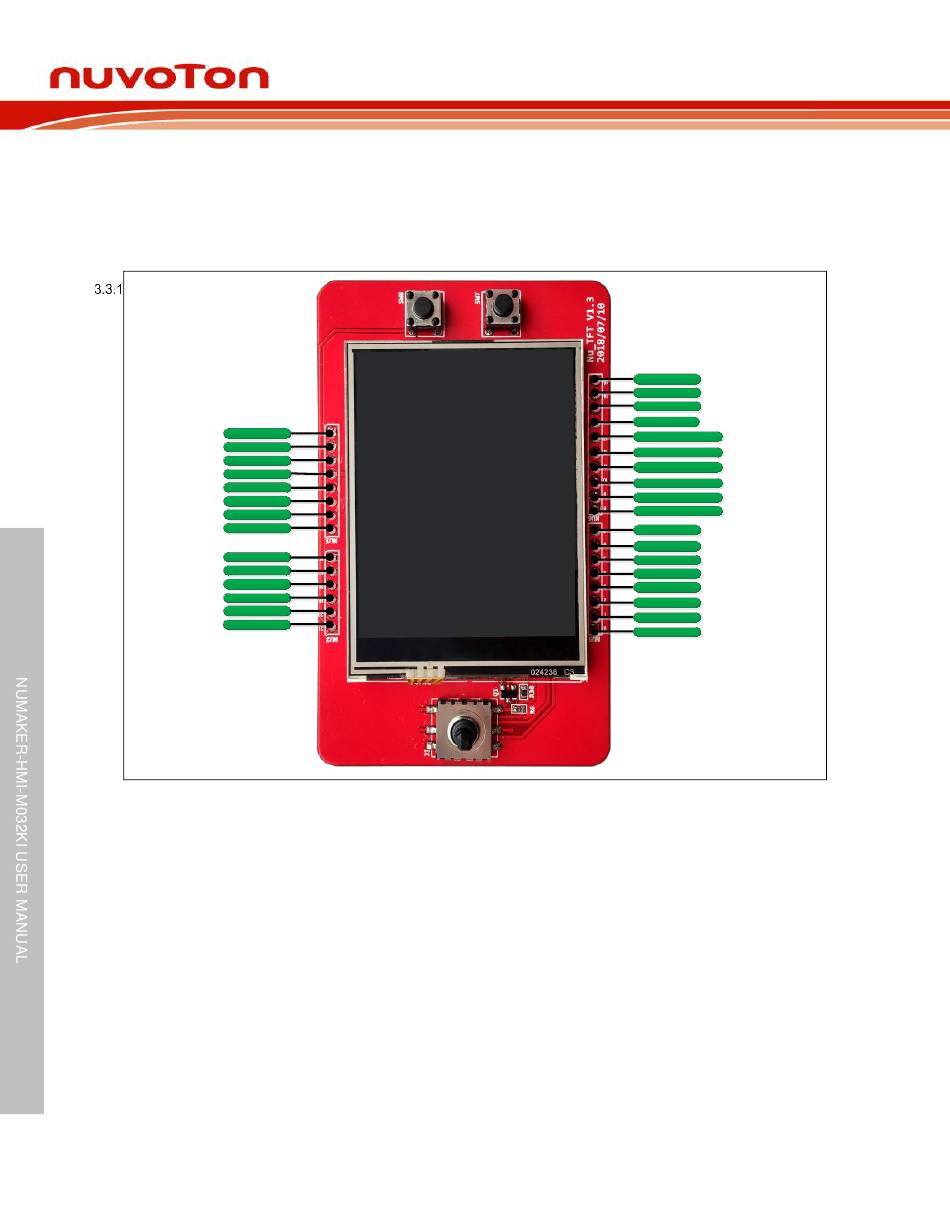

Figure 3-3 NuTFT Kit Board Extension Connectors – Front View
May 25, 2022
NuMaker-HMI-M032KI
Page 12 of 58
NC
NC
NC
VSS
SPIFlash-CLK
SPIFlash-MISO0
SPIFlash-MOSI0
SPIFlash-SS
SPIFlash-MOSI1
SPIFlash-MISO1
LCM_LED
Joystick-R
Joystick-U
Joystick-L
Joystick-D
Joystick-M
LCM_RESET
LCM_DC
Rev 1.00
