NuMaker-M467HJ
NuMicro
®
Family
Arm
®
Cortex
®
-M4-based Microcontroller
NuMaker-M467HJ
User Manual
Evaluation Board for NuMicro
®
M460 Series
The information described in this document is the exclusive intellectual property of
Nuvoton Technology Corporation and shall not be reproduced without permission from Nuvoton.
Nuvoton is providing this document only for reference purposes of NuMicro microcontroller and
microprocessor based system design. Nuvoton assumes no responsibility for errors or omissions.
All data and specifications are subject to change without notice.
For additional information or questions, please contact: Nuvoton Technology Corporation.
www.nuvoton.com
Jun. 28, 2022
Page 1 of 66
Rev 1.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NuMicro NuMaker-M467HJ and is the answer not in the manual?

Questions and answers

Related Manuals for Nuvoton NuMicro NuMaker-M467HJ

Summary of Contents for Nuvoton NuMicro NuMaker-M467HJ

  • Page 1 The information described in this document is the exclusive intellectual property of Nuvoton Technology Corporation and shall not be reproduced without permission from Nuvoton. Nuvoton is providing this document only for reference purposes of NuMicro microcontroller and microprocessor based system design. Nuvoton assumes no responsibility for errors or omissions.

  • Page 2: Table Of Contents

    3.9.2 Status LEDs ........................31 4 QUICK START ....................32 4.1 Toolchains Supporting ....................32 4.2 Nuvoton Nu-Link Driver Installation ................32 4.3 BSP Firmware Download ................... 34 4.4 Hardware Setup ......................34 4.5 Find the Example Project ................... 36 4.6 Execute the Project under Toolchains ..............
  • Page 3 NuMaker-M467HJ 5.2 M467HJ Target Board ....................50 5.2.1 Power Source........................50 5.2.2 M467HJHAN ........................51 5.2.3 HyperRAM ........................52 5.2.4 SPI Flash ......................... 53 5.2.5 Full-speed USB ....................... 54 5.2.6 High-speed USB ......................55 5.2.7 SD Card ........................... 56 5.2.8 Extension Connectors ....................57 5.2.9 Arduino UNO I/F ......................
  • Page 4 NuMaker-M467HJ List of Figures Figure 1-1 NuMaker-M467HJ Evaluation Board ................7 Figure 3-1 Front View of NuMaker-M467HJ ..................9 Figure 3-2 Rear View of NuMaker-M467HJ ................... 11 Figure 3-3 M467HJHAN Extension Connectors ................12 Figure 3-4 Arduino UNO Compatible Extension Connectors ............19 Figure 3-5 External Power Supply Sources on Nu-Link2-Me ............
  • Page 5 NuMaker-M467HJ Figure 4-28 NuEclipse Debug Mode ....................48 Figure 4-29 Debug Message on Serial Port Terminal Windows ............ 48 Figure 5-1 Nu-Link2-Me Circuit ...................... 49 Figure 5-2 Power Source Circuit ....................50 Figure 5-3 M467HJHAN Circuit...................... 51 Figure 5-4 HyperRAM Circuit ......................52 Figure 5-5 SPI Flash Circuit ......................
  • Page 6 NuMaker-M467HJ List of Tables Table 3-1 Extension Connectors ....................12 Table 3-2 M467HJHAN Full-pin Extension Connectors and GPIO Function List ......18 Table 3-3 Arduino UNO Extension Connectors and M467HJHAN Mapping GPIO List ....20 Table 3-4 Vin Power Source ......................21 Table 3-5 5V Power Sources ......................

  • Page 7: Overview

    NuMaker-M467HJ OVERVIEW The NuMaker-M467HJ is an evaluation board for Nuvoton NuMicro M467SJ, M467KJ, M467JJ, M467HJ microcontrollers. The NuMaker-M467HJ consists of two parts: an M467HJ target board and an on-board Nu-Link2-Me debugger and programmer. The NuMaker-M467HJ is designed for project evaluation, prototype development and validation with power consumption monitoring function.

  • Page 8: Features

    Online/offline programming – Virtual COM port function –  On-board components: 32Mb SPI Flash – 64Mb HyperRAM – Thermal sensor (Nuvoton NCT7717U) – User LEDs and user buttons – 10/100M ethernet PHY – FS-USB OTG and HS-USB OTG – Audio Codec –...

  • Page 9: Hardware Configuration

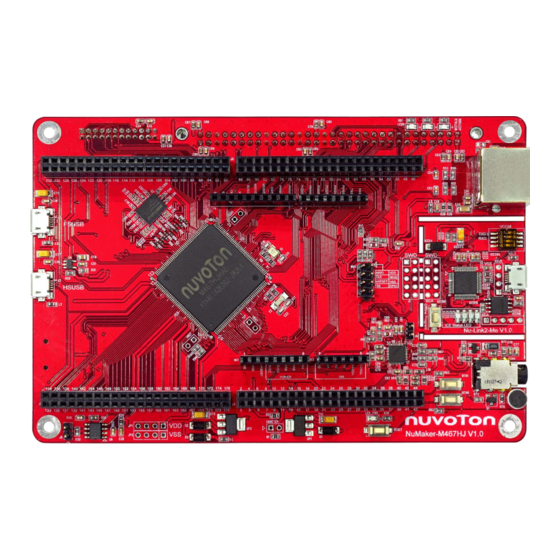

    NuMaker-M467HJ HARDWARE CONFIGURATION Front View M467HJHAN Arduino UNO Compatible Extension Connectors User LEDs RJ-45 Connector Nu-Link2-Me HyperRAM FS-USB Connector VCOM Switch ICE USB Connector HS-USB Connector ICE Chip: M48SSIDAE ICE Status LED Off-line Program Button M467 Target Board Phonejack CAN FD Transceiver Reset Button Power LED M467HJHAN...
  • Page 10 NuMaker-M467HJ  Nu-Link2-Me VCOM Switch – ICE Chip: M48SSIDAE (ICEU2) – ICE USB Connector (ICEJ3) – ICE Status LED (ICES0, ICES1, ICES2, ICES3) – Off-line Program Button (ICESW1) – Jun. 28, 2022 Page 10 of 66 Rev 1.00...

  • Page 11: Rear View

    The following lists components and connectors from the rear view:  CMOS Sensor Connector (CON1)  TFT LCD Panel Connector (CON2)  SD Card Connector (U5) and SD Card Power LED (SD_PWR)  Thermal Sensor (U10, Nuvoton NCT7717U)  SPI Flash (U11)  Nu-Link2-Me MCUVCC Power Switch (ICEJPR1) –...

  • Page 12: Extension Connectors

    NuMaker-M467HJ Extension Connectors Table 3-1 presents the extension connectors. Connector Description J4, J5, J6 and J7 Full pins extension connectors on the NuMaker-M467HJ. NU1, NU2, NU3, Arduino UNO compatible pins on the NuMaker-M467HJ. NU4 and NU5 CON1 CMOS sensor connector on the NuMaker-M467HJ. CON2 TFT LCD panel connector on the NuMaker-M467HJ Table 3-1 Extension Connectors...
  • Page 13 NuMaker-M467HJ M467HJHAN Header Pin No. Function PB.5 / EADC0_CH5 / ACMP1_N / EBI_ADR0 / SD0_DAT3 / EMAC0_RMII_REFCLK / SPI1_MISO / I2C0_SCL / UART5_TXD / SC0_CLK / I2S0_BCLK / EPWM0_CH0 / UART2_TXD / TM0 / INT0 / JP4.1 PSIO0_CH4 / KPI_COL6 PB.4 / EADC0_CH4 / ACMP1_P1 / EBI_ADR1 / SD0_DAT2 / EMAC0_RMII_RXD0 / SPI1_MOSI / I2C0_SDA / UART5_RXD / SC0_DAT / I2S0_MCLK / EPWM0_CH1 / UART2_RXD / TM1 / INT1 / JP4.2...
  • Page 14 NuMaker-M467HJ M467HJHAN Header Pin No. Function PI.7 / SC1_PWR / I2S0_MCLK / SPI1_MISO / UART2_RXD / I2C1_SDA / CAN3_RXD / JP4.29 USB_VBUS_EN PI.8 / SC1_RST / I2S0_DI / SPI1_MOSI / UART2_nRTS / I2C0_SMBAL / CAN2_TXD JP4.30 PI.9 / SC1_DAT / I2S0_DO / SPI1_CLK / UART2_nCTS / I2C0_SMBSUS / CAN2_RXD JP4.31 PI.10 / SC1_CLK / I2S0_LRCK / SPI1_SS / UART2_TXD / I2C0_SCL / CAN3_TXD JP4.32...
  • Page 15 NuMaker-M467HJ M467HJHAN Header Pin No. Function PC.7 / EBI_AD9 / EMAC0_RMII_RXD0 / SPI1_MISO / UART4_TXD / SC2_PWR / UART0_nCTS / I2C1_SMBAL / UART6_TXD / ACMP2_WLAT / EPWM1_CH2 / BPWM1_CH0 / CAN3_TXD / TM0 / JP6.18 INT3 / KPI_COL3 PC.6 / EBI_AD8 / EMAC0_RMII_RXD1 / SPI1_MOSI / UART4_RXD / SC2_RST / UART0_nRTS / I2C1_SMBSUS / UART6_RXD / ACMP3_WLAT / EPWM1_CH3 / BPWM1_CH1 / CAN3_RXD / TM1 JP6.19 / INT2 / KPI_COL2...
  • Page 16 NuMaker-M467HJ M467HJHAN Header Pin No. Function PC.3 / EBI_AD3 / SPIM_SS / QSPI0_SS / SC1_PWR / I2S0_MCLK / SPI1_MISO / UART2_nRTS / I2C0_SMBAL / CAN1_TXD / UART3_TXD / EPWM1_CH2 / CCAP_DATA3 / QSPI1_MISO0 / JP5.3 I2C3_SCL / HBI_nCS / PSIO0_CH2 / KPI_ROW2 PC.2 / EBI_AD2 / SPIM_CLK / QSPI0_CLK / SC1_RST / I2S0_DI / SPI1_MOSI / UART2_nCTS / I2C0_SMBSUS / CAN1_RXD / UART3_RXD / EPWM1_CH3 / CCAP_DATA2 / QSPI1_MOSI0 / JP5.4...
  • Page 17 NuMaker-M467HJ M467HJHAN Header Pin No. Function PD.13 / EBI_AD10 / SD0_nCD / SPI0_I2SMCLK / SPI1_I2SMCLK / QSPI1_MOSI0 / SC2_nCD / JP5.34 SD1_CLK / UART6_RXD / I2S1_LRCK / BPWM0_CH0 / EQEI2_B / ECAP2_IC2 / CLKO / EADC0_ST PA.12 / I2S0_BCLK / UART4_TXD / I2C1_SCL / SPI2_SS / CAN0_TXD / SC2_PWR / SD1_nCD / JP5.35 QSPI1_MISO0 / BPWM1_CH2 / EQEI1_INDEX / ECAP3_IC0 / USB_VBUS / PSIO0_CH4 PA.13 / I2S0_MCLK / UART4_RXD / I2C1_SDA / SPI2_CLK / CAN0_RXD / SC2_RST /...

  • Page 18: Table 3-2 M467Hjhan Full-Pin Extension Connectors And Gpio Function List

    NuMaker-M467HJ M467HJHAN Header Pin No. Function PJ.12 / EBI_nCS0 / SD1_CMD / SPIM_CLK / I2C4_SMBAL / ECAP2_IC2 / CAN1_TXD / JP7.22 BPWM0_CH1 / HSUSB_VBUS_ST PJ.13 / SD1_CLK / SPIM_MOSI / I2C4_SMBSUS / CAN1_RXD / BPWM0_CH0 / HSUSB_VBUS_EN JP7.23 PG.5 / EBI_nCS1 / SPI3_SS / SC1_PWR / I2C3_SMBAL / I2S1_MCLK / EPWM0_CH3 JP7.24 PG.6 / EBI_nCS2 / SPI3_CLK / SC1_RST / I2C3_SMBSUS / I2S1_DI / EPWM0_CH2 JP7.25...

  • Page 19: 3.3.2 Arduino Uno Compatible Extension Connectors

    NuMaker-M467HJ 3.3.2 Arduino UNO Compatible Extension Connectors Figure 3-4 shows the Arduino UNO compatible extension connectors. UART1_RXD EPWM0_CH3 PB.2 UART1_TXD EPWM0_CH2 PB.3 PB.1 EADC0_CH1 I2C1_SCL UART2_TXD EPWM1_CH3 PC.9 PB.0 EADC0_CH0 I2C1_SDA UART2_RXD EPWM1_CH2 PC.10 PB.9 EADC0_CH9 EPWM1_CH1 PC.11 PB.8 EADC0_CH8 EPWM1_CH0 PC.12 PB.7...

  • Page 20: Table 3-3 Arduino Uno Extension Connectors And M467Hjhan Mapping Gpio List

    NuMaker-M467HJ NuMaker-M467HJ NuMaker-M467HJ Header Header Compatible to Compatible to GPIO Pin of M467 GPIO Pin of M467 Arduino UNO Arduino UNO NU4.1 PB.2 NU3.6 PB.6 NU4.2 PB.3 NU3.5 PB.7 NU4.3 PC.9 NU3.4 PB.8 NU4.4 PC.10 NU3.3 PB.9 NU4.5 PC.11 NU3.2 PB.0 NU4.6 PC.12...

  • Page 21: Power Supply Configuration

    NuMaker-M467HJ Power Supply Configuration The NuMaker-M467HJ is able to adopt multiple power supplies. External power sources include NU1 Vin (7 V to 12 V), V (depending on the target chip operating voltage), and PC through USB connector. By using switches and voltage regulator, multiple power domains can be created on the NuMaker-M467HJ.

  • Page 22: Power Sources

    NuMaker-M467HJ 3.4.3 3.3V Power Sources Table 3-6 presents the 3.3 V power sources. Voltage 3V Source Description Regulator ICEUP1 converts USB_HS_VBUS to 3.3 V ICEUP1 USB_HS_VBUS and supplies 3.3 V to M467HJ target board or ICE chip. UP2 converts FSUSB_VBUS to 3.3 V and FSUSB_VBUS supplies 3.3 V to M467HJ target board.

  • Page 23: Usb Connectors

    NuMaker-M467HJ 3.4.5 USB Connectors Table 3-8 presents the USB connectors. Connector Description ICE USB connector on Nu-Link2-Me for power supply, ICEJ3 debugging and programming from PC. USB FS connector on NuMaker-M467HJ for power supply. USB HS connector on NuMaker-M467HJ for power supply. Table 3-8 USB Connectors 3.4.6 Power Switches...

  • Page 24: Power Supply Models

    NuMaker-M467HJ 3.4.7 Power Supply Models External Power Supply through Nu-Link2-Me to Target Chip The external power supply source on Nu-Link2-Me is shown in Figure 3-5. Nu-Link2-Me ICE USB Connector Figure 3-5 External Power Supply Sources on Nu-Link2-Me To use ICEJ3 as external power supply source with Nu-Link2-Me, please follow the steps below: Solder the resistor on ICEJPR1 (MCUVCC) depending on the target chip operating voltage.

  • Page 25: Figure 3-6 External Power Supply Sources On M467Hj Target Board

    NuMaker-M467HJ External Power Supply through M467HJ Target Board to Target Chip The external power supply sources on M467HJ target board are shown in Figure 3-6. FS-USB Connector HS-USB Connector NU1 pin8 (VIN) External V Connector External V Connector Figure 3-6 External Power Supply Sources on M467HJ Target Board To use Vin or J2 or J3 as external power supply source, please follow the steps below: Remove the resistor on ICEJPR1 (MCUVCC).

  • Page 26: Figure 3-7 Detach The Nu-Link2-Me From Numaker-M467Hj

    NuMaker-M467HJ FS-USB Connector HS-USB Connector " NU1 pin8 (VIN) Detach Nu-Link2-Me External V Connector External V Connector Figure 3-7 Detach the Nu-Link2-Me from NuMaker-M467HJ Jun. 28, 2022 Page 26 of 66 Rev 1.00...

  • Page 27: Table 3-11 Supply External Power For M467Hj Target Board

    NuMaker-M467HJ Table 3-11 presents all power models when supplies external power through M467HJ target board. The M467HJ target board external power sources are highlighted in yellow. ICEJPR1 ICEJPR2 Target Chip ICE Chip Model ICEJ3 (MCUVCC) (ICEVCC) Voltage Voltage Selection Selection 7 V ~ 12 V Remove 3.3 V...

  • Page 28: External Reference Voltage Connector

    NuMaker-M467HJ External Reference Voltage Connector Table 3-13 presents the external reference voltage connector. Connector Description Connector for user to connect to the external reference VREF voltage pin of the target chip. User needs to remove the L2 ferrite bead. Table 3-12 External Reference Voltage Connector Ammeter Connector Table 3-13 presents the ammeter connector.

  • Page 29: Push Buttons

    NuMaker-M467HJ Push Buttons Table 3-14 presents the push buttons. Component Description Offline program button to start offline ICP programming the ICESW1 target chip. Reset button to reset the target chip. Table 3-14 Push Buttons Jun. 28, 2022 Page 29 of 66 Rev 1.00...

  • Page 30: Leds

    NuMaker-M467HJ LEDs Table 3-15 presents the LEDs. Component Description The power LED indicates that the NuMaker-M467HJ is Power LED powered. Red LED The red LED is connected to the target chip PH.4. Yellow LED The yellow LED is connected to the target chip PH.5. Green LED The green LED is connected to the target chip PH.6.

  • Page 31: Status Leds

    NuMaker-M467HJ 3.9.2 Status LEDs Table 3-15 presents the status LEDs patterns for different operation on Nu-Link2-Me. Status LED Operation Status ICES0 ICES1 ICES2 ICES3 Flash x Flash x Flash x Flash x Boot Idle Flash x Flash x Flash x One Nu-Link2-Me is selected to connect ICE online (Not connected to a target Flash x...

  • Page 32: Quick Start

    KEIL MDK Nuvoton edition  IAR EWARM  NuEclipse GCC (for Windows)  NuEclipse GCC (for Linux) Nuvoton Nu-Link Driver Installation Download and install the latest Nuvoton Nu-Link Driver.  Download and install Nu-Link_Keil_Driver when using Keil MDK.  Download and install Nu-Link_IAR_Driver when using IAR EWARM.

  • Page 33: Figure 4-2 Nu-Link Usb Driver Installation

    NuMaker-M467HJ Figure 4-2 Nu-Link USB Driver Installation Jun. 28, 2022 Page 33 of 66 Rev 1.00...

  • Page 34: Bsp Firmware Download

    NuMaker-M467HJ BSP Firmware Download Download and unzip the Board Support Package (BSP). Hardware Setup Open the virtual COM (VCOM) function by changing Nu-Link2-Me VCOM Switch No. 1 and 2 to ON. Figure 4-3 Open VCOM Function Connect the ICE USB connector shown in Figure 4-4 to the PC USB port through a USB cable.

  • Page 35: Figure 4-5 Device Manger

    NuMaker-M467HJ Find the “Nuvoton Virtual COM Port” on the Device Manger as Figure 4-5. Figure 4-5 Device Manger Open a serial port terminal, PuTTY for example, to print out debug message. Set the speed to 115200. Figure 4-6 presents the PuTTY session setting.

  • Page 36: Find The Example Project

    NuMaker-M467HJ Find the Example Project Use the “Template” project as an example. The project can be found under the BSP folder as shown in Figure 4-7.  M460_Series_BSP_CMSIS_V3.XX.XXX  SampleCode  Template  GCC  Keil  Figure 4-7 Template Project Folder Path Execute the Project under Toolchains Open and execute the project under the toolchain.

  • Page 37: Figure 4-9 Project File Migrate To Version 5 Format

    NuMaker-M467HJ Figure 4-9 Project File Migrate to Version 5 Format Make sure the debugger is “Nuvoton Nu-Link Debugger” as shown in Figure 4- 10 and Figure 4-11. Figure 4-10 Debugger Setting in Options Window Note: If the dropdown menu in Figure 4-10 does not contain “Nuvoton Nu-Link Debugger”...

  • Page 38: Figure 4-11 Programming Setting In Options Window

    NuMaker-M467HJ Figure 4-11 Programming Setting in Options Window Rebuild all target files. After successfully compiling the project, download code to the Flash memory. Click “Start/Stop Debug Section” button to enter debug mode. 1. Rebuild 2. Successfully compile 3. Download 4. Start/Stop Debug Figure 4-12 Compile and Download the Project Jun.

  • Page 39: Figure 4-13 Keil Mdk Debug Mode

    NuMaker-M467HJ Figure 4-13 shows the debug mode under Keil MDK. Click “Run” and the debug message will be printed out as shown in Figure 4-14. User can debug the project under debug mode by checking source code, assembly language, peripherals’ registers, and setting breakpoint, step run, value monitor, etc. 3 1 2 1.

  • Page 40: Iar Ewarm

    NuMaker-M467HJ 4.6.2 IAR EWARM This section provides steps to beginners on how to run a project by using IAR EWARM. Double click the “Template.eww” to open the project. Make sure the toolbar contains “Nu-Link” item as shown in Figure 4-15. Note: If the toolbar does not contain “Nu-Link”...

  • Page 41: Figure 4-17 Iar Ewarm Debug Mode

    NuMaker-M467HJ Figure 4-17 shows the debug mode under IAR EWARN. Click “Go” and the debug message will be printed out as shown in Figure 4-18. User can debug the project under debug mode by checking source code, assembly language, peripherals’ registers, and setting breakpoint, step run, value monitor, etc. 1 2 3 1.

  • Page 42: Nueclipse

    NuMaker-M467HJ 4.6.3 NuEclipse This section provides steps to beginners on how to run a project by using NuEclipse. Please make sure the filenames and project folder path contain neither invalid character nor space. Double-click “NuEclipse.exe" to open the toolchain. Import the “Template” project by following the steps presented in Figure 4-19 and Figure 4-20.

  • Page 43: Figure 4-20 Import Projects Windows

    NuMaker-M467HJ M031_Series_BSP_CMSIS_V3.XX.XXX\SampleCode\Template M031_Series_BSP_CMSIS_V3.XX.XXX\SampleCode\Template\GCC) Figure 4-20 Import Projects Windows Click the “Template” project and find the project properties as shown in Figure 4-21. Make sure the settings are the same as settings in Figure 4-22. Figure 4-21 Open Project Properties Window Jun.

  • Page 44: Figure 4-22 Project Properties Settings

    NuMaker-M467HJ Figure 4-22 Project Properties Settings Click the “Template” project and build the project. Figure 4-23 Build Project Jun. 28, 2022 Page 44 of 66 Rev 1.00...

  • Page 45: Figure 4-24 Open Debug Configuration

    4-25, Figure 4-26 and Figure 4-27 to enter debug mode. Figure 4-24 Open Debug Configuration Note 1: Double-click the “GDB Nuvoton Nu-Link Debugging” to create the sub item. Note 2: After the project is built, the “*.elf” file will be shown in “C/C++ Application” frame.

  • Page 46: Figure 4-26 Debugger Tab Configuration

    NuMaker-M467HJ Figure 4-26 Debugger Tab Configuration Jun. 28, 2022 Page 46 of 66 Rev 1.00...

  • Page 47: Figure 4-27 Startup Tab Configuration

    NuMaker-M467HJ Note: User must follow those settings highlighted in green, and configure other settings depending on the needs. Figure 4-27 Startup Tab Configuration Jun. 28, 2022 Page 47 of 66 Rev 1.00...

  • Page 48: Figure 4-28 Nueclipse Debug Mode

    NuMaker-M467HJ Figure 4-28 shows the debug mode under NuEclipse. Click “Resume” and the debug message will be printed out as shown in Figure 4-29. User can debug the project under debug mode by checking source code, assembly language, peripherals’ registers, and setting breakpoint, step run, value monitor, etc. For more information about how to use NuEclipse, please refer to the NuEclipse User Manual.

  • Page 49: Numaker-M467 Schematics

    NuMaker-M467HJ NUMAKER-M467 SCHEMATICS Nu-Link2-Me Figure 5-1 shows the Nu-Link2-Me circuit. 3.3V ICER1 O f f - page C onnect or 200 1% USB_HS_CAP R0603 ICEC1 ICEC2 0.1u C0603 C0603 SWDH_DAT TICEDAT SWDH_CLK TICECLK SWDH_RST# TICERST ICE_RX_S COM_TX ICE_TX_S COM_RX ICE_RST nRESET ICEVDD VDDIO...

  • Page 50: M467Hj Target Board

    NuMaker-M467HJ M467HJ Target Board 5.2.1 Power Source Figure 5-2 shows the power source circuit. AMS1117_5v UNO_VIN LDO_5V UNO_5V SS24A RB060L 10uF/10V TANT-A VDD_MCU HEADER1X4(NC) header1x4 R0603 Power Source LDO_3_3V R0603 HEADER1X4(NC) AMMETER ICE5V FERRITE BEAD header1x4 L0603 HEADER2X1 MCUVCC_DIODE UNO_5V AMS1117_3.3v Power Source FSUSB_VBUS...

  • Page 51: M467Hjhan

    NuMaker-M467HJ 5.2.2 M467HJHAN Figure 5-3 shows the M467HJHAN circuit. VDD_MCU HEADER5X2(NC) HEADER5X2 R0603 R0603 ICE_DAT VDD_MCU ICE_CLK 0.1u COM_TX nRESET C0603 COM_RX RESET R0603 ICE SWD & Debug Port 3x6x5 2PIN SMD nRESET SW-2P-SMD C0603 PIN1 EPWM_CH0 PIN89 EBI_AD5 UNO_D7 LCD_DB5 RESET PIN2...

  • Page 52: Hyperram

    NuMaker-M467HJ 5.2.3 HyperRAM Figure 5-4 shows the HyperRAM circuit. 0.1u 0.1u 0.1u 0.1u 0.1u C0402 C0402 C0402 C0402 C0402 C0402 C0402 C0402 VCCQ VCCQ HBI_nRESET R0402 RESET# HBI_RWDS R0402 RSDS HBI_nCS R0402 R0402 HBI_D0 HBI_CK R0402 R0402 HBI_D1 HBI_nCK HBI_D2 R0402 R0402 HBI_D3...

  • Page 53: Spi Flash

    NuMaker-M467HJ 5.2.4 SPI Flash Figure 5-5 shows the SPI flash circuit. PIN66 PI12 SPIM_SS QSPI0_MISO1 FLASH_nCS PIN67 PI13 SPIM_MISO QSPI0_MOSI1 FLASH_MISO PIN68 PI14 SPIM_D2 QSPI0_SS FLASH_IO2 PIN69 PI15 SPIM_D3 QSPI0_CLK FLASH_IO3 PIN70 SPIM_CLK QSPI0_MISO0 FLASH_CLK PIN71 SPIM_MOSI QSPI0_MOSI0 FLASH_MOSI off-Page Singals SPIM / QSPI Selection...

  • Page 54: Full-Speed Usb

    NuMaker-M467HJ 5.2.5 Full-speed USB Figure 5-6 shows the full-speed USB circuit. PIN163 PC14 FSUSB_VBUS_ST FSUSB_VBUS PIN164 PB15 FSUSB_VBUS_EN PIN123 PA12 PIN124 PA13 FSUSB_D- PIN125 PA14 FSUSB_D+ PIN126 PA15 FSUSB_ID off-Page Singals 4.7K R0603 LDO_5V FSUSB_VBUS FSUSB_VBUS_ST FSUSB_VBUS VBUS FSUSB_VBUS_EN Shield EN/EN# R0603 Shield...

  • Page 55: High-Speed Usb

    NuMaker-M467HJ 5.2.6 High-speed USB Figure 5-7 shows the high-speed USB circuit. PIN154 PJ12 HSUSB_VBUS_ST PIN155 PJ13 HSUSB_VBUS_EN HSUSB_VDD33 PIN133 HSUSB_VDD33 HSUSB_VDD12_CAP HSUSB_VDD12_CAP PIN127 HSUSB_VRES HSUSB_VRES PIN128 HSUSB_VBUS PIN131 HSUSB_VSS PIN129 200R 1% PIN130 0.1u R0603 HSUSB_D- PIN132 C0603 C0603 FERRITE BEAD HSUSB_D+ PIN134 L0603...

  • Page 56: Sd Card

    NuMaker-M467HJ 5.2.7 SD Card Figure 5-8 shows the SD card circuit. PIN122 PD13 SD0_nCS SDHC_nCS PIN135 SD0_CMD SDHC_CMD PIN136 SD0_CLK SDHC_CLK PIN137 SD0_DAT3 SDHC_DAT3 PIN138 SD0_DAT2 SDHC_DAT2 PIN139 SD0_DAT1 SDHC_DAT1 PIN140 SD0_DAT0 SDHC_DAT0 off-Page Singals SD_PWR 0805 LED G (綠光) 普亮 8P4R-10K LED0805 8P4RA...

  • Page 57: Extension Connectors

    NuMaker-M467HJ 5.2.8 Extension Connectors Figure 5-9 shows the extension connectors circuit. EPWM_CH0 PIN1 PIN2 EPWM_CH1 EBI_AD5 PIN89 PIN90 EBI_AD4 UNO_D7 UNO_D6 LCD_DB5 LCD_DB4 VDD_MCU UART1_TX PIN3 PIN4 UART1_RX EBI_AD3 PIN91 PIN92 EBI_AD2 UNO_D1 UNO_D0 LCD_DB3 LCD_DB2 EPWM1_CH0 PC12 PIN5 PIN6 PC11 EPWM1_CH1 EBI_AD1...

  • Page 58: Arduino Uno I/F

    NuMaker-M467HJ 5.2.9 Arduino UNO I/F Figure 5-10 shows the Arduino UNO interface circuit. PIN176 EADC0_CH6 UNO_A0 PIN175 EADC0_CH7 UNO_A1 PIN174 EADC0_CH8 UNO_SCL VREF UNO_A2 I2C_SCL UNO_VIN UNO_3VCC VDD PIN173 EADC0_CH9 UNO_SDA UNO_A3 I2C_SDA PIN10 EADC0_CH0 UNO_A4 VREF UNO_5V PIN9 EADC0_CH1 UNO_A5 UNO_D13 PIN4...

  • Page 59: Coms I/F & Lcd I/F

    NuMaker-M467HJ 5.2.10 COMS I/F & LCD I/F Figure 5-11 shows the COMS and LCD interface circuit. CON1 PIN97 PIN98 PG10 CCAP_PIXCLK CCAP_SCLK PIN38 PIN37 CCAP_DATA0 CCAP_DATA1 PIN36 PIN35 PF10 CCAP_DATA2 CCAP_DATA3 PIN34 PF11 PIN27 CCAP_DATA4 CCAP_DATA5 PIN26 PIN25 CCAP_DATA6 CCAP_DATA7 PIN100 PG12 PIN101...

  • Page 60: Can Fd Transceiver

    NuMaker-M467HJ 5.2.11 CAN FD Transceiver Figure 5-12 shows the CAN FD transceiver circuit. PIN152 PJ10 CAN0_TX CAN-FD_TX PIN153 PJ11 CAN0_RX CAN-FD_RX off-Page Singals CAN0_TX R0603 CAN0_H CANH CAN0_L CANL CAN0_RX R0603 FAULT TCAN337GD HEADER2X1(2.54mm, male, top) 0.1u 4.7K C0603 C0603 0.1u R0603 C0603...

  • Page 61: Ethernet Phy

    NuMaker-M467HJ 5.2.12 Ethernet PHY Figure 5-13 shows the Ethernet PHY circuit. 4.7K VDD3V3 0.1u FERRITE BEAD R0603 PHY _AVDD3V3 C0603 L0603 0.1u R0603 0.1u PHY _VDD3V3 C0603 0.01u C0603 C0603 R0603 0.01u 0.1u C0603 1000p/2KV C0603 C0603 C1206 LED0 4.7K PHY _VDD3V3 R0603 4.7K...

  • Page 62: Audio

    NuMaker-M467HJ 5.2.13 Audio Figure 5-14 shows the audio circuit. Speaker Codec RSPKOUT LSPKOUT AUDIO_3V3 AUDIO_D3V3 AUDIO_3V3 SPK_3V3 FERRITE BEAD 0.1u SPK_3V3 L0603 HEADER2X1(2.54mm, male, top) C0603 R0603 R0603 0(NC) 0.1u R0603 C0603 MIC_BIAS 4.7u C0603 C0603 C0603 R0603 C0603 R0603 LSPKOUT 4.7u 0.1u...

  • Page 63: Thermal Sensor

    NuMaker-M467HJ 5.2.14 Thermal Sensor Figure 5-15 shows the thermal sensor circuit. PIN121 I2C2_SDA I2C2_SDA PIN120 I2C2_SCL I2C2_SCL The thermal sensor (NCT7717U) and audio codec (NAU88C22) are shared with same I2C bus (I2C2) off-Page Singals R0603 R0603 I2C2_SCL I2C2_SDA 0.1u ALERT# C0603 NCT7717U Ti t l e...

  • Page 64: Leds & Buttons

    NuMaker-M467HJ 5.2.15 LEDs & Buttons Figure 5-16 shows the LEDs and buttons circuit. PIN47 LED_R PIN48 LED_Y PIN49 LED_G PIN43 BTN_0 PIN44 BTN_1 off-Page Singals LEDG LED_G 0805 LED G (綠光) 普亮 R0603 LED0805 LEDY LED_Y BTN0 R0603 BTN1 R0603 3x6x5 2PIN SMD 3x6x5 2PIN SMD BTN_0...

  • Page 65: Revision History

    NuMaker-M467HJ REVISION HISTORY Date Revision Description 2022.06.28 1.00 Initial version. Jun. 28, 2022 Page 65 of 66 Rev 1.00...
  • Page 66 NuMaker-M467HJ Important Notice Nuvoton Products are neither intended nor warranted for usage in systems or equipment, any malfunction or failure of which may cause loss of human life, bodily injury or severe property damage. Such applications are deemed, “Insecure Usage”.
