NuMaker-HMI-MA35H0-A1/A2
®
NuMicro
Family
®
®
Arm
Cortex
-A35-based Microprocessor
NuMaker-HMI-MA35H0-A1/A2
User Manual
®
Evaluation Board for NuMicro
MA35H0 Series
The information described in this document is the exclusive intellectual property of
Nuvoton Technology Corporation and shall not be reproduced without permission from Nuvoton.
Nuvoton is providing this document only for reference purposes of NuMicro microcontroller and
microprocessor based system design. Nuvoton assumes no responsibility for errors or omissions.
All data and specifications are subject to change without notice.
For additional information or questions, please contact: Nuvoton Technology Corporation.
www.nuvoton.com
Mar. 21, 2024
Page 1 of 55
Rev 1.03
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Nuvoton NuMaker-HMI-MA35H0-A1
Summary of Contents for Nuvoton NuMaker-HMI-MA35H0-A1
- Page 1 The information described in this document is the exclusive intellectual property of Nuvoton Technology Corporation and shall not be reproduced without permission from Nuvoton. Nuvoton is providing this document only for reference purposes of NuMicro microcontroller and microprocessor based system design. Nuvoton assumes no responsibility for errors or omissions.
-
Page 2: Table Of Contents
NuMaker-HMI-MA35H0-A1/A2 Table of Contents 1 OVERVIEW ...................... 7 1.1 NuMaker-HMI-MA35H04F70 Board ................. 10 1.2 NuMaker TFT-LCD7 Board ..................10 1.3 Order Number and Part Number of EVB ..............12 2 FEATURES ....................13 2.1 NuMaker-HMI-MA35H04F70 Board Features ............13 2.2 NuMaker TFT-LCD7 Board Features ............... 13 3 HARDWARE CONFIGURATION .............. - Page 3 NuMaker-HMI-MA35H0-A1/A2 5 SUPPORTING RESOURCES ................ 35 5.1 Documents ........................35 5.2 Software ........................35 6 NUMAKER-HMI-MA35H0-A1/A2 SCHEMATICS .......... 37 6.1 NuMaker-HMI-MA35H04F70 Schematic ..............37 6.1.1 Power Input Schematic ....................37 6.1.2 ADC and Reset Buttons Schematic ................38 6.1.3 Power-on Setting and SWJ Schematic ............... 39 6.1.4 Key buttons Schematic ....................
- Page 4 List of Figures Figure 1-1 NuMaker-HMI-MA35H0-A1/A2 Board from Target Chip Side ........8 Figure 1-2 NuMaker-HMI-MA35H0-A1 from TFT LCD Side (With RTP) ......... 8 Figure 1-3 NuMaker-HMI-MA35H0-A2 from TFT LCD Side (With CTP) ......... 9 Figure 1-4 NuMaker-HMI-MA35H04F70 Board ................10 Figure 1-5 NuMaker-TFT-LCD7 (RTP) Board ................
- Page 5 NuMaker-HMI-MA35H0-A1/A2 List of Tables Table 1-1 Board Part Number and Information ................12 Table 3-1 DDR PHY and MCP DRAM Power Voltage Selection ........... 15 Table 3-2 I2S0 (U21) Pin Function ....................16 Table 3-3 I2C0 (U21) Pin Function ....................16 Table 3-4 Audio Codec (U21) Control Pin Function...............
- Page 6 NuMaker-HMI-MA35H0-A1/A2 Table 4-2 SD Boot Source IO Voltage Configuration ..............32 Table 4-3 SD Boot Source SD/eMMC Configuration ..............33 Table 4-4 SD Boot Source SD0/eMMC0 Configuration ..............33 Mar. 21, 2024 Page 6 of 55 Rev 1.03...
-
Page 7: Overview
MA35H04F764C (LQFP216 package, and stacking a 128 MB DDR), discrete power supply power solution, and one megabit Ethernet PHY. The NuMaker-HMI-MA35H0-A1 has rich peripherals such as 1 set of megabit Ethernet, USB2.0 high-speed host and device, 1 set of SD2.0 in Micro SD slot, 1 set of SD3.0 in SD slot, 1 set of CAN FD, SPI, I... -
Page 8: Figure 1-1 Numaker-Hmi-Ma35H0-A1/A2 Board From Target Chip Side

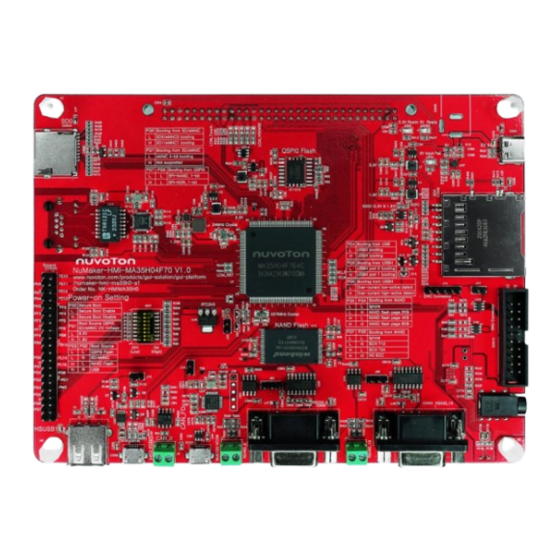

NuMaker-HMI-MA35H0-A1/A2 Figure 1-1 NuMaker-HMI-MA35H0-A1/A2 Board from Target Chip Side Figure 1-2 NuMaker-HMI-MA35H0-A1 from TFT LCD Side (With RTP) Mar. 21, 2024 Page 8 of 55 Rev 1.03... -
Page 9: Figure 1-3 Numaker-Hmi-Ma35H0-A2 From Tft Lcd Side (With Ctp)
NuMaker-HMI-MA35H0-A1/A2 Figure 1-3 NuMaker-HMI-MA35H0-A2 from TFT LCD Side (With CTP) Mar. 21, 2024 Page 9 of 55 Rev 1.03... -
Page 10: Numaker-Hmi-Ma35H04F70 Board
NuMaker-HMI-MA35H0-A1/A2 NuMaker-HMI-MA35H04F70 Board The NuMaker-HMI-MA35H04F70 has rich peripherals such as 1 set of megabit Ethernet, USB2.0 high-speed host and device, 1 set of SD2.0 in Micro SD slot, 1 set of SD3.0 in SD slot, 1 set of CAN FD, SPI, I... -
Page 11: Figure 1-5 Numaker-Tft-Lcd7 (Rtp) Board
NuMaker-HMI-MA35H0-A1/A2 Figure 1-5 NuMaker-TFT-LCD7 (RTP) Board Figure 1-6 NuMaker-TFT-LCD7 (CTP) Board Mar. 21, 2024 Page 11 of 55 Rev 1.03... -
Page 12: Order Number And Part Number Of Evb
NuMaker-HMI-MA35H0-A1/A2 Order Number and Part Number of EVB The following table lists the part number of this evaluation board (EVB) based on the MA35H04F764C microprocessors, and the PCB names of two parts: NuMaker-HMI-MA35H04F70 board and NuMaker- TFT-LCD7 board. 7” TFT LCD... -
Page 13: Features
NuMaker-HMI-MA35H0-A1/A2 FEATURES NuMaker-HMI-MA35H04F70 Board Features ⚫ Target Chip: MA35H04F764C (LQFP216) MCP package with DDR2 (128 MB), which can run up to 650 MHz ⚫ Power: 5V Powered by USB Type-C – Battery header for RTC power – ⚫ Debug: UART0 debug port: USB Virtual COM (VCOM) port –... -
Page 14: Hardware Configuration
NuMaker-HMI-MA35H0-A1/A2 HARDWARE CONFIGURATION NuMaker-HMI-MA35H04F70 Board 3.1.1 Front View Figure 3-1 shows the main components and connectors from the front side of NuMaker-HMI- MA35H04F70 board. ⚫ Target Chip (U1): MA35H04F764C (LQFP216) MCP package with DDR2 (128 MB). NAND Flash (U12,W29N08GVSIAA) RS232/RS485... -
Page 15: Ddr Phy And Mcp Dram Power Voltage
3.1.4 Audio Codec ⚫ Audio Codec Device (U21): Nuvoton NAU88C22 is audio codec device that integrates microphone input, speaker output and headphone output for audio application on this board. ⚫ Headset Jack (CON8): A headset input jack that follows CTIA definition. -
Page 16: Rmii Megabit Ethernet
NuMaker-HMI-MA35H0-A1/A2 ⚫ Microphone (M1): An on-board microphone for audio sound input. Function GPIO Pin of MA35H0 Default Connected R# Conflict Function / R# Name I2S0_MCLK PG11 JTAG_TDO / R372* I2S0_LRCK PG12 JTAG_TCK_SW_CLK / R370* I2S0_BCLK PG13 JTAG_TMS_SW_DIO / R369* I2S0_DI... -
Page 17: Qspi Flash
NuMaker-HMI-MA35H0-A1/A2 RMII0_TXD1 RMII0_REFCLK RMII0_CRSDV RMII0_RXD0 RMII0_RXD1 RMII0_RXERR Table 3-5 RMII0 Pin Function Pin of Transformer Pin Name Note (U17) MDI-[1] To RTL8201FI (U16) MDI+[1] To RTL8201FI (U16) MDI-[0] To RTL8201FI (U16) MDI+[0] To RTL8201FI (U16) To RJ45 (CON7) To RJ45 (CON7) -
Page 18: Nand Flash
NuMaker-HMI-MA35H0-A1/A2 QSPI0_MISO0 QSPI0_MOSI1 QSPI0_MOSI0 QSPI0_CLK QSPI0_MISO1 QSPI0_VDD* Note *: The power group of these GPIO PD0~PD5 belongs to the VDDIO5 power domain of MA35H0 series, the default voltage of VDDIO5 (power input VDD_QSPI0) is VDD1V8 (DC 1.8V) on this NuMaker-HMI- MA35H04F70 board. -
Page 19: Powered By Usb Type-C
NUC123 ICE Interface (J16): The ICE interface of NUC123ZD4AN0 microcontroller (U24) for programming the internal Flash of NUC123 series MCU. The internal Flash of NUC123 series MCU had been programmed and acts as an USB VCOM device before the NuMaker-HMI- MA35H04F70 board is delivered by Nuvoton. Pin No. Pin Name Function VCOM_3.3V... -
Page 20: Table 3-12 Booting Source Options
NuMaker-HMI-MA35H0-A1/A2 ⚫ Options for booting source selection: SW7.4 / PG3* SW7.3 / PG2* Booting Source QSPI0 Flash High SD/eMMC* High NAND Flash High High Note * : These GPIO PG2 and PG3 are internal weakly pull-down. : There’s only SD0 micro card slot on this NuMaker-HMI-MA35H04F70 board. -
Page 21: Table 3-15 Options For Sd Card 0/1 Or Emmc 0/1 Device Booting Source
NuMaker-HMI-MA35H0-A1/A2 Table 3-15 Options for SD Card 0/1 or eMMC 0/1 Device Booting Source SW7.8 / PG7* Boot from SD/eMMC eMMC 4-bit Booting* High Not Supported* Note * : The GPIO PG7 is internal weakly pull-down. : There’s no eMMC memory device on this NuMaker-HMI-MA35H04F70 board. -
Page 22: Reset And Rtc Wake-Up Control
RTC wake-up output pin for external DC/DC (for Pin 9 of U1 RTC_RPWR* example, the discrete power IC devices on this NuMaker-HMI-MA35H0-A1 board) enable pin control. Pin 11 of U1 RTC_nRWAKE* RTC wake-up interrupt input with internal pull-high Note * : This RTC_RPWR output pin of MA35H0 is wired directly to these EN input pins of the discrete power IC devices (U2~U6) on this NuMaker-HMI-MA35H04F70 board by default. - Page 23 NuMaker-HMI-MA35H0-A1/A2 LCM_DATA21 PH13 R519 LCM_DATA20 PH12 R518 LCM_DATA19 PC15 R517 LCM_DATA18 PC14 R516 LCM_DATA17 PC13 R515 LCM_DATA16 PC12 R514 LCM_DATA15 R513 LCM_DATA14 R512 LCM_DATA13 R511 LCM_DATA12 R510 LCM_DATA11 R509 LCM_DATA10 R508 LCM_DATA9 R507 LCM_DATA8 R506 LCM_DATA7 PI15 R505 LCM_DATA6 PI14...
-
Page 24: Swj
NuMaker-HMI-MA35H0-A1/A2 LCM_VSENSE PB11 R231 LCM_XM PB14 R536 LCM_YM PB12 R535 LCM_YP PB13 R537 LCM_I2C5_SCL R274 LCM_I2C5_SDA R275 TOUCH_INT PK12 R232 LCM_I2C4_SDA R230 LCM_I2C4_SCL R229 VDD5V VDD5V Note *: No connection (NC) by default. Table 3-22 LCM Connecor (CON14) Pin Function 3.1.13... -
Page 25: Hs Usb2.0 Connectors
NuMaker-HMI-MA35H0-A1/A2 GPIO pin of Default Connected Conflict Function / Pin No. Pin Name MA35H0 VDD3V3 VDD3V3 JTAG_nTRST PG15 R371* I2S0_DO / R48 JTAG_TDI PG14 R368* I2S0_DI / R47 JTAG_TMS / PG13 R369* I2S0_BCLK / R46 SW_DIO JTAG_TCK_ PG12 R370* I2S0_LRCK / R45... -
Page 26: Rs232 Or Rs485
NuMaker-HMI-MA35H0-A1/A2 3.1.15 RS232 or RS485 ⚫ RS232_6: The UART6 to RS232 transceiver (U20, SN75C3232EDR) and Connector (CON24). Pin No. Function Name UR6_TX UR6_RX UR6_CT UR6_RT Table 3-24 RS232_6 Connector (CON24) Pin Funciton ⚫ RS485_6: The UART6 to RS485 transceiver (U43, SN65HVD11DR) and Connector (J71). -
Page 27: Can Fd
NuMaker-HMI-MA35H0-A1/A2 Table 3-26 RS232_16 Connector (CON25) Pin Funciton ⚫ RS485_16: The UART6 to RS485 transceiver (U44, SN65HVD11DR) and Connector (J65). Pin No. Function Name RS485_A2 RS485_B2 Table 3-27 RS485_16 Connector (J65) Pin Funciton Note: UART16 can use J68 to switch functions (RS232 or RS485) 3.1.16... -
Page 28: Sd Card And Microsd Card Slot
NuMaker-HMI-MA35H0-A1/A2 3.1.18 SD Card and MicroSD Card Slot ⚫ SD0 MicroSD Card Slot (CON34): Support SD0 (SD2.0) for optional booting source. Pin No. Pin Name GPIO pin of MA35H0 Default Connected R# SD0_DTA2 R437 SD0_DTA3 R438 SD0_CMD R433 VDD3V3 SD0_CLK... -
Page 29: Table 3-32 Sd1 Standard Sd Card Slot (Con32) Pin Function
NuMaker-HMI-MA35H0-A1/A2 SD1_DAT1* R232 SD1_nCD* Note * : The GPIO PN11 pin controls the VDD_SDIO power, the I/O and pull-up voltage of these SD1 group signals, to output 3.3V or 1.8V voltage. Note * : The GPIO PK9 pin or nRESET signal controls the ON/OFF of VDD_SD power that feeds the fixed 3.3V to the Standard SD card slot or not. -
Page 30: Numaker Tft-Lcd7 Board
NuMaker-HMI-MA35H0-A1/A2 NuMaker TFT-LCD7 Board 3.2.1 Front View Figure 3-3 shows the main components from the front view of NuMaker TFT-LCD7 board and an on- board 7’’ 4-wire touch TFT LCD panel. 7-inch Touch LCD Panel Figure 3-3 Front View of NuMaker TFT-LCD7 Board 3.2.2... -
Page 31: Connectors
NuMaker-HMI-MA35H0-A1/A2 Connector (CON1) Touch Connector (CN3) LCD Module Connector (CN1) Touch Connector (CN5) Figure 3-4 Rear View of NuMaker TFT-LCD7 Board 3.2.3 Connectors ⚫ LCD Module Connector (CN1): FPC (pitch-0.5mm x 50) connector of TFT LCD module. ⚫ LCM Connector (CON1): To connect with the LCM connector (CON14) of the NuMaker-HMI- MA35H04F70 board. -
Page 32: Quick Start
After choosing the correct power-on setting on these DIP switches, the evaluation environment will boot from the image stored in the SD memory card device (SD0) when power is supplied to the NuMaker-HMI-MA35H0-A1 board. Figure 4-1 Power-on Setting DIP Switch (SW7) ⚫... -
Page 33: Power On The System
Table 4-4 SD Boot Source SD0/eMMC0 Configuration Power On the System User can use USB Type-C (CON1) to provide the power to this NuMaker-HMI-MA35H0-A1 board: ⚫ 5V Powered by USB Type-C (CON1): This USB Type-C needs to connect an external power (PC or adapter)to supply DC 5V/1.5A for this board. - Page 34 NuMaker-HMI-MA35H0-A1/A2 Path: MA35D1_linux-5.10.y/arch/arm64/boot/dts/nuvoton/ma35h0-hmi-128m.dts Modify adc0 status from “okay” to “disabled” &adc0 { status = "disabled"; pinctrl-names = "default"; pinctrl-0 = <&pinctrl_adc0>; Modify i2c5 and goodix touch driver status from “disabled” to “okay” &i2c5 { pinctrl-names = "default"; pinctrl-0 = <&pinctrl_i2c5>;...
-
Page 35: Supporting Resources
Arm Cortex-A35 MPUs product line for the MA35H0 series products from the “Products” menu on Nuvoton website homepage. Figure 5-1 Nuvoton Website Software For more details about MA35H0 series software, for example, BSP (Board Support Package), Yocto, website. -
Page 36: Figure 5-2 Ma35H0 Github Resources
NuMaker-HMI-MA35H0-A1/A2 Figure 5-2 MA35H0 GitHub Resources Mar. 21, 2024 Page 36 of 55 Rev 1.03... -
Page 37: Numaker-Hmi-Ma35H0-A1/A2 Schematics
NuMaker-HMI-MA35H0-A1/A2 NUMAKER-HMI-MA35H0-A1/A2 SCHEMATICS NuMaker-HMI-MA35H04F70 Schematic 6.1.1 Power Input Schematic Figure 6-1 shows the power circuit of the NuMaker-HMI-MA35H04F70 board. Figure 6-1 Power Input Schematic Mar. 21, 2024 Page 37 of 55 Rev 1.03... -
Page 38: Adc And Reset Buttons Schematic
NuMaker-HMI-MA35H0-A1/A2 6.1.2 ADC and Reset Buttons Schematic Figure 6-2 shows the Reset buttons circuit of the NuMaker-HMI-MA35H04F70 board. Figure 6-2 ADC and Reset Buttons Schematic Mar. 21, 2024 Page 38 of 55 Rev 1.03... -
Page 39: Power-On Setting And Swj Schematic
NuMaker-HMI-MA35H0-A1/A2 6.1.3 Power-on Setting and SWJ Schematic Figure 6-3 shows the power-on setting and SWJ circuit of the NuMaker-HMI-MA35H04F70 board. Figure 6-3 Power-on Setting and SWJ Schematic Mar. 21, 2024 Page 39 of 55 Rev 1.03... -
Page 40: Key Buttons Schematic
NuMaker-HMI-MA35H0-A1/A2 6.1.4 Key buttons Schematic Figure 6-4 shows the key buttons circuit of the NuMaker-HMI-MA35H04F70 board. Figure 6-4 Key Buttons Schematic Mar. 21, 2024 Page 40 of 55 Rev 1.03... -
Page 41: Lcm Schematic
NuMaker-HMI-MA35H0-A1/A2 6.1.5 LCM Schematic Figure 6-5 shows the LCM circuit of the NuMaker-HMI-MA35H04F70 board. Figure 6-5 LCM Schematic Mar. 21, 2024 Page 41 of 55 Rev 1.03... -
Page 42: Qspi0 And Nand Flash Schematic
NuMaker-HMI-MA35H0-A1/A2 6.1.6 QSPI0 and NAND Flash Schematic Figure 6-6 shows the QSPI0 (only SPI NAND Flash device mounted) and NAND flash device circuit of the NuMaker-HMI-MA35H04F70 board. Figure 6-6 QSPI0 and NAND Flash Schematic Mar. 21, 2024 Page 42 of 55... -
Page 43: Sd0 Schematic
NuMaker-HMI-MA35H0-A1/A2 6.1.7 SD0 Schematic Figure 6-7 shows the SD0 card slot circuit of the NuMaker-HMI-MA35H04F70 board. Figure 6-7 SD0 Schematic Mar. 21, 2024 Page 43 of 55 Rev 1.03... -
Page 44: Sd1 Schematic
NuMaker-HMI-MA35H0-A1/A2 6.1.8 SD1 Schematic Figure 6-8 shows the SD1 card slot circuit of the NuMaker-HMI-MA35H04F70 board. Figure 6-8 SD1 Schematic Mar. 21, 2024 Page 44 of 55 Rev 1.03... -
Page 45: Rmii0_Pf Schematic
NuMaker-HMI-MA35H0-A1/A2 6.1.9 RMII0_PF Schematic Figure 6-9 shows the RMII0 port circuit of the NuMaker-HMI-MA35H04F70 board. Figure 6-9 RMII0 Schematic Mar. 21, 2024 Page 45 of 55 Rev 1.03... -
Page 46: Gpio Schematic
NuMaker-HMI-MA35H0-A1/A2 6.1.10 GPIO Schematic Figure 6-10 shows the GPIO circuit of the NuMaker-HMI-MA35H04F70 board Figure 6-10 GPIO Schematic Mar. 21, 2024 Page 46 of 55 Rev 1.03... -
Page 47: Nau88C22 Audio Codec Schematic
NuMaker-HMI-MA35H0-A1/A2 6.1.11 NAU88C22 Audio Codec Schematic Figure 6-11 shows the NAU88C22 audio codec circuit of the NuMaker-HMI-MA35H04F70 board. Figure 6-11 NAU88C22 Audio Codec Schematic Mar. 21, 2024 Page 47 of 55 Rev 1.03... -
Page 48: Nuc123 Vcom Schematic
NuMaker-HMI-MA35H0-A1/A2 6.1.12 NUC123 VCOM Schematic Figure 6-12 shows the NUC123 VCOM circuit of the NuMaker-HMI-MA35H04F70 board. Figure 6-12 NUC123 VCOM Schematic Mar. 21, 2024 Page 48 of 55 Rev 1.03... -
Page 49: Hsusb 0/1 Schematic
NuMaker-HMI-MA35H0-A1/A2 6.1.13 HSUSB 0/1 Schematic Figure 6-13 shows the HS (high speed) USB 0/1 circuit of the NuMaker-HMI-MA35H04F70 board. Figure 6-13 HSUSB 0/1 Schematic Mar. 21, 2024 Page 49 of 55 Rev 1.03... -
Page 50: Led, Can Fd, Rs232 And Rs485 Schematic
NuMaker-HMI-MA35H0-A1/A2 6.1.14 LED, CAN FD, RS232 and RS485 Schematic Figure 6-14 shows the LED, CAN FD, RS232 and RS485 circuit of the NuMaker-HMI-MA35H04F70 board. Figure 6-14 LED, CAN FD, RS232 and RS485 Schematic Mar. 21, 2024 Page 50 of 55... -
Page 51: Pcb Placement
NuMaker-HMI-MA35H0-A1/A2 6.1.15 PCB Placement Figure 6-15 and Figure 6-16 show the front and rear PCB component placement of the NuMaker-HMI- MA35H04F70 board. Figure 6-15 Front PCB Placement of NuMaker-HMI-MA35H070 Board Mar. 21, 2024 Page 51 of 55 Rev 1.03... -
Page 52: Figure 6-16 Rear Pcb Placement Of Numaker-Hmi-Ma35H070 Board
NuMaker-HMI-MA35H0-A1/A2 Figure 6-16 Rear PCB Placement of NuMaker-HMI-MA35H070 Board Mar. 21, 2024 Page 52 of 55 Rev 1.03... -
Page 53: Numaker Tft-Lcd7 Board Schematic
NuMaker-HMI-MA35H0-A1/A2 NuMaker TFT-LCD7 Board Schematic Figure 6-17 shows the circuit of the NuMaker TFT-LCD7 board. Figure 6-17 NuMaker TFT-LCD7 Board Schematic Mar. 21, 2024 Page 53 of 55 Rev 1.03... -
Page 54: Revision History
NuMaker-HMI-MA35H0-A1/A2 REVISION HISTORY Date Revision Description • 2023.12.12 1.00 Initial version. • Changed MA35H0 Display Resolution from 1366x768 2024.01.11 1.01 to 1280x800. • Changed Part Number from MA35H04F767C to 2024.01.29 1.02 MA35H04F764C. • Updated the section:1.2, 2.2, 3.2.3, 4.5. •... - Page 55 NuMaker-HMI-MA35H0-A1/A2 Important Notice Nuvoton Products are neither intended nor warranted for usage in systems or equipment, any malfunction or failure of which may cause loss of human life, bodily injury or severe property damage. Such applications are deemed, “Insecure Usage”.
