NUTFT KIT BOARD HARDWARE CONFIGURATION

3.1

Front View

Five
Direction
Joystick
Figure 3-1 shows the main components and connectors from the front side of NuTFT Kit Board. The
following lists components and connectors from the front view:

Five Direction Joystick (J3)
There are five dimensions: up, down, left, right and middle in five-direction joystick.
–

Push Button (SW7 and SW8)
 2.4" (320x240) LCD Panel with 4-Wire ADC Touch Function (LCD Driver is Ili9341) (J7)
This TFT LCD panel with 4-wire ADC touch function is equipped with driver IC,
–
ILI9341.
LCD Control Interface: SPI
–
Touch Function Interface: ADC * 4
–
Panel Size: 2.4"
–
Panel Resolution: 320x240
–

Arduino UNO Compatible Interface Connectors (NU1, NU2, NU5 and NU6)
May 25, 2022
Arduino compatible
Arduino compatible
interface connectors
interface connectors
Arduino compatible
Arduino compatible
interface connectors
interface connectors

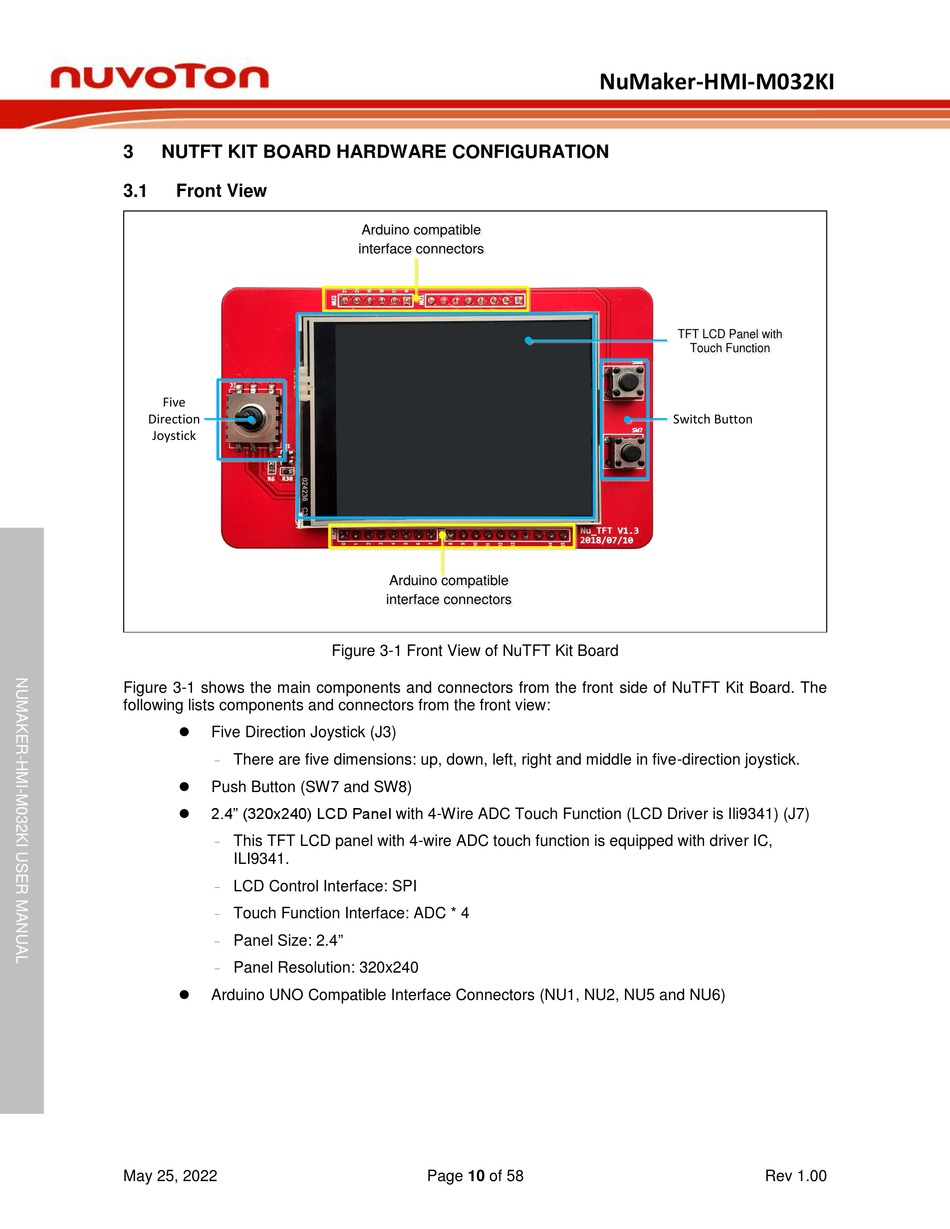

Figure 3-1 Front View of NuTFT Kit Board
