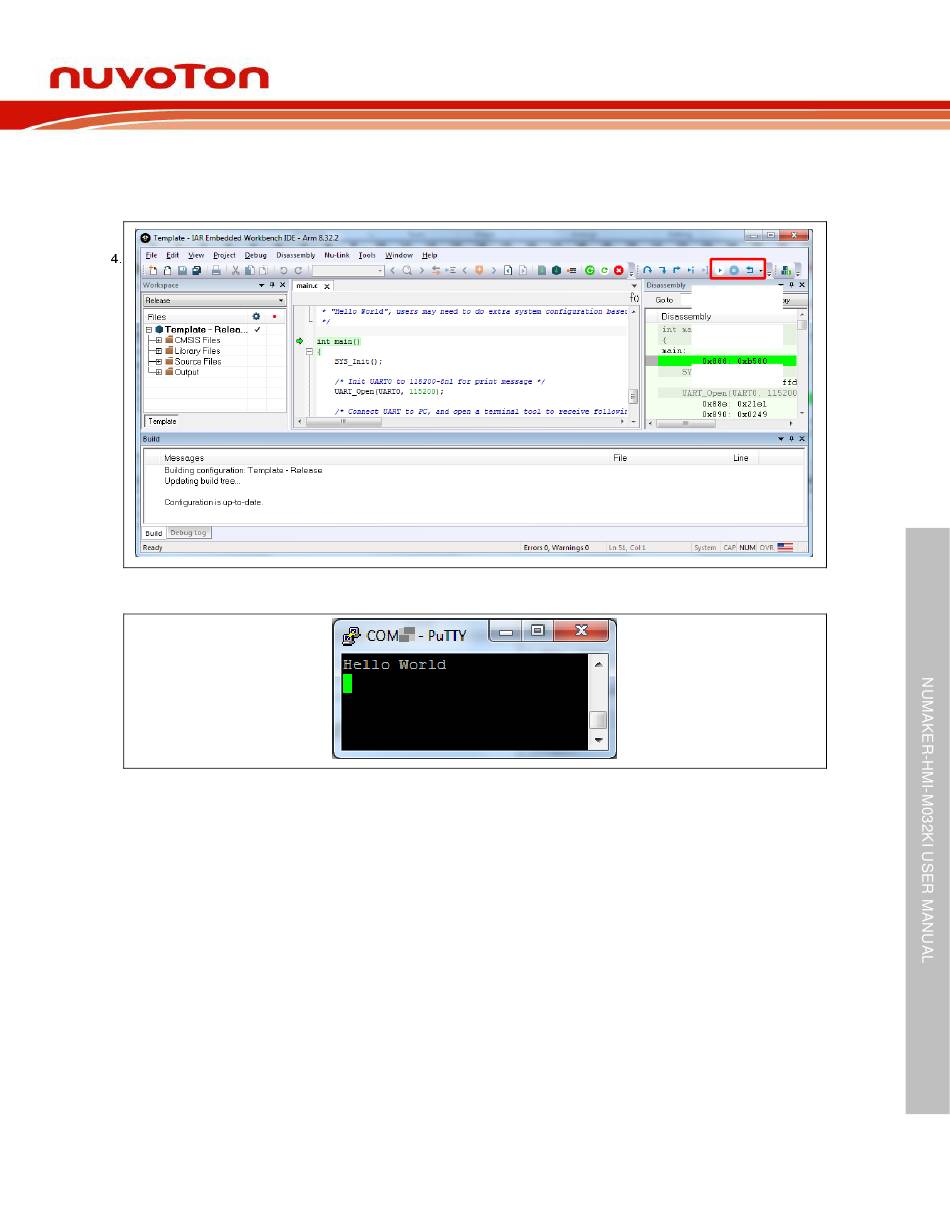

Figure 5-17 shows the debug mode under IAR EWARN. Click "Go" and the debug message will
be printed out as shown in Figure 5-18. User can debug the project under debug mode by
checking source code, assembly language, peripherals' registers, and setting breakpoint, step
run, value monitor, etc.

Figure 5-18 Debug Message on Serial Port Terminal Windows

May 25, 2022

Figure 5-17 IAR EWARM Debug Mode

Page 43 of 58
NuMaker-HMI-M032KI
1 2 3
1. Go
2. Break
3. Reset
