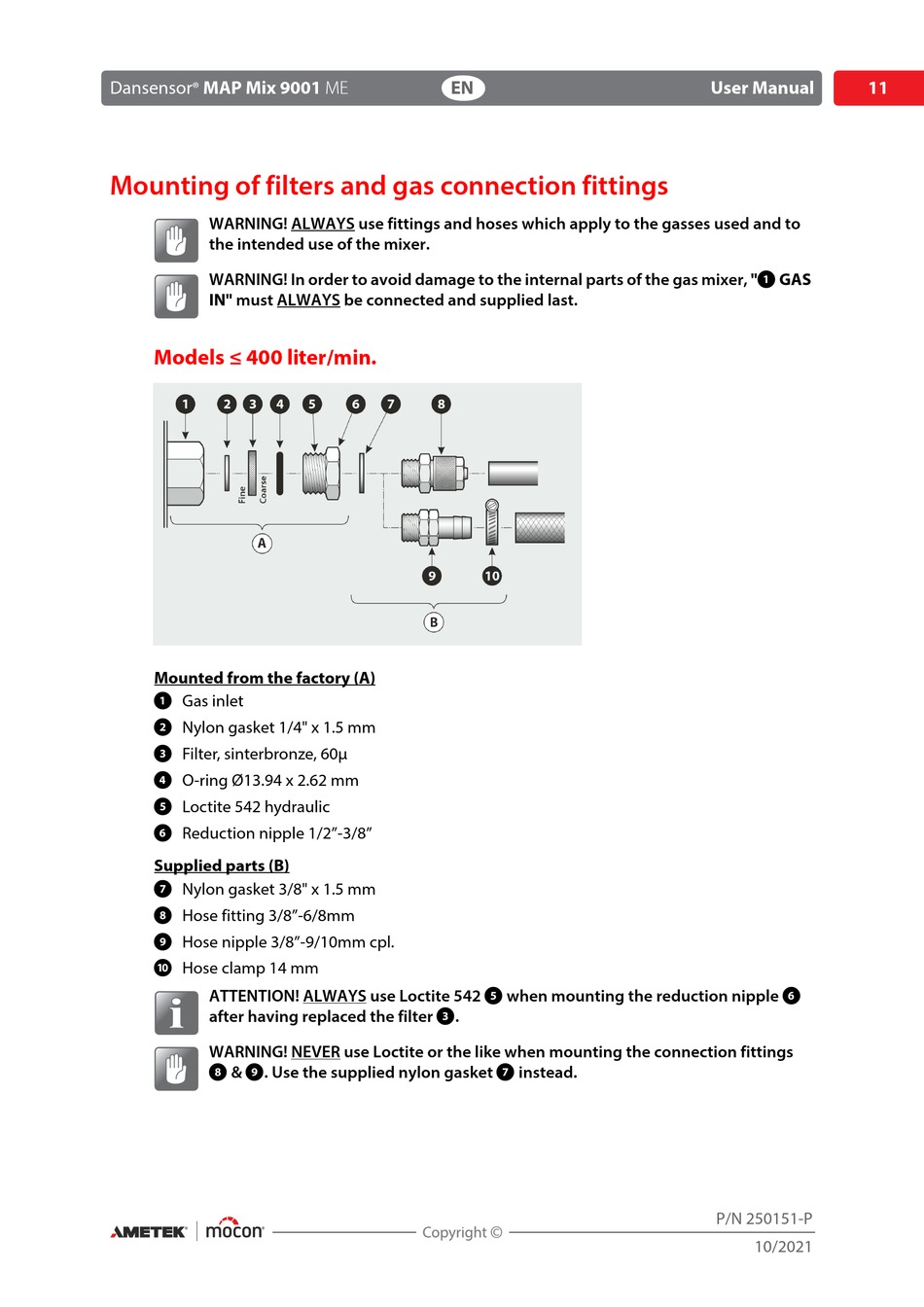

Mounting of filters and gas connection fittings

WARNING! ALWAYS use fittings and hoses which apply to the gasses used and to
the intended use of the mixer.
WARNING! In order to avoid damage to the internal parts of the gas mixer, "
IN" must ALWAYS be connected and supplied last.
Models ≤ 400 liter/min.
Mounted from the factory (A)

Gas inlet

Nylon gasket 1/4" x 1.5 mm

Filter, sinterbronze, 60μ

O-ring Ø13.94 x 2.62 mm

Loctite 542 hydraulic

Reduction nipple 1/2"-3/8"
Supplied parts (B)

Nylon gasket 3/8" x 1.5 mm

Hose fitting 3/8"-6/8mm

Hose nipple 3/8"-9/10mm cpl.

Hose clamp 14 mm
ATTENTION! ALWAYS use Loctite 542
after having replaced the filter
WARNING! NEVER use Loctite or the like when mounting the connection fittings
 
& . Use the supplied nylon gasket
EN

when mounting the reduction nipple

.

instead.
