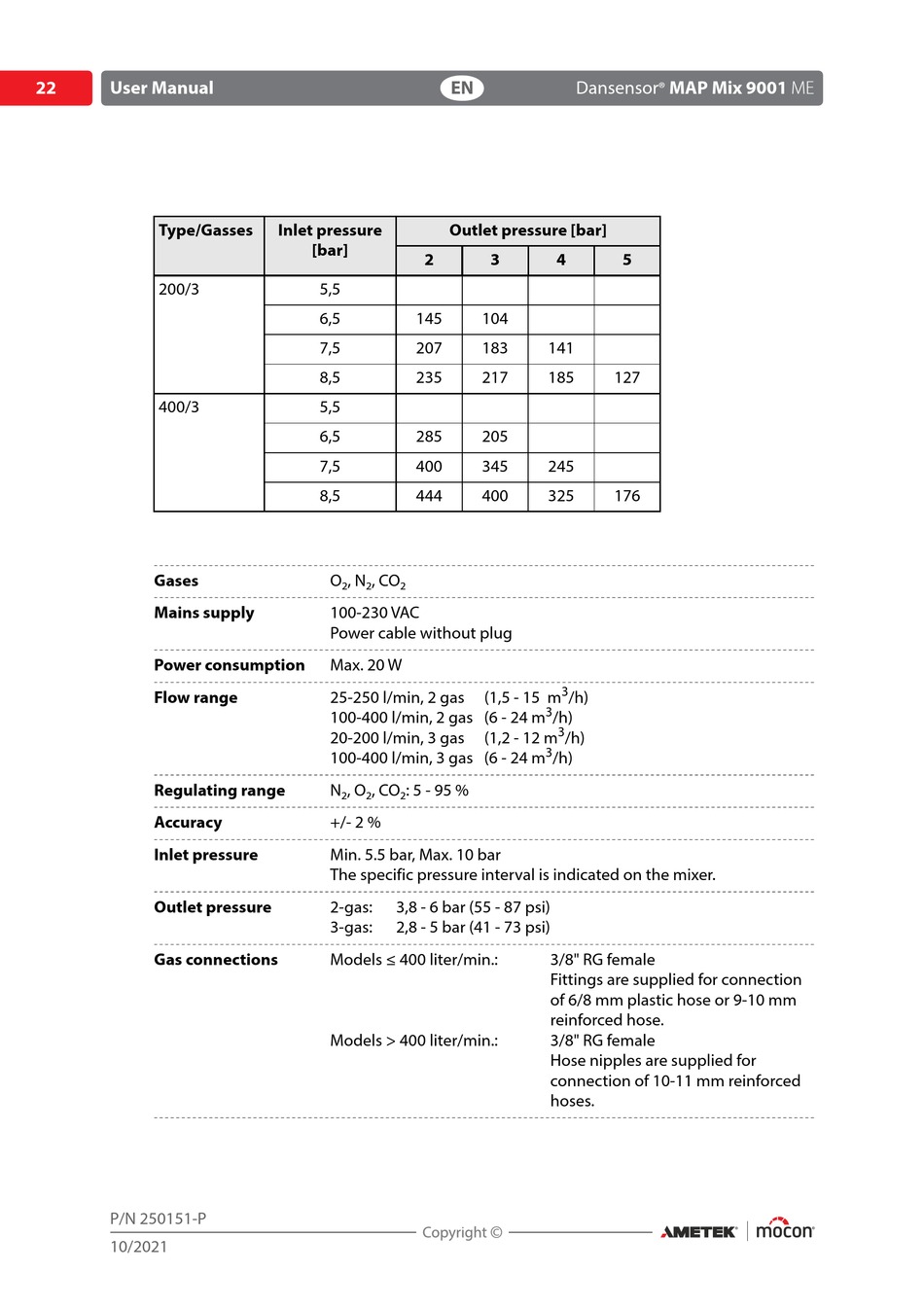

22 User Manual
Type/Gasses
200/3
400/3
Gases
Mains supply
Power consumption
Flow range
Regulating range
Accuracy
Inlet pressure
Outlet pressure
Gas connections
P/N 250151-P
10/2021
EN
Inlet pressure Outlet pressure [bar]
[bar]
2
5,5
6,5 145
7,5 207
8,5 235
5,5
6,5 285
7,5 400
8,5 444
O , N , CO
2 2 2
100-230 VAC
Power cable without plug
Max. 20 W
25-250 l/min, 2 gas
100-400 l/min, 2 gas (6 - 24 m
20-200 l/min, 3 gas
100-400 l/min, 3 gas (6 - 24 m
N , O , CO : 5 - 95 %
2 2 2
+/- 2 %
Min. 5.5 bar, Max. 10 bar
The specific pressure interval is indicated on the mixer.
2-gas: 3,8 - 6 bar (55 - 87 psi)
3-gas: 2,8 - 5 bar (41 - 73 psi)
Models ≤ 400 liter/min.:
Models > 400 liter/min.:
Dansensor
3 4 5
104
183 141
217 185 127
205
345 245
400 325 176
3
(1,5 - 15 m /h)
3
/h)
3
(1,2 - 12 m /h)
3
/h)
3/8" RG female
Fittings are supplied for connection
of 6/8 mm plastic hose or 9-10 mm
reinforced hose.
3/8" RG female
Hose nipples are supplied for
connection of 10-11 mm reinforced
hoses.
MAP Mix 9001 ME
®
