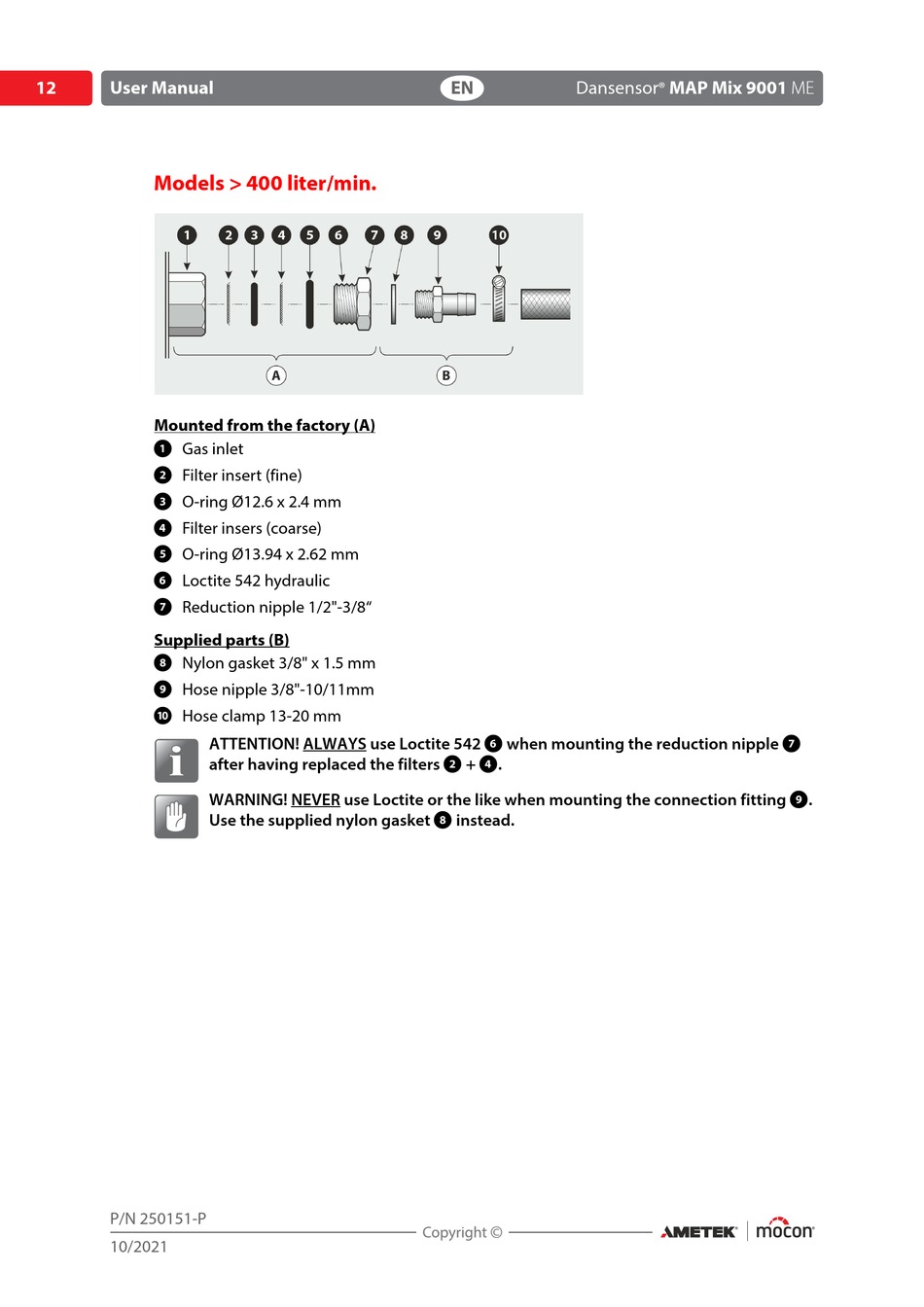

12
User Manual
Models > 400 liter/min.
Mounted from the factory (A)
Gas inlet
Filter insert (fine)
O-ring Ø12.6 x 2.4 mm
Filter insers (coarse)
O-ring Ø13.94 x 2.62 mm
Loctite 542 hydraulic
Reduction nipple 1/2"-3/8"
Supplied parts (B)
Nylon gasket 3/8" x 1.5 mm
Hose nipple 3/8"-10/11mm
Hose clamp 13-20 mm
ATTENTION! ALWAYS use Loctite 542
after having replaced the filters
WARNING! NEVER use Loctite or the like when mounting the connection fitting
Use the supplied nylon gasket
P/N 250151-P
10/2021
EN
Dansensor
when mounting the reduction nipple
+
.
instead.
MAP Mix 9001 ME
®
.
