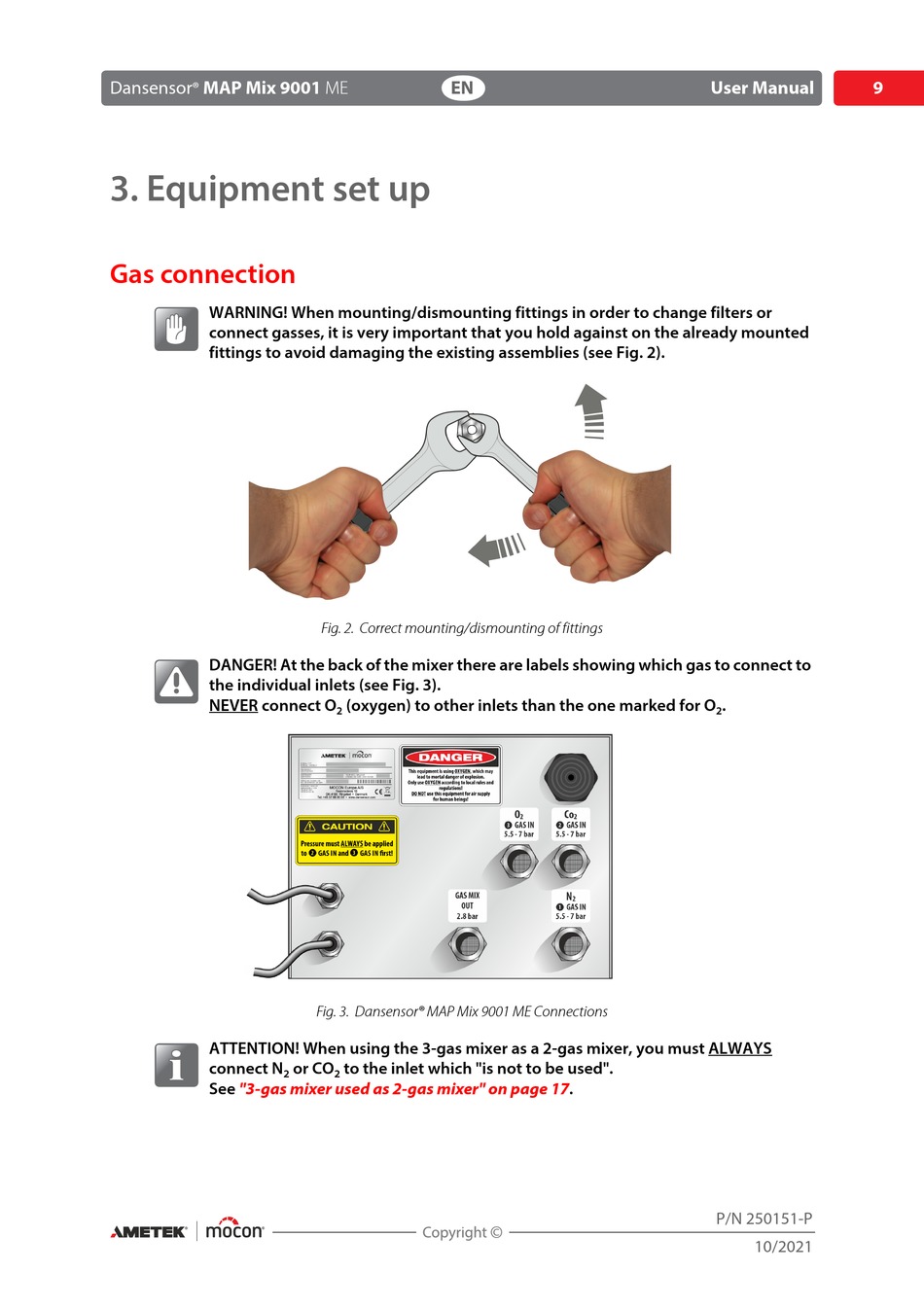

3. Equipment set up

Gas connection

WARNING! When mounting/dismounting fittings in order to change filters or
connect gasses, it is very important that you hold against on the already mounted
fittings to avoid damaging the existing assemblies (see Fig. 2).
DANGER! At the back of the mixer there are labels showing which gas to connect to
the individual inlets (see Fig. 3).
NEVER connect O
ATTENTION! When using the 3-gas mixer as a 2-gas mixer, you must ALWAYS
connect N
2
See "3-gas mixer used as 2-gas mixer" on page
EN
Fig. 2. Correct mounting/dismounting of fittings
(oxygen) to other inlets than the one marked for O
2
Fig. 3. Dansensor® MAP Mix 9001 ME Connections
or CO to the inlet which "is not to be used".
2
User Manual
.
2
17.
