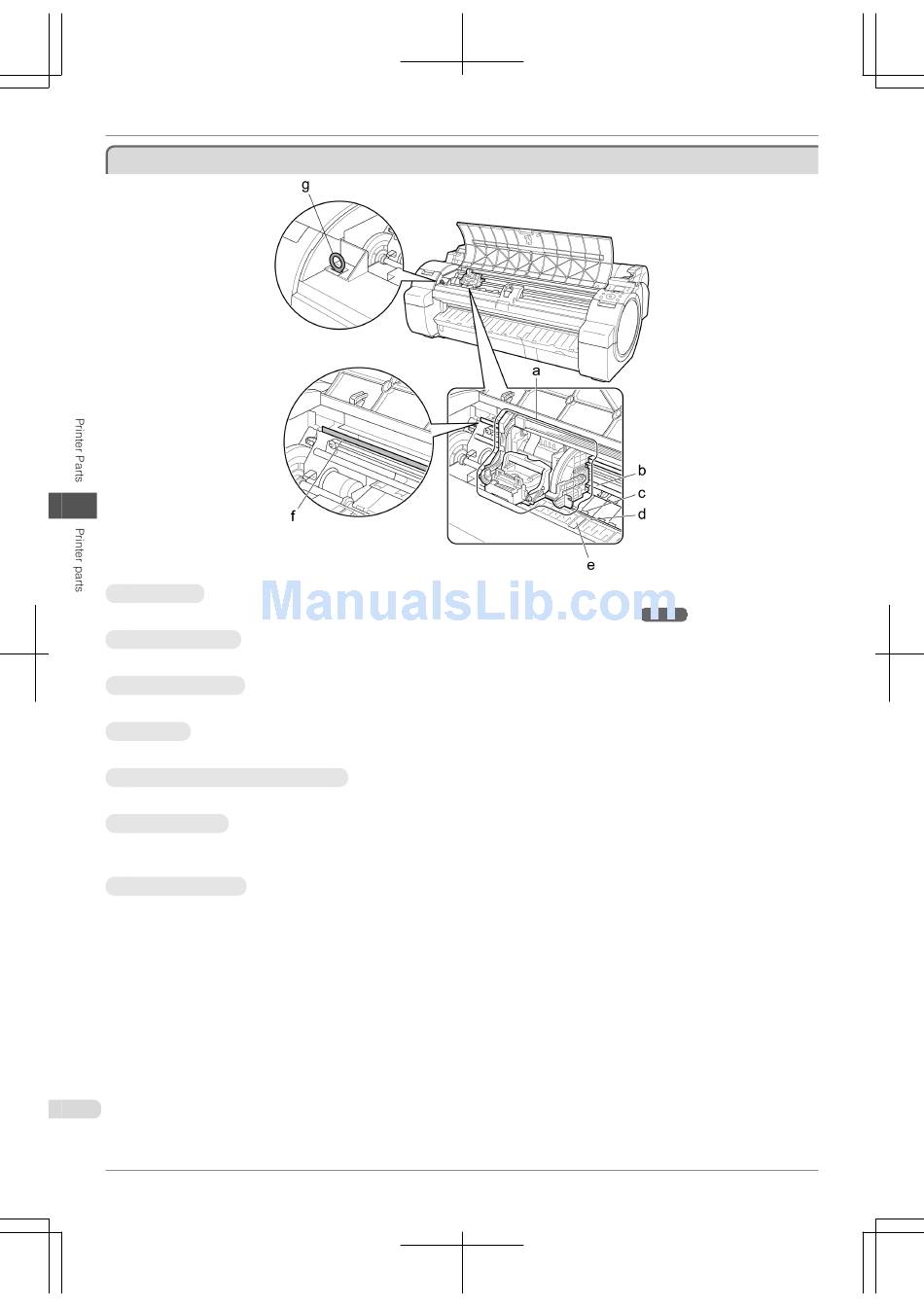

Top Cover (Inside)
Top Cover (Inside) Top Cover (Inside)
a Carriage
Moves the Printhead. The carriage serves a key role in printing. (See "Carriage.")
b Carriage Shaft
The Carriage slides along this shaft.
c Paper Retainer
Important in supplying the paper. This retainer holds paper as it is fed.
d Platen
The Printhead moves across the platen to print. Vacuum holes on the platen hold paper in place.
e Borderless Printing Ink Grooves
For catching ink outside the edges of paper during borderless printing.
f Linear Scale
The linear scale serves a key role in detecting the Carriage position. Be careful not to touch this part when
cleaning inside the Top Cover or clearing paper jams.
g Cleaning Brush
When cleaning inside the printer under the Top Cover, use this brush to sweep away paper dust on the Platen.
