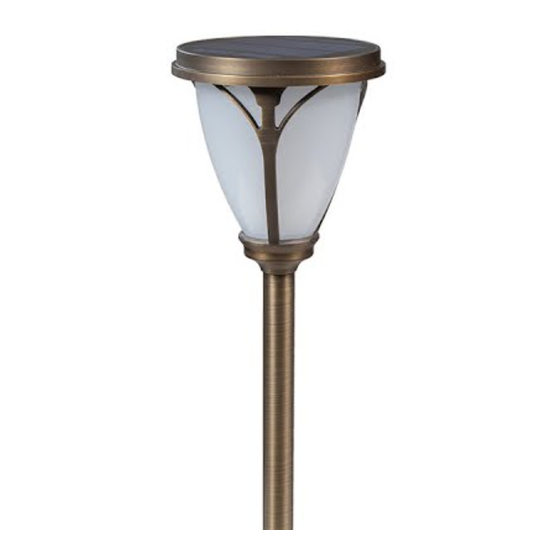

- Page 1 INSTALLATION & MAINTENANCE GUIDE Low Voltage Landscape Lighting ® Solarium Brass LED Flame Path Light ® ASPL-3030-B-BZ Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) w w w. a m p l i g h t i n g . c o m...
- Page 2 INSTALLATION & MAINTENANCE GUIDE Solarium Brass LED Flame Path Light ® ASPL-3030-B-BZ Important Safety Instructions: Read Before Installation This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and in-...
- Page 3 Package Contents A. (1) Fixture Body C. (1) 12” Stem B. (1) Flame LED Lamp Package Contents A. Mounting Accessory Product Dimensions 6.33” 6.89” customersupport@amplighting.com • 813.978.3900 –3–...
- Page 4 INSTALLATION & MAINTENANCE GUIDE Solarium Brass LED Flame Path Light ® ASPL-3030-B-BZ Remove Solar Panel Using a screwdriver, loosen the screws to carefully remove the solar panel from the fixture Solar Panel body to avoid disconnecting the wires. Fixture Body...
- Page 5 Install Solar Panel Align the switch to the slot on the solar panel and place the Solar Panel solar panel back onto the fix- ture body. Secure them togeth- Slot er with previously removed screws. Hand tighten until snug Switch with a screwdriver.
- Page 6 INSTALLATION & MAINTENANCE GUIDE Solarium Brass LED Flame Path Light ® ASPL-3030-B-BZ Install Stake Determine the desired location for mounting the luminaire. Board Hammer the stake into the ground until flange of stake is flush to grade. To avoid damage...
- Page 7 How to Replace Battery Remove Solar Panel Using a screwdriver, loosen the screws to carefully remove the Solar Panel solar panel from the fixture body to avoid disconnecting the wires. Fixture Body Screw Replace Battery Remove the battery out of Solar Panel the battery compartment and Battery...
- Page 8 Specifications and product details subject to change without notice. © Copyright 2022, AMP Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@amplighting.com • 813.978.3900 w w w. a m p l i g h t i n g . c o m IS-ASPL-3030-B-BZ-ver1.pdf...
