Related Manuals for AMP Lighting ADL-2010 Series
Summary of Contents for AMP Lighting ADL-2010 Series

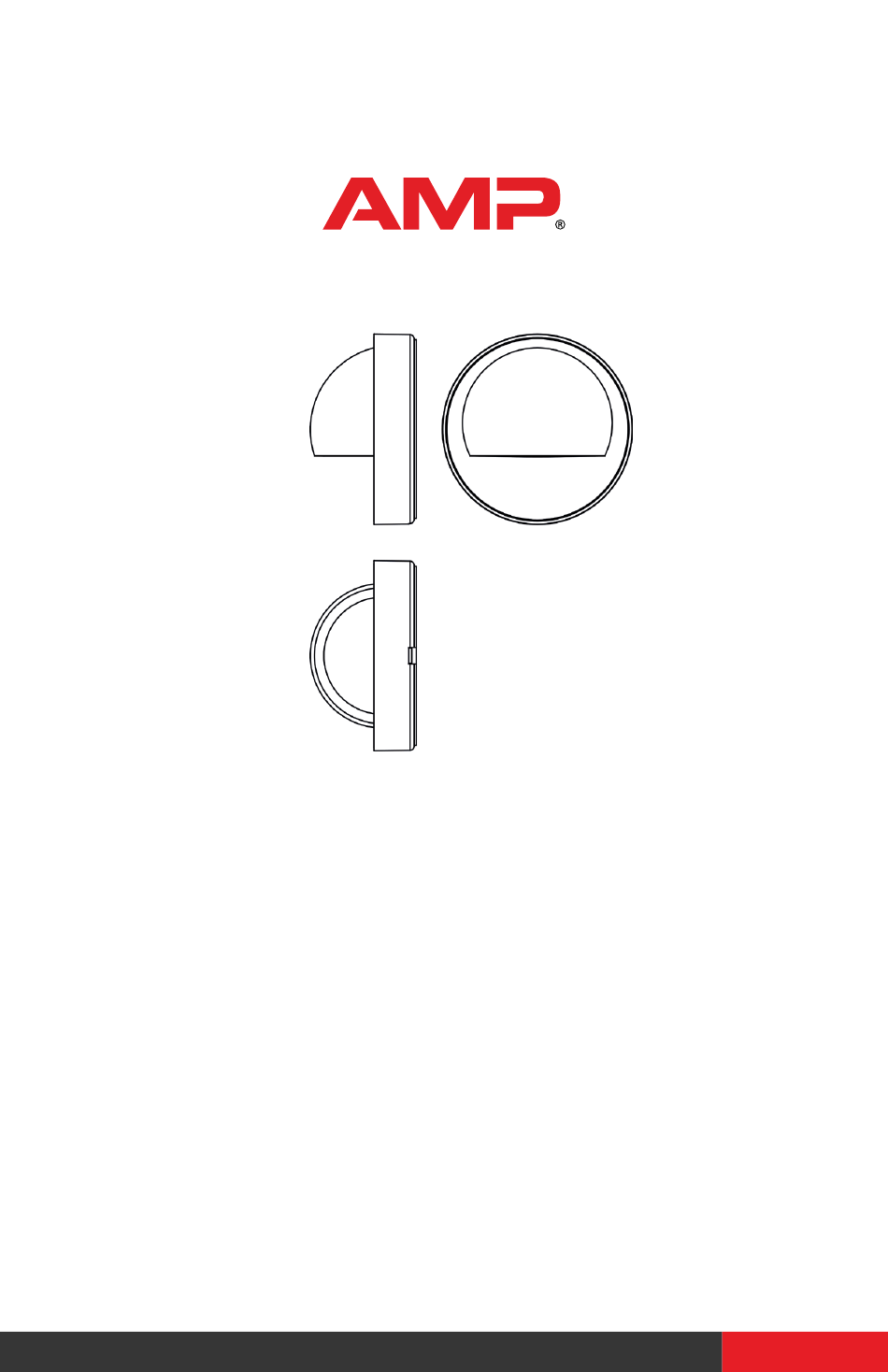

- Page 1 INSTALLATION & MAINTENANCE GUIDE LOW VOLTAGE LANDSCAPE LIGHTING ® Deck-DesignPro Classic ® ITEM: ADL-2010 Series 1-813-978-3900 • Mon-Fri 9am-6pm (EST) - 1 -...
- Page 2 INSTALLATION & MAINTENANCE GUIDE AMP ® Deck-DesignPro Classic - ADL-2010-X-B-XX IMPORTANT SAFETY INSTRUCTIONS: READ BEFORE INSTALLATION This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
- Page 3 PACKAGE CONTENTS A. (1) Luminaire B. (1) Lock Screws PRODUCT DIMENSIONS 2” 3 3/8” 2 1/4” Pro Technique for Hiding Lead Wire Determine the location for the fixture. Drill a hole straight through the desired mounting location and run the lead wire out the backside of the location so that the wires are not visible from the front side.
- Page 4 INSTALLATION & MAINTENANCE GUIDE AMP ® Deck-DesignPro Classic - ADL-2010-X-B-XX Remove Lens Assembly Base Rotate the lens assembly counter clockwise until it is stops and then lift the lens assembly straight off. Note: The first time it may be difficult because the luminaire has a tight o-ring seal and a grease Luminaire Lens Assembly...
- Page 5 Install Bulb Insert the bulb with correct wattage and type marked on the luminaire label. Bulb CAUTION: Do not exceed maximum wattage marked on luminaire label. NOTE: DO NOT touch bulb with bare Socket hands. Use soft cloth to handle bulb. Install Lens Assembly Push the lens assembly back onto the base aligned with the gaps on...
- Page 6 INSTALLATION & MAINTENANCE GUIDE AMP ® Deck-DesignPro Classic - ADL-2010-X-B-XX 813.978.3900 • customersupport@amplighting.com • www.amplighting.com...
- Page 7 813.978.3900 • customersupport@amplighting.com • www.amplighting.com...
- Page 8 1-813-978-3700 • Mon-Fri 9am-6pm (EST) Specifications and product details subject to change without notice. © Copyright 2023, AMP® Lighting, Lutz FL USA 33549 • All rights reserved. customersupport@amplighting.com • amplighting.com...
