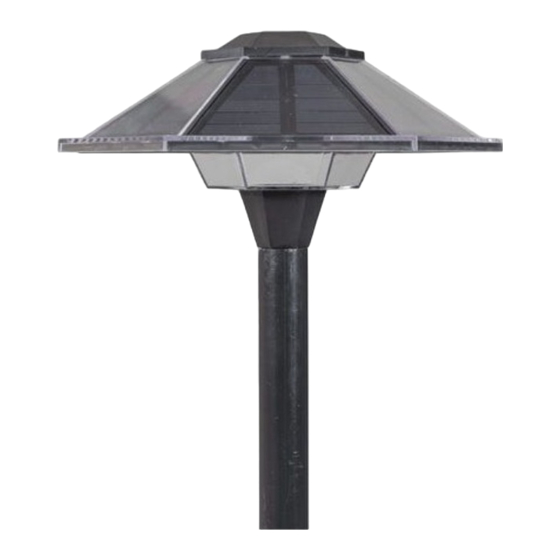

- Page 1 INSTALLATION & MAINTENANCE GUIDE ® Low Voltage Landscape Lighting ® Solarium Solar LED Path Light ASPL-3028-X-XX Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) w w w. a m p l i g h t i n g . c o m...
- Page 2 INSTALLATION & MAINTENANCE GUIDE ® Solarium Solar LED Path Light ASPL-3028-X-XX Important Safety Instructions: Read Before Installation This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
- Page 3 Package Contents A. (1) Fixture Body Parts Required B. Mounting Accessory A. Riser Product Dimensions 8.7” 4” 7.5” customersupport@amplighting.com • 813.978.3900 –3–...
- Page 4 INSTALLATION & MAINTENANCE GUIDE ® Solarium Solar LED Path Light ASPL-3028-X-XX Test Solar Light Black Material Solar Panel On/Off Switch Fixture Body Slide the ON/OFF switch of the fixture to the “ON” position. Cover solar panels completely by using black materials. The fixture will light up when the solar panel is covered and turn back off when it is uncovered.
- Page 5 INSTALLATION & MAINTENANCE GUIDE ® Solarium Solar LED Path Light ASPL-3028-X-XX Install Stake Determine the desired location Board for mounting the stake mount. Hammer the stake into the ground until flange of stake is flush to grade. To avoid damage to the stake, place a board on top of the stake while hammer- Stake...
- Page 6 INSTALLATION & MAINTENANCE GUIDE ® Solarium Solar LED Path Light ASPL-3028-X-XX How to Replace Battery Remove Shield Shield Shield Press the sides of the shield to remove it from the fixture body. Remove Luminaire Using a screwdriver, remove the Screw 3 screws.
- Page 7 Remove Circuit Board Remove the battery cover from the luminaire by using a screw- driver and removing the screws. Screw Battery Cover Luminaire Remove Circuit Board Press Quick Connector Screw Press Battery Holder Battery Luminaire Disconnect the quick connector by pressing the tabs on the side. Remove the old battery by removing the two screws.
- Page 8 Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) Specifications and product details subject to change without notice. © Copyright 2021, AMP ® Lighting, Lutz FL USA 33549 • All rights reserved. customersupport@amplighting.com • 813.978.3900 w w w. a m p l i g h t i n g . c o m IS-ASPL-3028-ver1.pdf...
