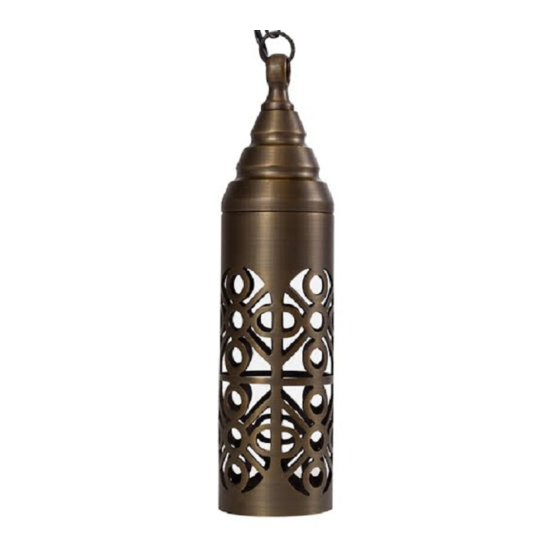

- Page 1 INSTALLATION & MAINTENANCE GUIDE Low Voltage Landscape Lighting ® Estate PendantPro Hanging Light ® ASI-9006-4036-B-BZ Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) w w w. a m p l i g h t i n g . c o m...
- Page 2 INSTALLATION & MAINTENANCE GUIDE Estate PendantPro Hanging Light ® ASI-9006-4036-B-BZ Important Safety Instructions: Read Before Installation This fixture is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
- Page 3 Package Contents A. (1) Fixture D. (1) Mounting Bracket B. (1) Fixture Chain E. (3) Self-tapping Screws C. (1) Chain Link F. (3) Flat Washers Parts Required (Sold Separately) A. (1) LED MR16 Lamp or (1) Bi-Pin Brass Puck Light Product Dimensions 13.15”...
- Page 4 INSTALLATION & MAINTENANCE GUIDE Estate PendantPro Hanging Light ® ASI-9006-4036-B-BZ Remove Shade Remove the top of the shade from the bottom of the shade to expose the socket. Top of Shade Bottom of Shade Two kinds of bulbs are suitable for this fixture. 1.
- Page 5 INSTALLATION & MAINTENANCE GUIDE Estate PendantPro Hanging Light ® ASI-9006-4036-B-BZ Option 2: Bi-Pin Puck Light Remove Clips Remove the clip from the socket by removing the screws. Socket Clip Screw Install Bi-Pin Brass Puck Light Insert the Bi-pin brass puck light into the socket and secure it Socket in place with the two screws...
- Page 6 INSTALLATION & MAINTENANCE GUIDE Estate PendantPro Hanging Light ® ASI-9006-4036-B-BZ Install Shade Thread the top of the shade back onto the bottom of the shade. Top of Shade Bottom of Shade Install Mounting Bracket Attach the mounting bracket onto Ceiling the desired ceiling surface.
- Page 7 Attach Fixture to Mounting Bracket Adjust the fixture chain to the desired Mounting length by removing the links if needed. Bracket (Note: Pliers are required for this step). Ceiling Loop With the fixture chain unattached to the fixture loop on top of the fixture body; or Chain Link the ceiling loop on the underside of the mounting bracket, pull the supply wires...
- Page 8 Wire Connections Wire Connections Fixture Wire Supply Wire Strip both leads from the luminaire pigtail. Connect the leads from the luminaire supply cable to the transformer (sold separately).
