- Page 1 INSTALLATION & MAINTENANCE GUIDE Low Voltage Landscape Lighting ® Path & Area Light Stem ® ASM-2407 & ASM-1203 Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) w w w. a m p l i g h t i n g . c o m...
- Page 2 INSTALLATION & MAINTENANCE GUIDE Path & Area Light Stem ® ASM-2407 & ASM-1203 Important Safety Instructions: Read Before Installation This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.

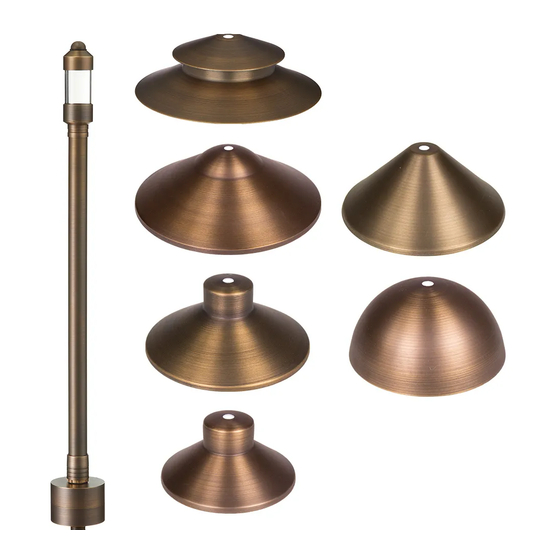

- Page 3 Package Contents A. (1) Stem Parts Required (sold separately) A. (1) Hat C. Stake B. (1) Bulb Product Dimensions Magnum Hat Pictured Here on Magnum Hat Pictured Here on Standard stem Mini stem 9” 2 1/2” 22 1/2” customersupport@amplighting.com • 813.978.3900 –3–...
- Page 4 INSTALLATION & MAINTENANCE GUIDE Path & Area Light Stem ® ASM-2407 & ASM-1203 Remove Stem Top Loosen the stem top and remove it from the stem. Stem Top Stem Install Bulb Insert the bulb with the correct wattage and type marked on the...
- Page 5 Install Stake Determine the desired location for Board mounting the fixture. Hammer the stake into the ground until the flange of the stake is flush to grade. To avoid damage to the stake, place a board on top of the stake while hammering. Stake NOTE: If the ground is hard and the Ground...
- Page 6 INSTALLATION & MAINTENANCE GUIDE Path & Area Light Stem ® ASM-2407 & ASM-1203 Wire Connection Pigtail Wire Connectors Main Supply Cable Strip both leads from the luminaire pigtail. Using two wire connectors (sold separately), connect the leads from the luminaire to the main supply cable leads.
- Page 7 Install/Replace Bulb Remove the hat and stem top to expose the bulb. Replace it with the correct wattage and type marked on the fixture label. Then, reinstall the stem top and hat. IMPORTANT: Bulbs must be protected from moisture and dust at all times.
- Page 8 Specifications and product details subject to change without notice. © Copyright 2019, AMP Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@amplighting.com • 813.978.3900 w w w. a m p l i g h t i n g . c o m IS-ASM-2407/1203-ver3.pdf...
