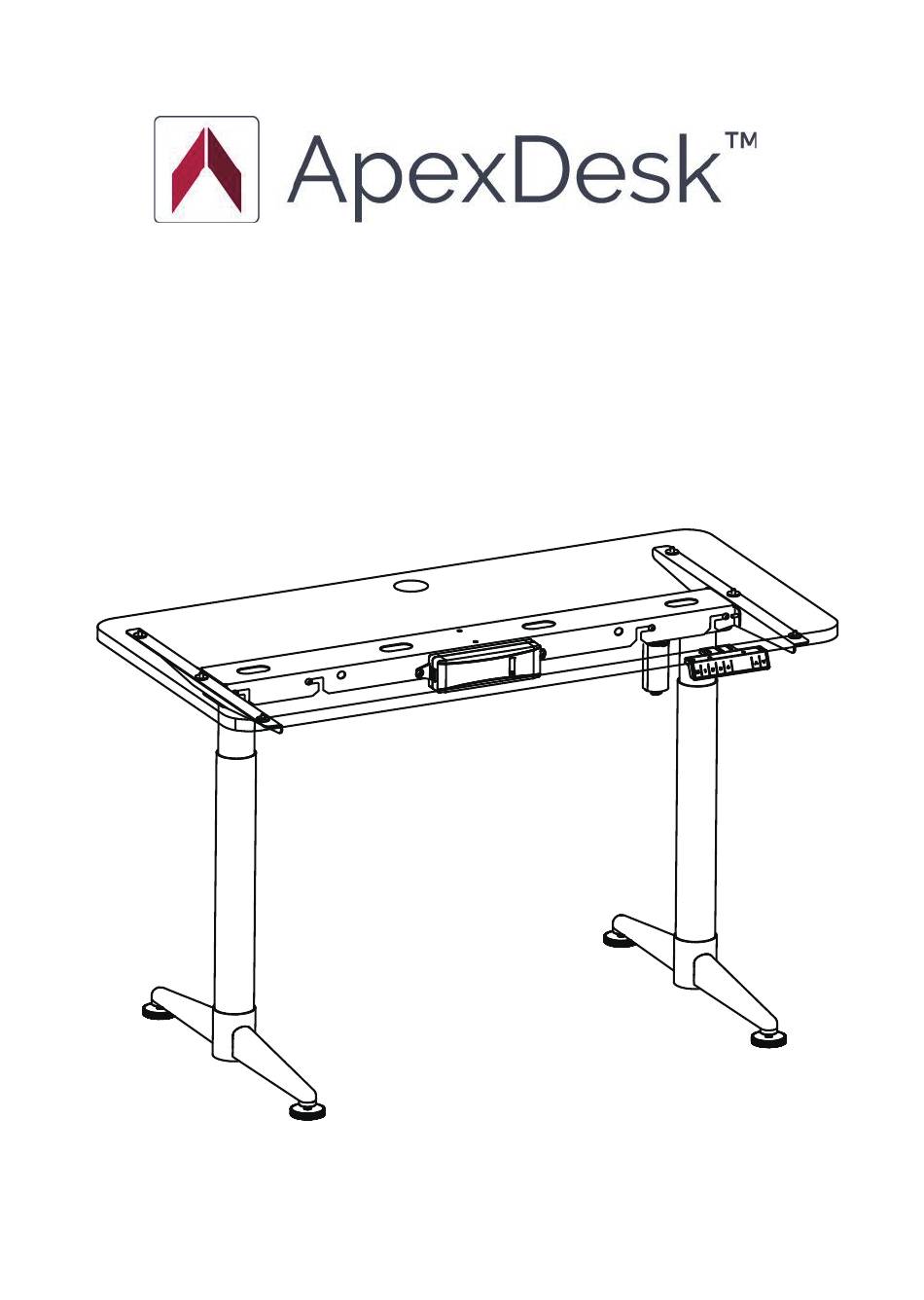

- Page 1 Electric Height- Adjusted Sit to Stand Desk Vortex M Edition Desk Assembly Guide Vortex M Edition Desk Assembly Guide...
-
Page 2: Table Of Contents
PARTS / COMPONENT DIAGRAMS ......5 ASSEMBLY INSTRUCTIONS ........6 HOW TO USE MEMORY CONTROLLER ....13 TROUBLESHOOTING ..........14 INSTALLING CABLE MANAGEMENT TRAY....15 SPECIFICATIONS ............17 WARRANTY INFORMATION ........18 CONTACT INFORMATION ......... 20 Vortex M Edition Desk Assembly Guide 2 / Page... -
Page 3: Caution, Use & Liability
Any other use is at user’s risk. Under no circumstances does the manufacturer accept warranty or liability claims for damages caused from improper use or handling of the desk. Vortex M Edition Desk Assembly Guide 3/ Page... -
Page 4: Hardware List
M6X14 X20 Rubber Grommet USAGE M6x20 Secure feet Secure top, contol box & support brackets M6x14 Secure controller ST3.5x19 Install on support brackets & cross beam Rubber Grommet Cable clip Cable management 4/ Page Vortex M Edition Desk Assembly Guide... -
Page 5: Parts / Component Diagrams
PARTS / COMPONENT DIAGRAMS PARTS/COMPONENT LIST Cross beam Driveshaft Lifting column Foot Top support bracket Control box Controller Power cord Leveling stud 5/ Page Vortex M Edition Desk Assembly Guide... -
Page 6: Assembly Instructions
Page 4 & 5. Don’t contact retailers for missing parts. Email to support@apexdesk.com 2. Assemble on soft and non-abrasive surface to avoid scratch or damage. Step 1 Insert legs into crossbeam and tighten 8 pre-installed screws with 4mm Allen wrench. 6/ Page Vortex M Edition Desk Assembly Guide... - Page 7 Tighten the large nut by hand, and tighten two pre-installed screws on the driveshaft with 2.5 mm Allen wrench. 2.5mm ×2 7/ Page Vortex M Edition Desk Assembly Guide...
- Page 8 Step 3 Use 5mm Allen wrench and secure each foot to lifting column with four M6x20 screws. Install leveling studs. M6*20 8/ Page Vortex M Edition Desk Assembly Guide...
- Page 9 Step 4 Use 4mm Allen wrench and secure each top support bracket to beam with four M6x14 screws. Please note edges of support brackets should face outwards, not fold over the crossbeam. M6*14 9/ Page Vortex M Edition Desk Assembly Guide...
- Page 10 Install six anti-vibration grommets on support brackets and two on crossbeam. Some users don’t install them. This is optional. Use 4mm Allen wrench to secure control box with two M6x14 screws. Grommet M6*14 10/ Page Vortex M Edition Desk Assembly Guide...
- Page 11 Adjust leveling studs on the feet if needed. Make sure the stubs make solid contact with the floor and the desk does not wobble due to uneven contact with the floor. M6*14 11/ Page Vortex M Edition Desk Assembly Guide...
- Page 12 Step 7 Use screwdriver to secure controller with four ST3.5x19 screws. Connect the power cord and motor cable to the control box and controller to the control box. Screwdriver ST3.5*19 12/ Page Vortex M Edition Desk Assembly Guide...
-
Page 13: How To Use Memory Controller
3.Press and hold Preset button1,2,3 or 4. If Button #1 is pressed, P1 will flash briefly. Preset is complete when flashing displayed height becomes solid. To go to your preset height, simply press preset button 13/ Page Vortex M Edition Desk Assembly Guide... -
Page 14: Troubleshooting
It is normal that the desk is noisier when one stage extends Desk is noisy into the other. Apply silicon based lubricant if it is unusually noisy. 14/ Page Vortex M Edition Desk Assembly Guide... -
Page 15: Installing Cable Management Tray
Step 1: Locate two screw holes on the backside of the beam and mount metal connector as illustrated below with two wing screws and washers, attach the tray to the metal connector with wing screws and slip adapters. 15/ Page Vortex M Edition Desk Assembly Guide... - Page 16 Step 2: If adjustment is needed, loosen the screws below, slide the tray to the left or right and tighten the screws. Step 3: Mount cable clamps 16/ Page Vortex M Edition Desk Assembly Guide...
-
Page 17: Specifications
175Lbs Speed at Full Load 1'' / per second Input(VAC) 100-240V Lowest position 28.3'' Highest position 47.25'' Foot Length 650MM / 25.6'' Over load Protection Memory with 4 pre-set Controller Type Anti-collision 17/ Page Vortex M Edition Desk Assembly Guide... -
Page 18: Warranty Information
ApexDesk to be free from defects in material and workmanship under normal use and service. ApexDesk’s obligation under this warranty is limited to the repair or replacement, at ApexDesk’s sole option, of the parts or products the defect of which are reported to ApexDesk within the applicable warranty period and which, upon examination by ApexDesk, prove to be defective. - Page 19 EXCLUSIVE REMEDY ApexDesk’s only obligation under this warranty is the repair or replacement of defective parts. ApexDesk shall not be liable for any direct, special, indirect, incidental, exemplary, or consequential damages or delay, including, but not limited to, damages for loss of profits or loss of use.
-
Page 20: Contact Information
CONTACT INFORMATION Apex Furniture LLC (“ApexDesk”) 18467 Railroad Street, City of Industry, CA 91748 Email: support@apexdesk.com (877) 516-DESK www.apexdesk.com For technical assistance, please call us or visit us at www.apexdesk.com/support. 20/ Page Vortex M Edition Desk Assembly Guide...
