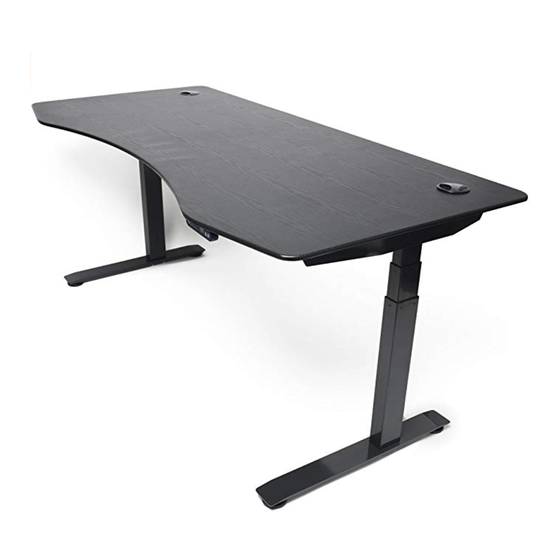

ApexDesk Elite Series Assembly Manual
Electric height-adjusted sit to stand desk
Hide thumbs
Also See for Elite Series:
- Assembly manual (11 pages) ,
- Assembly manual (15 pages) ,
- Assembly manual (12 pages)
Subscribe to Our Youtube Channel
Related Manuals for ApexDesk Elite Series
Summary of Contents for ApexDesk Elite Series
- Page 1 ELECTRIC HEIGHT-ADJUSTED SIT TO STAND DESK 71”/60” Elite Series Assembly Guide 3/16/2021...
-
Page 2: Table Of Contents
Table of Contents CAUTION, USE & LIABILITY..........................3 PARTS & HARDWARE LIST..........................4 PARTS / COMPONENT DIAGRAMS........................5 ASSEMBLY INSTRUCTIONS..........................6 TROUBLESHOOTING............................15 ERROR CODE................................16 SPECIFICATIONS..............................19 WARRANTY INFORMATION..........................20 71”/60” Elite Series Assembly Guide P a g e... -
Page 3: Caution, Use & Liability
The desk height is adjustable so that it can be positioned at the most suitable height. Any other use is at user’s risk. Under no circumstances does the manufacturer accept warranty claims or liability claims for damages caused from improper use or handling of the desk. 71”/60” Elite Series Assembly Guide P a g e... -
Page 4: Parts & Hardware List
8 for securing feet to lifting column, 6 for securing top L-shaped locking lever for securing legs to crossbar Secure control box to crossbar Secure upper supports to crossbar Secure controller to tabletop (Not pictured. Packaged w/ controller) 71”/60” Elite Series Assembly Guide P a g e... -
Page 5: Parts / Component Diagrams
③ ③ ② ② PARTS / COMPONENT LIST Desktop Foot Lifting column (leg) Top support bracket (upper support) Beam (crossbar) Control box Controller Power cord (not pictured) Motor Cables (not pictured) 71”/60” Elite Series Assembly Guide P a g e... -
Page 6: Assembly Instructions
2. Assemble on soft and non-abrasive surface to avoid scratch or damage to the desktop. STEP 1 Use 5mm Allen wrench to secure feet to column with four Screw A on each side. 71”/60” Elite Series Assembly Guide P a g e... - Page 7 STEP 2 Use 4mm Allen wrench to secure top support brackets to beam with two Screw D on each side. 71”/60” Elite Series Assembly Guide P a g e...
- Page 8 Turn assembled beam over. Place assembled lifting columns from Step 1 into the beam. The lifting columns are not centered in relation to feet. Make sure the longer end of foot match that of upper support. 71”/60” Elite Series Assembly Guide P a g e...
- Page 9 Each locking lever has a shorter bar aka axle (A to B measuring 5.55”) and curved longer bar AKA handle (B to C 6.14”). Following diagrams illustrate how each leg is secured to the crossbar 71”/60” Elite Series Assembly Guide P a g e...
- Page 10 Shake the lift column with your hand when both levers are installed and make sure each lifting column is tightly secured and does not wiggle. 71”/60” Elite Series Assembly Guide 10 |...
- Page 11 If you want controller to be installed on the left hand, simply reverse the control box. Please note that two pilot holes for controller are only pre-drilled on the right-hand side not on the left-hand side of the desktop. 71”/60” Elite Series Assembly Guide 11 |...
- Page 12 Switching cables from one port to another may be needed when troubleshooting. Please refer to trouble-shooting section for details. Plug power cord to control box. Plug power cord to a power outlet 71”/60” Elite Series Assembly Guide 12 | P a g e...
- Page 13 Press M and one of the number buttons together for about 3 seconds until displayed height starts blinking, and then release both buttons. To go to your preset height, simply press the number button TWICE or press and hold the button. 71”/60” Elite Series Assembly Guide 13 | P a g e...
- Page 14 Use a Philips screwdriver to secure controller to the pre-drilled holes on the bottom of the top with two Screw E. Pilot holes are only pre-drilled on the right-hand side. Use a power tool to drill new holes if you wish to mount in a different position. 71”/60” Elite Series Assembly Guide 14 | P a g e...
-
Page 15: Troubleshooting
The desk will first go to the lowest position, then the highest position and finally stops in between. The reset is complete when number 38 (+/- 1) appears on the display. 71”/60” Elite Series Assembly Guide 15 | P a g e... -
Page 16: Error Code
If problem persists, switch motor cables at control box and attempt another reset. Motor failure if error code changes to E5. Anti-collision protection activated prematurely. Reduce sensitivity or turn off anti-collision function. 71”/60” Elite Series Assembly Guide 16 | P a g e... - Page 17 Sold separately at Apexdesk.com Amazon.com search ASIN: B0829CDVQ7 Step 1: Locate two screw holes on the backside of the beam and mount the tray as illustrated below with two wing screws . 71”/60” Elite Series Assembly Guide 17 | P a g e...
- Page 18 Step 2: If adjustment is needed, loosen the screws below, slide the tray to the left or right and tighten the screws. Step 3: Insert two cable clamps 71”/60” Elite Series Assembly Guide 18 | P a g e...
-
Page 19: Specifications
Yes (Factory default is off) Net/ Gross Weight Motor: 31.1/ 34.6 Ibs 71” Frame: 38/41 lbs 60” Frame: 34/37 lbs Package Dimensions Motor: 32.8”x15.1”x 6.9” 71” Frame: 68”x12”x2.7” 60” Frame: 57.5”x12.8”x3.3” 71”/60” Elite Series Assembly Guide 19 | P a g e... -
Page 20: Warranty Information
ApexDesk’s obligation under this warranty is limited to the repair or replacement, at ApexDesk’s sole option, of the parts or products the defect of which are reported to ApexDesk within the applicable warranty period and which, upon examination by ApexDesk, prove to be defective.
