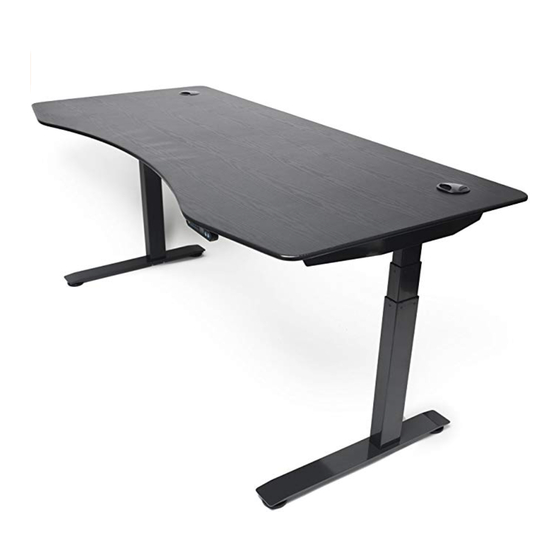

ApexDesk Elite Series Assembly Manual
Electric height-adjusted sit to stand desk
Hide thumbs
Also See for Elite Series:
- Assembly manual (11 pages) ,
- Assembly manual (15 pages) ,
- Assembly manual (20 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for ApexDesk Elite Series
Summary of Contents for ApexDesk Elite Series

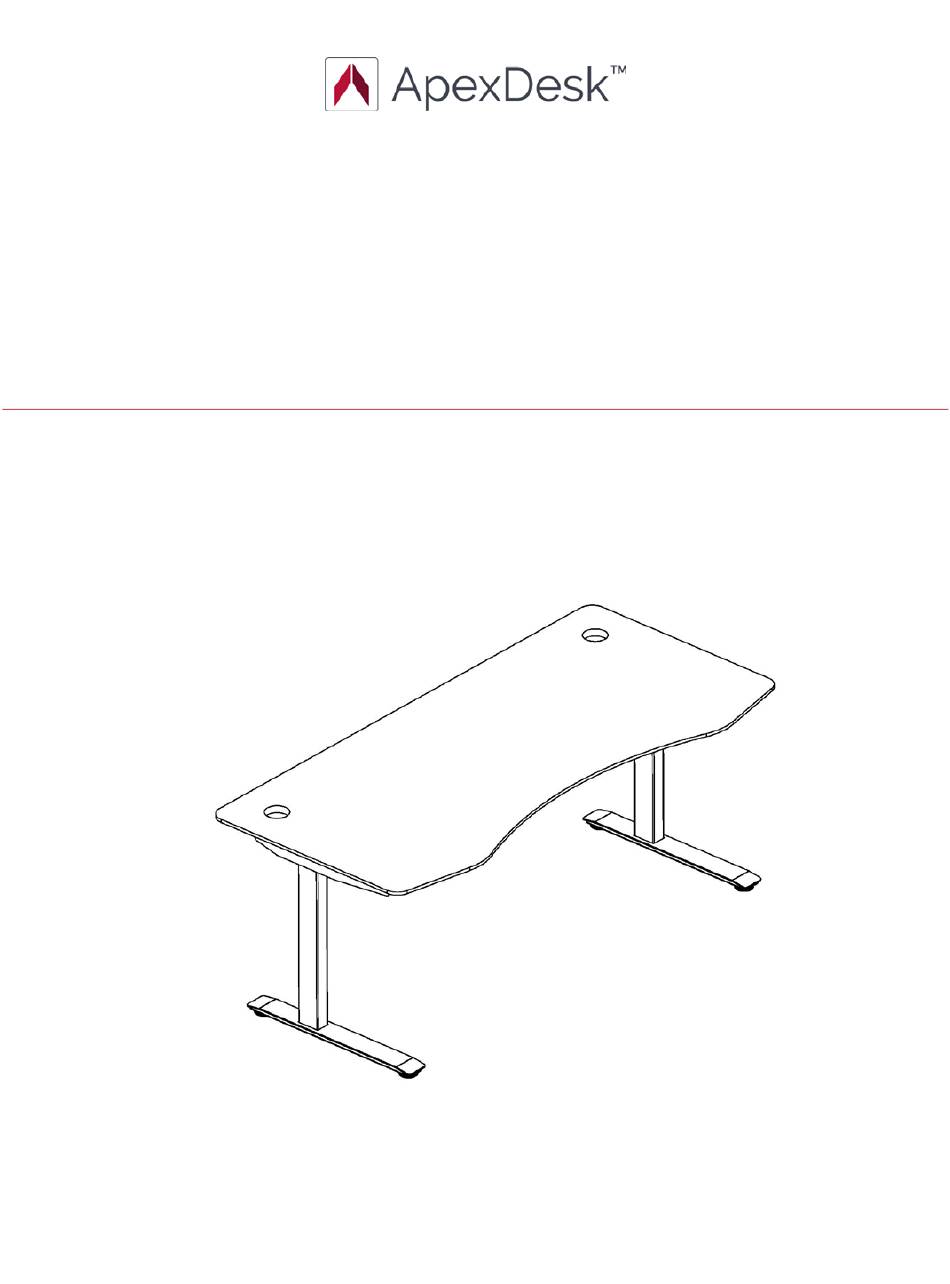

- Page 1 ELECTRIC HEIGHT-ADJUSTED SIT TO STAND DESK Elite Series Assembly Guide REV-1512A...
-
Page 2: Table Of Contents
Table of Contents CAUTION, USE & LIABILITY .......................... 3 PARTS & HARDWARE LIST ........................... 4 PARTS / COMPONENT DIAGRAMS ......................5 ASSEMBLY INSTRUCTIONS ........................6 WARRANTY INFORMATION ........................12 Elite Series Assembly Guide P a g e... -
Page 3: Caution, Use & Liability
The desk height is adjustable so that it can be positioned at the most suitable height. Any other use is at user’s risk. Under no circumstances does the manufacturer accept warranty claims or liability claims for damages caused from improper use or handling of the desk. Elite Series Assembly Guide P a g e... -
Page 4: Parts & Hardware List
Phillips screwdriver (not supplied) Allen wrench HARDWARE INCLUDED HARDWARE LIST M6x35mm screw L-shaped lever M4x12mm nut/bolt 3 Sets M6x15 hexagon screw M6x20 screw ST4.8x7mm pan-head screw (enclosed in a separate bag w/motors) Elite Series Assembly Guide P a g e... -
Page 5: Parts / Component Diagrams
PARTS / COMPONENT DIAGRAMS PARTS / COMPONENT LIST Desk top Foot Lifting column Top support bracket Beam Control box Controller Elite Series Assembly Guide P a g e... -
Page 6: Assembly Instructions
* Tip: The Illustrated beam placement allows controller to be on the right side of the desk. If you prefer controller to be on the left, turn the beam (only) 180° so the two mounting holes for the control box will be on the right instead. Elite Series Assembly Guide P a g e... - Page 7 GREEN dot into the hole that is also marked with a GREEN dot. Slide the green-dotted end all the way into the hole until it touches the inner beam. Elite Series Assembly Guide P a g e...
- Page 8 It is normal that you feel more pressure on one lever than the other when pushing the levers down. Make sure the levers DO NOT WIGGLE or DO NOT FEEL LOOSE. If they do, the levers are either defective or not properly installed. Elite Series Assembly Guide P a g e...
- Page 9 Depending which side of the desk you want controller to be installed, make sure to tuck one of the motor cables (shown as Wire 1 or 2 in the diagram) underneath control box’s built-in slot before securing it two nuts and bolts on one end and one on the other. Elite Series Assembly Guide P a g e...
- Page 10 This step is a two-person job. Carefully move the assembled frame onto desk top. Align the holes on the support brackets to those pre-installed anchors on the top. Secure each side with three Screw D (M6x15mm). STEP 8 Elite Series Assembly Guide 10 | P a g e...
- Page 11 Re-initialized desk. Contact tech support if the problem persists. Desk wobbles pretty excessively. It is normal that desk wobbles slightly at standing height. Make sure all the screws are tightened and adjust leveling studs. Elite Series Assembly Guide 11 | P a g e...
-
Page 12: Warranty Information
ApexDesk’s obligation under this warranty is limited to the repair or replacement, at ApexDesk’s sole option, of the parts or products the defect of which are reported to ApexDesk within the applicable warranty period and which, upon examination by ApexDesk, prove to be defective.
