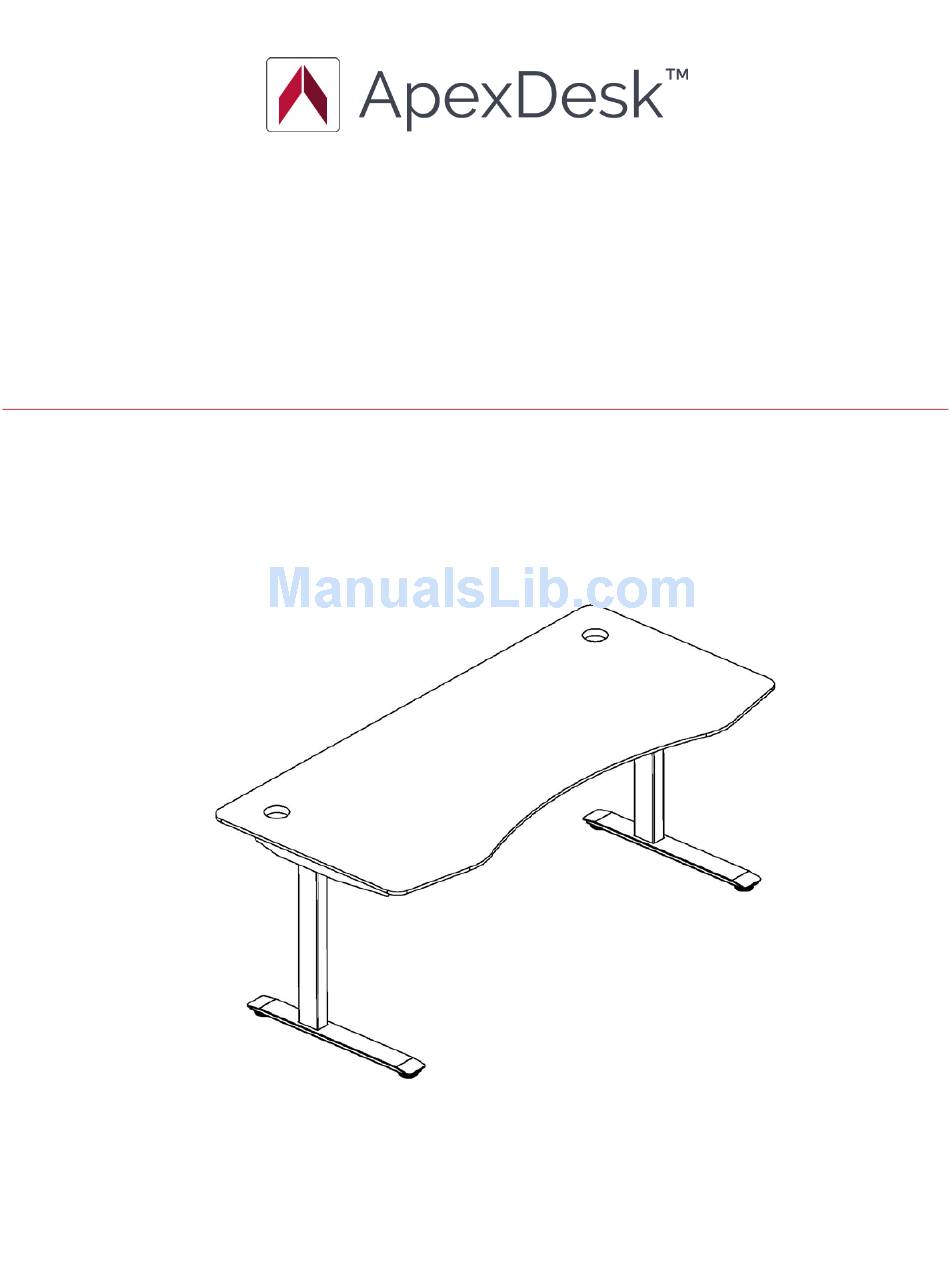

ApexDesk Elite Series Assembly Manual

ApexDesk Elite Series Assembly Manual

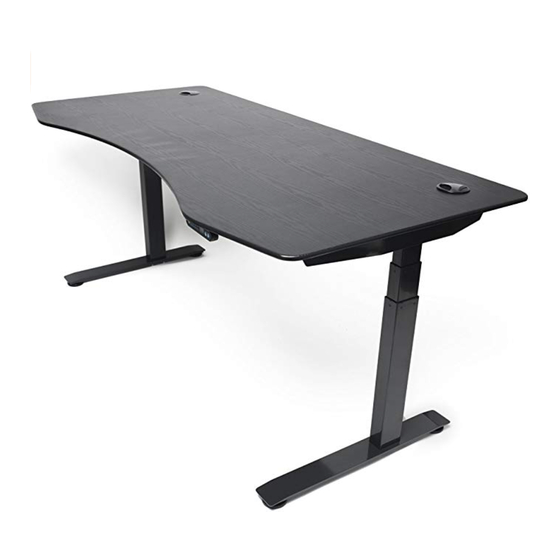

Electric height-adjusted sit to stand desk
Hide thumbs Also See for Elite Series:

Advertisement

Quick Links

ELECTRIC HEIGHT-ADJUSTED SIT TO STAND DESK
Elite Series Assembly Guide
REV-1507C

Advertisement

loading
Need help?

Need help?

Do you have a question about the Elite Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ApexDesk Elite Series

  • Page 1 ELECTRIC HEIGHT-ADJUSTED SIT TO STAND DESK Elite Series Assembly Guide REV-1507C...
  • Page 2: Table Of Contents

    Table of Contents CAUTION, USE & LIABILITY .......................... 3 PARTS & HARDWARE LIST ........................... 4 PARTS / COMPONENT DIAGRAMS ......................5 ASSEMBLY INSTRUCTIONS ........................6 WARRANTY INFORMATION ........................11 Elite Series Assembly Guide P a g e...
  • Page 3: Caution, Use & Liability

    The desk height is adjustable so that it can be positioned at the most suitable height. Any other use is at user’s risk. Under no circumstances does the manufacturer accept warranty claims or liability claims for damages caused from improper use or handling of the desk. Elite Series Assembly Guide P a g e...
  • Page 4: Parts & Hardware List

    Allen wrench 5mm x 1 HARDWARE INCLUDED 14PCS 4PCS 3PCS 4PCS φ8×135mm M6×16 M5×10 M6×20 HARDWARE LIST M6x16mm hexagon screw L-shaped locking lever M5x10mm hexagon screw M6x20mm hexagon screw ST4.8x7mm pan-head screw Elite Series Assembly Guide P a g e...
  • Page 5: Parts / Component Diagrams

    PARTS / COMPONENT DIAGRAMS PARTS / COMPONENT LIST Desk top Foot Lifting column Top support bracket Beam Control box Controller Elite Series Assembly Guide P a g e...
  • Page 6: Assembly Instructions

    Pre-drilled holes are only available for controller to be installed on the right. You will need to drill two holes yourself if you want to install the controller on the left. Elite Series Assembly Guide P a g e...
  • Page 7: Lifting Column

    Insert the end that is away from long handle first, and slide the other end into the hole on the opposite side. Please make sure the long handle is on your LEFT side when facing the lifting column. Elite Series Assembly Guide P a g e...
  • Page 8 Step 2 and the 4-port end of control box is on the left. Please note that there are two pre-drilled holes for controller on the bottom of right side desk top, not on the left side Elite Series Assembly Guide P a g e...
  • Page 9 Align the holes on the support brackets to those pre-installed anchors on the top. Secure each side with three Screw A (M6x16mm). Use a Philips screwdriver to secure controller to the pre-drilled holes on the bottom of the top with two Screw E (ST4.2x17mm). Elite Series Assembly Guide P a g e...
  • Page 10: Troubleshooting

    Re-initialized desk. Contact tech support if the problem persists. Desk wobbles pretty excessively. It is normal that desk wobbles slightly at standing height. Make sure all the screws are tightened and adjust leveling studs. Elite Series Assembly Guide 10 | P a g e...
  • Page 11: Warranty Information

    ApexDesk’s obligation under this warranty is limited to the repair or replacement, at ApexDesk’s sole option, of the parts or products the defect of which are reported to ApexDesk within the applicable warranty period and which, upon examination by ApexDesk, prove to be defective.
