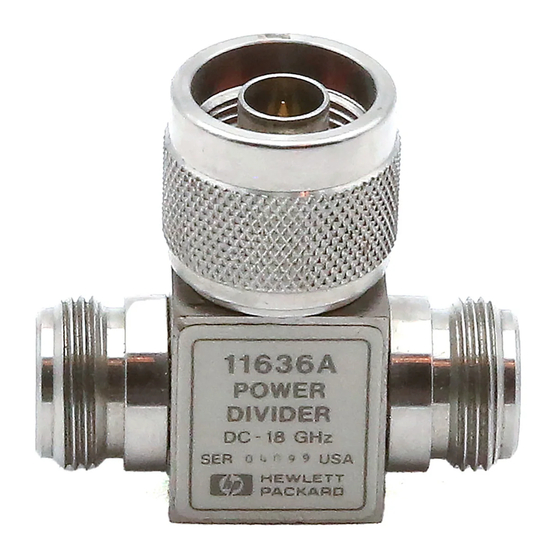

- Page 1 Keysight 11636A 50 Ohm Type-N Power Divider DC to 18 GHz Operating and Service Manual...
-
Page 2: Keysight 11636A Operating And Service Manual
Declarations of Conformity for this product ceed beyond a CAUTION notice until the indi- the DFARS and are set forth specifically in and for other Keysight products may be down- cated conditions are fully understood and met. writing elsewhere in the EULA. Keysight shall loaded from the Web. -
Page 3: Safety Symbols
Canadian Standards Association. European Legal Directives. This text indicates that the instrument is an Industrial Scientific and Medical Group 1 Class A product (CISPER 11, Clause 4). Keysight 11636A Operating and Service Manual... -
Page 4: Waste Electrical And Electronic Equipment (Weee) Directive
To return this unwanted instrument, contact your nearest Keysight Service Center, or visit http:// about.keysight.com/en/companyinfo/environment/takeback.shtml for more information. Sales and Technical Support To contact Keysight for sales and technical support, refer to the support links on the following Keysight websites: – www.keysight.com/find/mta (product-specific information and support, software and documentation updates) –... -
Page 5: Table Of Contents
........... . 14 Keysight 11636A Operating and Service Manual... -
Page 6: Keysight 11636A Operating And Service Manual
THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK. Keysight 11636A Operating and Service Manual... -
Page 7: List Of Figures
..........12 Keysight 11636A Operating and Service Manual... -
Page 8: Keysight 11636A Operating And Service Manual
THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK. Keysight 11636A Operating and Service Manual... -
Page 9: List Of Tables
........13 Keysight 11636A Operating and Service Manual... -
Page 10: Keysight 11636A Operating And Service Manual
THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK. Keysight 11636A Operating and Service Manual... -
Page 11: Introduction
Any port may be used as an input, as the 11636A provides a symmetrical 6 dB division. The 11636A can be used as a power combiner. When signals are input at two of the ports, the sum of the two appears at the third. -
Page 12: Adjustments
The 11636A power divider requires no electrical or mechanical adjustments. Service The circuit elements of the 11636A are split into three identical channels. A malfunction will usually occur in only one channel and can be verified by moving the connection to another channel of the divider. -
Page 13: Equipment And Supplies
Type-N (m) to 2.4 mm (f) 11903D Equipment and Supplies The following equipment and supplies are required for the maintenance and use of, but are not supplied with, your 11636A power divider. Table 2 Equipment and supplies Item Part number... -
Page 14: Contacting Keysight
Contacting Keysight Assistance with test and measurement needs and information on finding a local Keysight office are available on the Web at: www.keysight.com/find/assist In any correspondence or telephone conversation, refer to the Keysight product by its model NOTE number and full serial number. With this information, the Keysight representative can determine whether your product is still within its warranty period. - Page 15 This information is subject to change without notice. Always refer to the Keysight website for the latest revision. © Keysight Technologies 2014 - 2019 Edition 2, January 17, 2019 Printed in Malaysia *11636-90004* 11636-90004 www.keysight.com...
