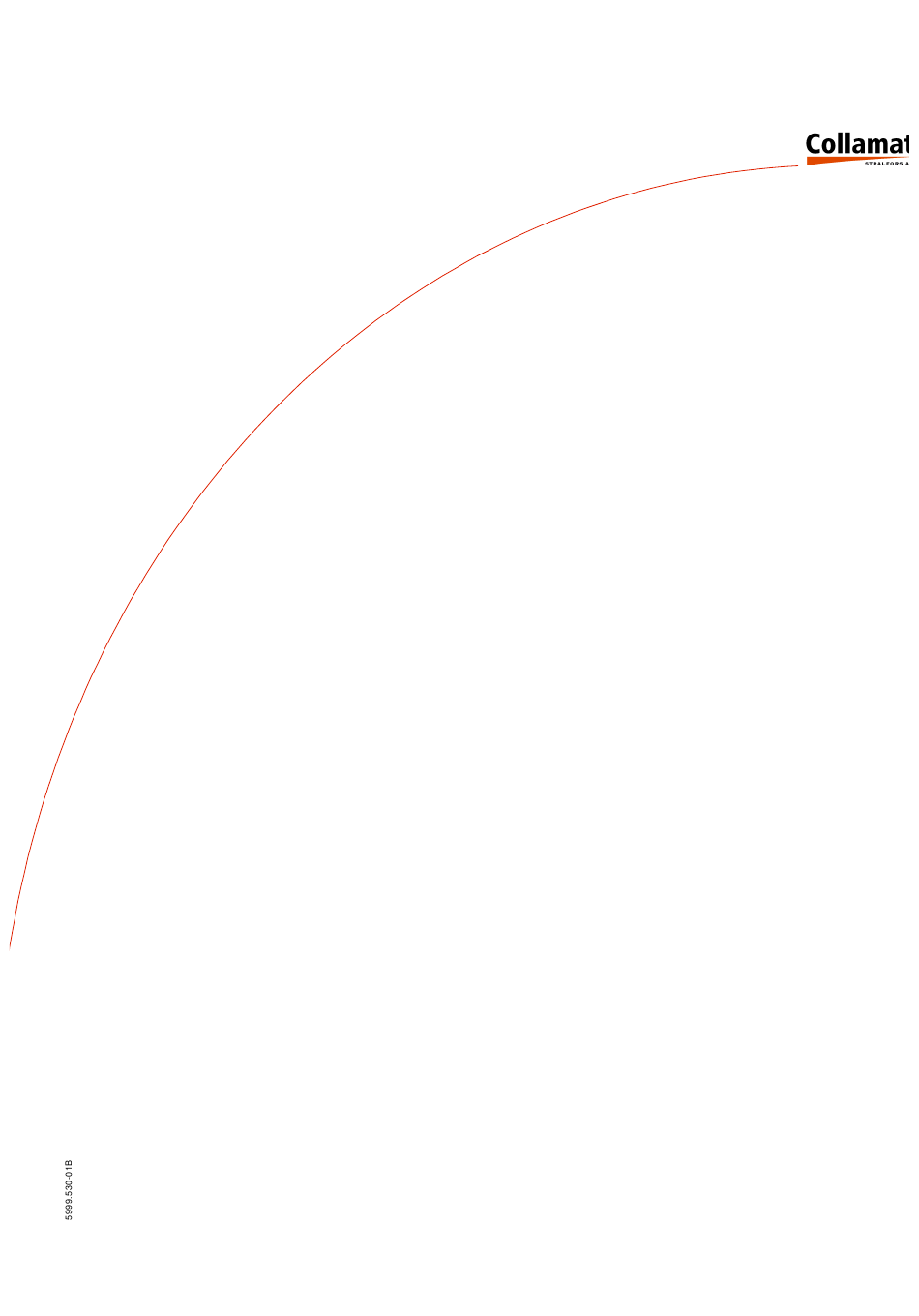

- Page 1 Collamat Collamat 8600/9100 8600/9100 ® Operating instructions Monitor Collamat Stralfors AG CH-4147 Aesch Pfeffingerring 201 Tel +41 61 756 28 28 Fax +41 61 756 29 29...
-
Page 2: Table Of Contents
Index Page Index Important warnings Danger notes Symbol description General information The monitor The controls of the monitor LCD display Function keys RUN/STOP key Keyboard ENTER key ESC key UP and DOWN key LABELLING MODE function key PROGRAMMING function key CONFIGURATION function key SERVICE DISPLAY function key Entering data with the keyboard... -
Page 3: Index
Index Page Store program Program name Program presets The 'CONFIGURATION' menu tree User menu Language User level Change level Change password Error handling Nonstop mode Adapter magnet Motor direction Polarity IFEED The 'SERVICE FUNCTIONS' menu tree Software-Version Error sequence Self-test Test RAM Test EEPROM Test keyboard... -
Page 4: Important Warnings
® Peripherals to the Collamat 8600/9100 must only be connected to the mains socket of the monitor. These devices must be approved by Collamat Stralfors AG. The specifications of the mains socket are specified in the Technical Appendix. Danger notes ®... -
Page 5: Symbol Description
Symbol description ATTENTION ® Indicates danger of damaging the Collamat 8600/9100 or other system components, with a potential consequential danger of injuries. DANGER Indicates an immediate hazard for persons. DANGER Shock hazard due to high voltage at component. DANGER Hazard due to high temperature component. -
Page 6: General Information
The monitor can be started or stopped by a signal from outside. The operating mode is displayed to the outside by relay contacts. ® Special characteristics of the Collamat C8600/9100 monitor Modern menu-driver operation No controller or potentiometer... -
Page 7: The Monitor
The monitor The monitor may only be opened by trained personnel. It contains no parts to be handled by the operator. The monitor contains live parts. Hazard of contact due to high voltages of the assemblies. The monitor contains electrostatic (ESD) sensitive assemblies. Unsafe contact may destroy these assemblies. -
Page 8: The Controls Of The Monitor
The controls of the monitor The mains switch of the monitor is installed on the back panel. Before switching on check labeller and system signals for correct connection. All functions and data of the labeller are entered via the controls of the monitor. Monitor data and states are indicated by a background lighted LCD-display with four lines with 20 characters each. -
Page 9: Lcd Display
The RUN/STOP key is used to start (RUN) or stop (STOP) the ® Collamat . The RUN state is indicated by a green LED (8). The STOP state is indicated by a red LED (7). In RUN state it is not possible to change all functions, because faults could occur during labelling. -
Page 10: Esc Key
This key is used to select the configuration function. When depres- sed, the LED placed above lights up and indicates that the monitor is ® in configuration mode. In this mode the Collamat is adapted to the customer's requirements. The "CONFIGURATION menu tree" (page 25) shows the function tree of the configuration mode. -
Page 11: Entering Data With The Keyboard
Entering data with the keyboard The numerical keys of the keyboard (10) are used to enter data. If the value to be ente- red is a decimal, enter the decimal point with the key ' ' (11). Confirm the input with the ENTER key (12) to validate it. If the data range is exceeded, this is indicated for a short time and the original value does not change. -
Page 12: Labelling Mode Function Key
The 'LABELLING MODE' menu tree The functions necessary for the labelling mode can be called up and operated in the 'LABELLING MODE' menu tree. The 'LABELLING MODE' menu tree comprises the following functions: LABELLING MODE Label Jog Select program Information Display Reset Counter Preset Counter Select Counter (Labels / Goods / External) -
Page 13: Information Display
Information display This function allows to indicate the most important labelling parameters on the LCD-dis- play. The program number, the actual dispensing speed, the count and the label positi- on on the good are shown here. It is not possible to change any data. They are only indicated and updated. -
Page 14: Select Counter
Select counter This function allows to select what should be counted by the counter. The counter input can distinguish between three different input signals: Products (goods) (GSC2) Labels (LSC) External signal (GSC3) The selection can be done by the arrow key and terminated by ESC. SELECT COUNTER User level: programmer... -
Page 15: The Programming Menu Tree
The 'PROGRAMMING' menu tree 'PROGRAMMING' menu tree is used to call up and operate the functions necessary for programming. PROGRAMMING Change program Label scanner Sensitivity Auto adjust Manual adjust Label Length Auto adjust Manual adjust Label Suppression Predispensing Position Speed Fixed Speed Incremental Encoder Measuring Scanner... -
Page 16: Change Program
Change program The Change program function is used to branch in an additional menu by calling up further parameters to be changed: CHANGE PROGRAM User level: programmer/operator Labelscanner Sens. Operating mode: RUN/STOP Label Length Label Suppression Predispensing Position Speed Max. Speed Good Suppression Labelling Mode Profiling... -
Page 17: Auto Adjust
Auto adjust When adjusting the sensitivity automatically, the paper web has to be pulled forward by depressing the up key, until the label scanner is positioned over the gap. A lateral mark on the scanner head shows the position of the label scanner. The automatic adjustment is started by depressing the ENTER key or abandoned by depressing the ESC key. -
Page 18: Label Length
Label length The Label length function is used to adjust the length of the label manually or automatically. LABEL LENGTH Auto adjust Manual adjust Auto adjust When adjusting the label length automatically, the measuring has to be started by the ENTER key. -
Page 19: Suppression Of Label Scanner
Label suppression (suppression of label scanner) This function is used to enter the length forcing the label scanner to suppress the si- gnals from the backing paper web and the label after having detected the leading edge of the label. Entering can be aborted by the ESC key. This function is used above all when relatively transparent labels are used, for which the optical label scanner is distur- bed by the print on the labels. -
Page 20: Position
Position The Position function is used to set a speed dependent labelling delay. This delay 2 causes a speed-independent positioning of the label 3 on the good 5 in feed direction 4. With this function it is not necessary to shift the goods scanner 1 to obtain a change of the label position on the goods. -
Page 21: Speed And Type Of Measurement
14.0 mm User level: programmer Operating Mode: STOP Note: The distance of 14 mm applies for the standard light barrier of Collamat Stralfors AG. For more informations about the calculation of the speed measuring, ® refer to the technical handbook Collamat... -
Page 22: Maximum Speed
Maximum Speed The Maximum Speed function limits the max. dispensing speed to the entered value. This function is necessary, if the goods speed is not stable or if labelling is problematic due to difficult label material with higher speed than usual. For labelling using speed measuring the dispensing speed is limited automatically to this value. -
Page 23: Multiple Labelling Mode
Multiple labelling mode (only ® 9100) Collamat In the Multiple Labelling mode, several labels are sticked on the goods 4 in the same distance 3. This mode is especially useful for labelling forms or multiple packages. After activating the multiple labelling mode, first the quantity and then the distance 2 between the labels has to be entered. -
Page 24: Delayed Predispensing
Delayed Predispensing In the Delayed Predispensing mode the predispensing 1 will only be tripped after re- lease of the label scanner. Thus the following label will not be sticked on the good being still under the adapter. After having selected the Delayed Predispensing mode, the stop value 2 has to be entered so that the label is perfectly dispensed and the following label does not contact. -
Page 25: Profiling
Profiling (only ® 9100) Collamat The Profiling function is used, when a good with uneven surface should be labelled continuously. The dispensing speed is constant when labelling with even surface. The speed has to be varied during labelling of goods with not even surface, so the label can be sticked on without folds. -
Page 26: Store Program
Store program The Store program function allows to memorize the actual labeller and labelling para- meters under a program number. 32 memory locations or program numbers are available. The actual program number is indicated as proposal. It can be overwritten or changed on the keyboard. -
Page 27: Program Presets
Program presets (Setting default values of program) The Program Presets function deletes all parameters and values of a program and re- sets them to the default value. The actual program number is shown as indicated as a proposal. It can be overwritten or changed with the keyboard. Before setting the default values a safety inquiry prevents a program to be overwritten by mistake. -
Page 28: The 'Configuration' Menu Tree
The 'CONFIGURATION' menu tree In the 'CONFIGURATION' menu tree the functions required to configure the labeller can be called up and operated. The 'CONFIGURATION menu tree comprises the follo- wing functions: CONFIGURATION User Menu Language Language (Deutsch/English/Français/Italiano) User Level Change Level Change Password Error Handling Nonstopmode... -
Page 29: User Menu
User Menu The User menu function is used for the layout of the Information display menu indi- cation. A varying content can be assigned to each indication line by the arrow keys. ENTER fixes the content and it is passed to the next line. With ESC the function is abandoned. -
Page 30: User Level
User level The User Level function is used to define the access authorization of the programming functions and operating functions. It is distinguished between programmer and user. The programmer is authorized to program and change all parameters and functions of the labeller, but the operator is not authorized to make use of all functions. -
Page 31: Error Handling
Error handling The behavior of the labeller after appearance of an error is programmed with the Error Handling function. Each error is indicated and must be acknowledged by the ENTER key. Each error can be programmed so that the labeller STOPs o the error message is only indicated. -
Page 32: Adapter Magnet
Adapter magnet (only ® 9100) Collamat The Adapter magnet function is used to switch on and off the adapter magnet. If set to ON, the adapter is folded towards the good for each labelling operation. The time delay to reset the magnet has to be entered in the following menu. When set to OFF, the ad- apter remains in rest position. -
Page 33: The 'Service Functions' Menu Tree
Remote Access Working Time Motor running Software-Version With this function the actual Software version of the monitor can be interrogated. It is indicated during 3 seconds after switching on the monitor. COLLAMAT 9100 User level: programmer/operator Version 1.13 Operating mode: RUN/STOP Page 32 / 5999.530-01B 13.08.98 WM... -
Page 34: Error Sequence
Error sequence The Error sequence function is used to indicate the sequence of errors, occurred since calling up this function. The last 21 errors are indicated at the most. The type of error is listed in the Technical Appendix 'Error messages'. The display only indicates the error number. -
Page 35: Test Eeprom
Test EEPROM The Test EEPROM function is used to test the EEPROMs of the monitor. A detected EEPROM error is indicated as follows. TEST EEPROM Test ok Test keyboard The Test keyboard function is used to test the keyboard of the monitor. All keys have to be depressed once for the test. -
Page 36: Test Illumination
Test Illumination The Test Illumination function is used to test the background illumination of the LCD. After selection of this function, the illumination of the LCD flashes, until the function is aborted with the ESC key. TEST ILUMINATION Quit with [ESC] Test IO Controller The controller p.c.board of the monitor can be tested with this function by a special test adapter. -
Page 37: Test Drive
Test drive The stepper motor of the traction unit and the motor driver can be tested with the Test Drive function. For this test the paper web has to be removed. The speed of the step- per motor can be increased or reduced with the arrow keys. The test is terminated with the ESC key. -
Page 38: Technical Appendix
TECHNICAL APPENDIX Adjusting the predispensing Predispensing is the length by which the label is pulled forward after detection of the leading edge of the label. Its value can be entered in 0.1 mm steps. The predispensing is normally used to optimize the label position. Adjust it so, that the label is sticked to the goods at the time, when it has the same speed as the goods. -
Page 39: Adjusting The Label Position
C 9 1 0 0 Labelling speed [m/min] ® Diagram of label position vs. labelling speed (only Collamat 9100) Four encoder steps are required at least when measuring the speed with the incremental encoder to calculate the actual speed. That means, that the minimum possible position is four times the encoder step length. -
Page 40: Adjusting The Profiling
Adjusting the Profiling The Profiling function is used, if an uneven good has to be labelled continuously. The dispenser speed has to be varied according to a trapezoidal profile when labelling ar- ched goods to stick on the label without folds. The Profiling can be adjusted in a broad range to label different good shapes. -
Page 41: Error Messages
Error messages If during operation an error occurs, this will be indicated on the LCD by an error mes- sage. Each error message has to be acknowledged by the ENTER key. If several errors occur at the same time, they have to be acknowledged one after each other. All events causing an error message stop the labeller or only a warning message appears. -
Page 42: Error Diagnosis
Error diagnosis In the service part of the error sequence menu, all errors and warnings will be registe- red and indicated. This is helpful to trace back the error history of the labeller. Thus, if an error happens frequently, it can be better identified and eliminated. The error history also helps the technical operator in case of inquiries. - Page 43 Error #5 Label stock Error #6 Rewinder full Cause: The label stock of the unwinder is empty or the rewinding disk of the rewinder is full. Solution: Replace empty paper roll or remove backing paper roll from rewinder disk. Error #7 LSC-adjustment Cause: Adjustment of label scanner not possible.
- Page 44 Error #10 Counter LSC Cause: When braking the label, a gap was detected during predispensing. This happens in the case of transparent or very reflective labels. Solution: Adjustment of suppression of label scanner Optimizing the positioning of label scanner Optimizing the label scanner sensitivity Error #11 Drive not ready Cause: The motor drive card indicates that it is not ready to drive the stepper motor.
-
Page 45: Value Table
Value table Parameter Value range Default Resolution R/S P/O Speed C8600 0.5-50.0 m/min 0.1 m/min fixed+measured C9100 0.5-80.0 m/min Speed with C8600 0.0-50.0 m/min 0.1 m/min encoder C9100 0.0-80.0 m/min Step length of encoder 1.00 - 9.99 mm 1.00 0.01 mm Distance measuring light barrier 10.0 - 99.9 mm 14.0 0.1 mm... -
Page 46: Maintenance
MAINTENANCE Cleaning Clean the control panel with a cleansing agent without solvent. Be carefully that no cle- ansing agent or humidity penetrates into the monitor what may damage electronic components. Fuses The 2 mains fuses are installed on the rear panel near the mains switch. The monitor must be switched off and disconnected from the mains to exchange the fuses. -
Page 47: Repairs
Repairs A defective monitor may only be opened and repaired by special trained person- nel. Repair indications and instructions to eliminate errors are contained in the Techni- cal Manual. The guarantee will become void in case of improper repairs and interventions. -
Page 48: Technical Data Monitor
For unpacking place the packing box (1) on a stable table or platform and open it care- fully. Be careful that the monitor (2) is not scratched by tools. Now take the monitor (2) carefully out of the package and place it on its heatsink in the position (as shown in figu- re on page 44). -
Page 49: Trouble Shooting Checklist
Trouble shooting checklist Ser. No. Monitor: Ser. No. Labeller: Machine/device type: Ser. No of Controller Software version: Ser. No. Motor driver: Ser. Interface p.c. board: p.c.board: Mains voltage: Frequency Hz: Temperature °C: Environment ESD level (static): Humidity % EMC level (burst) Width: Length: Gap:...
