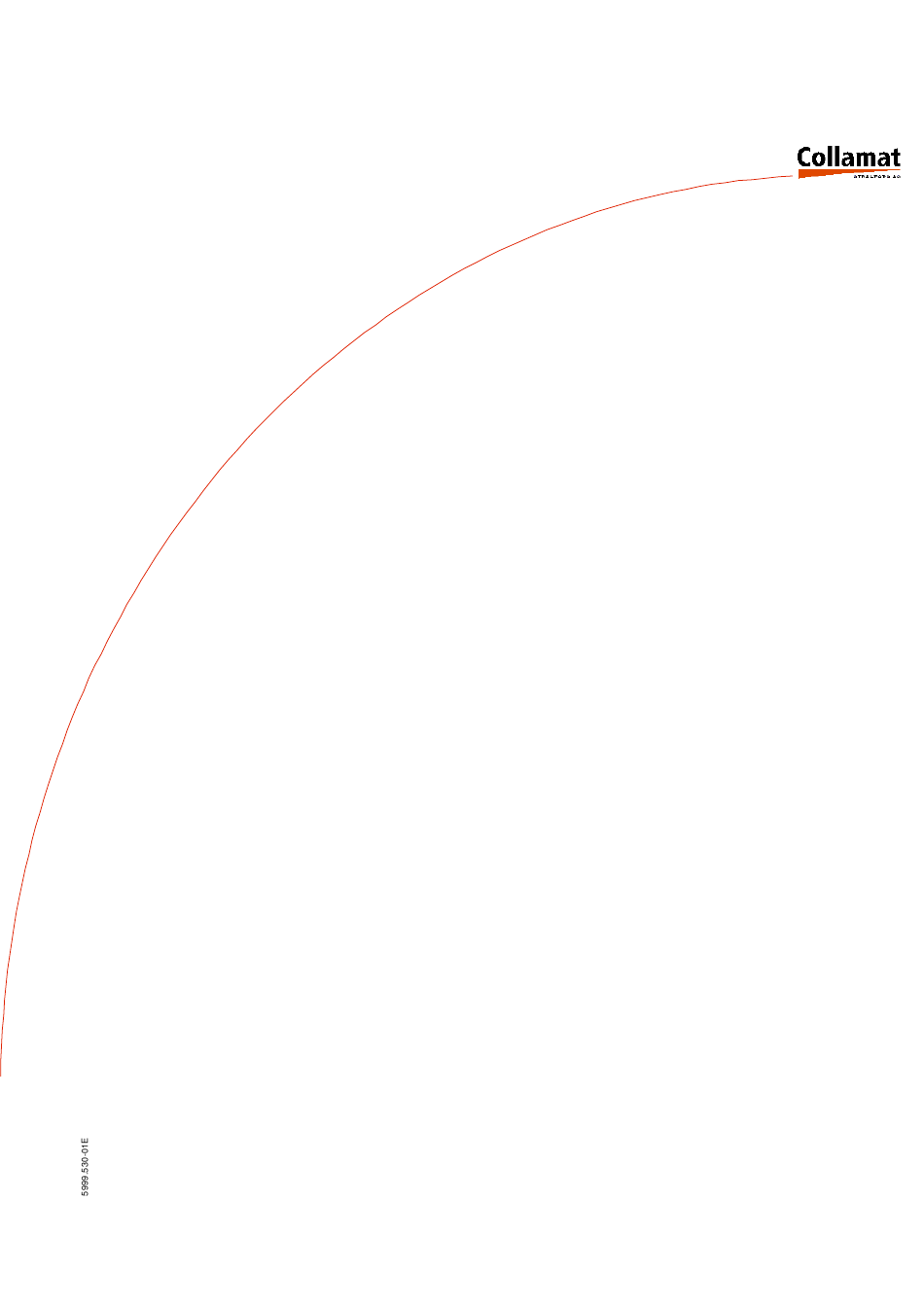

Collamat 8600/9100
Operating instructions
Monitor
Collamat Stralfors AG CH-4147 Aesch Pfeffingerring 201 Tel +41 61 756 28 28 Fax +41 61 756 29 29

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8600 and is the answer not in the manual?

Questions and answers

Related Manuals for Collamat 8600

Summary of Contents for Collamat 8600

  • Page 1 Collamat 8600/9100 Operating instructions Monitor Collamat Stralfors AG CH-4147 Aesch Pfeffingerring 201 Tel +41 61 756 28 28 Fax +41 61 756 29 29...
  • Page 2 2.1 Special characteristics of the Collamat 8600/9100 monitor ......6 ..
  • Page 3 6.6 Adapter magnet (only Collamat 9100) ........
  • Page 4 Index page 7.3.6 Test Illumination ..............40 ..7.3.7 Test IO Controller .

  • Page 5: General Information

    The monitor can be star- ted or stopped by a signal from outside. The operating mode is displayed to the outside by relay contacts. 1.1 Special characteristics of the Collamat 8600/9100 monitor Modern menu-driver operation No controller or potentiometer...

  • Page 6: Danger Notes

    Danger of injury by cutting fingers in the paper web zone ! Danger of injury in the dancer roller zone of the Collamat 8600/9100 rewinder and unwinder ! Danger of injury in the case of non-expert use of the Collamat 8600/9100 in the paper stock control zone. 5999.530-01E 14.01.2004 CSWM...

  • Page 7: Symbol Description

    This documentation or parts of the documentation may not be copied, duplicated or pu- blished in any form without a written permission of Collamat Stralfors AG. The information in this documentation reflects the state at the publication date. Subject to technical alterations.
  • Page 8 3 The monitor The monitor may only be opened by trained personnel. It contains no parts to be handled by the operator. The monitor contains live parts. Hazard of contact due to high voltages of the assemblies. The monitor contains electrostatic (ESD) sensitive assemblies. Unsafe contact may destroy these assemblies.
  • Page 9 The keys have a well sensible action point allowing also correct in- puts in a noisy environment. The controls of the monitor are shown on the following figure: Collamat ENTER S T R A L F O R S A G...

  • Page 10: Run/Stop Key

    3.1.3 RUN/STOP key (6) The RUN/STOP key is used to start (RUN) or stop (STOP) the Collamat . The RUN sta- te is indicated by a green LED (8). The STOP state is indicated by a red LED (7). In RUN state it is not possible to change all functions, because faults could occur during la- belling.
  • Page 11 This key is used to select the labelling mode function. When depressed, the LED placed above lights up and indicates that the monitor is in labelling mode. The Collamat parameters are entered in this mode. The Figure "LABELLING MODE" menu tree (pa- ge 11) shows the function tree of the labelling mode.
  • Page 12 3.2 Entering data with the keyboard The numerical keys of the keyboard (10) are used to enter data. If the value to be entered is a deci- mal, enter the decimal point with the key ' ' (11). Confirm the input with the ENTER key (12) to validate it. If the data range is exceeded, this is indica- ted for a short time and the original value does not change.

  • Page 13: Function Tree

    3.3 Selecting a branch in the function tree Use the up (13) and down (14) keys to select a branch of the function tree. With these two keys a litt- le cursor (1) can be moved up and down on the left of the LCD-display. The line, where the cursor is positioned, points at the branch of the function tree, which can be selected as next with the ENTER key.

  • Page 14: Labelling Mode

    4 The 'LABELING MODE' menu tree The functions necessary for the labelling mode can be called up and operated in the 'LABELLING MODE' menu tree. The 'LABELLING MODE' menu tree comprises the following functions: LABELLING MODE Label Jog Select program Information Display Reset Counter Preset Counter...

  • Page 15: Information Display

    4.3 Information display This function allows to indicate the most important labelling parameters on the LCD-display. The pro- gram number, the actual dispensing speed, the count and the label position on the good are shown here. It is not possible to change any data. They are only indicated and updated. The arrangement of the information display is made in the User Menu in the CONFIGURATION menu tree.
  • Page 16 The nonstop display is used to display the nonstop status. The major display in a nonstop configurati- on is the display of the Master. The Master is the first Collamat in the product flow direction. It shows the actual running settings of the master, the slave and of the nonstopcounter.
  • Page 17 NONSTOP RESET User level: programmer/operator Goods between Operating mode: RUN/STOP Master-Slave: Note: This function can be selected only in switched on nonstop mode. The Nonstop reset can only be done on a Master Collamat. 5999.530-01E 14.01.2004 CSWM...
  • Page 18 5 The 'PROGRAMMING' menu tree The 'PROGRAMMING' menu tree is used to call up and operate the functions necessary for programming. PROGRAMMING Change program Label scanner Sensitivity Auto adjust Manual adjust Label Length Auto adjust Manual adjust Label Suppression Predispensing Position Speed Fixed Speed...

  • Page 19: Change Program

    5.1 Change program The Change program function is used to branch in an additional menu by calling up further parame- ters to be changed: User level: programmer/operator CHANGE PROGRAM Operating mode: RUN/STOP Labelscanner Sens. Label Length Label Suppression Predispensing Position Speed Max.

  • Page 20: Auto Adjust

    5.2.1 Auto adjust When adjusting the sensitivity automatically, the paper web has to be pulled forward by depressing the up key, until the label scanner is positioned over the gap. A lateral mark on the scanner head shows the position of the label scanner. The automatic adjustment is started by depressing the ENTER key or abandoned by depressing the ESC key.

  • Page 21: Label Length

    5.3 Label length The Label length function is used to adjust the length of the label manually or automatically. LABEL LENGTH Auto adjust Manual adjust 5.3.1 Auto adjust When adjusting the label length automatically, the measuring has to be started by the ENTER key. The adjustment can be aborted by depressing the ESC key.
  • Page 22 5.4 Label suppression (suppression of label scanner) This function is used to enter the length forcing the label scanner to suppress the signals from the backing paper web and the label after having detected the leading edge of the label. Entering can be aborted by the ESC key.
  • Page 23 5.6 Position The Position function is used to set a speed dependent labelling delay. This delay 2 causes a speed-independent positioning of the label 3 on the good 5 in feed direction 4. With this function it is not necessary to shift the goods scanner 1 to obtain a change of the label position on the goods. POSITION User level: programmer/operator...
  • Page 24 Operating Mode: STOP Note: The distance of 14 mm applies for the standard light barrier of Collamat Stral- fors AG. For more informations about the calculation of the speed measuring, refer to the technical handbook Collamat 8600 and 9100...
  • Page 25 5.8 Maximum Speed The Maximum Speed function limits the max. dispensing speed to the entered value. This function is necessary, if the goods speed is not stable or if labelling is problematic due to difficult label material with higher speed than usual. For labelling using speed measuring the dispensing speed is limited au- tomatically to this value.
  • Page 26 5.10.2 Multiple labelling mode In the Multiple Labelling mode, several labels are sticked on the goods 4 in the same distance 3. This mode is especially useful for labelling forms or multiple packages. After activating the multiple la- belling mode, first the quantity and then the distance 2 between the labels has to be entered. On the goods the distance 3 between the labels is composed from the entered value 2 plus the gap 1.
  • Page 27 5.10.3 Delayed Predispensing In the Delayed Predispensing mode the predispensing 1 will only be tripped after release of the la- bel scanner. Thus the following label will not be sticked on the good being still under the adapter. After having selected the Delayed Predispensing mode, the stop value 2 has to be entered so that the label is perfectly dispensed and the following label does not contact.
  • Page 28 Conditions: Multiple labelling mode and delayed predispensing mode exclude themselves mutually The position adjustment should be smaller than the goods length. If not, the second phase follows immediately the first one without waiting for the trailing edge of the goods. The minimum distance between the goods must be greater than the position value plus predispen- sing of the second labelling phase.

  • Page 29: Store Program

    5.12 Store program The Store program function allows to memorize the actual labeller and labelling parameters under a program number. 32 memory locations or program numbers are available. The actual program num- ber is indicated as proposal. It can be overwritten or changed on the keyboard. Before memorizing a safety inquiry prevents a program to be overwritten by mistake.
  • Page 30 5.14 Program presets (Setting default values of program) The Program Presets function deletes all parameters and values of a program and resets them to the default value. The actual program number is shown as indicated as a proposal. It can be overwrit- ten or changed with the keyboard.
  • Page 31 6 The 'CONFIGURATION' menu tree In the 'CONFIGURATION' menu tree the functions required to configure the labeller can be called up and operated. The 'CONFIGURATION menu tree comprises the following functions: CONFIGURATION User Menu Language Language (Deutsch/English/Français/Italiano) User Level Change Level Change Password Error Handling Nonstopmode...

  • Page 32: User Language

    6.1 User Menu The User menu function is used for the layout of the Information display menu indication. A varying content can be assigned to each indication line by the arrow keys. ENTER fixes the content and it is passed to the next line. With ESC the function is abandoned. The following figure shows an example of the layout.

  • Page 33: User Level

    6.3 User level The User Level function is used to define the access authorization of the programming functions and operating functions. It is distinguished between programmer and user. The programmer is au- thorized to program and change all parameters and functions of the labeller, but the operator is not authorized to make use of all functions.

  • Page 34: Change Password

    6.3.2 Change password This function allows to enter or change a password. The password serves to distinguish between the user levels. Enter the password with four digits. It is not indicated as plain text but the figures are replaced by # characters. If a password is already programmed, this must be entered before ente- ring a new password.

  • Page 35: Error Handling

    6.4 Error Handling The Collamat 8600/9100 is able to report up to 16 different errors. The way a labeler is acting after an error has taken place, depends on the function Error Handling. This function can be program- med in three different ways (for each of the 16 different errors):...
  • Page 36 6.5 Nonstop mode The Nonstop mode function allows continuous labelling with two labellers. The dispensers are con- nected together and exchange signals. There is a difference between the two dispensers. The first labeller in feed direction is the MASTER labeller and controls the second labeller called SLAVE la- beller.
  • Page 37 6.6 Adapter magnet (only Collamat 9100) The Adapter magnet function is used to switch on and off the adapter magnet. If set to ON, the ad- apter is folded towards the good for each labelling operation. The time delay to reset the magnet has to be entered in the following menu.

  • Page 38: Service Functions

    Working Time Motor running 7.1 Software-Version With this function the actual Software version of the monitor can be interrogated. It is indicated du- ring 3 seconds after switching on the monitor. COLLAMAT 9100 User level: programmer/operator Operating mode: RUN/STOP Version 1.20...
  • Page 39 7.2 Error sequence The Error sequence function is used to indicate the sequence of errors, occurred since calling up this function. The last 21 errors are indicated at the most. The type of error is listed in the Technical Appendix 'Error messages'. The display only indicates the error number. The cause of a labelling error and a labeller failure can mostly be determined thanks to the error hi- story.
  • Page 40 7.3.2 Test EEPROM The Test EEPROM function is used to test the EEPROMs of the monitor. A detected EEPROM er- ror is indicated as follows. TEST EEPROM Test ok 7.3.3 Test keyboard The Test keyboard function is used to test the keyboard of the monitor. All keys have to be depres- sed once for the test.
  • Page 41 7.3.6 Test Illumination The Test Illumination function is used to test the background illumination of the LCD. After selecti- on of this function, the illumination of the LCD flashes, until the function is aborted with the ESC key. TEST ILUMINATION Quit with [ESC] 7.3.7 Test IO Controller The controller p.c.board of the monitor can be tested with this function by a special test adapter.
  • Page 42 7.3.9 Test drive The stepper motor of the traction unit and the motor driver can be tested with the Test Drive functi- on. For this test the paper web has to be removed. The speed of the stepper motor can be in- creased or reduced with the arrow keys.

  • Page 43: Technical Appendix

    8 Technical appendix 8.1 Adjusting the predispensing Predispensing is the length by which the label is pulled forward after detection of the leading edge of the label. Its value can be entered in 0.1 mm steps. The predispensing is normally used to optimize the label position.
  • Page 44 Position value [mm] C9100 Labelling speed [m/min] Diagram of label position vs. labelling speed (only Collamat 9100) Attention: Four encoder steps are required at least when measuring the speed with the in- cremental encoder to calculate the actual speed. That means, that the minimum possible position is four times the encoder step length.
  • Page 45 8.3 Adjusting the Profiling The Profiling function is used, if an uneven good has to be labelled continuously. The dispenser speed has to be varied according to a trapezoidal profile when labelling arched goods to stick on the label without folds. The Profiling can be adjusted in a broad range to label different good shapes. The ratio between the goods speed and the labelling speed, the beginning and length of action can be adjusted.

  • Page 46: Error Messages

    8.4 Error messages If during operation an error occurs, this will be indicated on the LCD by an error message. Each er- ror message has to be acknowledged by the ENTER key. If several errors occur at the same time, they have to be acknowledged one after each other.

  • Page 47: Error Diagnosis

    8.5 Error diagnosis In the service part of the error sequence menu, all errors and warnings will be registered and indica- ted. This is helpful to trace back the error history of the labeller. Thus, if an error happens frequently, it can be better identified and eliminated.
  • Page 48 Error #7 No LSC-adjust Cause: Adjustment of label scanner not possible. The scanner is defective or it is scanned on label instead of gap, or the backing paper is not transparent enough. Solution: Shift gap under label scanner and adjust it again. Possibly exchange defective scanner. Error #8 Nonstopmode Cause: One of the labellers has an error.
  • Page 49 Error #11 Drive not Ready Cause: The motor drive card indicates that it is not ready to drive the stepper motor. Solution: Switch off the monitor. Wait 10 seconds before switching on again. If the error did not disappear, the monitor is damaged and has to be repaired by a specialist. Error #12 Undervoltage Cause: During labelling a mains occurred causing the data to be backed up.
  • Page 50 If a function or a value is selected by the operator without having the permission for access the follo- wing warning message is displayed: Warning Illegal access ! 8.6 Nonstop - configuration and setup Collamat Mode Item Master + Slave Configuration...
  • Page 51 8.6.1 Error handling configuration of a Nonstop-installation Error / Warning Master Slave Not Ready Ignore error # 1 Ignore error # 1 TUNIT / Paperend Stop at error # 2 Stop at error # 2 Position too short Ignore error # 3 Ignore error # 3 Max.
  • Page 52 8.7 Value table Parameter Value range Default Resolution Speed C8600 0.5-50.0 m/min 0.1 m/min fixed+measured C9100 0.5-80.0 m/min Speed with C8600 0.0-50.0 m/min 0.1 m/min encoder C9100 0.0-80.0 m/min Step length of encoder 1.00 - 9.99 mm 1.00 0.01 mm Distance measuring light barrier 10.0 - 99.9 mm 14.0...

  • Page 53: Maintenance

    9 Maintenance 9.1 Cleaning Clean the control panel with a cleansing agent without solvent. Be carefully that no cleansing agent or humidity penetrates into the monitor what may damage electronic components. 9.2 Fuses The 2 mains fuses are installed on the rear panel near the mains switch. The monitor must be swit- ched off and disconnected from the mains to exchange the fuses.
  • Page 54 9.4 Packing The monitor is shipped in a special shock-proof package. For shipping, only this package may be used. For damages due to wrong packing and shipping we refuse any guarantee. The following figu- re shows all parts which are shipped in the package: 1.
  • Page 55 9.5 Technical data of monitor Data C8600 C9100 Dimensions 375 * 305 * 155 Weight 15 kg 15.5 kg Ambient temperature 5..+40 °C Storage temperature -10..+60 °C Air humidity 15...95% not condensing System of protection IP40 Supply voltage 110, 120, 130, 220, 230, 240V AC Voltage tolerance ±...

  • Page 56: Troubleshooting Checklist

    10 Trouble shooting checklist Ser. No. Labeller: Ser. No. Monitor: Machine/device type: Ser. No of Controller p.c. Software version: Ser. No. Motor driver: Ser. No. of Interface board: p.c.board: Environment Mains voltage: Frequency Hz: Temperature °C: ESD level (static): Humidity % EMC level (burst) Width: Length:...
