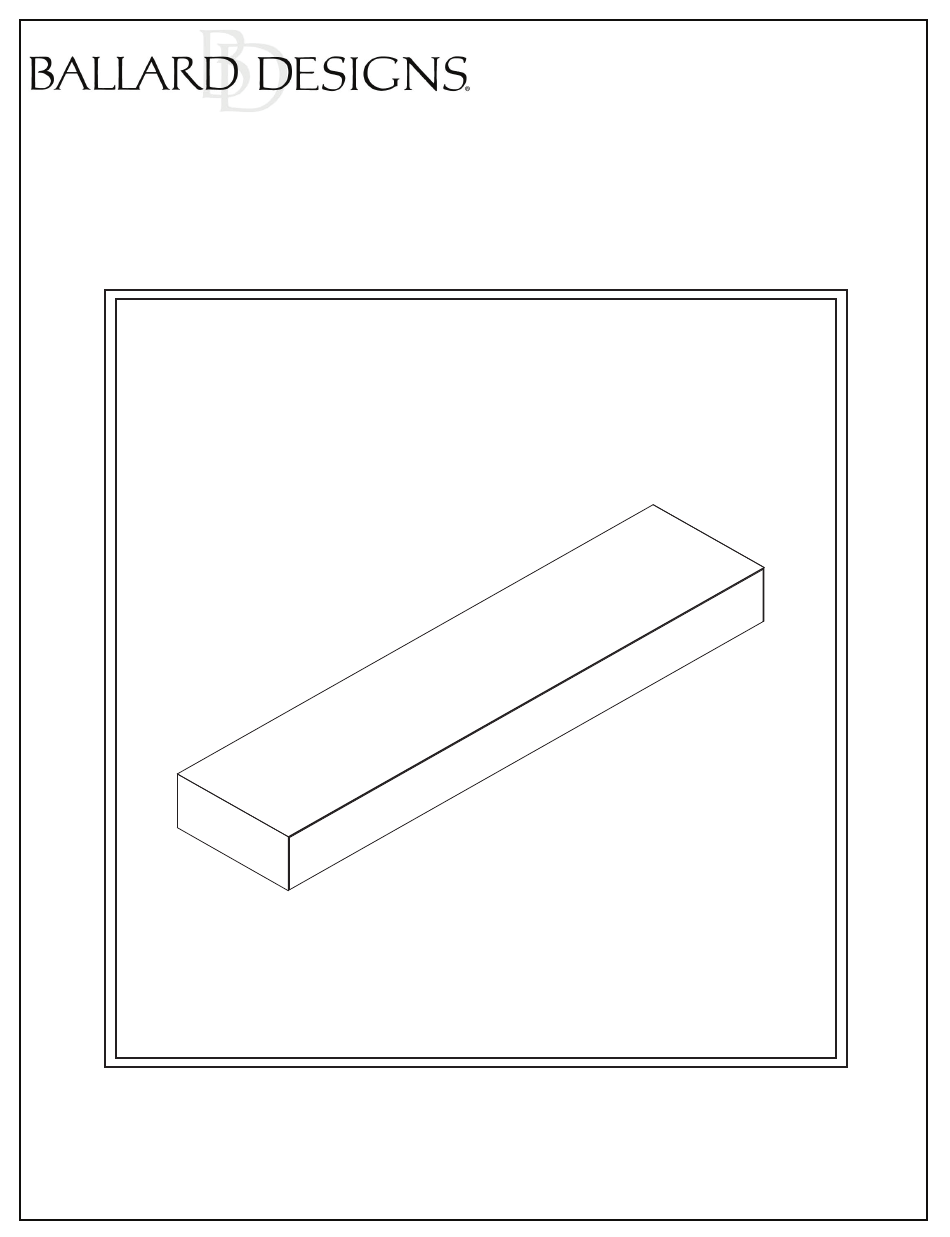

- Page 1 Customer Service: 800-367-2810 Online: www.ballarddesigns.com PRODUCT NAME: Storage Shelf w/Drawer 24” ITEM NUMBER: WS959 WHT 24 ASSEMBLED DIMENSIONS: 3”H x 24”W x 7”D PRODUCTS ARE NOT INTENDED MADE IN CHINA FOR COMMERCIAL USE. UPDATED: 1/29/2019 Page 1 of 4...
- Page 2 NOTE: To avoid accidentally discarding small parts or hardware, retain all carton contents until assembly and installation are complete. HARDWARE PACKET Assemble Shelf near installation location. Two Person Assembly Suggested REQUIRED TOOLS: Screwdriver, Pencil, Level and Power Drill Hardware Included Qty.
- Page 3 STEP 1: Determine location for installation then use level to position Bracket (E) on wall. Mark screw hole locations with pencil. NOTE: For maximum support, it is preferred to center two sets of screws over wall studs. If this is not possible, at least one set must be over a stud. For screws NOT positioned over a wall stud, drill pilot holes and install Expansion Bolts (B).
- Page 4 STEP 3: Slide Shelf (D) onto Wall Bracket (E). WALL STEP 4: Using screwdriver, secure Shelf (D) to Bracket using Small Screws (C) through holes on underside of Shelf. Firmly secure. WALL Cleaning & Care: DO NOT use alcohol based products or spray polisher as they can damage the finish. Dust with a soft cloth.
- Page 5 EXPANSION BOLT INSTALLATION: Note: Expansion Bolts are required when there is not a wall stud to screw the wood screws into. Qty. Hardware Included TOOLS NEEDED: -Hammer, Screwdriver, Level, Pencil, Drill Expansion Bolt and 1/4 Drill Bit. Determine the desired height and location for your item. Use a level to ensure the item is perfectly horizontal.
