Introducing the HP ProCurve 600/610 External
Power Supplies
The HP ProCurve 600 Redundant and External Power Supply is a dual-mode
power supply that can supply backup power to so equipped HP ProCurve
switches and additional power for Power over Ethernet (PoE) capable
switches.
The HP ProCurve 610 External Power Supply can supply additional power for
PoE capable switches and backup power to other HP ProCurve 610 units.
EPS Port Status
Device Connected E2
Power Status
Fan/Temp
Power
Status
Fan/Temp Status flash = Temperature too high
Fault
Fan/Temp Status + Fault flash = Fan failure
HP ProCurve
610 EPS
J8169A
EPS Backup Power Ports Status
Power
Internal Power Status
In Ready
Fan/Temp Status
Fault
Fan/Temp Status flash = Temperature too high
Fan/Temp Status + Fault flash = Fan failure
Throughout this manual, these units will be abbreviated as the HP 600 RPS/
EPS and HP 610 EPS.
The HP 600 RPS/EPS has six redundant power supply (RPS) ports supporting
backup power to six supported HP ProCurve switches. The HP 600 RPS/EPS
also has two external power supply (EPS) ports that provide PoE power for
up to two HP PoE switches.
The HP 610 EPS has four EPS ports that provide PoE power for up to four HP
PoE switches. The HP 610 EPS also has two backup ports for supporting
backup power to other HP 610 EPS units connected in a group. There are two
supported topologies, a string (daisy-chain) and a ring (closed-loop).

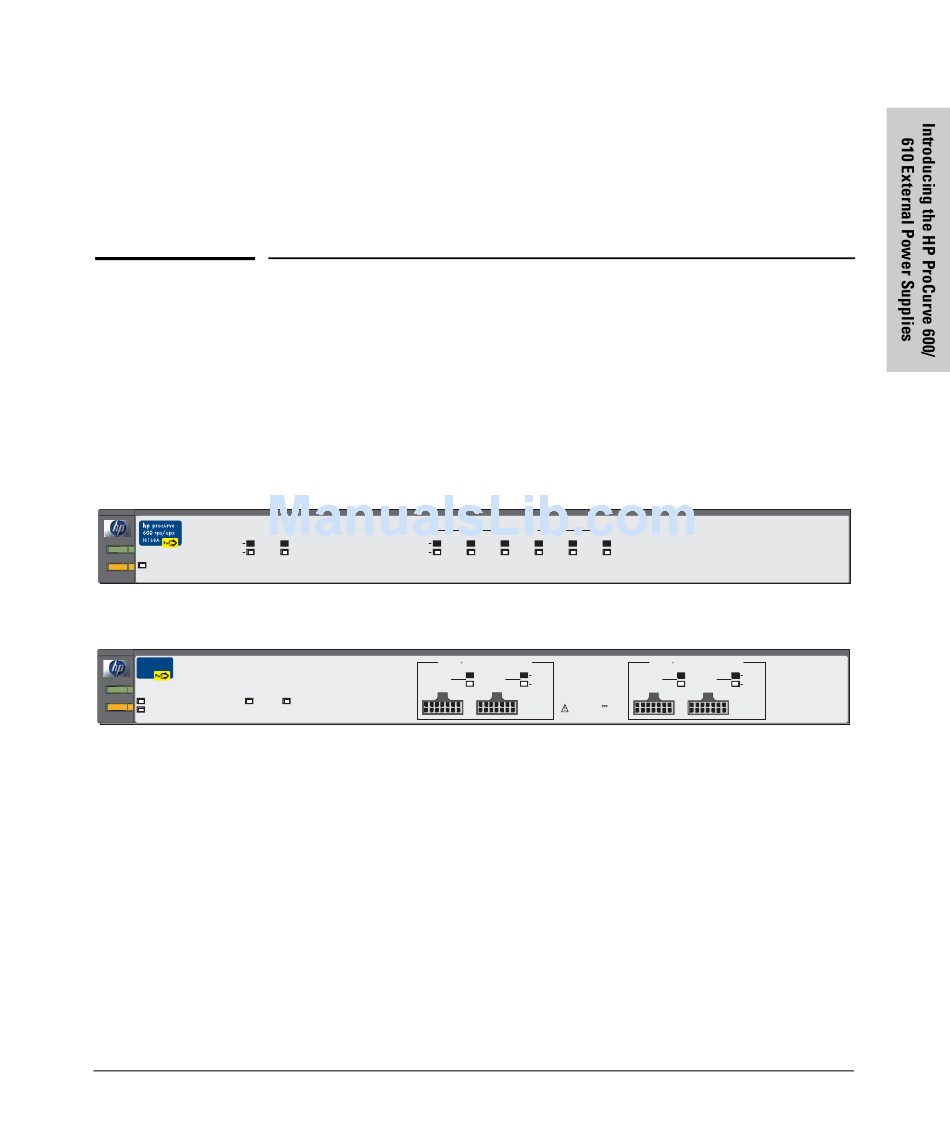

HP ProCurve 600 Redundant and External Power Supply (J8168A)
E1 Device Connected R6
Power Status
EPS Ports Pair A
EPS A1
Out Ready
RPS Port Status
R5 R4 R3 R2 R1
HP ProCurve 610 External Power Supply (J8169A)
(408 W total for PoE applications)
Device
A1 A2
Connected
EPS A2 EPS B1
Power
Status
EPS Ports: 50 V
8.3 A max per port pair.
1
EPS Ports Pair B (408 W total for PoE applications)
Device
B1 B2
Connected
EPS B2
Power
Status
1-1
