RPS Cable for HP ProCurve Switch Connections

The RPS cables supplied with the HP 600 RPS/EPS must be used for all RPS
connections.

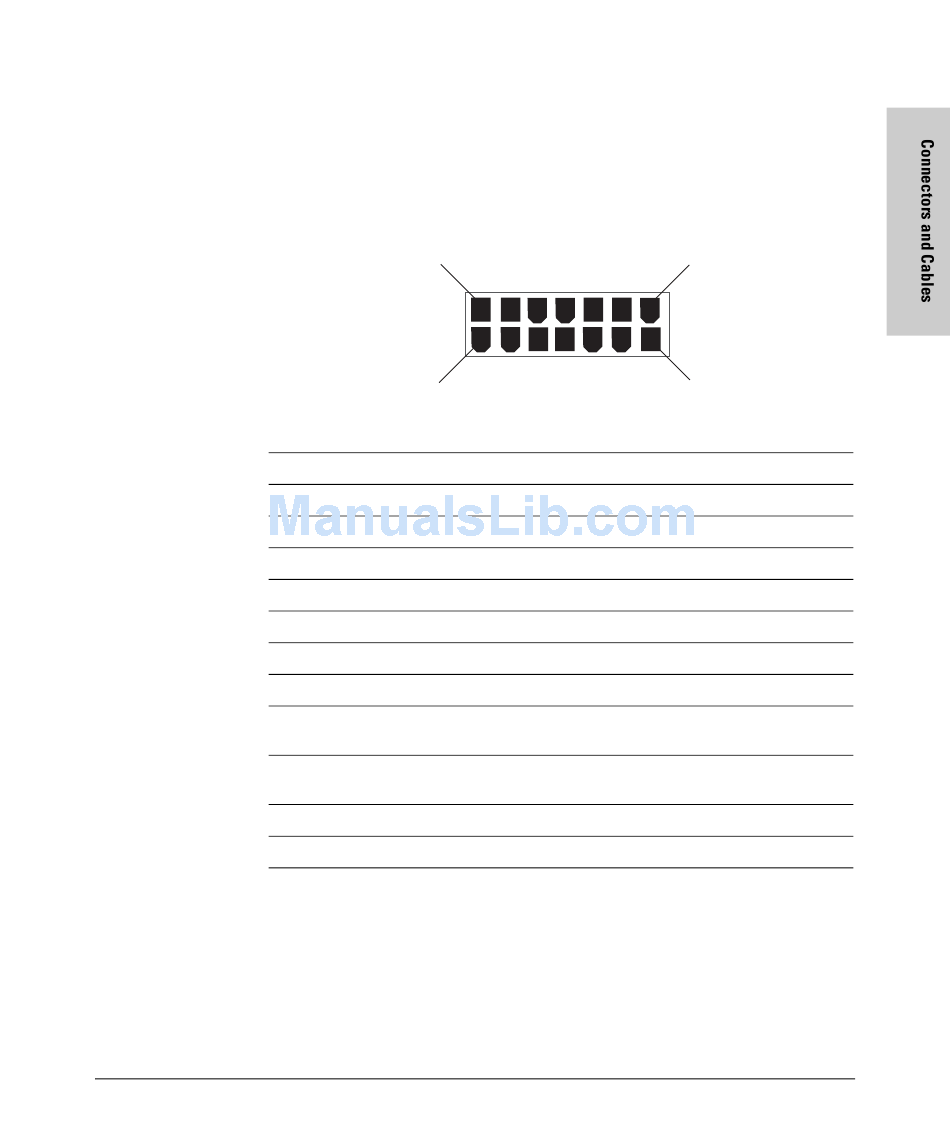

Connector Diagram

14
7

Pin Assignments

Pins Signal Name
1 GND
2 -
3,4,5,6 12V
7 GND
8 GND
9 -
10 RPS_Present
11 Status_1
12 Status_2
13 Power_Good
14 GND
Signal Description
12V power return
Not used
12V power from the HP 600 RPS/EPS
12V power return
12V power return
Not used
RPS present signal from HP 600 RPS/EPS
Provides the condition of the HP 600 RPS/EPS to the attached
switch
Provides the condition of the HP 600 RPS/EPS to the attached
switch
Power Good signal to the HP 600 RPS/EPS
12V power return
Connectors and Cables
Connector Pin-Outs
8
1
