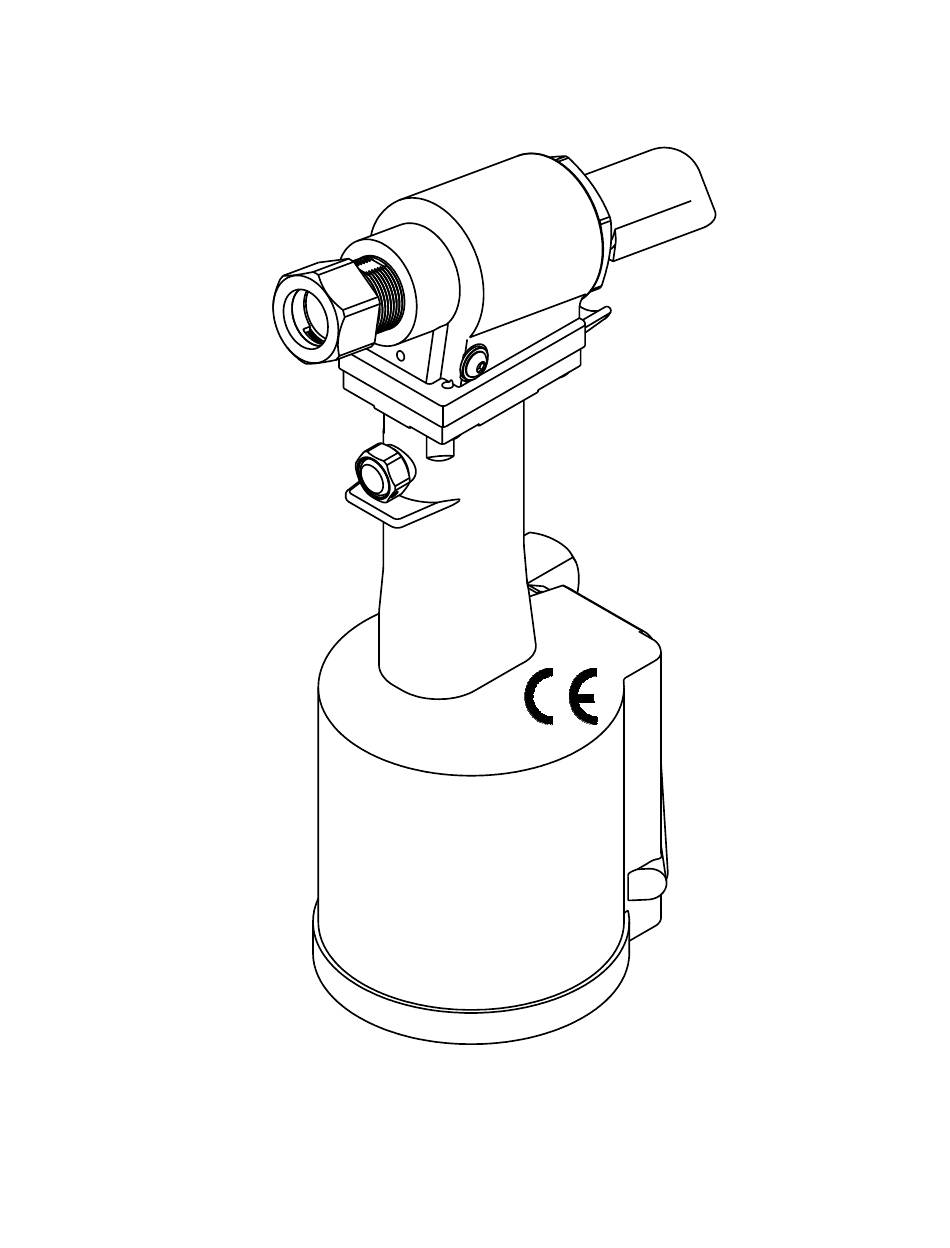

GB752
INSTALLATION TOOL
GAGE BILT TOOLS ARE AVAILABLE WORLDWIDE
E-MAIL US FOR A DISTRIBUTOR NEAR YOU.
GAGE BILT Inc.
GAGE BILT
44766 Centre Court
(586) 226-1500
Clinton Twp. MI 48038
(586) 226-1505 Fax
MADE IN U.S.A.
e-mail: solutions@gagebilt.com / www.gagebilt.com
1
REV. 4/13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GB752 and is the answer not in the manual?

Questions and answers

Related Manuals for Gage Bilt GB752

Summary of Contents for Gage Bilt GB752

  • Page 1 GB752 INSTALLATION TOOL GAGE BILT TOOLS ARE AVAILABLE WORLDWIDE E-MAIL US FOR A DISTRIBUTOR NEAR YOU. GAGE BILT Inc. GAGE BILT 44766 Centre Court (586) 226-1500 Clinton Twp. MI 48038 (586) 226-1505 Fax MADE IN U.S.A. e-mail: solutions@gagebilt.com / www.gagebilt.com...

  • Page 2: Table Of Contents

    Description Page Warnings ..............................3 Principle of Operation ..........................4 How to use the GB752 ..........................5 Description, Operation and Maintenance ..................... 6 Filling, Bleeding and Troubleshooting ....................7 Overhaul, Disassembly and Parts Lists ..................... 8-9 DEXRON® III Oil Safety Data ........................ 10 Nose Assembly Selection Chart ......................

  • Page 3: Warnings

    81.5 dB (A). Therefore, daily basis for damage or wear. Any repair should it is required where prolonged use, hearing be done by qualified personnel trained on Gage Bilt protection be used. procedures. WARNING...

  • Page 4: Principle Of Operation

    PRINCIPLE OF OPERATION When the trigger is depressed, the pressurized air inside of the tool is released allowing spring pressure to move the valve spool causing the air to be redirected. The air is directed to the top of the air piston, moving it in a downward direction.

  • Page 5: How To Use The Gb752

    HOW TO USE THE GB752 WARNING: OPERATOR MUST READ AND UNDERSTAND ALL WARNINGS AND CAUTIONS. WARNING: IT IS REQUIRED THAT EYE PROTECTION AND HEARING PROTECTION BE WORN DURING OPERATION. WARNING: DO NOT PULL RIVET IN THE AIR. PERSONAL INJURY FROM FASTENER EJECTING MAY OCCUR.

  • Page 6: Description, Operation And Maintenance

    The GB752 riveter is designed to operate on a range of air pressure, with 90 to 100 psi providing the maximum efficiency. At 90 psi air pressure, the GB752 does not exceed 81.5 db (A) and consumes 3.9 cfm at 20 cycles a minute.

  • Page 7: Filling, Bleeding And Troubleshooting

    FILLING AND BLEEDING TOOL WARNING: DO NOT CYCLE TOOL WITHOUT AIR BLEEDER, OR THE SCREW AND STAT-O-SEAL, INSTALLED IN TOOL HEAD. SEVERE PERSONAL INJURY MAY RESULT. CAUTION: BEFORE FILLING HANDLE, AIR PISTON SHOULD BE ALL THE WAY DOWN. CAUTION: WHEN FORCING PISTON ROD ASSEMBLY DOWNWARD WITH HEAD CYLINDER ASSEMBLY REMOVED, HYDRAULIC FLUID WILL EJECT FORCIBLY FROM HANDLE.

  • Page 8: Overhaul, Disassembly And Parts Lists

    OVERHAUL The disassembly and re-assembly procedure can be accomplished by utilizing the following instructions and drawings. Use extreme care during disassembly and re-assembly not to mar or nick any smooth surface that comes in contact with seals. Before installing seals, always apply a good lubricant, such as Lubriplate®, to the surfaces. It is recommended that tool kit (GB704TK) be used to facilitate overhaul.
  • Page 9 HANDLE To inspect air cylinder bore, remove base cover (704125). Any further disassembly will require removal of the cylinder head (752119) first. For complete disassembly, start by removing base cover (704125). Next, holding tool upright, remove four button-head cap screws (A-928). Lift cylinder head (752119) from handle (704132) and set aside o'ring (S832) and gasket (704129). Empty all hydraulic fluid into a container.

  • Page 10: Dexron® Iii Oil Safety Data

    DEXRON® III OIL SAFETY DATA FIRST AID Skin: Wash thoroughly with soap and water as soon as possible. Casual contact requires no immediate attention. If irritation develops, consult a physician. Ingestion: Seek medical attention immediately. DO NOT INDUCE VOMITING. Eyes: Flush with copious amounts of water. If irritation develops, consult a physician. Inhalation: No significant adverse health effects are expected to occur on short term exposure.

  • Page 11: Nose Assembly Selection Chart

    TRADEM ARKS OF AVDEL UK LIM ITED. ASP®, M AGNA-LOK® AND M AGNA-BULB® ARE REGISTERED TRADEM ARKS OF ALCOA INC. BULB-TITE® IS A REGISTERED TRADEM ARK OF GESIPA FASTENERS USA, INC. ULTRA-GRIP® IS A REGISTERED TRADEM ARK OF EM HART TEKNOLOGIES. GAGE BILT CERTIFIES THE GB752 WILL INSTALL THE ABOVE FASTENERS PLEASE NOTE: Due to *ALL RIGHT ANGLE NOSES REQUIRE 752142 STROKE LIMITER.

  • Page 12: Eu Conformity And Warranty

    WE DECLARE THAT THE EQUIPMENT SPECIFIED HEREIN CONFORMS TO THE FOLLOWING STANDARDS AND DIRECTIVES. EN12100-1 & EN12100-2 EN13849 EN792-1:2000+A1 COUNCIL DIRECTIVE: MACHINE DIRECTIVE 2006/42/EC EQUIPMENT DESCRIPTION: GB752 FASTENER INSTALLATION TOOL MANUFACTURER: GAGE BILT Inc. SIGNATURE: NAME: BRIAN LEIGH PRODUCT MANAGER CLINTON TWP., MI U.S.A.
