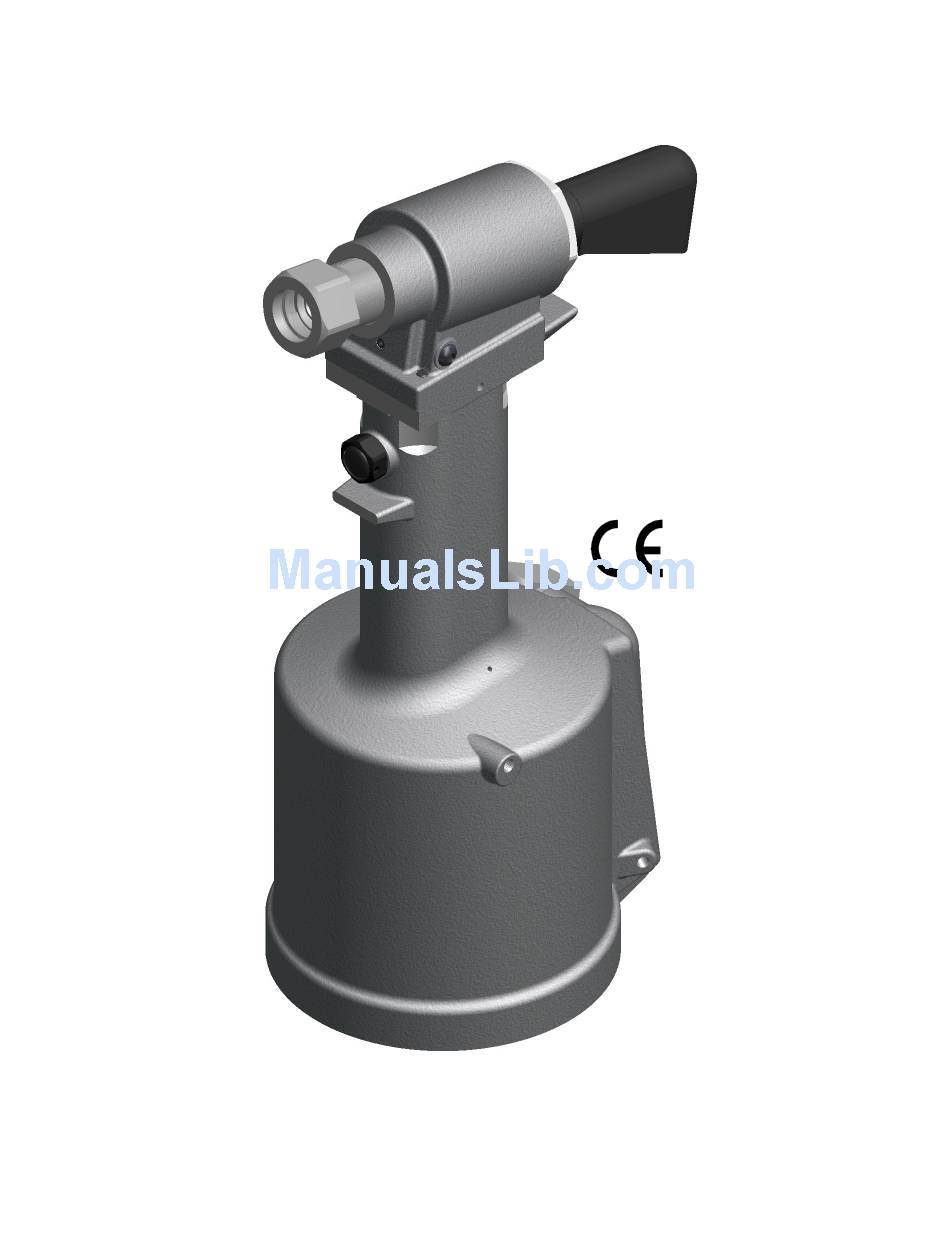

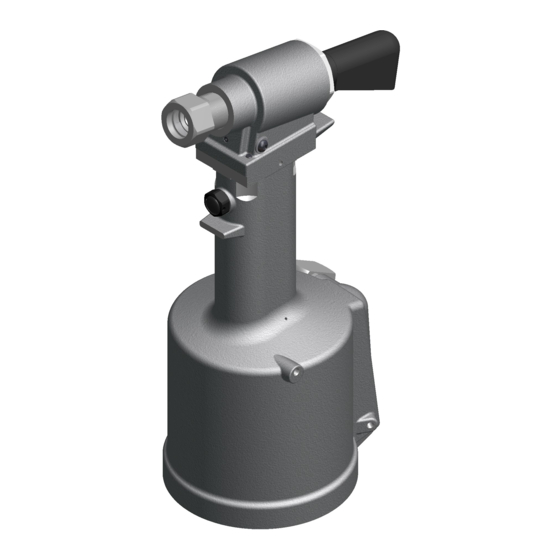

- Page 1 GB713 INSTALLATION TOOL GAGE BILT TOOLS ARE AVAILABLE WORLDWIDE E-MAIL US FOR A DISTRIBUTOR NEAR YOU. GAGE BILT Inc. GAGE BILT 44766 Centre Court (586) 226-1500 Clinton Twp. MI 48038 (586) 226-1505 Fax MADE IN U.S.A. e-mail: solutions@gagebilt.com / www.gagebilt.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Description Page Warnings.....................................3 Principle of Operation………………………………………………………………………………………………………………….….4 How to use the GB713………………………………………………………………………………………………………………….….5 Description and Maintenance..............................6 Filling and Bleeding ………………………...…..........................7 Troubleshooting……………………………………………………………………………………………………………………………..8 Overhaul and Disassembly……………..…………………………………………………………………………………………….…...9 Parts Lists………………………………………………………………………………………………………………………………..10-11 DEXRON® III Oil Safety Data……………............................12 Nose Assembly Selection Chart..............................13 EU Conformity and Warranty..............................14... -
Page 3: Warnings
73.2 dB (A). In this for damage or wear. Any repair should be done by condition the max level was 81.5 dB (A). Therefore, qualified personnel trained on Gage Bilt it is required where prolonged use, hearing procedures. -
Page 4: Principle Of Operation
PRINCIPLE OF OPERATION When the air actuator assy is depressed, the pressurized air inside of the tool is released allowing spring pressure to move the valve spool assy causing the air to be redirected. The air is directed to the top of the air piston assy, moving it in a downward di- rection. -
Page 5: How To Use The Gb713
HOW TO USE THE GB713 WARNING: Operator MUST read and understand all warnings and cautions. WARNING: It is required that eye protection and hearing protection be worn during operation. WARNING: Do not pull rivet in the air. Personal injury from fastener ejecting may occur. -
Page 6: Description And Maintenance
4,500 lbs. (20.0 kN) with 90 psi (6.2 bar) air pressure at the air inlet. The GB713 riveter operates on a wide range of air pressure, with 90 to 100 psi (6.2-6.9 bar) providing the maximum efficiency. At 90 psi (6.2 bar) air pressure, the GB713 does not exceed 81.5 dB (A) and consumes 3 cfm at 20 cycles a minute. -
Page 7: Filling And Bleeding
FILLING AND BLEEDING TOOL NOTE: Air Bleeder Assy (704153) is required. WARNING: Do not cycle tool without air bleeder assy (704153), or the button head cap screw (402482) and stat-o-seal (S572), installed in the head cylinder assy (713121). Severe personal injury may result. CAUTION: Before filling handle assy (744129), the air piston assy (744121) should be all the way down. -
Page 8: Troubleshooting
TROUBLESHOOTING Providing all maintenance conditions have been met, follow this systematic approach to diagnosis. 1. MORE THAN ONE PULL IS REQUIRED TO BREAK RIVET. Tool needs to be bled. (See filling and bleeding instructions.) Spring has fatigued, replace. Jaws are stripped or packed with chips. Clean or replace. Incorrect nose tip. -
Page 9: Overhaul And Disassembly
WARNING: Tool must be maintained in a safe working condition at all times and examined on a daily basis for damage or wear. Any repair should be done by qualified personnel trained on Gage Bilt procedures. WARNING: When operating, repairing or overhauling tool, wear approved eye protection. Do not look in Front of tool or rear of tool when installing fastener. -
Page 10: Parts Lists
HEAD WARNING: Dispose of hydraulic oil in accordance with all environmental regulations applicable in your area. Remove nose assembly from tool before attempting disassembly of head assy. Remove end cap (713217). Push against threaded end of piston (713211) to slide it out of head cylinder assy (713121). Be careful not to damage threads or cause burrs on polished piston (713211) surface. -
Page 11: Air Valve
HANDLE To inspect air cylinder bore, remove o’ring (S12) and base cover (744124). Any further disassembly will require removal of the head cylinder assy (713121) first. For complete disassembly, start by removing parts o’ring (S12) and base cover (744124). Next, holding tool upright, remove four button-head cap screws (402479). -
Page 12: Dexron® Iii Oil Safety Data
DEXRON® III OIL SAFETY DATA FIRST AID MEASURES Eye: No specific first aid measures are required. As a precaution, remove contact lenses, if worn, and flush eyes with water. Skin: No specific first aid measures are required. As a precaution, remove clothing and shoes if contaminated. To remove the material from skin, use soap and water. -
Page 13: Nose Assembly Selection Chart
T RIVET®, CHERRYM A X® A ND M B C® A RE REGISTERED TRA DEM A RKS OF CHERRY A EROSP A CE. M ONOB OLT® A ND TLR® A RE REGISTERED TRA DEM A RKS OF A VDEL UK LIM ITED. A SP ® IS A REGISTERED TRA DEM A RK OF A LCOA INC. GAGE BILT CERTIFIES THE GB713 WILL INSTALL THE ABOVE FASTENERS PLEASE NOTE: Due to *ALL OFFSET 204 SERIES NOSES REQUIRE 751204 ADAPTER &... -
Page 14: Eu Conformity And Warranty
GAGE BILT DECLARATION OF CONFORMITY MANUFACTURER: Gage Bilt Inc. 44766 Centre Ct. Clinton Twp. Michigan (586-226-1500) WE DECLARE THAT THE EQUIPMENT SPECIFIED HEREIN CONFORMS TO THE FOLLOWING DIRECTIVES AND STANDARDS Machinery Directive 2006/42/EC EN12100-1 & EN12100-2 EN792-1:2000+A1 EU REPRESENTATIVE Edgar Hausmann GmbH Förster-Busch-Str. 10 D-34346 Hann. Münden Germany EQUIPMENT DESCRIPTION: GB713 FASTENER INSTALLATION TOOL This procuct specified above conforms to the above dIrectives and standards.
