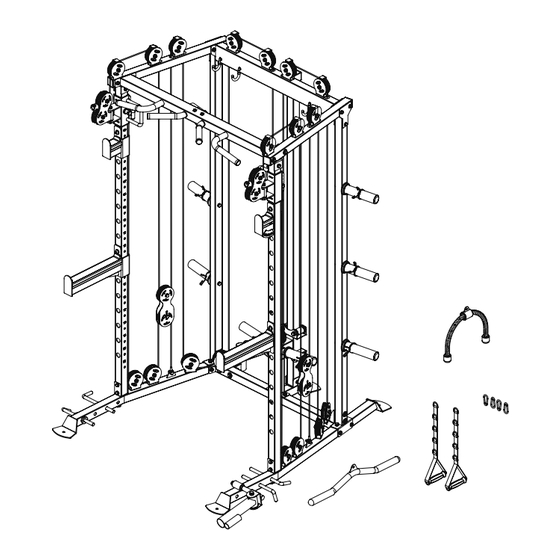

- Page 1 Assembly and Operating Instructions max. 130 kg ~ 240 Min. 108 kg L 153 | W 134 | H 222 FSUKTFMS5.01.01 SKU: TF-MS5 Taurus MS5 Multi Functional Cable Machine...
- Page 3 Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly STORAGE AND TRANSPORT General Instructions TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing...
- Page 5 European VAT Number: DE813211547 Disclaimer © TAURUS is a registered brand of the company Fitshop GmbH. All rights reserved. Any use of this trademark without the explicit written permission of Fitshop is prohibited. Product and manual are subject to change. Technical data can be changed without advance notice.
- Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
- Page 7 Please pay close attention to the safety and maintenance instructions given here. The contract partner cannot be held liable for damage to health, accidents or damage to the equipment when it is not used in accordance with these instructions. The following safety instructions may appear in this manual: ࣑...
- Page 8 GENERAL INFORMATION Technical Data Weight and dimensons: Article weight (gross, including packaging): 136 kg Article weight (net, without packaging): 108 kg Packaging dimensions (L x W x H): 215 cm x 68.5 cm x 30.5 cm Set-up dimensions (L x W x H): 152.5 cm x 133.8 cm x 222 cm Maximum user weight: 130 kg...
- Page 9 Personal Safety ⚠ DANGER Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year.
- Page 10 Set-Up Place ⚠ WARNING Do not place the equipment in main corridors or escape routes. ⚠ CAUTION Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. The training room should be well ventilated during training and not be exposed to any draughts.
- Page 11 ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries.
- Page 12 Scope of Delivery The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. In the event of complaints, the contractual partner must be contacted directly. ⚠...
- Page 13 3116 Beam-right 3103 Beam joint (2x) 3116 Middle upper 3116 Upper beam connection tube 3116 Beam-left 3102 Limited tube 3102 Barbell lift bar (2x) 22 3102 Barbell piece lift 3116 Middle stainless steel tube...
- Page 14 3102 Barbell piece lift 3102 Barbell lift bar (2x) Steel wire rope Spring collar (8x) Pulley bracket (2x) Plastic pulley bar (10x) 92 Pulley (18x) 3102 Secure steel wire Plastic barbell piece rope (2x) hanging bar (6x)
- Page 15 3000 Barbell rod sleeve 3060 Short hook (4x) Fixed elastic rope L pin (4x) 3080 Short safety stop- left 3080 Long safety stop 3080 Short safety stop- right...
- Page 16 3080 Long safety stop- right Handle strap (2x) Bicep rope 3000 Bull stick Handle Carabiner(4x)
- Page 17 Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so. If you have difficulty recognising the graphics, we recommend that you open and/or download the PDF instructions stored in the webshop on your end device (e.g.
- Page 18 Step 1: Assembly of the Main Frame Assemble one back column (4) to the right ground tube (2) with two screws (9), two spring washers (10) and two washers (6). Assemble the other back column (4) to the left ground tube (3) with two screws (9), two spring washers (10) and two washers (6).
- Page 19 Step 2: Assembly of the Front Tubes and Sliding Sleeves Assemble the right front tube (11) to the right ground tube (2) with two screws (5), four washers (6) and two lock nuts (7). Assemble the left front tube (12) to the left ground tube (3) with two screws (5), four washers (6) and two lock nuts (7).
- Page 20 Step 3: Assembly of the Upper Connection Tube and Beams Assemble the middle upper connection tube (17) to the right and left beam (15 & 18) with four screws (5), eight washers (6) and four lock nuts (7). Assemble the right and left beam (15 & 18) to the back columns (4) with two beam joints (16), -02- two screws (5), four washers (6) and two lock nuts (7).
- Page 21 Step 4: Assembly of the Upper Beam Assemble the upper beam (19) to the right and left beam (15 & 18) with four screws (5), four large washers (8), four washers (6) and four lock nuts (7).
- Page 22 Step 5: Assembly of the Middle Tube Assemble the limited tube (20) to the middle lower connection tube (1) with two screws (9), two spring washers (10) and two washers (6). Assemble the middle tube (21) to the middle lower connection tube (1) and middle upper connection tube (17) with two screws (5), four washers (6) and two lock nuts (7).
- Page 23 Step 6: Assembly of the Wire and Pulley - Part 1 NOTICE The wire and pulleys must be assembled simultaneously. Route the wire (26) between the two pulley brackets, over two pulleys (29) and attach the pulleys to the pulley brackets with one bolt (30), one pulley bar (31), two washers (6) and one lock nut (7) each.
- Page 25 Step 7: Assembly of the Wire and Pulleys - Part 2 NOTICE The wire and pulleys must be assembled simultaneously. -05- Assemble one end of the wire (32) to the right sliding sleeve (13) with one screw (9), two washers (6) and one lock nut (7).
- Page 26 -06- Step 8: Assembly of the Barbell Bars Assemble six barbell bars (33) and six spring collars (25) to the back columns (4) with six screws (9), six spring washers (10) and six washers (6).
- Page 27 Step 9: Assembly of the Barbell Rod Sleeve and Hooks Assemble the barbell rod sleeve (37) to the middle lower connection tube (1) with two screws (5), two large washers (8), two washers (6) and two lock nuts (7). Attach four the short hooks (34) to the middle upper connection tube (17). -07- Load and Unload Weight Plates ⚠...
- Page 28 Step 10: Assembly of the Safety Stops Attach the left short safety stop (41), the left long safety stop (42) and two L pins (38) to the right front tube (12). Attach the right short safety stop (40), the right long safety stop (39), the bull stick (43) and two L pins (38) to the left front tube (11).
- Page 29 Accessories Spare parts list DESCRIPTION NOTE Carabiner Assembly Part Handle strap Five rings Bicep rope φ28*690 Handle Assembly Part -15-...
- Page 30 STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ࣑...
- Page 31 TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. ⚠ CAUTION Damaged or worn components may affect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner.
- Page 32 Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Cables Screw connections Pulleys and cable routing...
- Page 33 RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. For training equipment like smith machines, weight benches or racks this could for example be a floor mat, which makes your fitness equipment stand more securely and also protects the floor from sweat but it could be also additional weights, handles, foot straps for leg exercises or triceps ropes.
- Page 34 The serial number of your equipment is unique. It’s located on a white sticker. Enter the serial number in the appropriate field. Serial number: Brand / Category: Taurus / multi gym Model Name: Taurus MS5 Multi Functional Cable Machine SKU: TF-MS5...
- Page 35 Parts List Name Specification Qty. 3102 Middle lower connection tube Assembly Part 3102 Right ground tube Assembly Part 3102 Left ground tube Assembly Part 3116 Back column weldment Welding Part Hexagon Head Screws M10×70 Washer φ10 Lock nut Large washer φ30*φ10*3 Hexagon Head Screws M10×25...
- Page 36 3102 Secure steel wire rope Assembly Part Plasstic barbell piece hanging bar Assembly Part 3060 Short hook Assembly Part 3000 Barbell rod sleeve Welding Part Fixed elastic rope L pin φ17×250×77L 3080 Long safety stop Assembly Part 3080 Short safety stop-left Assembly Part 3080 Short safety stop-right Assembly Part...
- Page 37 Exploded Drawing...
- Page 38 WARRANTY Products from TAURUS® are subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline.
- Page 39 Warranty Service Within the warranty period, equipment which develops faults as a result of material or manufacturing defects, will be repaired or replaced at our discretion. Ownership of equipment or parts of equipment which have been replaced is transferred to us. The warranty period is not extended nor does a new warranty period begin following repair or replacement under the warranty.
- Page 40 CONTACT �� TECHNIK �� TEKNIK OG SERVICE �� CUSTOMER CARE �� +49 4621 4210-900 80 90 16 50 +44 141 737 2249 or �� �� +44 141 876 3972 �� +49 4621 4210-945 +49 4621 4210-698 �� �� info@fitshop.dk customercare@fitshop.co.uk ��...
- Page 41 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA The Fitshop Group is Europe’s largest specialist for https://www.fitshop.co.uk/ home fitness equipment with currently 70 stores www.fitshop.co.uk/blog/ and one of the world’s most renowned online mail order companies for fitness equipment. Fitshop UK is part of the Fitshop Group. Private www.facebook.com/fitshop.co.uk customers order via the 25 web shops in the respective national language or have their...
- Page 42 Notes...
- Page 44 Taurus MS5 Multi Functional Cable Machine...
