Summary of Contents for Digitus DA-71545

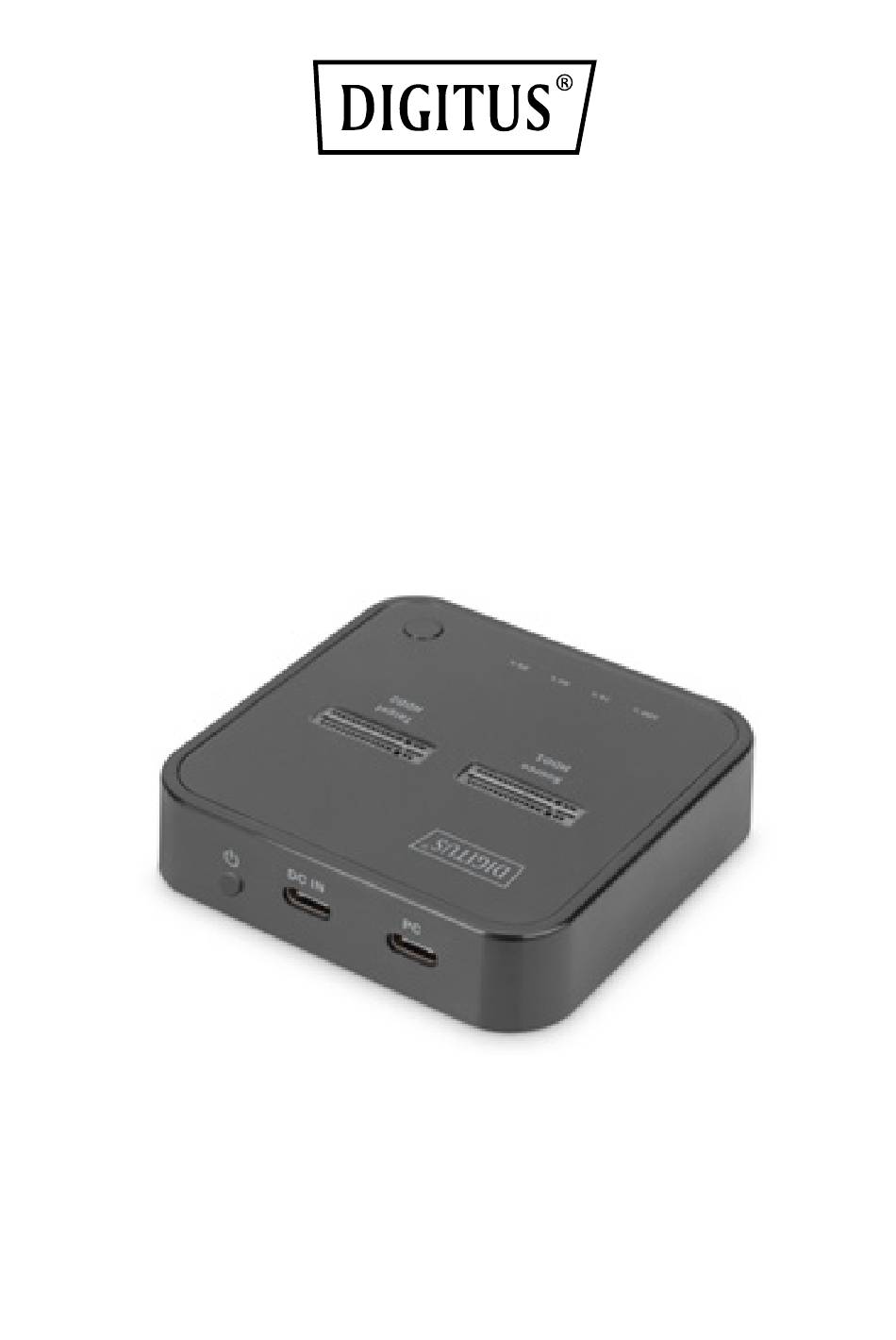

- Page 1 DUAL M.2 NVMe SSD DOCKING STATION WITH OFFLINE CLONE FUNCTION, USB-C™ Quick Installation Guide DA-71545 Rev. 1...
-
Page 2: Feature Benefits
Description The Dual NVMe Docking Station from DIGITUS® can accommodate M.2 SSDs of up to 4 TB per box. Manage a total of 2 SSDs in various formats with a total storage of up to 8 TB. The integrated offline clone function even makes it possible to duplicate storage media by pressing a button without a connected end device. -
Page 3: Technical Features
Technical Features Capacity Max. 4 TB per Box Supported formats 2242, 2260, 2280 & 22110 / M-Key, B & M-Key SSDs (NVMe) USB-C™ connections 1 x Data USB-C™ 3.2 Gen2, 1 x Power supply USB-C™ Maximum transfer rate USB-C™ 10 Gbps Modes Clone and dual mode Applications... -
Page 4: Product Details
Product Details 1) Clone button 2) M.2 NVMe SSD2 3) ON/OFF button 4) Power type C 5) Data type C 6) M.2 NVMe SSD1 7) Clone Indicator light... -
Page 5: Basic Functions
Basic Functions • Insert NVMe SSD with vertical direction, connect USB-C cable with data type C port and PC USB port Plug power adapter with power type C (workable with one SSD • or two SSD) - Page 6 View “Computer-Manage-Disk Management” to find • the new disk...
- Page 7 Right click the “Disk 1”, then click “New Simple Volume” • According to the instruction, choose the size of partition, • then click “Next” to finish...
- Page 8 Then you can find the new hard disk in the “Computer”, it is ready to • Connect two NVMe SSD • (Source SSD capacity must be = < Target SSD)
- Page 9 Plug power adapter with power type C • Pressing clone button for several seconds, till clone LED light • 25% flash...
- Page 10 Clone LED light flash from 25%, 50%, 75% and 100% • It means that clone completed when 100% illuminate and all LEDs • are off finally (Tip: when connect with PC again, make sure disconnect power type C first and follow operation as PC mode...
- Page 11 Disclaimer: The product name and brand name may be registered trademark of related manufacturers.TM and ® may be omitted on the user manual. The pictures on the user manual are just for reference, and there may be some slight difference with the real products.
