Universal Docking Station, USB Type C
Manual
DA-70863
1. INTRODUCTION

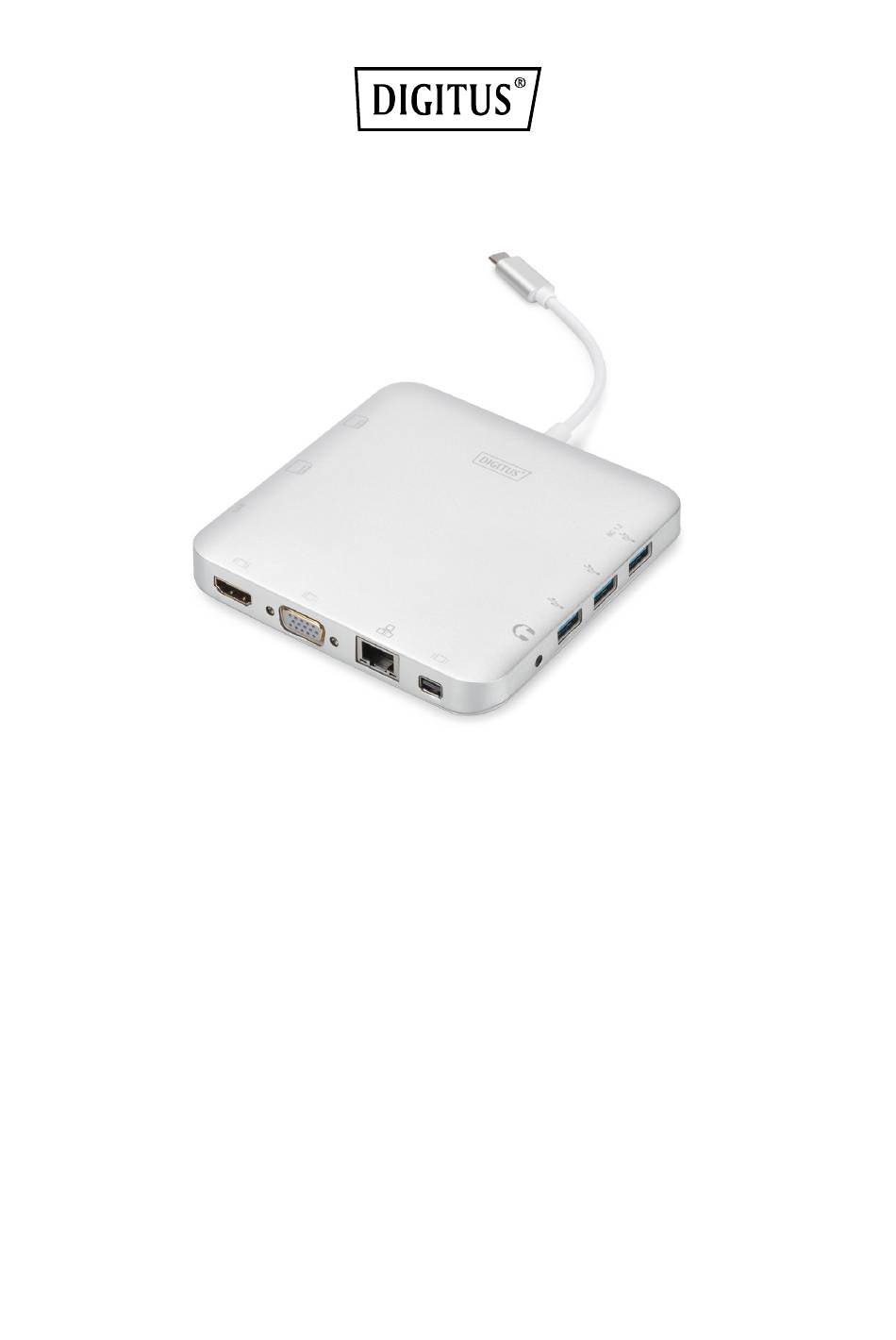

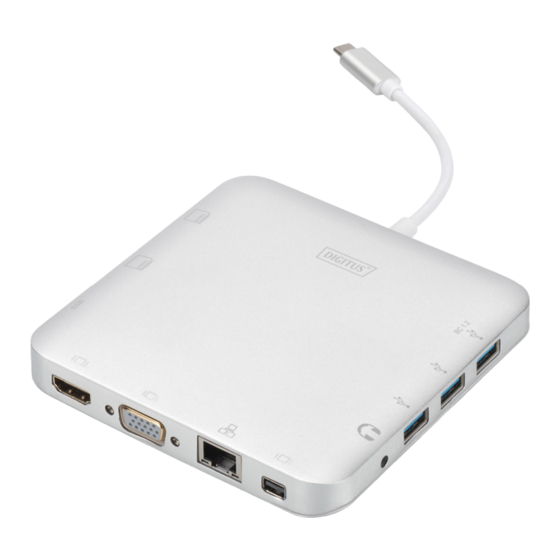

The fully functional universal docking station, USB type C from Digitus offers you
everything to create a fully equipped workspace. It offers three video interfaces
(HDMI, MiniDP and VGA), where two monitors can be operated at the same time.
Thus, the best possible supported resolution is achieved: Brilliant UHD (4K2K/30Hz).
In addition, it offers three USB 3.0 ports, where one port (5V/1.5A) also provides a
charging function for mobile devices. The USB interfaces are supplemented by a
USB-C with power delivery (PD) functionality. Two card readers are also built in
(MicroSD, SDHC, SDXC/MMC). Your notebook can also be connected to your network
via cable over the Gigabit Ethernet port. We top everything off with a stereo audio
port. Extend your notebook to 11 additional ports using only one USB-C port - with
the multifunctional Universal Docking Station USB Type C.
1
Advertisement
Table of Contents
Related Manuals for Digitus DA-70863
Summary of Contents for Digitus DA-70863
- Page 1 DA-70863 1. INTRODUCTION The fully functional universal docking station, USB type C from Digitus offers you everything to create a fully equipped workspace. It offers three video interfaces (HDMI, MiniDP and VGA), where two monitors can be operated at the same time.
- Page 2 This Type-C docking offers integrated solution for power, data and video. It allows you to connect Type-C host PC to VGA, HDMI, Mini DisplayPort displays for video transmission, to USB-A devices for data transmission. It also helps the host PC to get access to Ethernet through RJ45 port.
- Page 3 3. PACKAGE CONTENT Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton: 1 x Main unit: Universal Docking Station, USB Type C 1 x User Manual 4.
- Page 4 5. OPERATION 1) Connect the USB-C male port of this product to your USB-C notebook/ultrabook 2) Connect the three USB3.0 ports to three USB devices 3) Connect the Mini DisplayPort port of the Docking to display with Mini DisplayPort port with one Mini DisplayPort cable 4) Connect the HDMI port to HD display with one HDMI Cable 5) Connect the VGA port to HD display with one VGA Cable 6) Connect Gigabit Ethernet port of this product to Ethernet Router with an...
- Page 5 6. PORT DESCRIPTION Memory Card Memory Card Power Adapter Mobile phone Keyboard USB Disk Mini DisplayPort HDMI Display VGA Display Display Headphone Network Hereby ASSMANN Electronic GmbH, declares that this device is in compliance with the requirements of Directive 2014/30/EU and the Directive 2011/65/EU for RoHS compliance. The complete declaration of conformity can be requested by post under the below mentioned manufacturer address.
