Autel MaxiCOM MK900TS Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Trademarks
®
®
Autel
, MaxiSys
®
and MaxiCheck
in China, the United States, and other countries. All other marks are trademarks or
registered trademarks of their respective holders.
Copyright Information
No part of this manual may be reproduced, stored in a retrieval system or transmitted in
any form or by any means electronic, mechanical, photocopying, recording, or
otherwise without the prior written permission of Autel.
Disclaimer of Warranties and Limitation of Liabilities
All information, specifications and illustrations in this manual are based on the latest
information available at the time of printing.
Autel reserves the right to make changes at any time without notice. While information
of this manual has been carefully checked for accuracy, no guarantee is given for the
completeness and correctness of the contents, including but not limited to the product
specifications, functions, and illustrations.
Autel will not be liable for any direct, special, incidental, or indirect damages, or for any
economic consequential damages (including the loss of profits) as a result of using this
product.
IMPORTANT
Before operating or maintaining this unit, please read this manual carefully, paying
extra attention to the safety warnings and precautions.
For Services and Support
pro.autel.com
www.autel.com
1-855-288-3587 (North America)
+86 (0755) 8614-7779 (China)
support@autel.com
For technical assistance in all other markets, please refer to
manual.
®
, MaxiDAS
, MaxiCOM
are trademarks of Autel Intelligent Technology Corp., Ltd., registered
®
®
, MaxiRecorder
i
®
, MaxiCOM
, MaxiTPMS
Technical Support
®
,
in this

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MaxiCOM MK900TS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Autel MaxiCOM MK900TS

Summary of Contents for Autel MaxiCOM MK900TS

  • Page 1 Autel will not be liable for any direct, special, incidental, or indirect damages, or for any economic consequential damages (including the loss of profits) as a result of using this product.
  • Page 2 The safety messages herein cover situations Autel is aware of at the time of publication. Autel cannot know, evaluate or advise you as to all of the possible hazards. You must be certain that any condition or service procedure encountered does not jeopardize...
  • Page 3 DANGER When an engine is operating, keep the service area WELL VENTILATED or attach a building exhaust removal system to the engine exhaust system. Engines produce carbon monoxide, an odorless, poisonous gas that causes slower reaction time and can lead to serious personal injury or loss of life. SAFETY WARNINGS ...

  • Page 4: Table Of Contents

    CONTENTS 1 USING THIS MANUAL ..................... 1 ..................... 1 ONVENTIONS 1.1.1 Bold Text ...................... 1 1.1.2 Notes and Important Messages ..............1 1.1.3 Hyperlinks ..................... 1 1.1.4 Illustrations ....................2 1.1.5 Procedures ....................2 2 GENERAL INTRODUCTION .................... 3 COM MK900-TS T ................
  • Page 5 ..................20 EHICLE DENTIFICATION 4.3.1 Auto Detect ....................20 4.3.2 Manual Input ....................22 4.3.3 Scan VIN/License ..................23 4.3.4 Automatic Selection ..................25 4.3.5 Manual Selection ..................26 ....................... 26 AVIGATION 4.4.1 Diagnostic Screen Layout ................26 4.4.2 Screen Messages ..................29 4.4.3 Making Selections ..................
  • Page 6 (DPF) S ............55 IESEL ARTICLE ILTER ERVICE (IMMO) S ................56 MMOBILIZER ERVICE 6 TPMS ..........................58 ..................... 58 ETTING TARTED 6.1.1 TPMS Service Menu Layout ............... 58 ............... 59 ONNECTING ABLET TO EHICLE ................... 59 EHICLE ELECTION 6.3.1 Auto Detect ....................
  • Page 7 TPMS OEM P NO.................. 84 6.9.1 Application Scenarios ................. 84 6.9.2 Operations ....................84 7 TOOLKIT ......................... 89 8 TPMS RETROFIT......................90 9 VCI MANAGER ....................... 92 VCI B ................... 93 LUETOOTH AIRING BAS B .................. 93 LUETOOTH AIRING VCI U ......................
  • Page 8 ................128 UPPORT CREEN AYOUT 16.3 ....................129 CCOUNT 16.4 ....................129 OGGING 16.5 ......................130 RAINING 16.6 FAQ ....................... 130 17 MAXIVIEWER ......................131 18 MAXIVIDEO ........................ 132 19 QUICK LINK ....................... 133 20 AUTEL USER CENTER ....................134 viii...
  • Page 9 21 MAINTENANCE AND SERVICE................. 136 21.1 ................136 AINTENANCE NSTRUCTIONS 21.2 ................. 137 ROUBLESHOOTING HECKLIST 21.3 ................... 137 BOUT ATTERY SAGE 21.4 ..................138 ERVICE ROCEDURES 21.4.1 Technical Support ..................138 21.4.2 Repair Service ..................140 21.4.3 Other Services ..................140 22 COMPLIANCE INFORMATION ..................

  • Page 10: Using This Manual

    Using This Manual This manual contains device usage instructions. Some illustrations shown in this manual may make reference to modules and optional equipment that are not included in your system. Contact your sales representative for availability of other modules and optional tools or accessories. 1.1 Conventions The following conventions are used: 1.1.1 Bold Text...

  • Page 11: Illustrations

    1.1.4 Illustrations Illustrations used in this manual are samples; the actual testing screen may vary for each vehicle being tested. Observe the menu titles and on-screen instructions to make correct option selection. 1.1.5 Procedures An arrow icon indicates a procedure. Example: ...

  • Page 12: General Introduction

    General Introduction Together with the ability to quickly read and clear DTCs for all available modules of the majority of the makes and models on the market, MaxiCOM MK900-TS provides superior special functions, including Oil Reset, EPB (Electronic Parking Brake), SAS (Steering Angle Sensor), and BMS (Battery Management System).

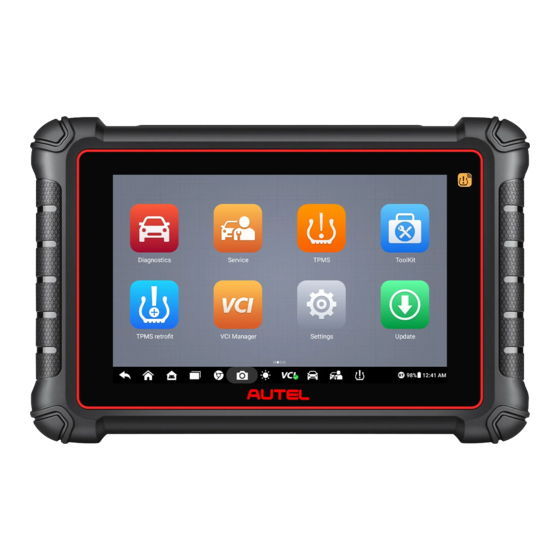

  • Page 13 8.0” LCD Touchscreen Ambient Light Sensor — detects ambient light brightness. Power LED — indicates battery level & charging or system status. TPMS Service Symbol — indicates the position of the embedded TPMS antenna. The power LED displays green, yellow, or red depending on power level and operating state.

  • Page 14: Power Sources

    Collapsible Stand — extends from the back to allow hands-free viewing of the tablet. Rear Camera Camera Flash Figure 2-3 Tablet Top View USB Type-C Charging Port Mini SD Card Slot 10. USB Port 11. Power/Lock Button — turns the device on/off with long press, or locks the screen with short press.

  • Page 15: Technical Specifications

    2.1.3 Technical Specifications Table 2-1 Specifications Item Description Recommended Use Indoor Operating System Android 11 Processor Quad-core processor Memory 4 GB RAM & 64 GB ROM Display 8-inch LCD screen with 1280 x 800 resolution Rear Camera 8 MP  USB Type-C ...

  • Page 16: Maxivci V150

    Item Description 259.87 mm (10.23”) x 168.98 mm (6.65”) x 33.60 Dimensions (W x H x D) mm (1.32”) Net Weight 998 g (2.2 lbs) ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (High-speed, Protocols Middle-speed, Low-speed and Single-wire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CAN FD...

  • Page 17: Power Source

    Power/Connection LED — refers to Table 2-2 Power/Connection LED on page 8 for details. Table 2-2 Power/Connection LED Color Description Green Lights solid green when powered on. Lights solid blue when the device is successfully connected via Bluetooth Blue but is not communicating with the vehicle.

  • Page 18: Other Accessories

    Item Description Operating Temp. 0 to 50 ° C (32 to 122 ° F) –10 to 60 ° C (14 to 140 ° F) Storage Temp. 46.8 mm x 77.47 mm x 21.38 mm (1.84’’ x Dimensions 3.05’’ x 0.84’’) (W x H x D) Weight 51.5 g (0.11 lbs)

  • Page 19: Getting Started

    Getting Started Ensure the tablet is sufficiently charged or is connected to an external power supply. (See Power Sources on page 5.) NOTE The images and illustrations depicted in this manual may differ slightly from those in the most recent product. 3.1 Powering Up Long press the Power/Lock button on the top-right side of the tablet to power on the unit.

  • Page 20: Application Buttons

    NOTE The tablet screen is locked by default when first powered on. We recommend you lock the screen to protect the information in the system and conserve the power. The touchscreen navigation is menu-driven, enabling quick access to functions and features by tapping on the buttons on the screen.
  • Page 21 Authorization Authorization on page 127 for details. Launches the Support platform which synchronizes Autel’s on-line service base station with the MaxiCOM Support tablet. See Support on page 128 for details. Provides quick search for the supported functions and MaxiViewer vehicles of Autel diagnostic tools.

  • Page 22: Locator And Navigation Buttons

    Name Description MaxiTools Includes log collection and factory data reset two parts. Allows you to register an account, view and edit your Autel User personal profile and link your device. See Autel User Center Center on page 134 for details.

  • Page 23: System Status Icons

    Button Name Description Display Supports the display brightness automatically or manually Brightness adjustment. Opens the VCI Manager application. The BT badge at the bottom-right corner indicates the tablet is communicating with the VCI device. An “X” badge will display at the Manager Shortcut bottom-right corner if the tablet is not connected to the VCI...

  • Page 24: Powering Down

    3.2 Powering Down All vehicle communications must be terminated before shutting down the tablet. A warning message appears if you attempt to shut down the tablet while it is communicating with the vehicle. Forcing a shut-down while communicating may lead to ECU problems on some vehicles.

  • Page 25: Diagnostics

    Diagnostics The Diagnostics application can retrieve ECU information, read & erase DTCs, and view live data. The Diagnostics application can access the electronic control unit (ECU) for various vehicle control systems, including engine, transmission, antilock brake system (ABS), and airbag system (SRS). 4.1 Establishing Vehicle Communication Prior to performing the Diagnostics function, ensure the tablet is connected to the test vehicle through the MaxiVCI V150.

  • Page 26: No Communication Message

    A BT badge will display at the bottom-right corner of the VCI Manager shortcut, which means the communication of MaxiVCI V150 and MK900-TS tablet has been established, and the tablet is ready to start vehicle diagnosis. Refer to VCI Bluetooth Pairing on page 93 for details.

  • Page 27: Getting Started

     Incorrect vehicle identification was entered. 4.2 Getting Started Ensure a communication link is established between the test vehicle and tablet via the MaxiVCI V150. 4.2.1 Vehicle Menu Layout When the tablet is properly connected to the vehicle, the platform is ready to start vehicle diagnosis.
  • Page 28 Table 4-1 Top Toolbar Buttons Button Name Description Home Returns to the MaxiCOM Job Menu. Provides a fast way to identify the test vehicle. Vehicle Identification on page 20 for details. Displays all the vehicle manufacturers. Adds your preferred vehicle manufacturers into Favorites favorites.

  • Page 29: Vehicle Identification

    4.3 Vehicle Identification The MaxiCOM diagnostics system supports five methods for vehicle identification: Auto Detect Manual Input Scan VIN/License Automatic Selection Manual Selection 4.3.1 Auto Detect The MaxiCOM diagnostics system features the latest VIN-based Auto Detect function to identify vehicles and scan all the diagnosable ECUs and run diagnostics on the selected system.
  • Page 30 Figure 4-3 Auto Detect Screen Tap Yes to confirm the vehicle profile, or tap No if the information is incorrect. Figure 4-4 Vehicle Profile Screen The tool establishes communication with the vehicle and reads the control unit information. Choose Auto Scan to scan all the test vehicles’ available systems or tap Control Unit to access a specific system to diagnose.

  • Page 31: Manual Input

    Figure 4-5 Diagnostic Menu Screen 4.3.2 Manual Input For vehicles not supporting the Auto Detect function, you may manually enter the VIN.  To perform Manual Input Tap the Diagnostics application button from the MaxiCOM Job Menu. The Vehicle Menu displays. Tap the VID button on the top toolbar to open the dropdown list.

  • Page 32: Scan Vin/License

    Figure 4-6 Manual Input Screen Tap OK. Once the vehicle is identified, the Vehicle Diagnostics screen will display. at the top-right of the dialog to exit Manual Input. 4.3.3 Scan VIN/License MaxiCOM diagnostic tablet also supports Scan VIN/License function. Enabling this function will automatically turn on the camera.
  • Page 33 Figure 4-7 Scan VIN/License 1 Select one of the three options and position the tablet to align the VIN, or license number, or the barcode within the scanning window. The scan result will display in the dialog box of the Recognition Result screen. Tap OK to confirm the result, and then the vehicle information confirmation screen will display on the tablet.

  • Page 34: Automatic Selection

    Figure 4-9 Enter VIN Screen 4.3.4 Automatic Selection The vehicle VIN can also be automatically acquired after a vehicle manufacturer is selected. Figure 4-10 Selection Screen  To perform Automatic Selection Tap the Diagnostics application button from the MaxiCOM Job Menu. The Vehicle Menu displays.

  • Page 35: Manual Selection

    Tap Automatic Selection and the VIN information will be acquired automatically. Follow the on-screen instructions to complete the operation and advance to the Diagnostic Menu screen. 4.3.5 Manual Selection When the VIN is not automatically retrievable through the vehicle's ECU, or when the VIN is unknown, you can select the vehicle manually.
  • Page 36 116 for details. Records communication data information of the test vehicle. When encountering Data an error during testing and diagnosing, use this Logging function to contact Autel's technical staff for solutions. See Data Logging on page 124 for details.
  • Page 37  To print data in Diagnostics Tap the Diagnostics application button from the MaxiCOM Job Menu. The Print button on the diagnostic toolbar is available throughout the whole diagnostics operations. Tap Print. A drop-down menu will be displayed: Print This Page — prints a screenshot of the current screen. ...

  • Page 38: Screen Messages

    4.4.2 Screen Messages Screen messages will appear when additional input is needed before proceeding. There are three main types of on-screen messages: Confirmation, Warning, and Error. 4.4.2.1 Confirmation Messages Confirmation messages inform you when you are about to perform an action that cannot be reversed or when an action has been initiated and confirmation is needed to continue.

  • Page 39: Auto Scan

    4.5.1 Auto Scan The Auto Scan function performs a comprehensive scanning over all the ECUs in the vehicle to locate systems faults and retrieve DTCs. An example of Auto Scan screen is pictured as below. Figure 4-12 Auto Scan Screen Navigation Bar Main Section Function Buttons...

  • Page 40: Control Unit

    to access this system. Column 4 — tap to enter the related system to view the detailed information and perform further diagnosis or testing. 4.5.1.3 Function Buttons The table below provides a brief description of the function buttons. Table 4-3 Function Buttons in Auto Scan Name Description Report...

  • Page 41: Diagnostic Functions

    4.6 Diagnostic Functions Figure 4-13 Function Menu Screen The Diagnostic Functions are listed on the Function Menu screen. The Function Menu options vary slightly for different vehicles, which may include: ECU Information — provides the retrieved ECU information in detail. An ...

  • Page 42: Ecu Information

    4.6.1 ECU Information This function retrieves and displays the specific information for the tested control unit, including unit type, version numbers, and other specifications. Figure 4-14 ECU Information Screen Diagnostics Toolbar Buttons — see Table 4-2 Diagnostics Toolbar Buttons on page 27 for detailed descriptions of the operations for each button.
  • Page 43 Figure 4-15 Trouble Codes Screen Diagnostics Toolbar Buttons — see Table 4-2 Diagnostics Toolbar Buttons on page 27 for detailed descriptions of the operations for each button. Main Section Column 1 — displays the retrieved codes from the vehicle.  Column 2 —...

  • Page 44: Live Data

     To erase codes Tap Erase Codes from the Trouble Codes screen. A warning message displays to inform you of data clearing when this function is applied.  Tap Yes to continue. A Confirmation screen displays when the operation is successfully done. ...
  • Page 45 Name Column — displays the parameter names.  Check Box — tap the check box on the left side of the parameter name to make item selection. Tap the check box again to deselect the item. Drop-down Button — tap the drop-down button on the right side of the parameter name to open a submenu, providing data display mode options.
  • Page 46 NOTE Status parameters, such as a switch reading like ON, OFF, ACTIVE, and ABORT, can only be displayed in Text Mode. Value parameters, such as a sensor reading, can be displayed in both text and graph modes.  Waveform Graph Mode — displays the parameters in waveform graphs. In this mode, five control buttons will display on the right side of the parameter item, allowing you to manipulate the display status.
  • Page 47 three scales available for the Y axis: x1, x2, and x4. Edit Button — tap to open an edit window, in which you can set the waveform  color and line thickness displayed for the selected parameter. Zoom-out Button — tap to exit full screen display. ...
  • Page 48 Figure 4-20 Trigger Settings Screen Two buttons and two input boxes are available in the Trigger Settings screen. Trigger — switches the trigger on or off. The trigger is ON by default. Buzzer Alarm — switches the alarm on or off. The alarm function makes a beeping sound as an alert when the data reading reaches the preset minimum or maximum point.
  • Page 49 C. Function Buttons The operations of the available function buttons on the Live Data screen are described below. Cancel All — tap this button to cancel all selected parameters. Up to 50 parameters can be selected at one time. Show Selected/Show All — tap this button to switch between the two options: one displays the selected parameters, the other displays all the available items.
  • Page 50 and save the setting, and return to the Live Data screen, or tap Cancel to exit without saving. Clear Data — tap this button to clear all cached live data. Freeze — displays the retrieved data in freeze mode. Previous Frame — moves to the previous frame of frozen data. ...

  • Page 51: Active Test

    4.6.4 Active Test The Active Test function is used to access vehicle-specific subsystem and component tests. Available tests vary by vehicle. During an active test, the tablet sends commands to the ECU to activate the actuators. This test determines the integrity of the system or part by reading ECU data, or by monitoring the operation of the actuators.
  • Page 52 Figure 4-22 Special Function Screen 1 Select a function to display detailed information and the execution screen. Figure 4-23 Special Function Screen 2 List Tab Page: Column 1 — displays the description of the function being performed or the live ...

  • Page 53: Generic Obdii Operations

    4.7 Generic OBDII Operations This option presents a quick way to check for DTCs, isolate the cause of an illuminated Malfunction Indicator Lamp (MIL), check monitor status prior to emissions certification testing, verify repairs, and perform a number of other services that are emissions-related.

  • Page 54: Function Descriptions

    Figure 4-24 OBDII Diagnostic Menu Select a function to continue.  DTC & FFD  I/M Readiness  Live Data  O2 Sensor Monitor  On-Board Monitor  Component Test  Vehicle Information  Vehicle Status NOTE The supported functions may vary by vehicles. 4.7.2 Function Descriptions This section describes the various functions of each diagnostic option: 4.7.2.1...
  • Page 55 Figure 4-25 DTC & FFD Screen  Current Codes Current codes are the current emissions-related DTCs from the ECU of the vehicle. OBDII/EOBD codes have a priority according to their emission severity, with higher priority codes overwriting lower priority codes. The priority of the code determines the illumination of the MIL and the codes erase procedure.
  • Page 56  Erase Codes This option is used to clear all emissions-related diagnostics data including DTCs, freeze frame data, and specific manufacturer-enhanced data from the vehicle ECU. This option resets the I/M Readiness Monitor Status for all vehicle monitors to “Not Ready”...

  • Page 57: Diagnostic Reports

    4.7.2.7 Vehicle Information The option displays the vehicle identification number (VIN), the calibration identification, and the calibration verification number (CVN), and other information of the test vehicle. 4.7.2.8 Vehicle Status This function checks the current condition of the vehicle, such as the communications protocols of OBDII modules, quantity of fault codes, and the status of the malfunction indicator lamp (MIL).

  • Page 58: Diagnostics Report Saving, Viewing, And Sharing

    4.8.2 Diagnostics Report Saving, Viewing, and Sharing The diagnostic report can be reviewed, saved, and shared with others through many ways. 4.8.2.1 Diagnostics Report Saving  Via the History function Enter the main screen of the Diagnostics application, and tap History on the top toolbar.
  • Page 59 Tap Get Report. Enter the license plate and current mileage. Tap Save.  Via the functions on the Diagnostics Toolbar The diagnostic report can also be viewed from such diagnostics functions screen including Auto scan, Trouble codes, Live data, and Active test. There are two ways to view the saved reports: ...
  • Page 60 4.8.2.3 Diagnostics Report Cloud Sharing Tap Data Manager > Cloud Report to enter the Report List screen. Figure 4-29 Report List 1 Tap the on the lower-right corner of the report. NOTE Note that if the report displays , it means the report has been uploaded to the cloud successfully, and you can share the report with others;...

  • Page 61: Exiting Diagnostics

    There are three ways for report cloud sharing: scan the QR code, send by email, or send by SMS (via phone number). 4.9 Exiting Diagnostics The Diagnostics application remains open as long as there is an active communication with the vehicle. You must exit the diagnostics operation to stop all communications with the vehicle before closing the Diagnostics application.

  • Page 62: Service

    Service The Service application is specially designed to provide quick access to the vehicle systems for various scheduled service and maintenance tasks. The typical service operation screen is a series of menu-driven executive commands. Follow on-screen instructions to select appropriate execution options, enter correct values or data, and perform necessary actions.

  • Page 63: Epb Safety

    Ensure that the EPB control system is reactivated after the maintenance work has been completed. NOTE Autel accepts no responsibility for any accident or injury arising from the maintenance of the Electric Parking Brake system. 5.3 Tire Pressure Monitoring System (TPMS) Service This function allows you to quickly look up the tire sensor IDs from the vehicle’s ECU, as...

  • Page 64: Steering Angle Sensor (Sas) Service

    Accident repairs where damage to the steering angle sensor, SAS assembly, or any part of the steering system may have occurred. NOTE Autel accepts no responsibility for any accident or injury arising from servicing the SAS system. When interpreting DTCs retrieved from the vehicle, always follow the manufacturer’s recommendation for repair.

  • Page 65: Immobilizer (Immo) Service

    driven more with higher load and speed. In order for regeneration to take place, a prolonged high exhaust temperature must be obtained. In the event of the car being driven in such a way that regeneration is not possible, i.e., frequent short journeys, a diagnostic trouble code will eventually be registered in addition to the DPF light and “Check Engine”...
  • Page 66 frequency identification between a transponder in the ignition key and a radio frequency reader in the steering column. When the key is placed in the ignition, the transponder sends a signal with a unique identification code to the reader, which relays it to a receiver in the vehicle's computer control module.

  • Page 67: Tpms

    TPMS The TPMS application supports TPMS sensors including BLE sensors which are compatible with Tesla vehicles. Relying on this application, you can check the TPMS sensor conditions, program the MX-Sensor, and perform the TPMS Relearn procedure and other basic TPMS diagnostic functions. 6.1 Getting Started 6.1.1 TPMS Service Menu Layout Tap TPMS on the MaxiCOM Job Menu.

  • Page 68: Connecting Tablet To Vehicle

    Button Name Description Displays the stored test vehicle history records. History Vehicle History on page 117 for details. Tap the drop-down button to select the correct market, then the vehicle manufacturer icons of the selected market will be displayed. Market Note: Please double check whether the market is selected correctly if the vehicle cannot be found.

  • Page 69: Auto Detect

    6.3.1 Auto Detect For vehicles supporting the Auto Detect function, you can acquire the VIN information to quickly identify the exact vehicle with just one tap.  To perform Auto Detect in TPMS application Tap the TPMS application button from the MaxiCOM Job Menu. The Vehicle Menu displays.

  • Page 70: Manual Input

    Figure 6-3 Auto Detect in TPMS Application Tap OK to confirm the vehicle information such as Model, Year, OEM Sensor Part NO., and Area, or tap ESC to return to the previous screen. Figure 6-4 Vehicle Information in TPMS Application The TPMS Service screen will display.

  • Page 71: Scan Vin/License

     To perform Manual Input in TPMS application Tap the TPMS application button from the MaxiCOM Job Menu. The Vehicle Menu displays. Tap the VID button on the top toolbar to open the dropdown list. Select Manual Input. Enter the correct VIN into the input box, then tap OK. Figure 6-5 Manual Input in TPMS Application A VIN Confirmation screen will display.

  • Page 72: Automatic Selection

    The camera will be turned on. On the right side of the screen, from top to bottom, three options are available: Scan QR Code/Barcode, Scan VIN, and Scan License Number. See Figure 4-7 Scan VIN/License Select one of the three options and position the tablet to align the VIN, or license number, or the barcode within the scanning window.

  • Page 73: Manual Selection

    Figure 6-7 Selection Screen in TPMS Application Tap Read to automatically acquire the VIN, or you can manually input the VIN information. If the VIN is correct, tap OK to proceed. Figure 6-8 Automatic Selection in TPMS Application Follow the on-screen instructions to confirm the vehicle information and finally enter the TPMS Service screen.
  • Page 74  To perform Manual Selection in TPMS application Tap the TPMS application button from the MaxiCOM Job Menu. The Vehicle Menu displays. Select a vehicle brand from the TPMS Vehicle Menu screen. Tap Manual Selection on the Select Diagnostic Type screen. Follow the on-screen instructions to select the vehicle information such as model and year in sequence.
  • Page 75 Figure 6-11 Indirect TPMS Selection Screen For indirect TPMS vehicle, only the Relearn function is supported. Tap the vehicle year information button, in the case of the above screen — 2008/08-2019/12 (indirect), to display the Relearn Procedure screen. Follow the on-screen instructions to complete the operation.

  • Page 76: Tpms Service Screen Layout

    Figure 6-13 TPMS Service Screen 6.4 TPMS Service Screen Layout The TPMS Service screen typically includes four sections: Figure 6-14 TPMS Service Screen Top Toolbar Buttons Navigation Tab Main Section Function Buttons...

  • Page 77: Top Toolbar Buttons

    6.4.1 Top Toolbar Buttons The top toolbar contains a number of buttons. See Table 4-2 Diagnostics Toolbar Buttons on page 27 for details. 6.4.2 Navigation Tab The navigation tab at the top of the main section contains the following items: Check Tab —...
  • Page 78 Figure 6-15 Check Screen Sensor ID Tire Pressure Sensor Frequency Tire Temperature Sensor Battery Status Low Battery Icon Successfully Triggered NOTE The default check order on the tablet is LF (left front), RF (right front), RR (right rear), and LR (left rear). The wheel positions correspond with the descriptions on the right of the screen.
  • Page 79  To check the sensors Select the Check tab. Tap the desired wheel position on the vehicle thumbnail. Hold the part of the tablet marked with TPMS service symbol close to the tire sidewall near the valve stem, and then tap the Trigger button. The tablet will send low frequency signal to trigger the sensor.

  • Page 80: Tpms Diagnostics

    6.6 TPMS Diagnostics The Diagnostics function is used to check the status of the TPMS system. This function requires connection with the test vehicle. Refer to Establishing Vehicle Communication on page 16 for details.  To perform TPMS diagnostics function Tap the Diagnostics tab.

  • Page 81: Dtc Details

    Sensor IDs Retrieved by Activation Sensor IDs Retrieved by OBD — saved in the TPMS ECU DTCs Retrieved by OBD — existed in the TPMS ECU NOTE If the OBD function is supported by the test vehicle, the sensor ID saved in the TPMS ECU will be retrieved and displayed on the screen with an OBD mark before it when the communication is completed.

  • Page 82: Retry Diagnosis

    If no DTCs are present in the TPMS ECU, a green “No DTC” message will display in the DTC column. Figure 6-19 No DTC Screen 6.6.2 Retry Diagnosis Tap Retry Diagnosis to establish communication with the ECU again and to retrieve sensor IDs and DTCs present in the ECU.

  • Page 83: Service Function

    Figure 6-20 Live Data Screen All the parameters displayed on the Live Data screen are default values. Check box before the parameters you want to see, the Show Selected icon on the bottom of the screen will be available and turn blue. Tap Show Selected and the selected parameters will be displayed in a separate screen.

  • Page 84: Sensor Programming

    The Programming function is used to program the sensor data to the MX-Sensor and replace the faulty sensor (poor battery life or malfunction). NOTE Programming function will only work with Autel MX-Sensor. The 1-Sensor (Press-in) is taken as an example in this manual. Please choose the proper MX-Sensor when programming.
  • Page 85 As shown in the screen above, there are two options available when programming MX-Sensor: Copy by OBD and Auto Create 1-20 Sensors. The main section of the screen may include: Column 1 — displays wheel positions.  Column 2 — displays the new created sensor IDs. ...

  • Page 86: Copy By Obd

    Figure 6-24 Programming Screen 2 6.7.1 Copy by OBD By using this function, the tablet will program the sensor IDs retrieved from the ECU of the test vehicle to the new MX-Sensors.  To copy by OBD Select one sensor position and place an MX-Sensor near the TPMS antenna of the tablet, then tap Copy by OBD to program the new MX-Sensor.

  • Page 87: Auto Create 1-20 Sensors

    NOTE There is no need to perform the Relearn function to write the ID into the ECU when the new programmed sensor has been put in the same position. The Copy by OBD programming method, if available, is recommended to program new MX-Sensors.

  • Page 88: Tpms Relearn

    6.8 TPMS Relearn This function is used to write the newly programmed sensor IDs into the vehicle ECU for sensor recognition. Generally speaking, relearn only needs to be performed when the newly programmed sensor IDs are different from the original sensor IDs stored in the TPMS ECU. There are four ways for relearn, namely OBD Relearn, Automatic Relearn, Stationary Relearn, and Copy Relearn.

  • Page 89: Automatic Relearn

    Vehicle Information Battery from Vehicle OEM Sensor Information Learning Process Guide Figure 6-28 OBD Relearn Screen 2 6.8.2 Automatic Relearn Automatic Relearn requires driving to complete. For some vehicle models, the Automatic Relearn procedures can be completed directly by driving, while for some vehicle models, you need to follow the on-screen Learning Process Guide to let the vehicle enter the Automatic Relearn mode before driving.

  • Page 90: Stationary Relearn

    Figure 6-30 Automatic Relearn Screen 2 6.8.3 Stationary Relearn Stationary Relearn can be completed without relying on driving and OBD diagnostics. To activate this mode, it is usually necessary to perform a series of operations to let the vehicle enter the relearn mode first, then use TPMS tools to perform activation or deflation to complete the relearn.

  • Page 91: Copy Relearn

    Copy Relearn is to clone the sensor ID and tire location. Before performing Copy Relearn, you need to first obtain the sensor ID and tire location needed to be cloned, then use Autel tool to clone and program the sensor ID, and install the sensor to the corresponding tire to complete Copy Relearn.
  • Page 92 NOTE Ensure the original sensor will not interfere with the relearn procedures. It is recommended that you keep the original sensor at least 100 meters away from the vehicle or put the sensor in an enclosed metal box to avoid signal interference. Normally, it is not necessary to perform relearn procedures after cloning.

  • Page 93: Tpms By Oem Part No

    6.9 TPMS by OEM Part NO. If the sensor’s OEM part number is known, this function is an efficient method to activate and program MX-Sensors. 6.9.1 Application Scenarios This method is ideal for the following two cases: In the workshop If the mounted sensor is faulty and the part number is known to the technician, the technician can use this method to check the original sensor, and then write the retrieved information into a new MX-Sensor via Programming function.
  • Page 94 Or tap the search box on the top-right corner of the screen to enter the part number. Figure 6-36 OEM Part NO. Search Screen When a specific OEM part NO. is selected, the screen will display as below. Figure 6-37 OEM Part NO. Service Menu Screen NOTE Only sensor Check and Programming functions are available with the OEM Part NO.
  • Page 95 6.9.2.1 Check The Check tab is the default selection on the screen above. Tap Trigger on the bottom-left of the screen to activate the original sensors and retrieve the sensor information. The original sensor ID, tire pressure, tire temperature, sensor frequency, and sensor battery status will populate the displayed table.
  • Page 96 Figure 6-39 Programming Screen via OEM Part NO. ID Programmed to the New MX-Sensor ID Retrieved from Sensor Activation PSN Code on MX-Sensor NOTE By tapping Auto Create 1-20 Sensors, up to 20 MX-Sensors can be programmed at a time. The Product Serial Number (PSN) code, which is printed on the MX-Sensor, acts as a reference to identify the corresponding sensor ID.
  • Page 97 Figure 6-40 Support Screen...

  • Page 98: Toolkit

    ToolKit This chapter describes auxiliary functions for TPMS service and vehicle diagnostics. Figure 7-1 ToolKit Screen RKE & RF This function is used to check the signal strength of 315 and 433 MHz frequencies of remote keyless entry fobs. Unlock RED I 7002A This function is used to unlock the specified Redi-sensor: 7002A.

  • Page 99: Tpms Retrofit

    Tap OK at the bottom of the screen to confirm the information of the vehicle. The Retrofit screen opens. Follow the instructions displayed on the screen, which will guide you to choose the procedure, including the Back-up, Retrofit, Restore, Program Autel ECU, Autel ECU Relearn, and Service Function buttons. Figure 8-1 TPMS Retrofit Screen...
  • Page 100 NOTE The Retrofit screen has the same layout as the TPMS screen. After the retrofit function is finished, tap on the other tabs to perform optional functions. Accesses the TPMS Retrofit function either by tapping TPMS on the MaxiCOM Job Menu or by directly tapping TPMS Retrofit.

  • Page 101: Vci Manager

    VCI Manager This application pairs the tablet with the MaxiVCI V150, checks the communication status and update the VCI firmware. Figure 9-1 VCI Manager Screen Connection Mode — there are four connection modes available for selection. The connection status is displayed alongside. VCI BT —...

  • Page 102: Vci Bluetooth Pairing

    9.1 VCI Bluetooth Pairing The MaxiVCI V150 needs to be connected to a vehicle, so that it is powered during the synchronization procedure. Ensure the tablet has sufficient battery power or is connected to an external power supply.  To pair the MaxiVCI V150 with the tablet Power on the tablet.

  • Page 103: Vci Update

    Toggle the Bluetooth ON/OFF button to ON. Tap Scan at the top-right corner of the screen. The device will start to search for available units to pair with. Depending on the type of battery tester, the device name may appear as “Maxi-” suffixed with the battery tester’s serial number.

  • Page 104: Settings

    Settings Access the Settings menu to adjust default settings and view information about the MaxiCOM system. The following options are available for the MaxiCOM system settings:  Unit  Language  Printing Settings  Report Settings  Push Notifications  Auto Update ...

  • Page 105: Printing Settings

    Download the Maxi PC Suite software from www.autel.com > Support > Downloads > Autel Update Tools, and install it to your windows-based PC. Double click on Setup.exe. Select the installation language and the wizard will load momentarily. Follow the instructions on the screen and click Next to continue.

  • Page 106: Report Settings

    NOTE Make sure the tablet is connected to the same network with your PC, either via Wi-Fi or LAN, before printing. Make sure the PC installed with the Printing Services program is connected to a printer.  To perform printing through the PC Run the PC Link program on the PC.

  • Page 107: Push Notifications

    10.5 Push Notifications This option allows you to manage notifications. The Notification Preferences option is turned on by default and cannot be turned off by users so that certain system notifications such as system security warnings won’t be blocked.  To manage other notifications Tap the Settings application on the MaxiCOM Job Menu.

  • Page 108: Tpms Market

    In order to protect the rights and interests of both software developers and users, some legal terms and statement information are listed here. Please carefully read them before using the Autel software. 10.11 System Settings This function provides you with direct access to the Android system settings interface, where you can adjust various system settings for the Android operating system.
  • Page 109  To check the MaxiCOM product information in About Tap the Settings application on the MaxiCOM Job Menu. Tap the About option on the left column. The product information displays on the right of the screen. Tap the Home button on the top-left corner to return to the MaxiCOM Job Menu or select another setting to adjust.

  • Page 110: Update

    Member Center — tap to enter the Member Center screen.  Refresh — refreshes the available updates.  Information Bar — displays your Autel ID, MaxiCOM device model information, subscription validity period and other related information. Tap Renew to extend subscription. Main Section — displays the available updates.

  • Page 111: Update Procedures

    Power up the tablet, and ensure that it is connected to a power source and has a steady network connection. NOTE Make sure the tablet is registered before activating the Update application. See Autel User Center on page 134 for details. Tap the Update application button from the MaxiCOM Job Menu; or tap the update notification message when received.

  • Page 112: Member Center

    11.2 Member Center The Member Center section provides settings related to account management, rights collection, and event participation. Figure 11-3 Member Center Screen...

  • Page 113: Battery Test

    Battery Test The Battery Test application allows the user to perform in-vehicle battery test and out-of-vehicle battery test functions when the BT506 battery tester is connected to the MaxiCOM MK900-TS tablet and a battery. The BT506 battery tester enables technicians to view the health status of the vehicle’s battery and electrical system.

  • Page 114: Maxibas Bt506 Battery Tester

    12.1 MaxiBAS BT506 Battery Tester 12.1.1 Function Description Figure 12-2 MaxiBAS BT506 Tester Power Button Status LED Power LED USB Port Battery Clamp Cable Table 12-1 LED Description Color Description The tester is communicating via USB Flashing Green cable. The tester is communicating via Status LED Flashing Blue Bluetooth.

  • Page 115: Power Sources

    Color Description The tester is powered on and the Solid Green battery is sufficiently charged. The tester is charging. (Turns solid Flashing Green green when battery is fully charged.) Power LED Solid Red The device is in boot mode. The battery level is low. Please Flashing Red charge.

  • Page 116: Technical Specifications

    12.1.3 Technical Specifications Table 12-2 Technical specifications Item Description  USB 2.0, Type C Connectivity  Bluetooth 4.2 Input Voltage 5 V DC Working Current < 150 mA at 12 V DC Internal Battery 3.7 V/800 mAh lithium-ion polymer battery CCA Range 100 to 2000 A Voltage Range...

  • Page 117: Connect The Battery Tester

    12.2.2 Connect the Battery Tester  To pair with the MaxiCOM tablet Turn on both the MaxiCOM tablet and the BT506 battery tester. Ensure that the units are sufficiently charged before you begin. Enable Bluetooth on the tablet by tapping VCI Manager > BAS BT. Toggle the Bluetooth ON.

  • Page 118: In-Vehicle Test

    12.3 In-vehicle Test The In-vehicle test is used for testing batteries that are installed in a vehicle. An in-vehicle test includes the Battery Test, Starter Test, and Generator Test. These tests help determine the health of the battery, the starter, and the generator. IMPORTANT A disclaimer will appear when first accessing any function on the Home screen.

  • Page 119: Battery Test

    Table 12-3 Top Toolbar Buttons Button Name Description The value on the icon indicates the real-time Battery voltage of the tested battery. In the battery test, Connection the button will turn green if the battery is good. Otherwise, it will turn red. Next Tap to proceed.
  • Page 120 Wait until the test is completed. The test results will be displayed on the tool. Figure 12-7 Battery Test Results Screen The battery test results include a color-coded results summary, a list of test data, and repair tips. Possible in-vehicle test results are as follows. Table 12-4 Test Results Result Repair Tip...

  • Page 121: Starter Test

    12.3.2 Starter Test Follow the on-screen instructions to complete the test. Start the engine and let it idle. The test results will appear as follows. Figure 12-8 Starter Test Result Screen Table 12-5 Starter Test Results Result Description Cranking Normal The starter is good.
  • Page 122 Figure 12-9 Generator Test Results Screen Table 12-6 Generator Test Results Result Description Charging Normal The generator is functioning normally.  The belt linking the starter and the generator is loose; Output Too Low  The cable linking the starter and battery is loose or corroded.

  • Page 123: Out-Of-Vehicle Test

    12.4 Out-of-vehicle Test Out-of-vehicle test is used to test the condition of batteries that are not connected to a vehicle. This function aims to check the health status of the battery only. 12.4.1 Test Procedure  To start the out-of-vehicle test Connect the tester clamps to the battery terminals.

  • Page 124: Test Results

    Figure 12-11 Out-of-vehicle Test Results Screen 12.4.2 Test Results Table 12-7 Out-of-Vehicle Test Results Result Description Good Battery Battery meets required standards. Battery is good, but low on charge. Fully charge the Good & Recharge battery. Check for causes of low charge. Charge &...

  • Page 125: Data Manager

    Data Manager The Data Manager application allows you to store, print, and review the saved files, manage the workshop information, and customer information records, and keep test vehicle records. Selecting the Data Manager application opens the file system menu. There are nine main functions available.

  • Page 126: Vehicle History

    Button Name Description Image Tap to review the screenshots. Tap to view the local reports on your tablet. If the report is successfully Cloud Report uploaded to cloud, you can also share the report with others. Tap to review the reports stored as PDF format.

  • Page 127: Historical Test Record

    Figure 13-2 Vehicle History Screen Top Toolbar Buttons — displays navigation and application controls. Main Section — displays all the vehicle history records.  To activate a test session for the recorded vehicle Tap the Data Manager application on the MaxiCOM Job Menu. Select Vehicle History to open the screen.

  • Page 128: Workshop Information

    Figure 13-3 Historical Test Record Sheet  To edit the Historical Test record Tap Data Manager on the MaxiCOM Job Menu. Select Vehicle History. Select the specific vehicle history record thumbnail from the main section. The Historical Test record will appear. Tap Edit (the pen icon) to start editing.

  • Page 129: Customer

    which, when printing vehicle diagnostic reports and other associated test file, will display as the header of the printed documents. Figure 13-4 Workshop Information Sheet  To edit the Workshop Information sheet Tap the Data Manager application on the MaxiCOM Job Menu. Select Workshop Information.

  • Page 130: Image

    Some customers may have more than one vehicle for service. You can always add new vehicle information to the account. Tap Add New Vehicle Information, and then fill in the vehicle information. Tap the button to cancel. Tap Complete to save the account, or tap Cancel to exit without saving. ...
  • Page 131 Figure 13-5 Image Screen Top Toolbar Buttons — used to edit, print, and delete the stored image files. See the following table for detailed information. Main Section — displays the stored images. Table 13-2 Toolbar Buttons in Image Screen Button Name Description Returns to the previous screen.

  • Page 132: Cloud Report

     To edit/delete image(s) Select Data Manager from the MaxiCOM Job Menu. Select Image to access the PNG database. Tap Edit on the top-right corner of the screen. The editing screen displays. Select the image(s) you want to edit by tapping the check box at the bottom-right corner of the image.

  • Page 133: Data Logging

    Figure 13-6 Data Playback Screen Main Section — displays the recorded data frames. Navigation Toolbar — allows you to manipulate data playback. Use the navigation toolbar buttons to play back the recorded data from frame to frame. Tap Back to exit data playback. 13.8 Data Logging The Data Logging section allows you to launch Support platform directly to view all records of all feedback or no feedback data loggings on the diagnostic system.

  • Page 134: Remote Desktop

    The Remote Desktop application launches the TeamViewer QuickSupport program, which is a simple, fast, and secure remote-control interface. You can use the application to receive remote support from Autel’s support center, colleagues, or friends, by allowing them to control your MaxiCOM tablet on their PC via the TeamViewer software.
  • Page 135 Your partner must install the Remote Control software to his/her PC by downloading TeamViewer program (full version) online (see http://www.teamviewer.com), and then launch the software. Provide your ID to your partner and wait for him/her to send you a remote-control request. A prompt will appear asking you to allow remote control on your device.

  • Page 136: Oem Authorization

    OEM Authorization The OEM Authorization application allows you to unlock the gateway ECU (CGW) for some vehicles to perform advanced diagnostics tests. NOTE Make sure the tablet is connected to the Internet before launching the OEM Authorization application.  To unlock the gateway ECU (CGW) Connect the MaxiCOM tablet to the vehicle through the MaxiVCI V150.

  • Page 137: Support

    16.1 Product Registration In order to get access to the Support platform and obtain update and other services from Autel, you are required to register the MaxiCOM tablet the first time you use it. See Autel User Center on page 134 for detailed information.

  • Page 138: My Account

    User Information — displays detailed information of your registered online Autel  account, such as your Autel ID, name, address, and other contact information. Device Information — displays the registered product information, including the  product serial number, registration time, expired time, and warranty period.

  • Page 139: Training

    16.5 Training The Training section provides quick links to Autel’s online video library. Select a video channel by language to see all available online tutorial videos on topics such as product usage techniques and vehicle diagnostics practice. 16.6 FAQ The FAQ section provides comprehensive references for all questions frequently asked and answered about the use of Autel's online member account, shopping, and payment procedures.

  • Page 140: Maxiviewer

    MaxiViewer The MaxiViewer allows you to search the functions supported by our tools and the software version information. There are two ways of searching, either by searching the tool and the vehicle or searching the functions.  To Search by the vehicle Tap the MaxiViewer application on the MaxiCOM Job Menu.

  • Page 141: Maxivideo

    MaxiVideo The MaxiVideo application configures the MaxiCOM tablet to operate as a digital video scope by simply connecting the tablet to a MaxiVideo Digital Inspection Camera. This function allows you to examine difficult-to-reach areas normally hidden from sight, with the ability to record digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure in a safe and quick way.

  • Page 142: Quick Link

    Quick Link The Quick Link application provides you with convenient access to Autel’s official website and many other well-known sites in automotive service industry to provide technical help, knowledge bases, forums, and training and expertise consultations. Figure 19-1 Quick Link Screen ...

  • Page 143: Autel User Center

    Figure 20-1 Autel User Center Screen If you already have an Autel ID, you can log in with your phone number and verification code, or tap Log In with Password to log in with your Autel ID and password. If you don't have an Autle ID yet, tap Register to create an Autel ID.
  • Page 144 If you have an Autel account, sign in with your account ID and password and skip to step 7. If you are a new member to Autel, click the Register button to create your Autel Enter the required personal information in the input fields.

  • Page 145: Maintenance And Service

    Maintenance and Service To ensure that the MaxiCOM diagnostic tablet performs at its optimum level, we advise that the product maintenance instructions covered in this section is read and followed. 21.1 Maintenance Instructions The following shows how to maintain your devices, together with precautions to take. ...

  • Page 146: Troubleshooting Checklist

    Your device may have not been connected to the charger properly. Check the connector. NOTE If your problems persist, please contact Autel’s technical support personnel or your local selling agent. 21.3 About Battery Usage Your tablet is powered by a built-in Lithium-ion Polymer battery. This means that, unlike other forms of battery technology, you can recharge your battery while some charge remains without reducing your tablet’s autonomy due to the “battery memory effect”...

  • Page 147: Service Procedures

    This section introduces information for technical support, repair service, and application for replacement or optional parts. 21.4.1 Technical Support If you have any question or problem on product operations, please contact us. Autel China Headquarters  Phone: +86 (0755) 8614-7779 (Monday-Friday, 9AM-6PM Beijing Time) ...
  • Page 148 Email: imea-support@autel.com  Address: 906-17, Preatoni Tower (Cluster L), Jumeirah Lakes Tower, DMCC, Dubai, UAE  Web: www.autel.com Autel Latin America Mexico:  Phone: +52 33 1001 7880 (Spanish in Mexico)  Email: latsupport@autel.com  Address: Avenida Americas 1905, 6B, Colonia Aldrete, Guadalajara, Jalisco,...

  • Page 149: Repair Service

    21.4.2 Repair Service If it becomes necessary to return your device for repair, please contact us first and then download the repair service form from www.autel.com, and fill it in. The following information must be included:  Contact name ...

  • Page 150: Compliance Information

    Compliance Information FCC Compliance FCC ID: WQ8-DS900TS2232 This device complies with Part 15 of the FCC rules and Industry Canada’s license-exempt RSSs. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation.
  • Page 151 -- Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. IC WARNING -English: This device complies with Industry Canada’s licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause...
  • Page 152 RoHS COMPLIANCE This device is declared to be in compliance with the European RoHS Directive 2011/65/EU. CE COMPLIANCE This product is declared to conform to the essential requirements of the following directives and carries the CE mark accordingly: Radio Equipment Directive 2014/53/EU...

  • Page 153: Warranty

    Warranty Limited One Year Warranty Autel Intelligent Technology Corp., Ltd. (the Company) warrants to the original retail purchaser of this MaxiCOM diagnostics device that should this product or any part thereof during normal usage and conditions, be proven defective in material or...

Table of Contents
