CHIEF Dual Stud Wall Arm CTA-225 Installation Instructions Manual

Dual stud wall arm
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

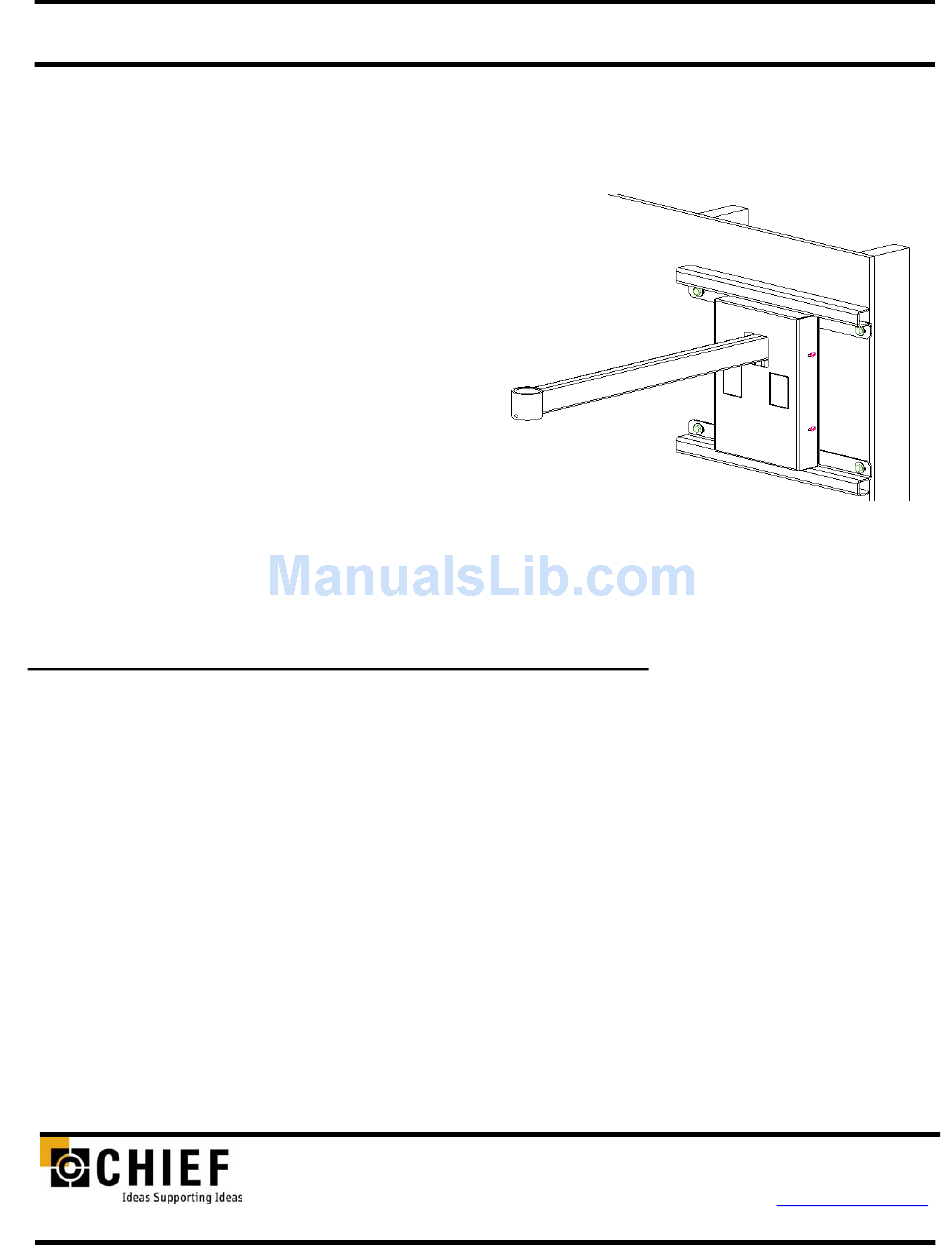

I N S T A L L A T I O N
The CTA-225 has a maximum weight capacity of
300 lbs. (136.1 kg).
The wall arm on the CTA-225 is 25.2" in length from the
wall mount, providing ample room to install and position a
small or large TV/Monitor.

BEFORE YOU BEGIN

•
CAUTION: To prevent damage to your equipment, which could affect or void the Factory warranty,
thoroughly study all instructions and illustrations before you begin to install the CTA-225. Pay particular
attention to the Warnings and Cautions in this document.
•
If you have any questions about this installation, contact Chief Manufacturing at 1-800-582-6480 or 952-582-6480.
CTA-225
Dual Stud Wall Arm
CHIEF MANUFACTURING INC.
1-800-582-6480 952-894-6280 FAX 952-894-6918
8401 EAGLE CREEK PARKWAY, STE. 700
SAVAGE, MINNESOTA 55378 USA
I N S T R U C T I O N S
CTA-225 Dual Stud Wall Arm
8809-000025 (Rev. A)
2004 Chief Manufacturing
www.chiefmfg.com
11/04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dual Stud Wall Arm CTA-225 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CHIEF Dual Stud Wall Arm CTA-225

Summary of Contents for CHIEF Dual Stud Wall Arm CTA-225

  • Page 1: Before You Begin

    CTA-225. Pay particular attention to the Warnings and Cautions in this document. • If you have any questions about this installation, contact Chief Manufacturing at 1-800-582-6480 or 952-582-6480. CHIEF MANUFACTURING INC. 1-800-582-6480 952-894-6280 FAX 952-894-6918 8401 EAGLE CREEK PARKWAY, STE.

  • Page 2: Cta-225 – Specifications

    CTA-225 – SPECIFICATIONS (L) Length Table 1. CTA-225 Specifications L-Length Support Model (fixed) Weight 300 lbs CTA-225 25.2” (136.1 kg)

  • Page 3: Table Of Contents

    Installation Instructions IMPORTANT WARNINGS and CAUTIONS! WARNING A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions. CAUTION A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corresponding instructions.

  • Page 4: Parts

    Installation Instructions CTA-225 PARTS Figure 1. CTA-225 Parts...

  • Page 5: Tools Required For Installation

    (20) must be mounted to wood studs that are 16” apart on center. 3. Using a stud sensor, locate the two wood studs where you will mount the top stud-spanning adapter (20). 4. Holding the top stud-spanning adapter (20) against...

  • Page 6: Attaching Stud Spanning Adapter To Wall Arm

    Installation Instructions STEP 2 Attaching Stud Spanning Adapter to Wall Arm 1. Locate the wall arm (10), bottom 16” stud-spanning adapter (20), three M8 hex nuts (80), three M8 lock washers (70), and three M8 flat washers (60). 2. Attach the wall arm (10) to the bottom 16” stud- spanning adapter (20) using three M8 hex nuts (80), three M8 lock washers (70), and three M8 flat washers (60).

  • Page 7: Attaching Bottom Stud Spanning Adapter To Wall

    Installation Instructions STEP 4 Attaching Bottom Stud Spanning Adapter to Wall 1. Locate two lag bolts (40) and two flat washers (50). 2. Using a 15/64” drill bit, drill two pilot holes for anchoring the bottom stud-spanning adapter (20). 3. Using two 5/16” lag bolts (40) and two 5/16” flat washers (50), secure the bottom stud-spanning adapter (20) on the wall.
