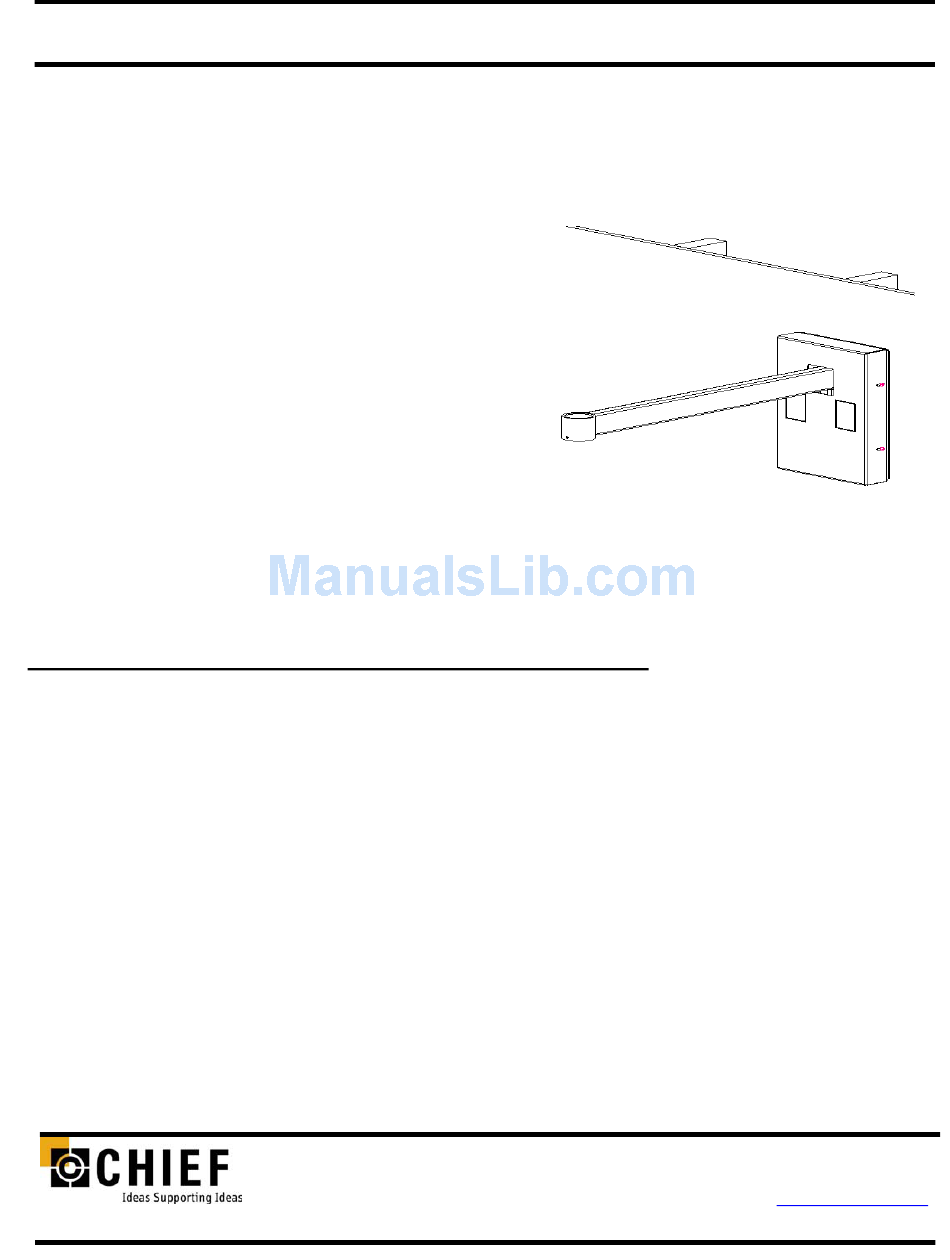

I N S T A L L A T I O N
The CTA-025 Single Stud Wall Arm can be used to
wall mount RPA, UPC or LCDA series ceiling
mounts.
The CTA-025 also provides a mounting solution for
TV/Monitor mounts. The CTA-025 has a maximum
weight capacity of 150 lbs (68.0 kg).
The wall arm on the CTA-025 is 25.0" in length from
the wall mount.
BEFORE YOU BEGIN
•
CAUTION: To prevent damage to your equipment, which could affect or void the Factory warranty,
thoroughly study all instructions and illustrations before you begin to install the CTA-025. Pay particular
attention to the Warnings and Cautions in this document.
•
If you have any questions about this installation, contact Chief Manufacturing at 1-800-582-6480 or 952-582-6480.
CTA-025
Single Stud Wall Arm
CHIEF MANUFACTURING INC.
1-800-582-6480 952-894-6280 FAX 952-894-6918
8401 EAGLE CREEK PARKWAY, STE. 700
SAVAGE, MINNESOTA 55378 USA
I N S T R U C T I O N S
CTA-025 Single Stud Wall Arm
8809-000027 (Rev. A)
2004 Chief Manufacturing
www.chiefmfg.com
11/04
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CHIEF Single Stud Wall Arm CTA-025
Summary of Contents for CHIEF Single Stud Wall Arm CTA-025
-
Page 1: Before You Begin
CTA-025. Pay particular attention to the Warnings and Cautions in this document. • If you have any questions about this installation, contact Chief Manufacturing at 1-800-582-6480 or 952-582-6480. CHIEF MANUFACTURING INC. 1-800-582-6480 952-894-6280 FAX 952-894-6918 8401 EAGLE CREEK PARKWAY, STE. -
Page 2: Cta-025 – Specifications
CTA-025 – SPECIFICATIONS (L) Length Table 1. CTA-025 Specifications L-Length Support Model (fixed) Weight 150 lbs CTA-025* 25.0” (68.0 kg) NOTES 1. *Metal stud mounting is not recommended. 2. For concrete or brick installations, use CMA-380. Wall Mount Description Wood Stud Installation... -
Page 3: Table Of Contents
Installation Instructions IMPORTANT WARNINGS and CAUTIONS! WARNING A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions. CAUTION A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corresponding instructions. -
Page 4: Parts
PARTS Figure 1. CTA-025 Parts... -
Page 5: Tools Required For Installation
(10) to a wood stud, on center. 3. Using a stud sensor, locate the wood stud where you will mount the wall arm (10). 4. Holding the wall arm (10) against the wall, use a... -
Page 6: Attaching Front Cover
STEP 2 Attaching Front Cover 1. Locate front cover (20) and four M4 x 8mm Phillips head cap screws (50). NOTES • The front cover may be partially removed and reinstalled to conceal power/audio/video cables after the TV/Mount is installed. •...
