WOOSIM PORTI-SW40 Operator's Manual

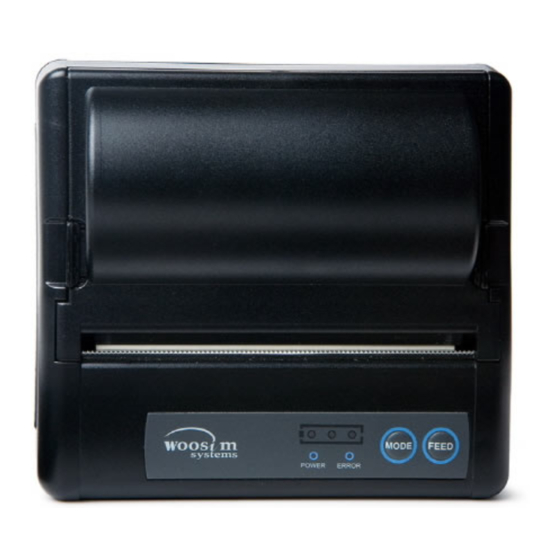

3inch mobile printer
Hide thumbs Also See for PORTI-SW40:
Table of Contents

Advertisement

Quick Links

Download this manual
MODEL
All specifications are subjected to change without notice
PORTI-SW40
(3inch Mobile Printer)
Rev. 2.0
WOOSIM SYSTEMS Inc.
#501, Daerung Technotown 3th,
448, Gasan-Dong, GeumChun-Ku,
Seoul, Korea
Tel : +82-2-2107-3700
Fax : +82-2-2107-3707
URL: http://www.woosim.com
http://www.woosim.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PORTI-SW40 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WOOSIM PORTI-SW40

Summary of Contents for WOOSIM PORTI-SW40

  • Page 1 PORTI-SW40 MODEL (3inch Mobile Printer) Rev. 2.0 WOOSIM SYSTEMS Inc. #501, Daerung Technotown 3th, 448, Gasan-Dong, GeumChun-Ku, Seoul, Korea Tel : +82-2-2107-3700 Fax : +82-2-2107-3707 URL: http://www.woosim.com All specifications are subjected to change without notice http://www.woosim.com...
  • Page 2 Copyright ⓒ2007 by Woosim System Inc. All rights reserved. The information contained in this manual is the property of Woosim Systems Inc. and may not be reproduced in whole or in part without the prior written permission of Woosim Systems Inc.
  • Page 3 Porti-SW40 Rev. 2.0 ¦ Introduction The PORTI-SW40 is suitable designed for use with a growing variety of mobile devices. IrDA/Serial or Bluetooth/Serial interfaces make the PORTI-SW40 the perfect comrade for applications such as point of transaction warehousing, distribution, point of sales, hospitality, gaming and healthcare.

  • Page 4: Operating Precautions

    Porti-SW40 Rev. 2.0 ¦ Operating Precautions Please follow the precautions below to enjoy and maintain the full performance of the printer. Using the Printer ● Be careful not to drop or bump the printer on a hard surface. ● Do not install the printer in direct sunlight or such areas.
  • Page 5 Porti-SW40 Rev. 2.0 ¦ Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 6: Table Of Contents

    Porti-SW40 Rev. 2.0 CONTENTS 1. Outline ............................7 1.1. Model classifications ......................7 1.2. Product Part Number System ....................7 1.3. Specifications ........................8 2. Setting up the printer ........................9 2.1. Printer & Accessories ......................9 2.2. Printer Features ........................10 2.2.1. Part name ......................... 10 2.2.2.

  • Page 7: Outline

    Porti-SW40 Rev. 2.0 PORTI-SW40 Model Name Interface None : IrDA/UART BT : Bluetooth/UART Power None : DC 8.4V Model name Interface Spec. Wired Wireless RS-232C Bluetooth SC30 IrDA None RS-485 Parallel None Serial/Bluetooth Part No. ⇒ S40/A1 Example) 1. Porti-S40 2.

  • Page 8: Specifications

    Porti-SW40 Rev. 2.0 Item Specification Direct thermal line printing Printing method 64cpl (MAX) Characters per line Eng. : 9*24dots, 12*24dots Kor. : 16*24dots, [24*24dots] Character size Simplified/Traditional Chinese, Arabic, Cyrillic, Russian, Tukish, Optional Characters Greek, Japanese, Persian, Latin9 and Others upon request.

  • Page 9: Setting Up The Printer

    Porti-SW40 Rev. 2.0 & & Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance. Battery Pack ThermalRoll Paper PORTI-SW40 Battery Charge Adaptor ▼ OPTIONAL Battery Holder Communication Cable http://www.woosim.com...

  • Page 10: Printer Features

    Porti-SW40 Rev. 2.0 http://www.woosim.com...

  • Page 11: Replacing Paper Roll

    Porti-SW40 Rev. 2.0 Note : Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper glued to the core because the printer can not detect the paper end correctly. 1. Make sure that the printer is not receiving data; otherwise, data may be lost.

  • Page 12: Power Supply

    Porti-SW40 Rev. 2.0 The following specification is requested for Power supply. Battery Charger : DC 8.4V/0.8A Avoid using power supply which its power capacity of power current is extremely high. ● NOTE : Before installing or removing the battery pack, ensure the printer is OFF.

  • Page 13: Recharging The Battery Pack

    Porti-SW40 Rev. 2.0 For recharging the battery pack, install the battery pack in the printer or the battery holder. Insert the battery charge adaptor to the charge connector of the printer or the battery holder. ● NOTE : While charging the printer, turn off the printer power.

  • Page 14: Set Operation Mode

    Porti-SW40 Rev. 2.0 Change the mode and option using the MODE Code. l MODE button : use for changing OPTION status. (Error Lamp) l FEED button : use for changing MODE status. (Power Lamp) [Example] The defaults of the printer are :...
  • Page 15 Porti-SW40 Rev. 2.0 When you press FEED Button once again, Power Lamp flickers 6 times Error Lamp flickers once. ® Press MODE Button twice, Error Lamp flickers 3 times. And then the density has set to Density high. When you press FEED Button once again,...
  • Page 16 Porti-SW40 Rev. 2.0 * M16C IrDA Version POWER Lamp ERROR Lamp MODE Option (Green) (Red) UART(RS-232C) Protocol UART(RS-232C) Communication Raw IrDA Port Protocol IrDA Standard IrDA 9600 bps 19200 bps 38400 bps Baud Rate 57600 bps 115200 bps 7 Data bit...
  • Page 17 Porti-SW40 Rev. 2.0 * M16C Bluetooth Version POWER Lamp ERROR Lamp MODE Option (Green) (Red) UART(RS-232C) Protocol UART(RS-232C) Communication Port Bluetooth Protocol Bluetooth 9600 bps 19200 bps Baud Rate 38400 bps 57600 bps 115200 bps 7 Data bit Data Bit...
  • Page 18 Porti-SW40 Rev. 2.0 * ARM IrDA Version POWER Lamp ERROR Lamp MODE Option (Green) (Red) UART(RS-232C) Protocol UART(RS-232C) Communication Raw IrDA Port Protocol IrDA Standard IrDA 9600 bps 19200 bps 38400 bps Baud Rate 57600 bps 115200 bps 7 Data bit...
  • Page 19 Porti-SW40 Rev. 2.0 POWER Lamp ERROR Lamp Option (Green) (Red) No use 1 minute 2 minute Power Down 3 minute 4 minute 5 minute < Table 4 > http://www.woosim.com...
  • Page 20 Porti-SW40 Rev. 2.0 * ARM Bluetooth Version POWER Lamp ERROR Lamp MODE Option (Green) (Red) UART(RS-232C) Protocol UART(RS-232C) Communication Port Bluetooth Protocol Bluetooth 9600 bps 19200 bps Baud Rate 38400 bps 57600 bps 115200 bps 7 Data bit Data Bit...
  • Page 21 Porti-SW40 Rev. 2.0 POWER Lamp ERROR Lamp Option (Green) (Red) No use 1 minute 2 minute Power Down 3 minute 4 minute 5 minute < Table 5 > http://www.woosim.com...

  • Page 22: Interface

    Porti-SW40 Rev. 2.0 printer has a UART(RS-232C or TTL) interface and is connected The PORTI-SW40 by means of a 4 pin mini USB socket. In the following table, the signals present on the Mini USB socket are listed: Pin No.

  • Page 23: Infrared Data Communication

    Porti-SW40 Rev. 2.0 The PORTI-SW40 has a serial interface for bi-directional data exchange. The infrared port is the right side of the front part. 1. To use the PORTI-SW40’s infrared port by a Computer or a Personal Digital Assistant (PDA) with IR port is required.

  • Page 24: Bluetooth

    Porti-SW40 Rev. 2.0 Category Specification Bluetooth Ver2.1 + EDR / Class2 (10m) Bluetooth Spec. Frequency Range 2.4GHz ISM BAND Data Transmission Rate 57600bps Fixed. Data bit 8 Data bit Fixed. Parity bit No parity Fixed. Stop bit 1 Stop bit Fixed.

  • Page 25: Using The Printer

    Porti-SW40 Rev. 2.0 u Button - FEED : When the printer is on, paper can be feed manually by pressing and holding the FEED button for more than one second. - MODE : MODE Button is for use to change communication mode.

  • Page 26: Self Test

    Porti-SW40 Rev. 2.0 The Self-Test checks whether the printer has any problems. If the printer does not function properly, contact your dealer. For Self-Test, turn on the power while holding down the FEED Button. The Self-Test checks the following : 1) Make sure paper roll has been installed properly.

  • Page 27: Consumable Parts

    Porti-SW40 Rev. 2.0 Type : Thermal Paper Paper width : 80mm Paper thickness : 60±5㎛ Outer diameter : Ø38mm or less Recording side : Outside of roll Cautions Do not paste the paper to the core, and the roll paper which has near end mark printing on its near end is recommended.
