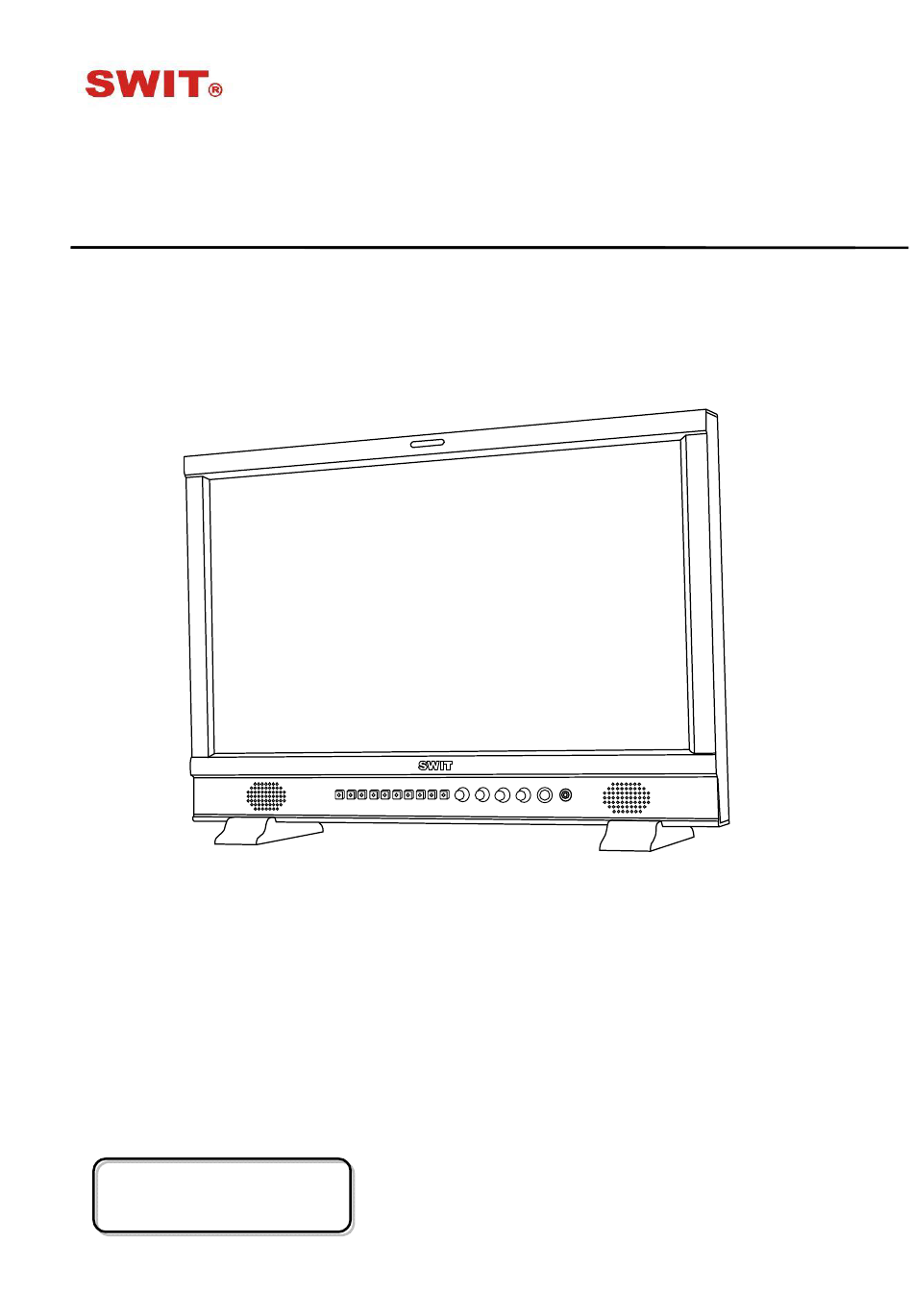

- Page 1 SWIT Electronics Co., Ltd. Model: S-1273F 27" Broadcast Studio LCD Monitor User Manual Ver: C Please read this User Manual throughout before using.
- Page 2 2. All brands and trademarks of SWIT Electronics Co., Ltd. are protected and other relative trademarks in this user manual are the property of their respective owners. 3. Due to constant effort of product development, SWIT reserves the right to make changes and improvements to the product described in this manual without prior notice.
- Page 3 Maintenance Warning 1. In order to reduce the risk of fire and electrical shock, do not lay this product in rain or damp places. 2. Please keep away from the strong magnetic field; it may cause the noise of the video and audio signals.
-
Page 4: Table Of Contents
Power adaptor + power cable Introduction S-1273F adopts IPS LCD panel, with resolution 1920×1080 and wide viewing angle H178°⁄V178°. It supports 2 x 3GSDI (Level A/B), 1 x HDMI, 1 x CVBS, 1 x Y/Pb/Pr, 1 x VGA and 1 x analog audio input. -
Page 5: Installation Dimensions
Installation Dimension The main body (in mm) With desktop stand feet (in mm) For optional purchase Item Name Item Model V-mount battery plate S-7000S Gold-mount battery plate S-7000A 1. Battery plate Installation 1. Take off the rub cover on the rear panel; see Fig (1). 2. -
Page 6: Operation Instructions
Operation Instructions ·Front Panel (1) Desktop Stand Feet (2) Speaker: For SDI/HDMI embedded audio and analog audio monitoring. (Will not work if earphone is plugged in) (3) Illuminated Push Button SDI1: Press “SDI1” to switch to SDI input 1 SDI2: Press “SDI2” to switch to SDI input 2 HDMI: Press “HDMI”... -
Page 7: Osd
·OSD Timecode ⑴ （SDI） Under SDI input, it can display Timecode. If no Timecode information is detected, it will be displayed as “TC UNLOCKED”. User can set function keys F1～F4 or GPI pins as “Timecode” to turn on or off this function. ⑵... - Page 8 Introduction of audio and video functions 16-ch embedded audio meters Under 3G/HD/SD SDI, it displays 16 channels embedded audio meters. Under HDMI, it displays 8 channels embedded audio meters. The audio meter is green, and will turn yellow when audio exceeds -20dB, and turn red when audio exceeds -9dB.
- Page 9 The freeze frame is to capture and display the current broadcast frame. User can set function Keys F1～F4 or GPI pins as “Freeze Frame” to turn on or off this function. R/G/B/Mono R/G/B/Mono is to display only the blue/red/green primary signal or the luminance signal only so as to monitor the image noise.
-
Page 10: Rear Panel
·Rear Panel ⑴ Handle ⑵ DC IN 11V-17V BACK UP: Back up power input, connect with DC11V～17V 4-pin XLR power adapter. (Pin 1: Negative, Pin 4: Positive) ⑶ DC IN 11V-17V MAIN: Main power input, connect with DC11V～17V 4-pin XLR power adapter. (Pin 1: Negative, Pin 4: Positive) ⑷... -
Page 11: Main Menu
Main Menu S-1273F has OSD to adjust the parameters and settings, for example: Picture, color temp., function keys, etc. 1. Press “MENU/ENTER” button, the main menu will popup from the left top of the screen. The selected main menu highlights in yellow. - Page 12 Submenu introduction（the default values are marked with underline ） Exit & Status Displays the current status, the details are as down below: *1 Display the current video signal and format *2 Display the current function keys setup 2. Picture To adjust picture parameters 3.
- Page 13 4. Function key To define the F1～F4 function keys. *1 Function keys F1-F4 can be setted as the down below functions: Audio Bar, Histogram, False Color, AFD, H/V Delay, R/G/B/Mono, Marker , Color Bar, UMD, Audio Alarm, Focus Assist , Aspect Ratio, Scan Mode, Zoom Mode, Mute, Freeze Frame, Flip Mode, CVBS, YPbPr , VGA ,Color Temp, Time Code, Zebra, Vector.
- Page 14 Max 8 letters are supported. Select “Exit” to quit and save settings, the source ID will be displayed on top or bottom of the screen. UMD setup: ⑴ Connect the external control equipment with S-1273F ⑵ Set “Display Type” to “UMD” under UMD submenu ⑶ Set “Serial Port” to RS485 or RS232 according to the port type of external control equipment ⑷...
- Page 15 7. Marker *1 When “Fit Marker” is Off, the size of safety area is benchmarked against the actual display screen, accounting for 80% ~ 95% of actual display screen. When “Fit Marker” is On, the size of safety area is benchmarked against the area inside the scales marker, accounting for 80% ~ 95% of the area inside the scales marker.
- Page 16 8. Audio *1 When “Bar Frame” is set to “Off”, only the audio meter will be displayed When “Bar Frame” is set to “On”, frame and real-time audio value will be displayed. *2 Select Channel Under analog signal, only channel1-2 can be displayed. Under HDMI signal, channel1-2 and 1-8 can be selected.
- Page 17 9. Vector 10. Waveform *1: Only the “WFM Single Line” is set to “ON”, the “WFM Line Count” can be adjusted. “WFM Single Line” is to display the selected line waveform of “WFM Line Count” WFM Single Line：Off WFM Single Line：On 11.
- Page 18 CVBS. When set to “No”, update model will not be supported. *2 Logo When powered on, the screen will display SWIT logo. *3 Green Mode When no recognizable signal is detected and opreation time reaches the time selected in “Idle Duration”, then the monitor will turn to green energy saving mode that is “Green mode”.
- Page 19 13. Color Measurement *1 Camera Log conversion When shooting with Log mode of the camera, you can select the corresponding Log conversion LUT, to convert the log mode video to standard ITU Rec.709 mode to monitor. A”User-Log” is provided for user defined LUT converting to Rec.709.
-
Page 20: Specification
Specification LCD Performance Size 27 inches Display area 598 mm×336 mm Resolution 1920×RGB×1080 Color 8 bit Aspect ratio 16:9⁄4:3 Brightness 250cd⁄㎡ Contrast 1000:1 Viewing Angle 178°(H)⁄178°(V) Input/output BNC×2 3G/HD/SD-SDI input×2 BNC×1 CVBS input BNC×3 Y/Pb/Pr input HDMI×1 HDMI input Input RS-485×2 GPI×1, UMD×1 USB×1... -
Page 21: Trouble-Shooting
Trouble-shooting Symptom Possible Causes Solution Please check if the power is connected, and then The power is not turned on press ”POWER” button to turn on the monitor Unstable power voltage Reconnect to power supply No display BNC or HDMI cable loose contact Check and correctly connect the or not correctly connected BNC or HDMI cable...
