ASSEMBLY
Dust Deflector (AP170E ONLY)

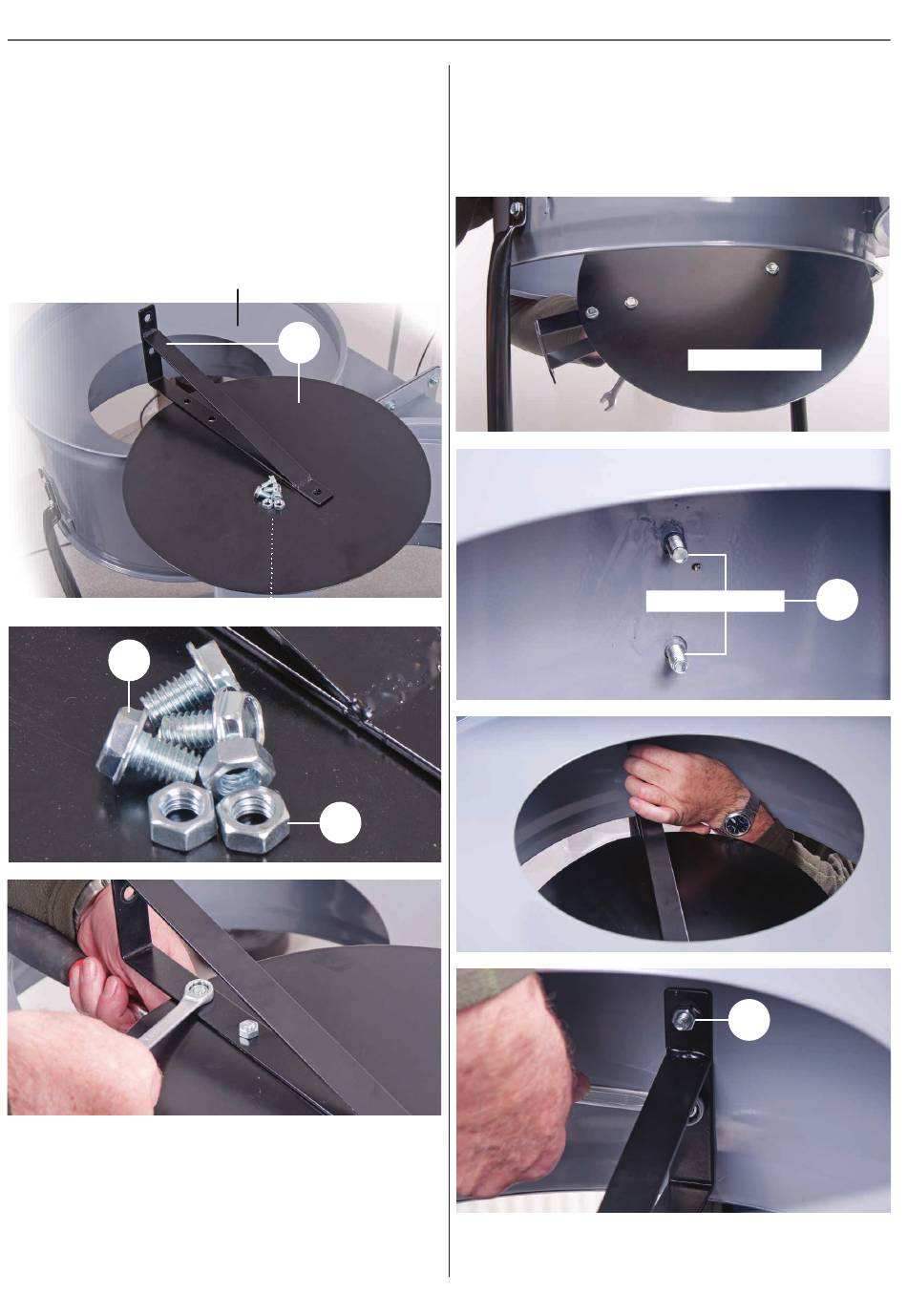

1. Locate the dust defector and bracket (29), three Hex bolts (l)
(short) and three 5/16" nuts (m). Line up the three holes in
the angle bracket with the pre-drilled holes in the deflector.
Introduce the Hex bolts (l) through the holes and secure in
place with the 5/16" nuts (m), see fig A-B-C.
Fig A-B-C
l
2. Slot the dust defector assembly up through the centre of
collector, introduce the two pre-drilled holes in the angle
bracket over the threaded studs (n), inside the collector and
secure in place with two 5/16"nuts (m), see fig E-F-G.-H
Collector
29
m
NOTE: Make sure the bracket is angled down wards.
12
Fig E-F-G-H
Dust defector
Threaded studs
m
n
