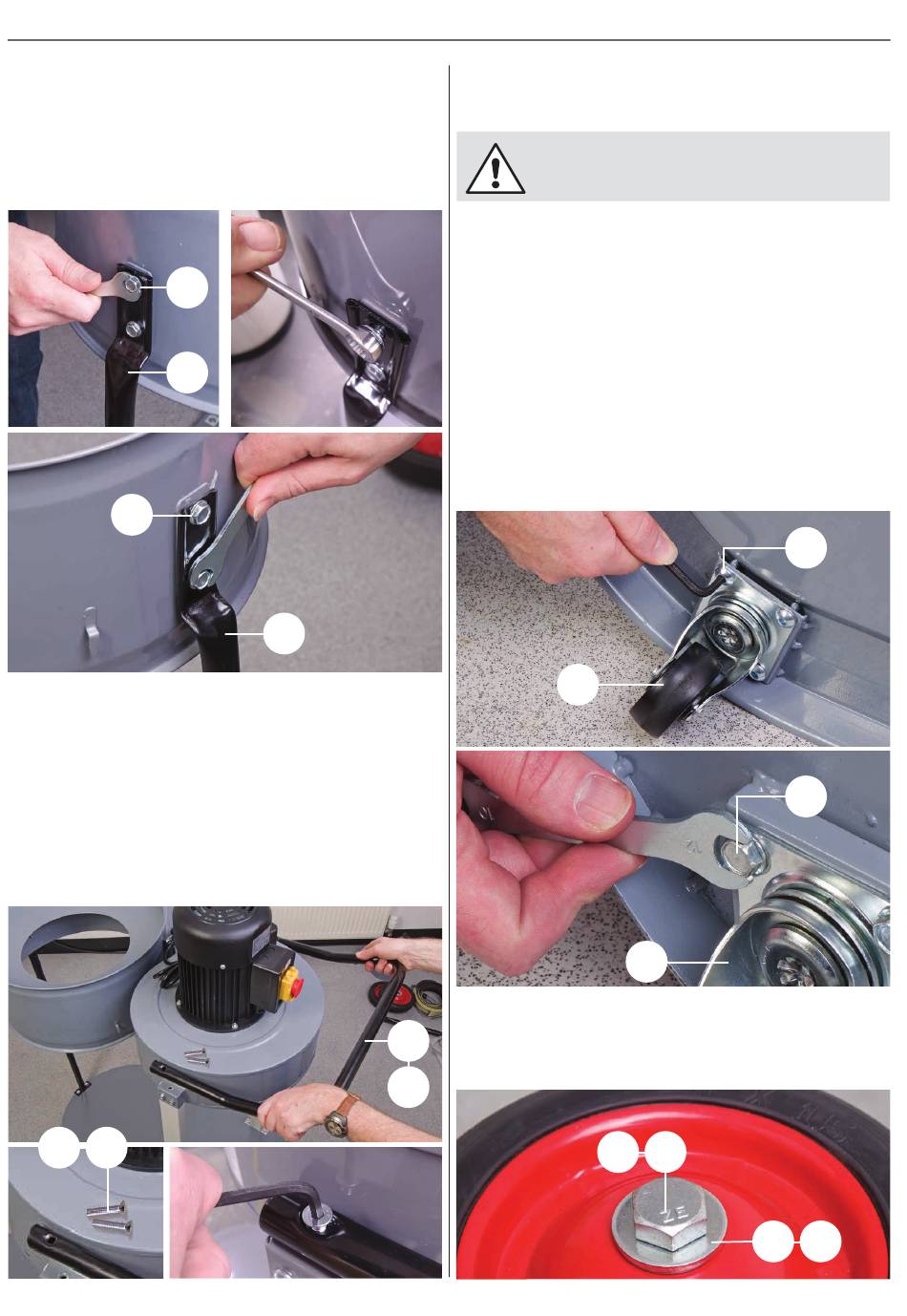

Axminster Professional AP60E Original Instructions Manual page 10

ASSEMBLY
5. Locate a further two UNC short bolts (12j) and secure the
front support bar (2) to the extractor assembly (13). Secure the
support bar (17) to the extractor (28) with two UNC Hex bolts
long (n) , see fig 11-12.
Fig 11-12
n
17
12j
6. Locate the tube handle (4-15) and 5/16" UNC Countersink
bolts (long) (12k-27j).
7. Line up the holes in the tube handle with the threaded holes
on top of the mounting brackets, insert the countersink bolts
through the handle into the extractor assembly and secure
using a Hex key, see fig 13-14.
Fig 13-14
12k 27j
2
4
15
10 10
8. Lower the assembly down to the floor, note you may require
assistance as the motor assembly is heavy.
NOTE: USE THE HANDLE, 4-15 TO LOWER THE
EXTRACTOR TO THE FLOOR.
Wheels/ Castor Wheels
Locate the following: wheels (10-21), castor wheels (11-22),
5/16" UNC domed cap head bolts (12i) , eight 5/16" UNC Hex
bolt (27i), 1/2" nuts (12c & d), (27c), nylon washers (12f & 27d),
thin washers (12e & 27e), large washers (12h & 27g) and large
1/2" Hex bolts (12l & 27k).
1. Put to hand the castor wheels, line up the holes in the
brackets with the pre-drilled holes to the extractor's base and
secure with domed bolts (12i) for (AP60E) and Hex bolts (27i) for
(AP170E), see fig 15-16.
11
2. Place a large washer over the 1/2" hex bolts (12l & 27k)
and slide the bolt through the centre hole to the front
Fig 17
12l
Fig 15-16
12i
27i
22
27k
12h 27g
