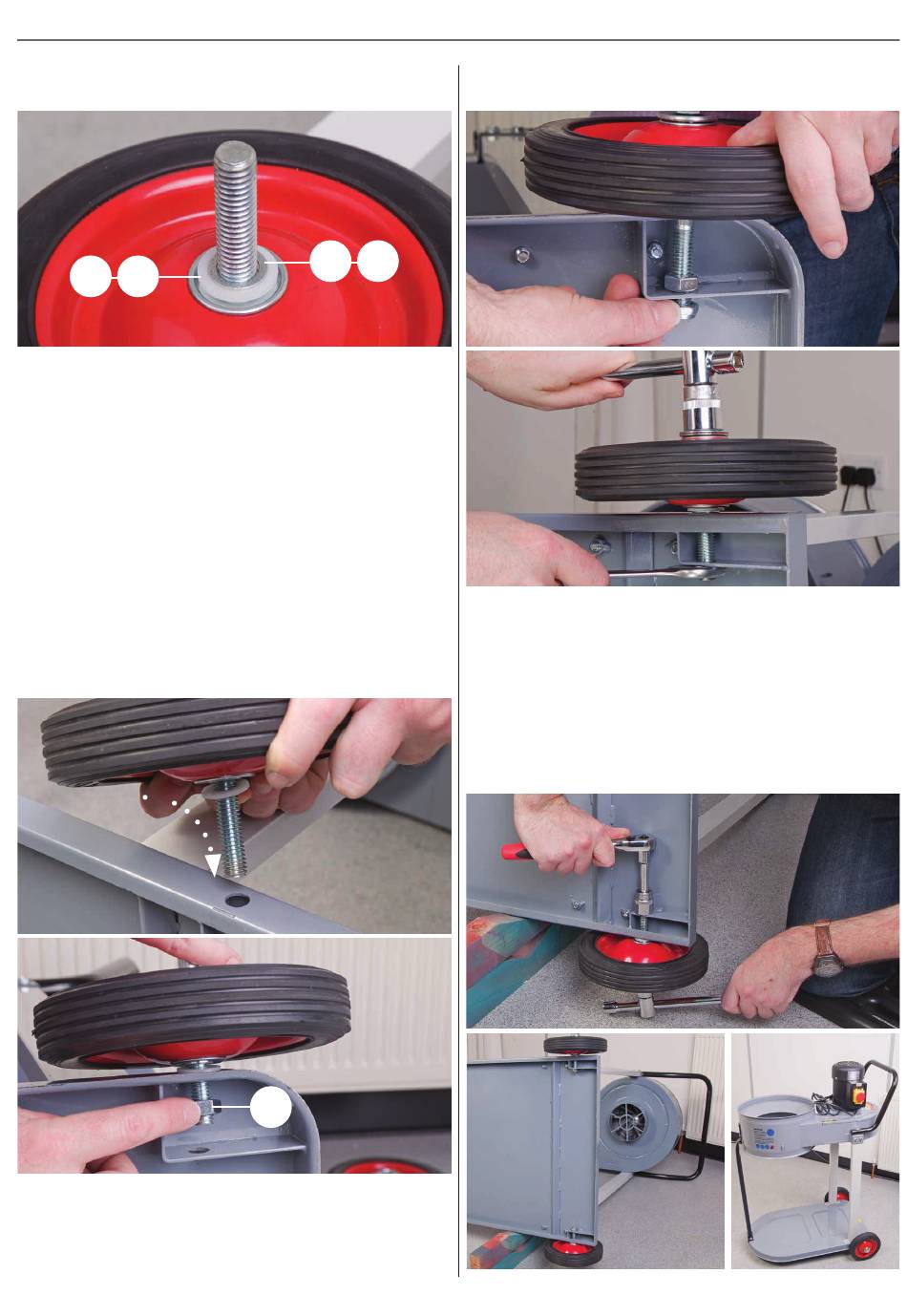

Fig 18
12f 27d
of one of the wheels, see fig 17. Turn the wheel over and place
a nylon washer then a thin washer down over the thread of the
Hex bolt, see fig 18.
3. Lower the wheel assembly down and slot the hex bolt
through the pre-drilled holes to the side of the extractor's
base, see fig 19.
AP60E Extractor Only
Before sliding the Hex bolt down through the second hole,
screw on an 1/2" Hex nut (12d) onto the thread, see fig 20.
Fig 19-20
4. Locate the 1/2" locking nuts (12c & 27c) and screw it onto
the thread, see fig 21 then tighten using two spanners or
open-ended sockets, see fig 22.
12e 27e
12d
AP170E Extractor Only
Tighten the Hex nut (12d) up against the angled bracket,
see image above.
5. Repeat steps 2-4 for the remaining wheel assembly, see fig
23-24. Stand the extractor upright.
11
ASSEMBLY
Fig 21-22
Fig 23-24
Continues Over....
