Summary of Contents for Axminster WORKSHOP AW118CE

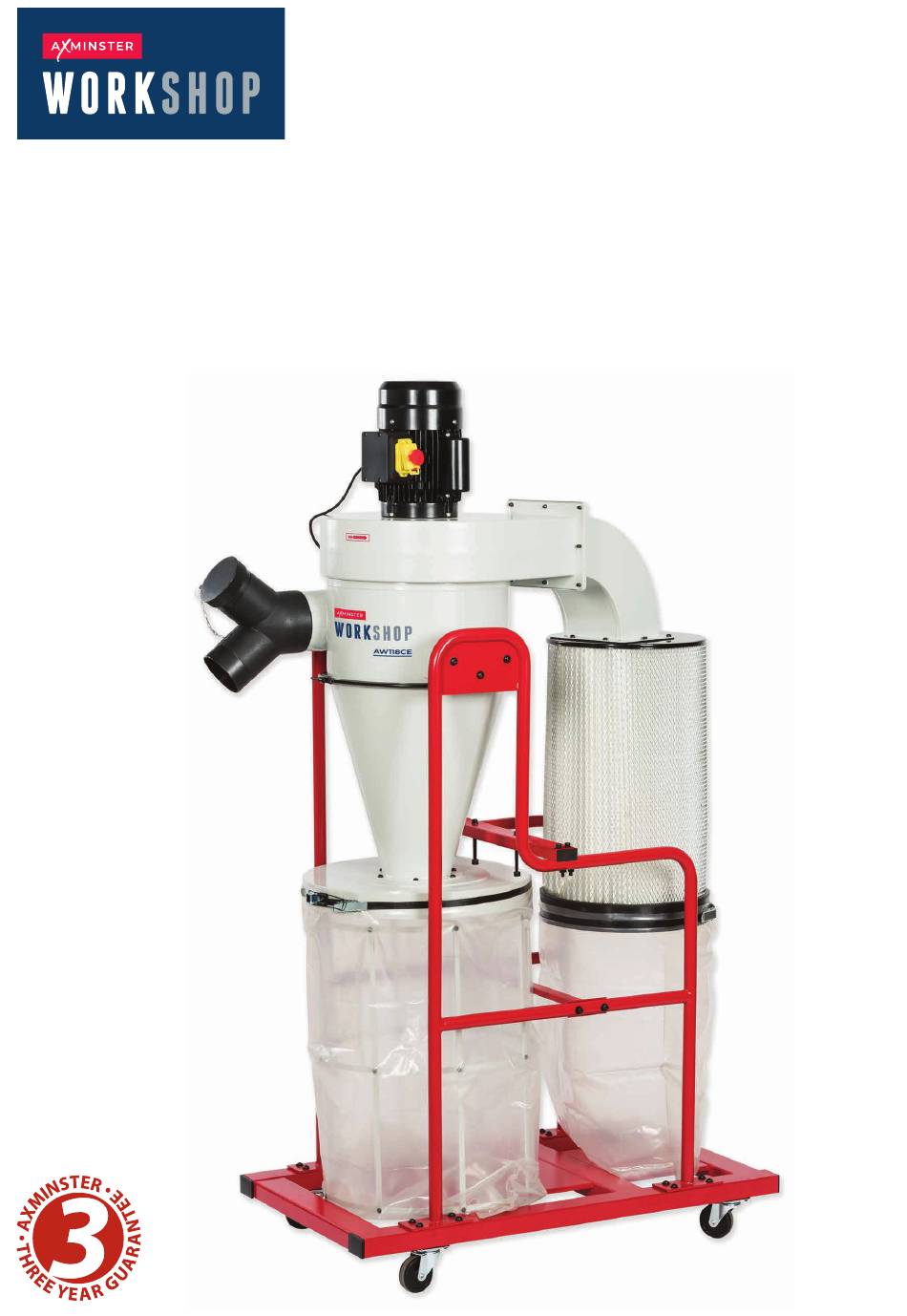

- Page 1 Code 107698 Original Instructions AW118CE Cyclone Extractor AT: 10/02/2022 BOOK VERSION: 4...
- Page 2 Cert No: FM300, FM300C EU Declaration of Conformity Axminster Tool Centre Ltd This machine complies with the following directives: Axminster Devon 2006/42/EC EN 55014-1:2017 EX13 5PH UK axminstertools.com 06/42/EC - Annex I/05.2006 EN 55014-2:2015 EN 62233:2008 EN 61000-3-2:2014 declares that the machinery described:-...
- Page 4 Preface Before commissioning the machine, please read these operating instructions thoroughly and get familiar with the machine. Please also make sure that all persons operating the machine have read and understood the operating instructions beforehand. Keep these operating instructions in a safety place nearby the machine. Information The operating instructions include indications for safety-relevant and proper installation, operation and maintenance of the machine.
- Page 5 1. Safety This operating instructions ▲explains the meaning and use of the warning notes included in the operating instructions ▲points out the dangers that might arise for you or others if these instructions are not observed. ▲informs you how to avoid dangers. In addition to these operation instructions, please observe ▲the applicable laws and regulations ▲the statutory provisions for accident prevention...
- Page 6 For your own safety, read instruction manual before operating the machine. Learn the machine’s application and limitations as well as the specific hazards peculiar. Always wear approved safety glasses or a face shield when operating or observing machinery to reduce the risk of eye injury or blindness from flying particles everyday. Eyeglasses are not approved safety glasses.
- Page 7 This dust collector is only intended for collecting wood dust and chips from woodworking machines. Do not use this dust collector to collect metal, dirt, pebbles, drywall, asbestos, lead paint, silica, INTENDED USE liquids, aerosols, or any flammable, combustible, or hazardous materials.
-
Page 8: Before Operating The Machine
Plastic dust lines generate high amounts of static electricity as dust chips pass through them. Although rare, sparks caused by static electricity can cause explosions or fire. To reduce this risk, make STATIC ELECTRICITY sure all dust lines are thoroughly grounded by Using a grounding wire. -
Page 9: Technical Specification
2. Technical Specification The following information represents the dimensions and weight information and the manufacturer's approved machine data. 2.1 Specification MODEL NO. AW118CE 1500 Motor(W) Motor speed 50Hz (RPM) 2950r/min Impeller size(MM) <P305 Inlet hole size(MM) <P125 Number of Intake holes(MM) 2X<P100 <P470X920 Bag size(MM) -
Page 10: Grounding Instructions
3. Assembly The cyclone dust collector is delivered pre-assembled. After unpacking, the machine must be installed. Transport the dust collector in its packing crate to a place near its final installation site before unpacking it. If the packaging shows signs of possible transport damage, take the necessary precautions not to damage the machine when unpacking. -
Page 18: Initial Commissioning
3.5 Initial commissioning Once assembly is complete, test run the machine to ensure it is properly connected to power and safety components are functioning correctly. If you find an unusual problem during the test run, immediately stop the machine, disconnect it from power, and fix the problem BEFORE operating the machine again. - Page 23 5.4 Removing/Replacing filter bag Remove and replace the filter bag when it is about 1⁄2 full. To remove & replace filter bag or bags: 1. DISCONNECT MACHINE FROM POWER! 2. Release clamp around bottom of canister filter, then remove filter bag. 3.
-
Page 25: Troubleshooting
7. Troubleshooting Review the troubleshooting procedures in this section if a problem develops with your machine. If you need replacement parts or additional help with a procedure, callb us. Note: Please gather the serial number and manufacture date of your machine before calling. ... - Page 26 Symptom Possible Cause Possible Solution Dust collector does 1. Collection bag full. 1. Empty collection bag. not adequately collect 2. Canister filter clogged/at fault. 2. Clean canister filter; replace canister filter. dust or chips; poor 3. Ducting blocked/restricted. 3. Remove ducting from dust collector inlet and performance.
- Page 32 The packaging is suitable for recycling. Please dispose of it in a responsible manner. EU Countries Only Do not dispose of electric tools together with household waste material. By law they must be collected and recycled separately. Axminster Tools, Axminster Devon EX13 5PH axminstertools.com...
