Summary of Contents for Axminster AP154CEH

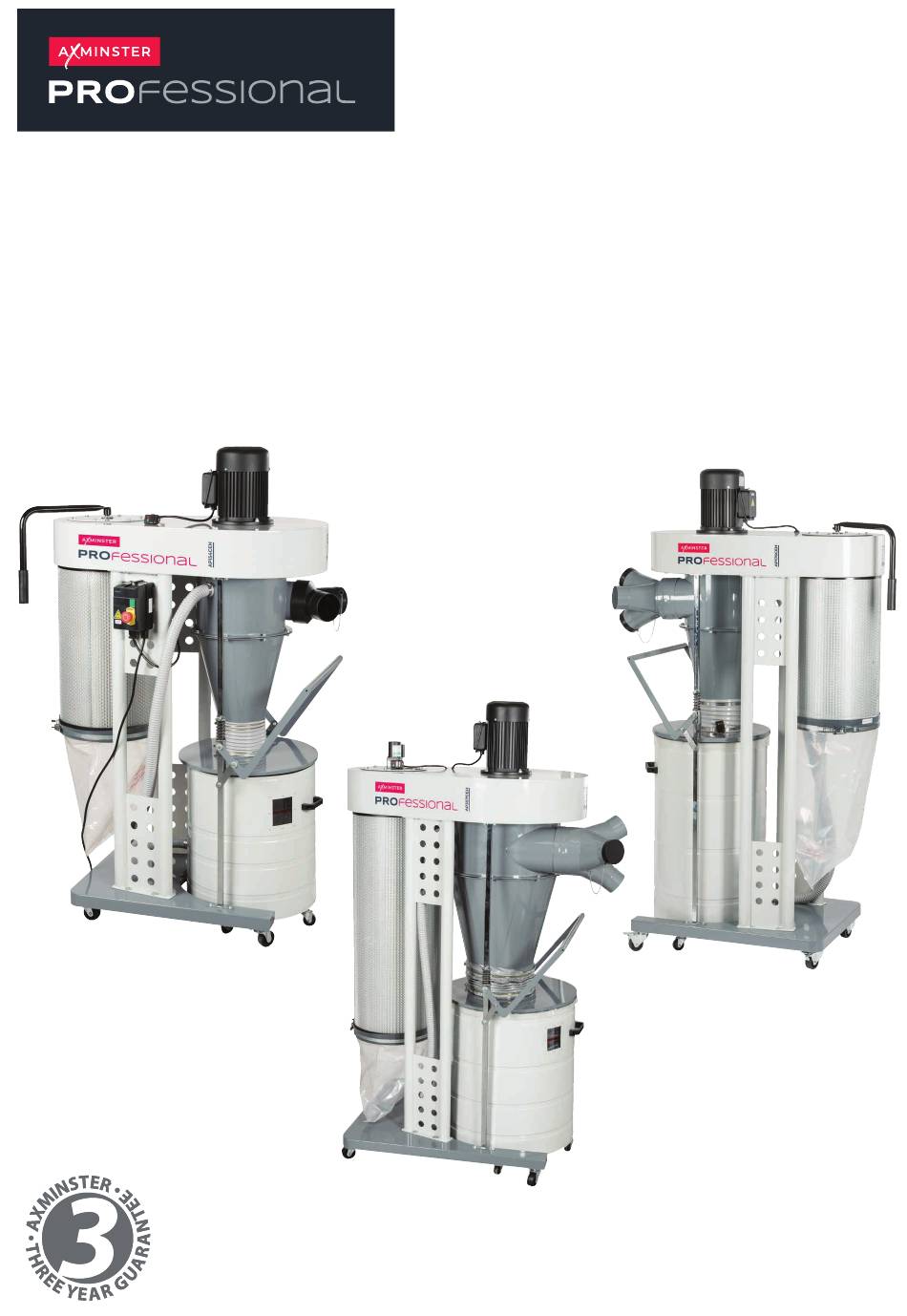

- Page 1 AP154CEH Code 107622 AP176CEH Code 107623 AP357CEH Code 107624 Original Instructions AP154CEH, AP176CEH & AP357CEH Cyclone Extractors Code 107622 AP154CEH Code 107623 AP176CEH Code 107624 AP357CEH AT: 01/02/2022 BOOK VERSION: 8...
-
Page 2: Eu Declaration Of Conformity
Maintenance LEV Testing Exploded Diagrams/Lists 10-15 EU DECLARATION OF CONFORMITY Cert No: 88150T, 88200T, 88300T EU Declaration of Conformity Axminster Tool Centre Ltd This machine complies with the following directives: Axminster Devon EX13 5PH UK axminstertools.com 2006/42/EC EN 60204-1:2006+A1:2009+AC:2010 2014/42/EU... -
Page 3: What's Included
WHAT’S INCLUDED Quantity Item Model Number 107622/107623/107624 Cyclone Extractor Instruction Manual 5mm Hex Key 10-12mm Spanner Waste Bin Swivel Castor Wheels Brake Pedal Castor Wheels Waste Bin Inlet Adaptor Large Bolts Inlet Adaptor Small Screw Please read the Instruction Manual prior to using your new machine. As well as the operating procedures for your new machine, there are numerous hints and tips to help you to use the machine safely and to maintain its efficiency and prolong its life. - Page 4 GENERAL INSTRUCTION FOR 230V MACHINES Good Working Practices/Safety or around a sharp edge. If the work you are carrying out The following suggestions will enable you to observe is liable to generate flying grit, dust or chips, wear the good working practices, keep yourself and fellow workers appropriate safety clothing, goggles, gloves, masks etc.
-
Page 5: Specification
SPECIFICATION Code 107622 107623 107624 Model AP154CEH 1.5HP AP176CEH 2HP AP357CEH 3HP Rating Professional Professional Professional Power 1.1 kW 1Phase 1.5 kW 1Phase... - Page 6 ASSEMBLY INSTRUCTIONS These extractors come almost completely assembled with the exception Unpack the switch, there should be a small pack containing two small of the mobility castors, waste bin suction hose, switch and inlet adaptor. machine screws with nuts, and the remote control fob. Once you had dismantled the crate, remove the waste bin.
-
Page 7: Wiring Diagram
ASSEMBLY INSTRUCTIONS Now fit the inlet adaptor with the single self tapping screw as shown The manometer gauge is your Figure 17 (Figures 14, 15 & 16). machine performance indicator, it is a visual indicator that the machine, Figure 14 Figure 15 and your system is functioning. - Page 8 For all of our accessories please see our catalogue and website or contact us on: Freephone: 03332 406 406 Replacement Waste Sacks Code: 106369 Bin Sacks for AP154CEH & AP176CEH Code: 106370 Bin Sacks for AP357CEH Code: 106368 Filter Sacks for AP154CEH, AP176CEH, AP357CEH...
-
Page 9: Maintenance
It also includes guidance on the specification of LEV; the obstructed. If there is no obstruction contact supplier’s quotation; commissioning; zone marking; the user Axminster Tool Centre’s on 03332 406406 for manual and logbook; testing and hood labels. assistance. - Page 10 EXPLODED DIAGRAMS/LISTS - AP154CEH 1.5HP Model: 88150T Description Description Base Main Spindle Lower Bracket Main Housing Whasher 1/4” Dust Drum Philp HD Screw M6 * 10 Round Collector Philp HD Screw M5 * 8 Reducing Collector Lower Bracket Fixing Plate...
- Page 11 EXPLODED DIAGRAMS/LISTS - AP154CEH 1.5HP Model: 88150T...
- Page 12 EXPLODED DIAGRAMS/LISTS - AP176CEH 2HP Model: 88200T Description Description Main Spindle Base Lower Bracket Leg (longer) Whasher 1/4” Main Housing Philp HD Screw M6 * 10 Dust Drum (Tall) Philp HD Screw M5 * 8 Round Collector Lower Bracket Fixing Plate Reducing Collector Philp HD Screw M5 x 15 Housing top cover...
- Page 13 EXPLODED DIAGRAMS/LISTS - AP176CEH 2HP Model: 88200T...
- Page 14 EXPLODED DIAGRAMS/LISTS - AP357CEH 3HP Model: 88300TA Description Description Base Copper Plate Stand Special Washer Main Housing Lever Handle Dust Drum Connecting Plate Collector Plastic Washer Reducing Collector Lock Nut 5/16” Housing Cover Washer 5/16” Canister Filter Hex Bolt 5/16” x 1-1/2” Drum Lid Hex Bolt 5/16”...
- Page 15 EXPLODED DIAGRAMS/LISTS - AP357CEH 3HP Model: 88300TA...
- Page 16 The packaging is suitable for recycling. Please dispose of it in a responsible manner. EU Countries Only Do not dispose of electric tools together with household waste material. By law they must be collected and recycled separately. Axminster Tools, Axminster Devon EX13 5PH axminstertools.com...
