Summary of Contents for Axminster UB-803

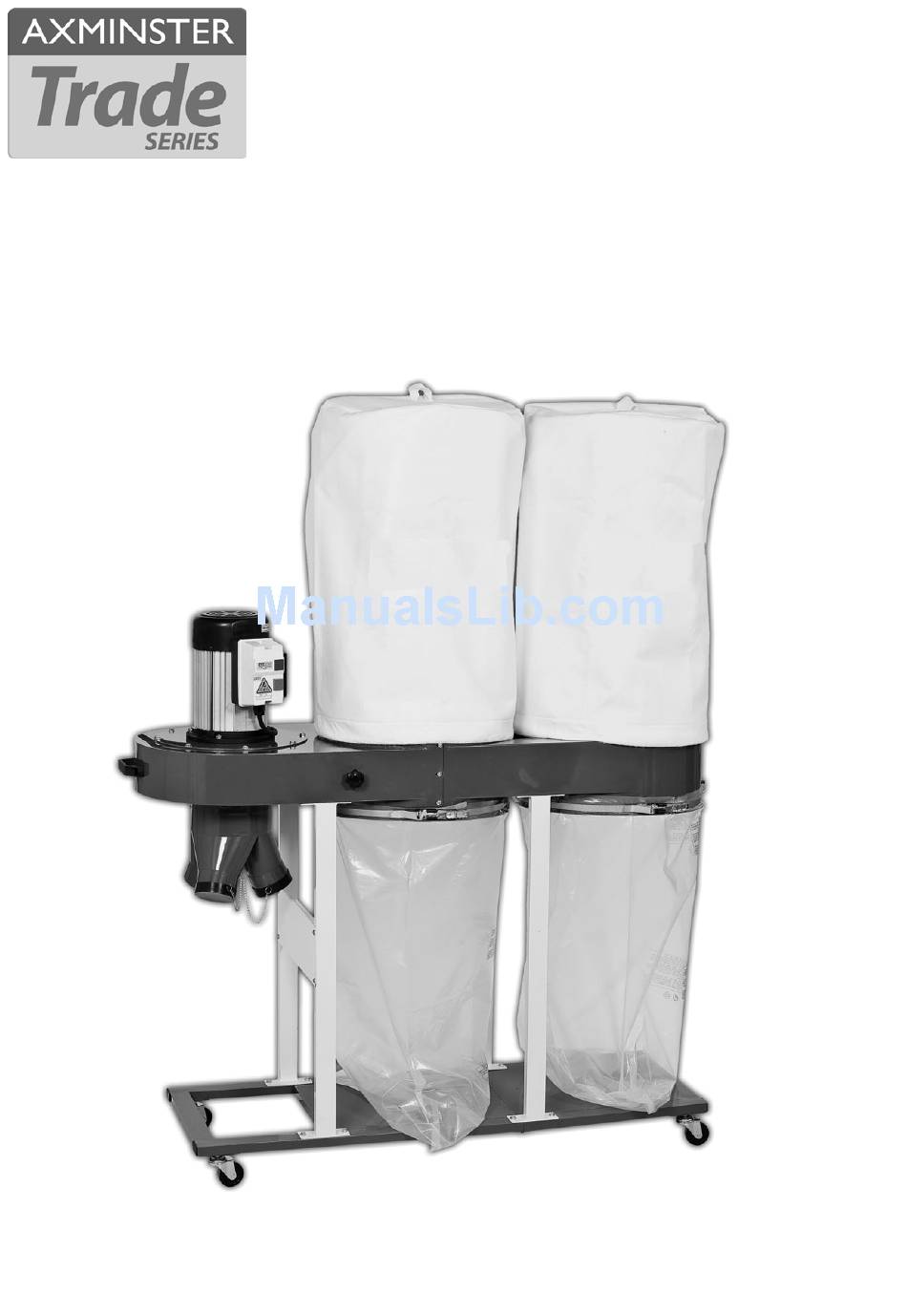

- Page 1 Code: 501217 UB-803 Extractor Axminster Tool Centre, Unit 10 Weycroft Avenue, Axminster, Devon EX13 5PH www.axminster.co.uk...
-
Page 3: Table Of Contents
CONTENTS IMPORTANT SAFETY RULES-------------------------------------------------------------- IMPORTANT SAFETY RULES FOR DUST COLLECTORS--------------------------- GROUNDING INSTRUCTIONS------------------------------------------------------------- SPECIFICATIONS------------------------------------------------------------------------------ UNPACKING CONTENTS-------------------------------------------------------------------- HARDWARE PACKAGE---------------------------------------------------------------------- ASSEMBLY INSTRUCTION----------------------------------------------------------------- EXPLODED DIAGRAM---------------------------------------------------------------------- PARTS LIST-------------------------------------------------------------------------------------- • WARNING! Please read this manual carefully before assembly, testing and operating. • WARNING! Do not operate this unit until hose or pipe is installed onto the dust inlet port. -
Page 4: Important Safety Rules For Dust Collectors
Wood working can be dangerous if safe and proper operating procedures are not followed. As with all machinery, there are certain hazards involved with the operation of the product. Using the machine with respect and caution will considerably lessen the possibility of personal injury. However, if normal safety precautions are overlooked or ignored, personal injury to the operator may result. -
Page 5: Grounding Instructions
WARNING: DO NOT pull the dust collector by the power cord. Basic precautions should always be followed when using your dust collector. To reduce the risk NEVER allow the power cord to come in contact with of injury, electrical shock or fire, comply with the safety sharp edges, hot surfaces, oil or grease. - Page 6 The appliance must be grounded, if it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having equipment-ground conductor and grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
-
Page 7: Specifications
Specifications: Motor----------------------------------------------------------------------------------------- 3HP/240V/50Hz/ 1 Phase AMP------------------------------------------------------------------------------------------------------------------ 16.1 A Motor Speed--------------------------------------------------------------------------------------------------- 3450 RPM Suction Capacity---------------------------------------------------------------------------------------------- 2300 CFM Static Pressure-------------------------------------------------------------------------------------------- 15 Inch H2O Impeller Size------------------------------------------------------------------------------------------------------------- 13” Inlet Size------------------------------------------------------------------------------------------------------------------- 8” Switch------------------------------------------------------------------------------------------------------ Magnetic Switch N.W. BOX 1------------------------------------------------------------------------------------------------------ 58 KGS BOX 2------------------------------------------------------------------------------------------------------ 8.6 KGS G.W. BOX 1------------------------------------------------------------------------------------------------------ 62 KGS BOX 2------------------------------------------------------------------------------------------------------ 10.3 KGS CUFT BOX 1------------------------------------------------------------------------------------------------------ 12.4’... -
Page 8: Unpacking Contents
UNPACKING & CHECKING CONTENTS: A：Impeller Housing H : Belt Clamp B： Collector Housing I : PE Bag C： Left Stand J : 5 Micron Filter Bag D：Right Stand K : Hanger E： Base L : Wheel F： Inlet Adaptor M : Stiffening Plate G：Handle... -
Page 9: Hardware Package
Hardware package: Description Specification Q’TY Part List No. Button Head screw 1/4”*1/2” NO.36 Flange Bolt 5/16”*1/2” NO.35 Flange Bolt 1/4”*1/2” NO.17 Phillips Head Screw 3/16”*3/8” NO.8 Countersunk Phillips 1/4”*5/8” NO.34 Head Screw Open Wrench 10*12 NO.29 Allen Wrench NO.30... -
Page 10: Assembly Instruction
ASSEMBLY INSTRUCTION STEP1. Secure Wheel (No.15) on Base (No.14) as Fig.1 (FIG.1) STEP2-1. Secure the bottom part of Right Stand and Left Stand on Base (No.14) with Flange Bolt 5/16”*1/2” (No.35). STEP2-2 Secure the Stiffening Plate on both side of Right and Left Stand with Flange Bolt 1/4”*1/2”... - Page 11 STEP4. Assemble the upper part of Right and Left Stand on Impeller Housing with Flange Bolt 5/16”*1/2” (No.35) (FIG.4) STEP4-1. Assemble PE Bag (No.11) under Impeller Housing and tighten it with Belt Clamp (No.10) as Fig. 4A STEP4-2. Assemble the Hanger (No.13) on Collector Housing as Fig.4A STEP4-3.
- Page 12 STEP5-1. Assemble the 5micron Filter Bag (No.12) on upper of Collector Housing and tighten with Belt Clamp(No.10) STEP5-2. Secure the Handle (No.16) on front of Collector Housing With Countersunk Phillips Head Screw 1/4”*1/2” (No.34) (FIG.5)
-
Page 13: Exploded Diagram
EXPLODED DIAGRAM----... -
Page 14: Parts List
Part List Description Specification Q’TY Motor 5/16” Lock Washer 5/16” 25*50 Motor Plate Left Stand Right Stand Inlet Adapter 8”*4”*3holes Phillips Head Screw 3/16”*3/8” Collector Housing Belt Clamp PE Bag 5 micron Filter Bag ㄇ type Hanger Base Wheel Handle Flange Bolt 1/4”*1/2”... - Page 15 Button Head Screw 1/4”*1/2” Impeller Housing Lock Nut 5/16” Screw 5/16”*70 5/16” Phillips Head Screw 3/16”*3/4”...
- Page 18 Please dispose of packaging for the product in a responsible manner. It is suitable for recycling. Help to protect the environment, take the packaging to the local recycling centre and place into the appropriate recycling bin. Only for EU countries Do not dispose of electric tools together with household waste material.
