Summary of Contents for Axminster AP50E

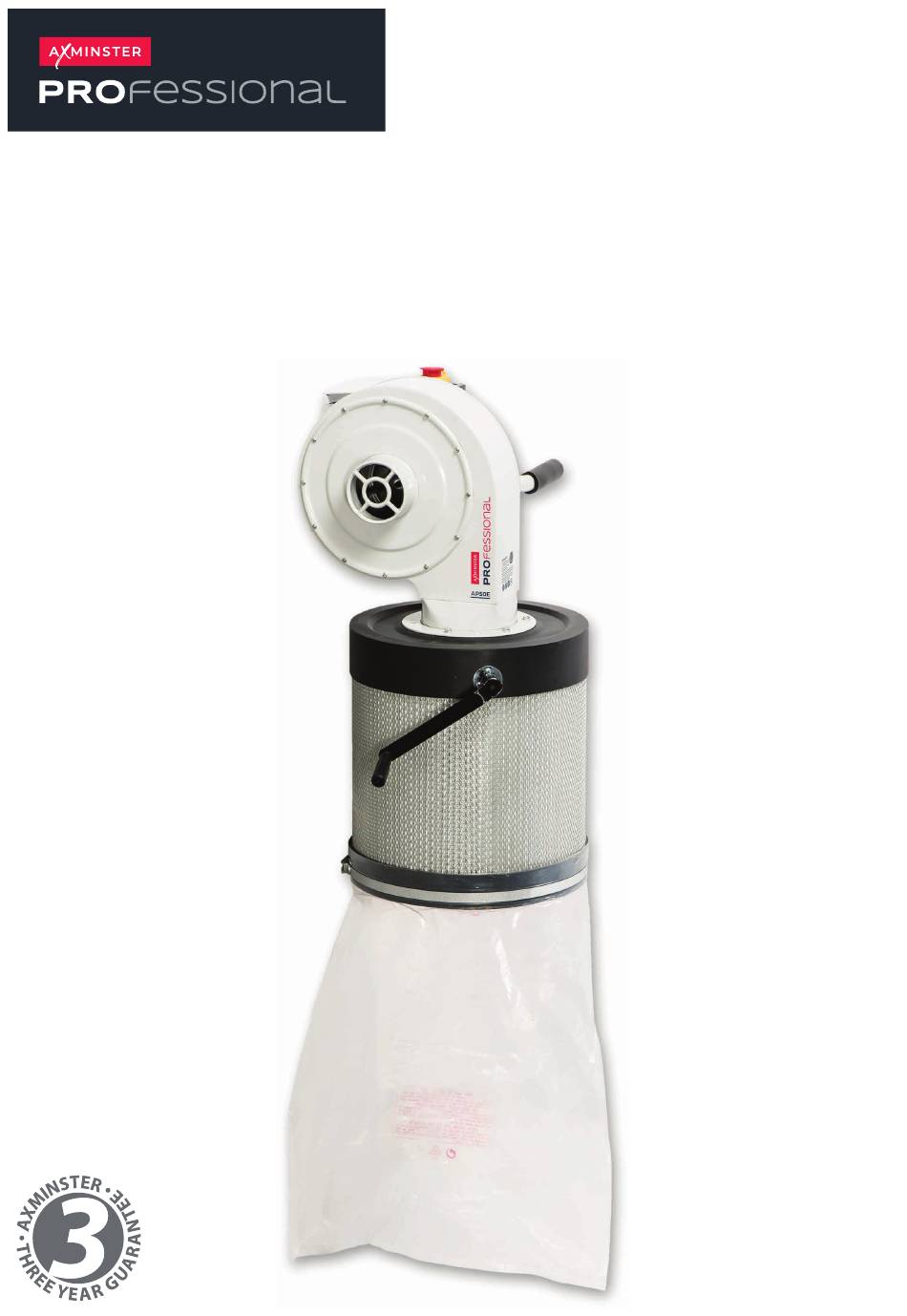

- Page 1 Code 107631 AP50E Wall Mounted Extractor AT: 21/02/2022 BOOK VERSION: 7...
-
Page 2: Eu Declaration Of Conformity
Extraction Accessories Exploded Diagrams/Parts List 17-18 Wiring Diagram EU DECLARATION OF CONFORMITY Cert No: CT-50 EU Declaration of Conformity Axminster Tool Centre Ltd This machine complies with the following directives: Axminster Devon EX13 5PH UK axminstertools.com 2006/42/EC EN ISO 12100-1:2003+A1:2009... -
Page 3: What's Included
WHAT’S INCLUDED Quantity Item Part Model Number AP50E Wall Mounted Extractor 1 No Extractor Assembly 1 No Filter Assembly 1 No Wall Mounted Bracket 1 No Filter Shaker Paddle Operating Handle 1 No Filter Bag Retaining Belt 1 No Filter Dust Bag... -
Page 4: General Instructions For 230V Machines
GENERAL INSTRUCTIONS FOR 230V MACHINES If the work you are carrying out is liable to generate flying Good Working Practices/Safety grit, dust or chips wear the appropriate safety clothing, The following suggestions will enable you to observe good goggles, gloves, masks etc. If the work operation appears to working practices, keep yourself and fellow workers safe and be excessively noisy, wear ear-defenders. -
Page 5: Specification
ONLY USE DUST EXTRACTION BAGS DO NOT PLACE DUST EXTRACTION WITH THIS MACHINE NOT DOMESTIC BAGES OVER THE FILTER ASSEMBLY! WASTE BAGES! SPECIFICATION Code 107631 Model AP50E Rating Professional Power 750W 230V 1ph Air Flow 920m³/hr @100 mm Noise Level 75 dbA... - Page 6 ASSEMBLY Having unpacked the boxes, put all components where they are readily to hand. Extractor/Filter Assembly 1. Locate the extractor unit (1), Filter (2) and six M6x19mm Hex bolts (7), see fig 01-02 . 2. Line up the six pre-drilled holes in the filter assembly (2) with the ones machined into the extractor outlet housing and secure both units together using the six M6 Hex bolts (7), see fig 03-04-05.
- Page 7 ASSEMBLY Filter Dust Bag Mounting the Extractor to the Wall Before mounting the extractor assembly make sure you allow 1. Locate the filter retaining belt (5) and dust bag (6). sufficient clearance and height to comfortably operate the NVR’s control switch and shaker paddle operating handle. 2.
- Page 8 ASSEMBLY NOTE: YOU WILL REQUIRE ASSISTANCE FOR THE NEXT STEP! 4. With assistance lift the extractor assembly up and hook the angle bracket, mounted to the underside of the motor assembly down over the wall mounting bracket (3), see fig 15. Fig 15 Angle bracket Extraction Hose (NOT Supplied)
-
Page 9: Machine Footprint
MACHINE FOOTPRINT 495mm 1,470mm 1,470mm 1,650mm 180mm Workshop Floor... -
Page 10: Illustration And Parts Description
ILLUSTRATION AND PARTS DESCRIPTION Extractor assembly Motor assembly Tube handle Dust extraction Shaker paddle operating handle Filter Bag retaining belt Filter dust bag... - Page 11 ILLUSTRATION AND PARTS DESCRIPTION NVR switch assembly with emergency stop shroud Fan housing Angle bracket Power cable Motor vents Emergency stop “SLAP” the shroud down to “STOP” the machine Filter bag retaining belt Shaker paddle operating handle NVR control switch assembly with emergency stop shroud...
- Page 12 IF THE EXTRACTOR FAILS TO START UP OR THERE ARE ANY STRANGE NOISES APART FROM VIBRATION SOUNDS, CONTACT “TECHNICAL AFTER SALES” FOR SUPPORT. Phone: 03332 406406 Email: technical@axminster.co.uk Reduced Suction Performance After a period of time dust, sawdust and shavings can build-up causing blockages and reduced suction performance.
-
Page 13: Ducting System
DUCTING SYSTEM General Infomation Many manufacturers will state the volume of air required for each machine in their manual. If not, note the size of the extraction port and use the chart below outlet size volume of air required 200 m³/hr 700 m³/hr 1100 m³/hr Basic design... - Page 14 WEEKLY LEV SYSTEM MAINTENANCE LOG REMOVE AND CLEAN FILTERS REMOVE AND CLEAN FILTERS...
- Page 15 WEEKLY LEV SYSTEM MAINTENANCE LOG REMOVE AND CLEAN FILTERS REMOVE AND CLEAN FILTERS Nearly 14 months it is now a legal requirement to have your system tested and certified...
- Page 16 EXTRACTION ACCESSORIES Extraction Accessories For all of our accessories please see our catalogue or visit our website at axminster.co.uk. Contact us on: Call: 03332 406406 Web: axminstertools.com...
- Page 17 EXPLODED DIAGRAMS/PARTS LIST...
- Page 18 EXPLODED DIAGRAMS/PARTS LIST Description Round HD Screws M5x15mm Canister Filter Flat Washers 1/4”x18 Main Spindle Round HD Screws M6x12mm Bearing Fixing Plate Flange Screw 1/4”x1/2” Connecting Spindle Hex Bolt 1/4”x1/2”mm Bevel Gear Flange Screw 1/4”x3/4” Self-lubricating Bearings Round HDScrews M5x8mm Main Housing PE bag 58x76cm Inlet Cover...
-
Page 19: Wiring Diagram
WIRING DIAGRAM... - Page 20 The packaging is suitable for recycling. Please dispose of it in a responsible manner. EU Countries Only Do not dispose of electric tools together with household waste material. By law they must be collected and recycled separately. Axminster Tools, Axminster Devon EX13 5PH axminstertools.com...
