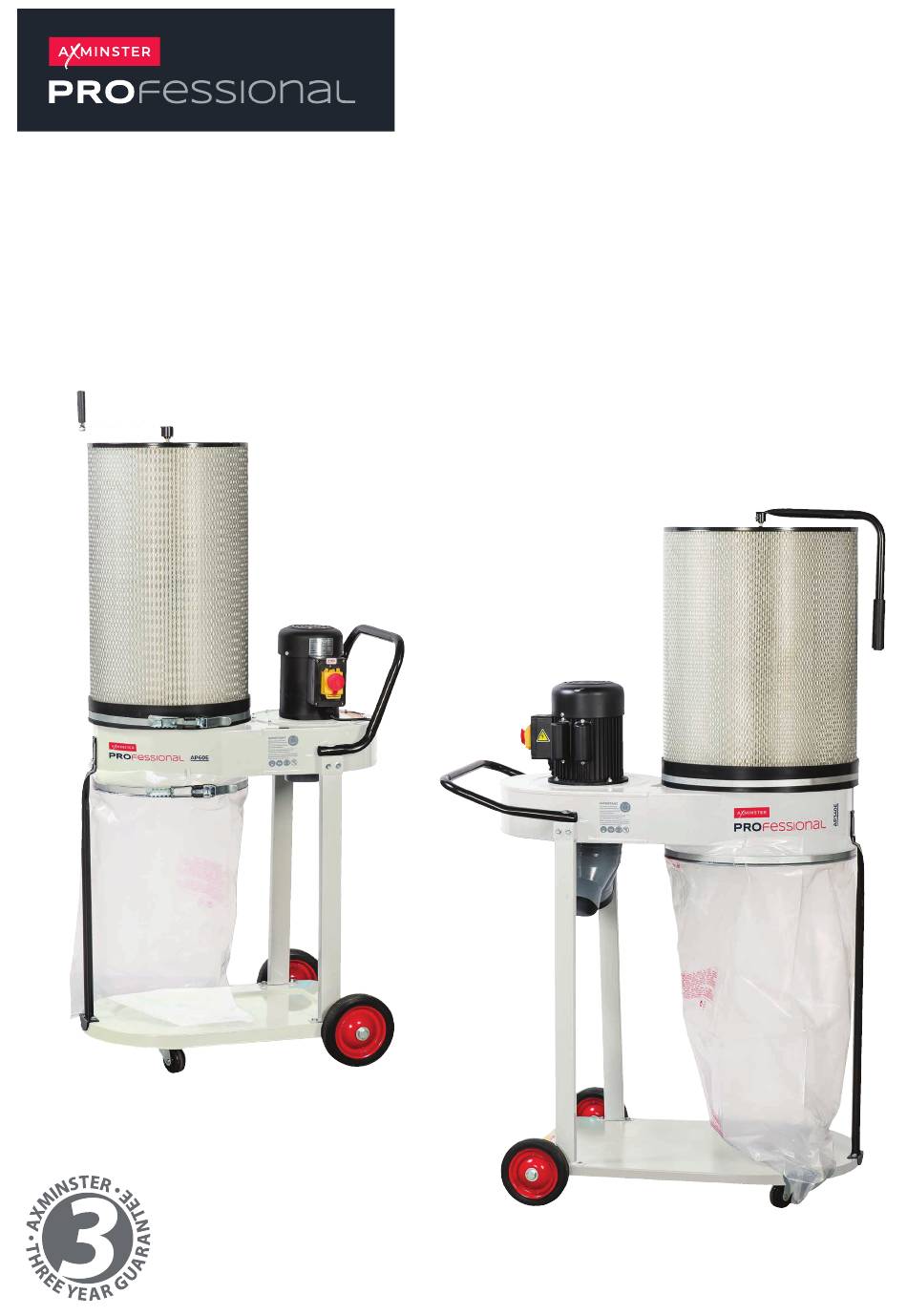

- Page 1 AP60E Code 107632 AP170E Code 107633 Original Instructions AP60E & AP170E Extractors AP60E AP170E AT: 08/02/2022 BOOK VERSION: 6...
-
Page 2: Eu Declaration Of Conformity
Exploded Diagrams/Parts Lists 24-25-26-27-28-29 Wiring Diagram Notes 30-31 EU DECLARATION OF CONFORMITY Cert No: CT-90H, CT-90HB EU Declaration of Conformity Axminster Tool Centre Ltd This machine complies with the following directives: Axminster Devon EX13 5PH UK axminstertools.com 2006/42/EC EN ISO 12100-2:2003+A1:2009 2006/95/EC... -
Page 3: What's Included
WHAT’S INCLUDED Model Number AP60E Model Number AP170E Quantity Item Part Quantity Item Part 107632 107633 Base Base Tube Support Bar Tube Handle Upright Supports Upright Support Tube Handle Tube Support Bar Filter Dust Bag Inlet Manifold Filter Assembly 1Filter Dust Bag Foam Seal Bands Filter Bag Retaining Belt Filter and Bag Retaining Belts... - Page 4 WHAT’S INCLUDED AP60E Extractor...
- Page 5 WHAT’S INCLUDED AP60E Extractor AP170E Extractor Continues Over..
- Page 6 WHAT’S INCLUDED AP170E Extractor...
- Page 7 GENERAL INSTRUCTION FOR 230V MACHINES The following will enable you to observe good working • Always disconnect by pulling on the plug body and not the practices, keep yourself and fellow workers safe and maintain cable. your tools and equipment in good working order. •...
-
Page 8: Specification
SPECIFICATION Code 107632 Code 107633 Model AP60E Model AP170E Rating Professional Rating Professional Power 0.75kW 230V 1ph Power 1.5kW 230V 1ph Air Flow 850 m³/h at 100 mm Air Flow 2,250 m³/hr at 175 mm, Noise Level 1 Meter (Distance) 77.6dB 1,200 m³/hr at 100 mm 3 Meter (Distance) 73.3dB Noise Level... - Page 9 ASSEMBLY Having unpacked the boxes, put all components where they are readily to hand. 1. Locate the base (1-14), twelve UNC short bolts (12j - 27i) and upright supports (3-16). Place one of the supports (3-16) on to base and line up the pre-drilled holes with the ones to the side of the base, lightly secure in place with two UNC bolts, see fig 01-02-03.
- Page 10 ASSEMBLY 5. Locate a further two UNC short bolts (12j) and secure the 8. Lower the assembly down to the floor, note you may require front support bar (2) to the extractor assembly (13). Secure the assistance as the motor assembly is heavy. support bar (17) to the extractor (28) with two UNC Hex bolts long (n) , see fig 11-12.
- Page 11 ASSEMBLY Fig 18 Fig 21-22 of one of the wheels, see fig 17. Turn the wheel over and place a nylon washer then a thin washer down over the thread of the Hex bolt, see fig 18. 3. Lower the wheel assembly down and slot the hex bolt through the pre-drilled holes to the side of the extractor’s base, see fig 19.
- Page 12 ASSEMBLY Dust Deflector (AP170E ONLY) NOTE: Make sure the bracket is angled down wards. 1. Locate the dust defector and bracket (29), three Hex bolts (l) (short) and three 5/16" nuts (m). Line up the three holes in Fig E-F-G-H the angle bracket with the pre-drilled holes in the deflector.
- Page 13 ASSEMBLY Extractor Filter 1. Locate the filter assembly ( 6-26) filter retaining belts (8-24) and foam seal bands (7-25). 2. Put to hand the wide foam seal band, peal back the paper Fig 28 backing, position the end of band up against the underside of the upper lip on the extractor housing and firmly press down to secure in place.
- Page 14 ASSEMBLY Fig 31 Shaker Paddle Operating Handle 1. Locate the shaker paddle (9-23), insert the handle mounting over the paddle drive shaft making sure the clamping bolt is positioned over the machined face then tighten the bolt using the supplied spanner to secure the handle, see fig 36-37-38. Fig 36-37-38 Fig 32 7.
-
Page 15: Illustration And Parts Description
ILLUSTRATION AND PARTS DESCRIPTION Shaker paddle operating handle Filter Motor assembly Tube handle NVR switch assembly Filter retaining belt Extractor assembly Bag retaining belt Upright supports Tube support bar Wheels Base AP60E Filter dust bag... - Page 16 ILLUSTRATION AND PARTS DESCRIPTION NVR switch assembly with (O) indicating Shaker paddle assembly (OFF) and (I) indicating (ON). For emergencies “SLAP” the shroud Dust extraction outlet down to “STOP” the machine. Motor vents Filter and dust bag and retaining steel belts...
- Page 17 ILLUSTRATION AND PARTS DESCRIPTION Shaker paddle operating handle Motor assembly Filter NVR switch assembly Extractor Filter assembly retaining belt Bag retaining belt Tube handle Upright supports Filter dust bag Base Wheels AP170E...
- Page 18 ILLUSTRATION AND PARTS DESCRIPTION NVR switch assembly with (O) indicating Filter bag retaining steel belt clip (OFF) and (I) indicating (ON). For emergencies “SLAP” the shroud Bag hook to hold the dust bag in place when fitting the retaining steel belt down to “STOP”...
- Page 19 OPERATING INSTRUCTIONS • Check the hoses for blockages Testing the Extractor Connect the extraction hose/s to the adaptor outlet. • Check the dust bag and empty if full, see fig 43-44. WARNING!! MAKE SURE CHILDREN ARE KEPT AWAY FROM THE EXTRACTOR WHILE IN Fig 41-42 OPERATION.
-
Page 20: Ducting System
DUCTING SYSTEM DUCTING SYSTEM Gerneral Info Many manufacturers will state the volume of air required for each machine in their manual. If not, note the size of the extraction port and use the chart below outlet size volume of air required 200 m³/hr 700 m³/hr 1100 m³/hr... - Page 21 WEEKLY LEV SYSTEM MAINTENANCE LOG REMOVE AND CLEAN FILTERS REMOVE AND CLEAN FILTERS...
- Page 22 WEEKLY LEV SYSTEM MAINTENANCE LOG REMOVE AND CLEAN FILTERS REMOVE AND CLEAN FILTERS Nearly 14 months it is now a legal requirement to have your system tested and certified...
- Page 23 LEV TESTING Why should I bother with LEV? Ref Code: HSG258 The book above provides guidance on the supply of The law says you must control the risks from these substances local exhaust ventilation (LEV) equipment. It describes the (the Control of Substances Hazardous to Health (COSHH) principles and good practice of deciding on, designing, com- Regulations).
- Page 24 EXPLODED DIAGRAMS/PARTS LISTS AP60E...
- Page 25 EXPLODED DIAGRAMS/PARTS LISTS AP60E DESCRIPTION Lock Nut 1/2” Motor Hex Bolt 5/16” x 1/2” Motor Plate Cap Screw M6 x 20 Handle Tube Cap Base Collector Support Manin Housing Canister Filter Unit Plastic Washer Hex Bolt 1/2” x 4” Round HD screw M5 x 10 Bearing Wheel 7”...
- Page 26 EXPLODED DIAGRAMS/PARTS LISTS AP170E...
- Page 27 EXPLODED DIAGRAMS/PARTS LISTS AP60E Filter Assembly AP170E Filter Assembly Continues Over..
- Page 28 EXPLODED DIAGRAMS/PARTS LISTS AP60E Filter Parts List DESCRIPTION Washer 1/4” x 18 Canister Filter Flapper Spindle Hex Bolt M6 x 10 Bearing Fixing Plate Belt Clamp CK-370 Bearing Foam Strip 5 x 32 x 1200 Round HD Screw M 5 x 8 Sponge 10 x 15 x 1200 Lower Fixing Plate Foam Strip 4 x 20 x1200...
-
Page 29: Wiring Diagram
EXPLODED DIAGRAMS/PARTS LISTS Deflector Assembly DESCRIPTION PART NO Separator 037-0599 Separator Hanger 045-0141 5/16” Hex Nut 004-0904 5/16”x 1/2’’ Flange Bolt 004-0481 5/16”x 3/4’’ Flange Bolt 004-0483 WIRING DIAGRAM... - Page 30 NOTES...
- Page 31 NOTES...
- Page 32 The packaging is suitable for recycling. Please dispose of it in a responsible manner. EU Countries Only Do not dispose of electric tools together with household waste material. By law they must be collected and recycled separately. Axminster Tools, Axminster Devon EX13 5PH axminstertools.com...
